| Brand | Blackmagic Design |
|---|---|
| MPN | BMD-SWATEMMINICEXTISOG2 |
| Model | Blackmagic Design SWATEMMINICEXTISOG2 |
| Type | Switcher |
| Available M/E Layers | 9 M/E |
| Effect Types | 2x DVE 4x Luma Key 4x Chroma Key |
| Graphics Memory | 20 Images |
| Downstream Keys | 2x Chroma, Luma, DVE |
| Generators | 5x Pattern 2x Color |
| Audio Mixing | 2-Channel Mixing |
| Switching Type | Pushbutton, Software |
| Processing Resolution | 1080p |
| Number of Video Input Sources | 8 |
| Video Inputs | 8x HDMI |
| Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Audio Inputs | 2x XLR 3-Pin Mono Analog Female 1x BNC Female |
| Input Audio Format | Analog |
| Embedded Audio Input | HDMI: 2-Channel (per Input) |
| Video Output Channels | 2 |
| Video Outputs | 3x HDMI Female |
| Output Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 |
| Audio Outputs | 1x 1/4 TRS Stereo Analog Female |
| Embedded Audio Output | HDMI: 2-Channel |
| Multiview Output | 16-Way Multiview via HDMI |
| Other I/O | 2x RJ45 LAN Input/Output 2x USB-C Output 1x Thunderbolt 3 Output |
| HDCP Support | No |
| IP Video | H.264: 1920 x 1080 Encoding |
| Transport Protocols | RTMP |
| Simultaneous Streams | 1 Streams |
| Recording Modes | 1920 x 1080p up to 60 fps (MP4) |
| OS Compatibility | macOS 14 or Later / Windows 10 or Later |
| Wireless | No |
| Power I/O | 1x Barrel (12 VDC ) Input |
| Operating Conditions | 41 to 104°F / 5 to 40°C up to 70% Humidity |
| Storage Conditions | 14 to 140°F / -10 to 60°C |
| Dimensions | 16.3 x 7.35 x 1.97 / 41.4 x 18.67 x 5 cm |
| Weight | 4.09 lb / 1.86 kg |
| UPC | 9338716009965 |

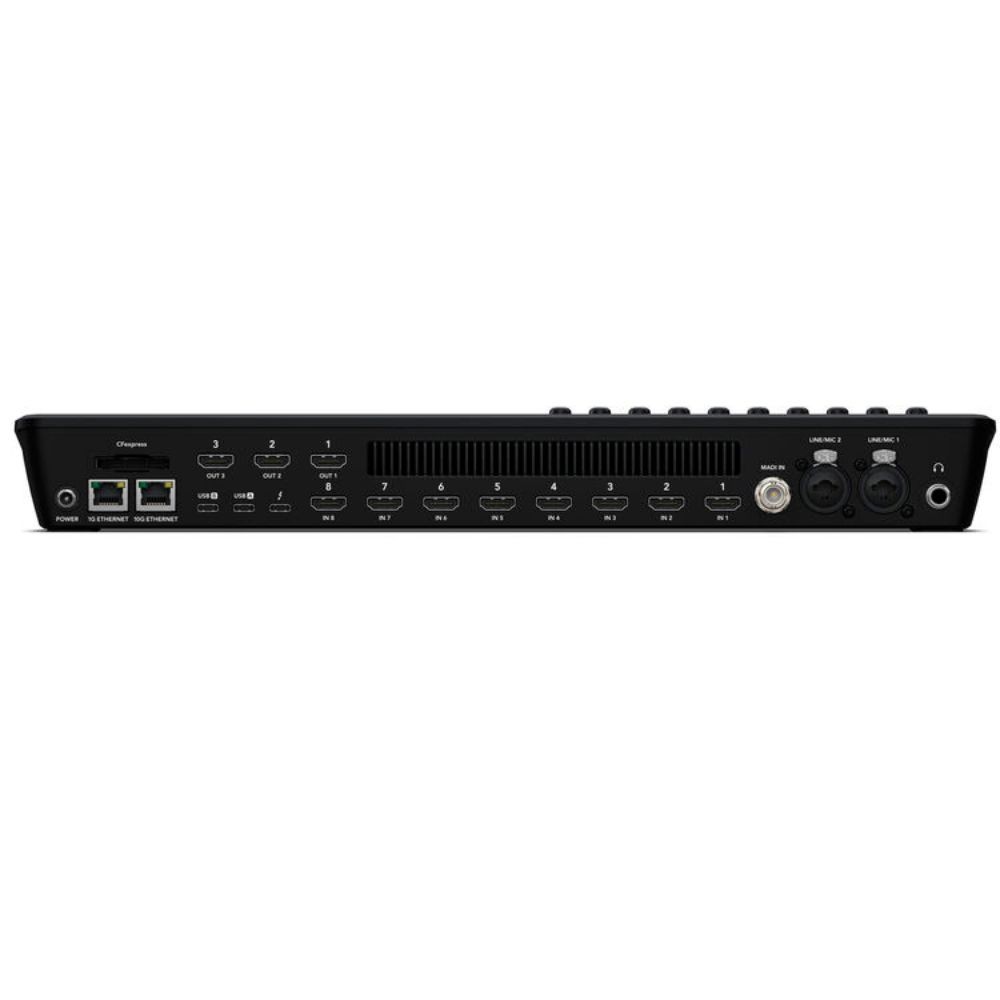

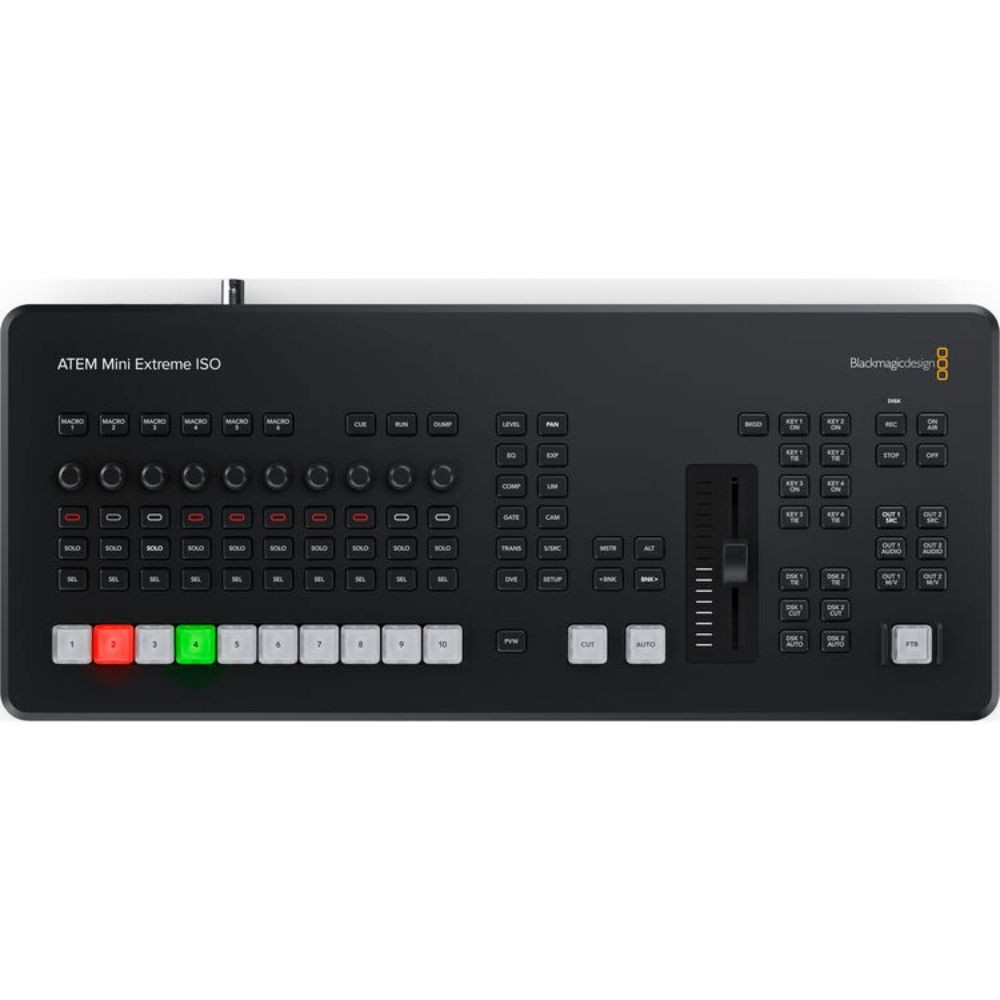

Check the listing for details. Blackmagic Design ATEM Mini Extreme ISO G2 Switcher. Condition: New. Listed at 2195.00 USD. Recording to multiple disks is also supported via a USB hub or Blackmagic MultiDock, so when a disk fills, recording can continue to a second disk for nonstop recording. Plus, ATEM Mini is so small the operator can even switch in small studios.
You may also like
$2589
Ross Vision 1 Video Mixer V1P-001 Vision Control Panel Production Video Switcher
$873.91
Blackmagic Design ATEM 2 M/E Production Studio 4K Switcher Tested Working
$85
CORECO IMAGING VIPER-DIGITAL XR-M130-18306/ Good working
$8.88
Aztec Deluxe Video Transfer System Convert Slides Prints Movies Tape Untested
$795
BVS Corp Masterkey Analog Downstream Linear Keyer
$650
Brand New, Never Used AJA K3G Breakout Box for Kona 4
$106.98
DMA6th Fuser HDMI/Display DMA Processor 4K@60Hz 2K144 1K240 Overlay Fusion Box
$49.95
Sony Roller Block, Assembly, S Drawer - A-6746-026-A
$119

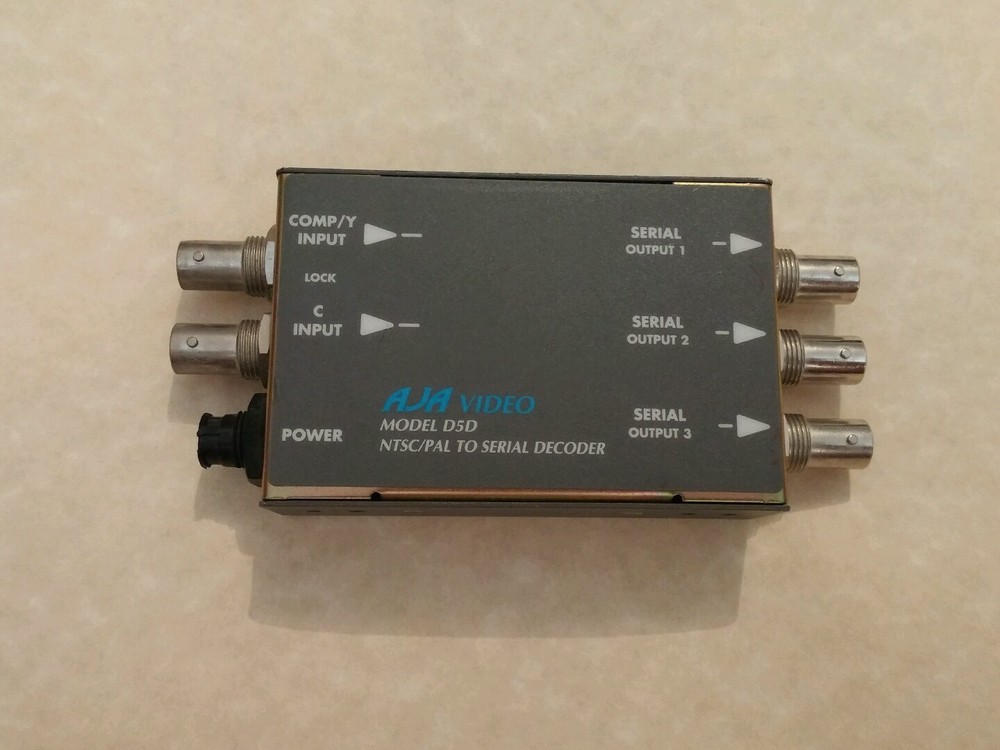

AJA D5D NTSC/PAL TO SDI Decorder
