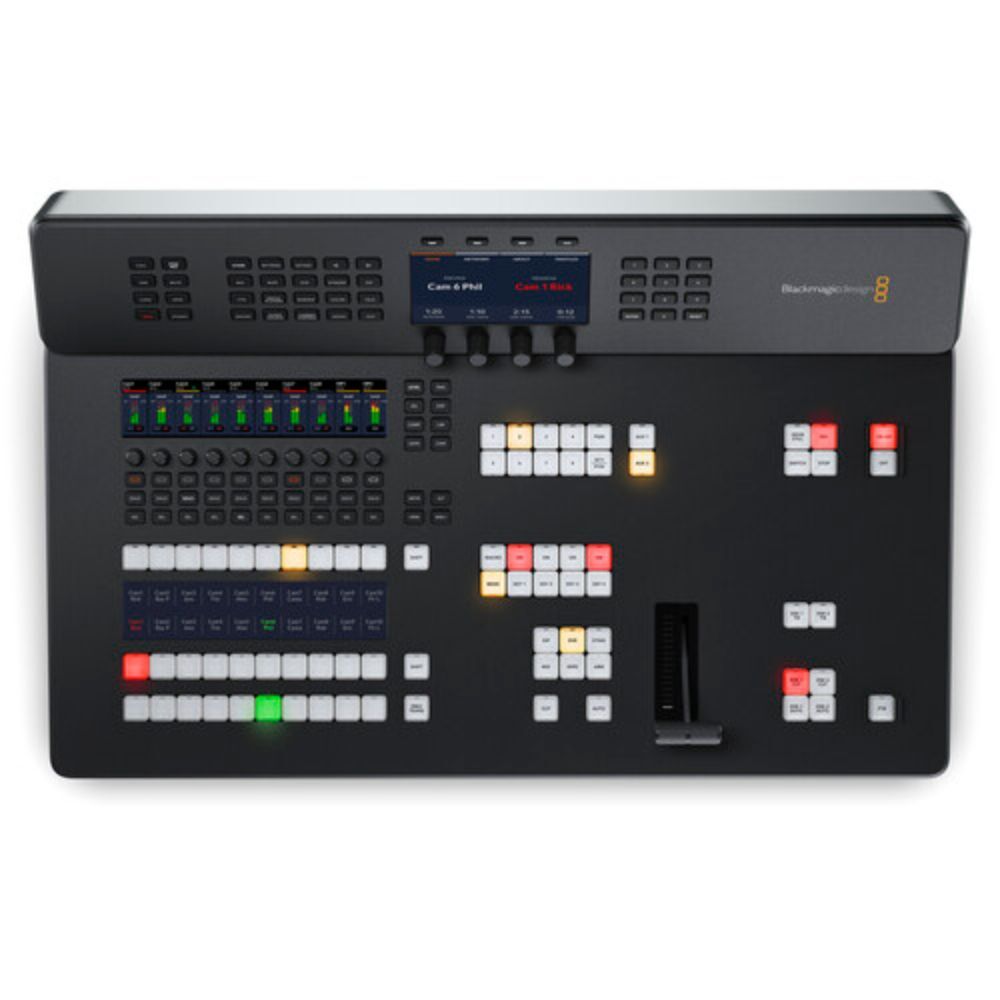

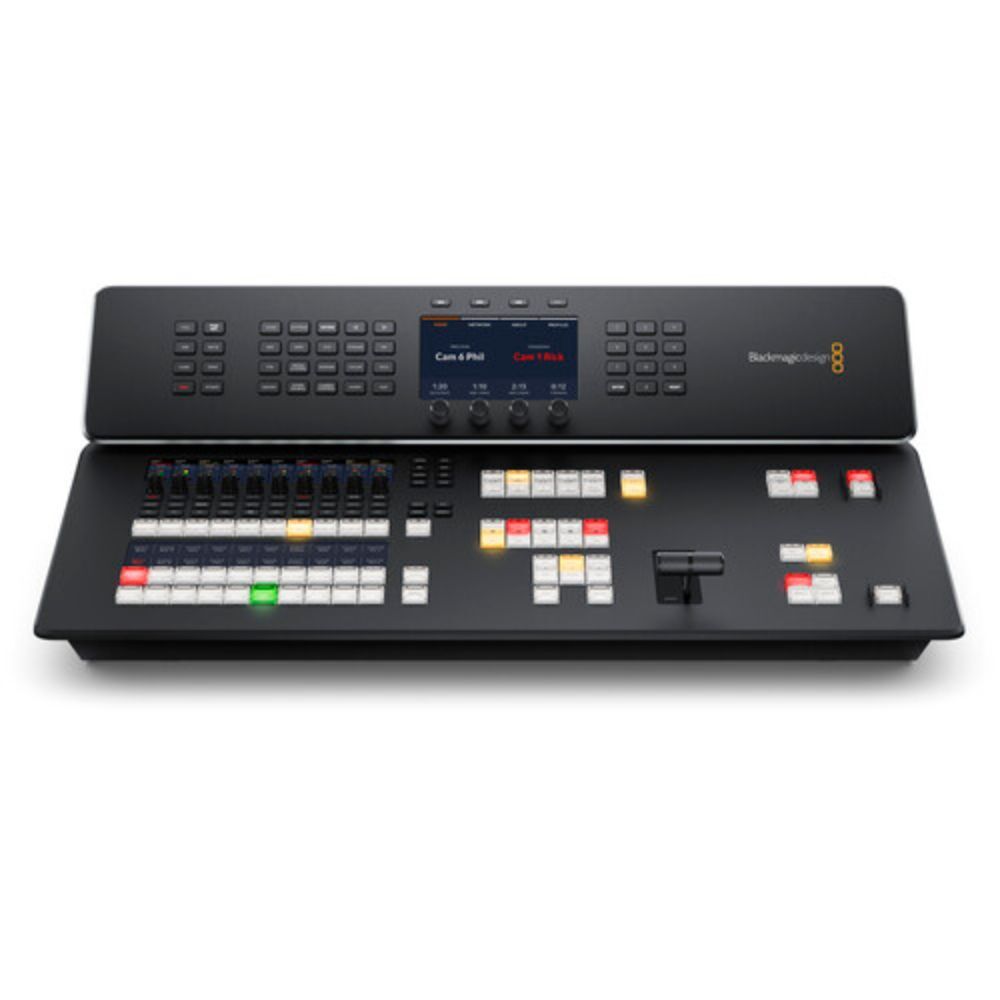

Blackmagic Design ATEM Television Studio HD8 ISO

Name: Blackmagic Design ATEM Television Studio HD8 ISO
SKU: 167428618535
Price: 4395.00 USD
Availability: InStock

$2,197.50

$4,395.00 -50%

Brand Blackmagic Design

Condition New

Item ID 167428618535

Brand	Blackmagic Design
MPN	BM-SWATEMTVSTC/HD08ISO
Type	Production Switcher
Model	Blackmagic Design BM-SWATEMTVSTC/HD08ISO
Available M/E Layers	4 M/E
Effect Types	1 x DVE, Stinger 4 x Chroma Key 7 x Luma Key
Downstream Keys	Downstream Keys
Generators	7 x Pattern 2 x Color
Audio Mixing	58-Channel Mixing
Switching Type	Pushbutton, Software, T-Bar
Processing Resolution	1080p at 60
Color Processing	10-Bit 4:2:2 RGB
Number of Video Input Sources	8
Video Inputs	8 x BNC (3G-SDI) Female
Input Video Format	SDI (10-Bit 4:2:2 RGB) 1080p at 23.98/24/25/29.97/30/50/60 fps 10
Audio Inputs	1 x BNC MADI Female 1 x 2RCA Stereo Analog Female 2 x XLR 3-Pin A
Embedded Audio Input	SDI
Video Output Channels	8
Video Outputs	8 x BNC
Output Video Format	SDI (10-Bit 4:2:2 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60
Audio Outputs	2 x 1/4 TRS Stereo Analog Female
Embedded Audio Output	SDI
Multiview Output	16-Way Multiview
Monitor Output	1 x HDMI
Other I/O	1 x BNC Reference Input 1 x BNC Reference Output 1 x BNC Timecode
Video Standard Compliance	SMPTE 292M/296M/424M/425M-A/425M-B
IP Video	H.264: 1920 x 1080 at 60p Encoding
Transport Protocols	RTMP, TCP/IP
OS Compatibility	macOS 12 to 13 or Later Windows 10 to 11 *As of February, 2023: Check with manufacturer for the most
Wi-Fi	None
Bluetooth	None
Power I/O	1 x IEC C14 (100 to 240 VAC) Input 1 x XLR 4-Pin (12 VDC) Input
Power Consumption	Device: 100 W
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	0 to 90%
Storage Humidity	0 to 90%
Dimensions	23 x 14.8 x 6.35 / 58.4 x 37.6 x 16.13 cm
UPC	9338716008050

Check the listing for details. Blackmagic Design ATEM Television Studio HD8 ISO. Condition: New. Listed at 4395.00 USD. Model Blackmagic Design BM-SWATEMTVSTC/HD08ISO. The switcher features an all-new button layout, and it's made from polycarbonate material, so it's much lighter than its predecessor. Generators 7 x Pattern 2 x Color.
