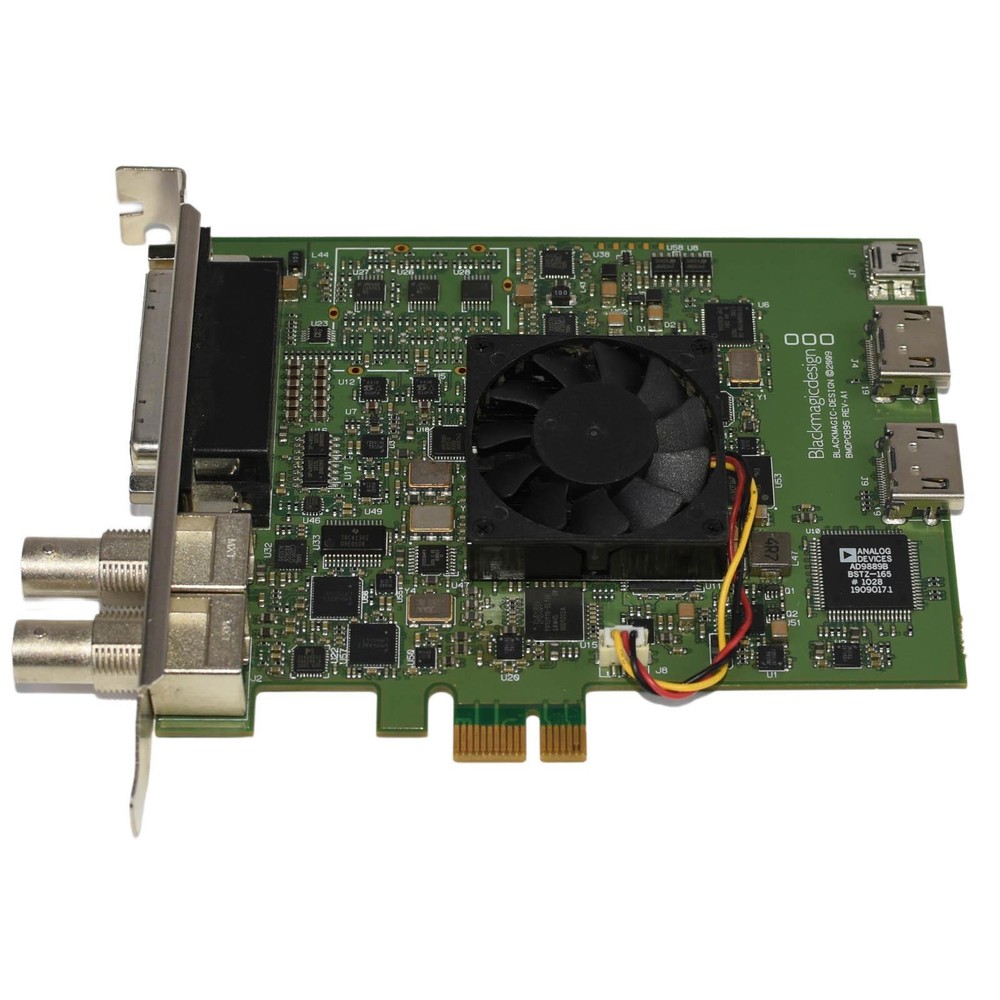

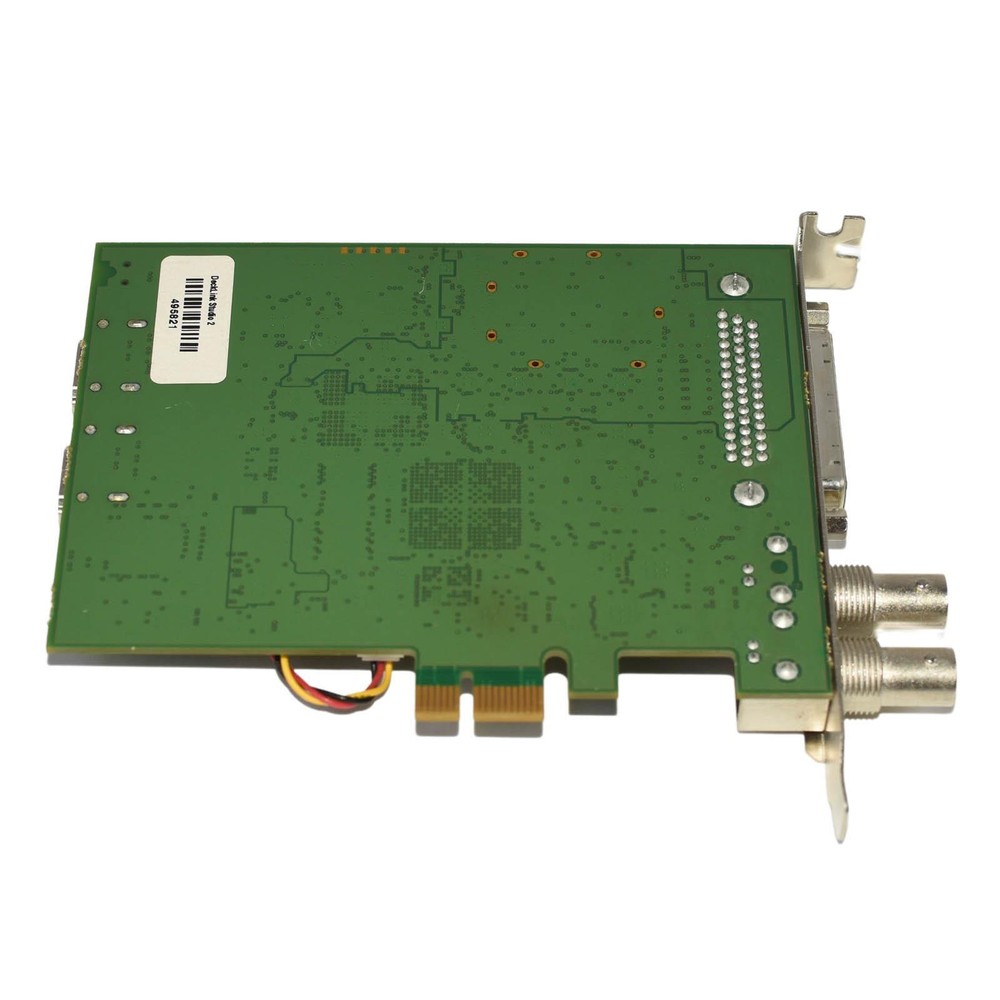

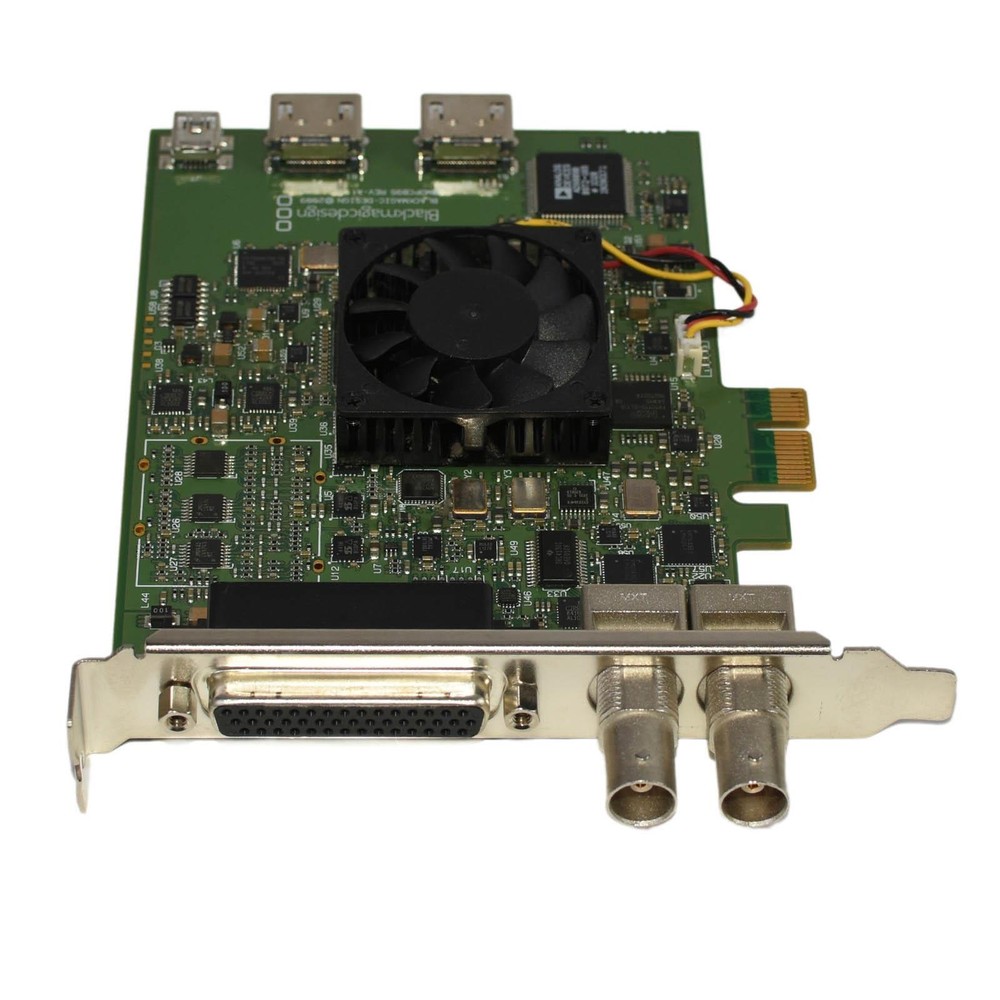

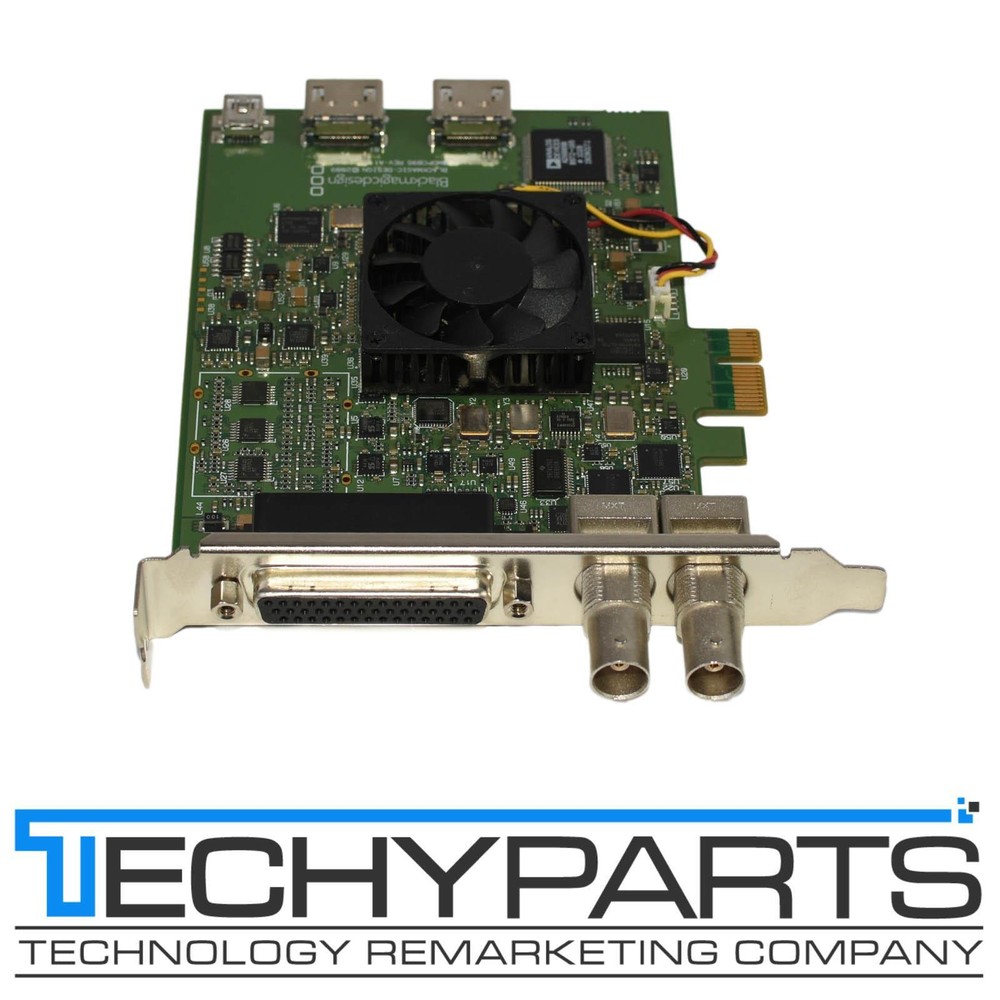

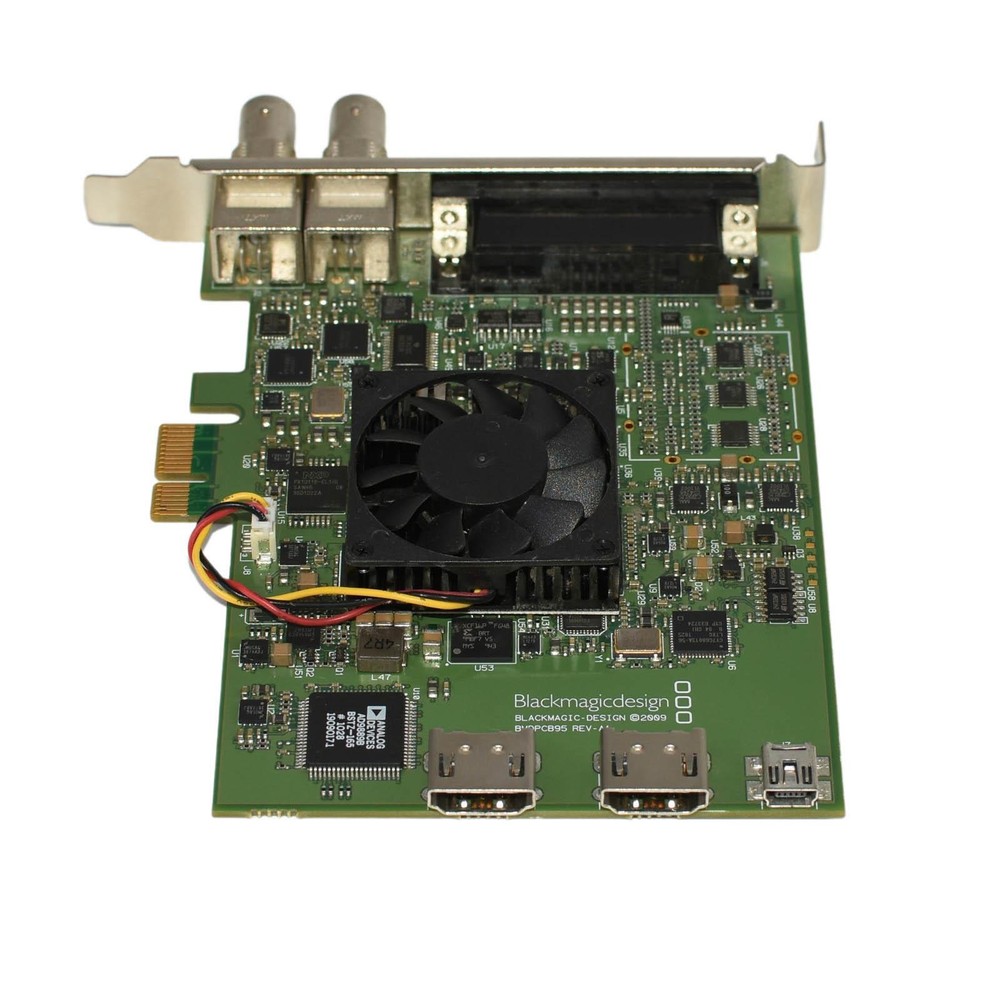

Check the listing for details. Blackmagic Design DeckLink Studio 2 SD/HD PCI-E Video Capture Card BDLKSTUDIO2. Condition: Used. Listed at 109.95 USD. HomeAboutPoliciesContact Store Categories Automation Conference Equipment Desktop Components Desktops and Workstations Electrical Electronics Hard Drives KVM Laptop Accessories Laptop Components Laptops Memory Network Equipment Point of Sale (POS) Power Backup and Management Printer Parts Printers Server Parts Servers Solid State Drives Storage Equipment Surveillance Equipment Telecom Equipment Telephone Parts Testing Equipment Vintage Store Newsletter Add TechyParts to your Favorites to receive our email newsletters about new items & special promotions. SIGN UP Blackmagic Design DeckLink Studio 2 SD/HD PCI-E Video Capture Card BDLKSTUDIO2 Product Description Blackmagic Design DeckLink Studio 2 SD/HD Broadcast Video PCI-E x1 Capture Card BDLKSTUDIO2 BMDPCB95 *** Missing Breakout Cable and HDMI Extension Cable Bracket *** Blackmagic Design P/N: BDLKSTUDIO2, BMDPCB95 Condition: Clean, tested pull - Guaranteed 100% working! Item sold as pictured, no cables or other accessories are included. 30-Day Warranty! Manufacturers description: The Blackmagic Design DeckLink Studio 2 is an HD/SD broadcast video capture card with an array of digital and analog video and audio connections. The connections are non-independent so only one can be used at a time. The outputs are all live, so any input can be routed through any output. HD/SD-SDI and HDMI inputs and outputs are integrated, and the rest of the connections are accessible via an included 3 ft breakout cable. The cable features Component BNC, S-Video, and Composite BNC video inputs and outputs, 1/4" analog audio and AES/EBU digital audio inputs/outputs, a sync input, an RS-422 deck control output, and an SD-SDI only output. The card features two PCI slot plates and takes up two slots, but it only connects into the motherboard through one slot. The reason for the second plate is to provide easier access to the cards HDMI input and output ports. The actual ports are on the rear of the card but are accessible on the second plate through cabling connecting the plate to the rear ports. This video card supports fully independent connections for SDI, HDMI, analog component, S-video, and composite video Audio connections include 4 channels of balanced analog audio, 8 channels of SDI audio, and 2 channels of AES/EBU digital with sample-rate converters Support for NTSC & PAL standards is included It features an RS-422 deck control The device offers blackburst and tri-sync reference input This unit is compatible with Windows, Mac, and Linux systems and 1, 4, 8 and 16 PCIe slots Features: Multi-Format Support Video & Audio Support RS-422 Deck Control Blackburst & Tri-Sync Reference Specifications: SDI Video Input: 1 x 10 bit SD/HD switchable SDI Video Output: 1 x 10 bit SD/HD switchable Supported Video formats: 525i NTSC, 625i PAL, 720HD and 1080HD SDI Audio Input: 8-channel embedded in SD and HD SDI Audio Output: 8-channel embedded in SD and HD Analog Audio Input: 4 channels of professional balanced analog audio via 1/4" jack connectors Analog Audio Output: 4 channels of professional balanced analog audio via 1/4" jack connectors. Channels 3 and 4 can switch to AES/EBU outputs HDMI Audio Input: 2 channels HDMI Audio Output: 2 channels HDMI Video Input: Direct HDMI connection supports HDMI capture from HDMI compatible cameras, set-top boxes, decks and video games HDMI Video Output: Direct HDMI connection supports HDMI digital compatible displays, such as a TV or video projector (includes both audio and video) HDMI Configuration: HDMI automatically configures to connected display HDMI Resolution: Pixel-for-pixel HD resolution input to connected device. Multiple Rate Support: Standard-definition SDI and high-definition SDI Sync Input: Blackburst in SD and 1080i50, 720p50, 1080i59.94, 720p59.94 HD formats. TriSync in all HD formats. Device Control: Sony compatible RS422 deck control ports Serial ports TxRx direction reversible under software control Settings Control: DeckLink System Preferences (Intel Mac OS X) DeckLink Control Panel (Windows) Updates: Firmware for cards built into software driver Loaded at system start, or via updater software Standards: HD Format Support: 1080PsF23.98/24, 1080i50, 1080i59.94, 720p50 and 720p59.94 SD Format Support: 625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC SDI Compliance: SMPTE 259M, 292/296M Video Sampling: 4:2:2 Color Precision: 4:2:2 10-bit Color Space: 4:2:2 YUV SDI Metadata Support: VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file. HD RP188 Audio Sampling: Television rate of 48kHz at 24 bit Card Type: PCI Express 1 lane, compatible with 1,4,8 and 16 PCIe slots Copy Protection: For legal reasons, capture devices from Blackmagic Design are designed not to capture, convert or transmit video or audio from copy-protected sources, e.g. video devices using HDCP Signal Processing: Colorspace Conversion: Hardware-based real time HD Down Conversion: Built-in hardware down conversion. High-quality down converter always outputs to SD-SDI, composite and S-video outputs when working in HD video formats. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles HD Up Conversion: Real-time up conversion from 720HD to 1080HD during video capture Real-Time Effects: Apple Final Cut Pro internal effects in DV, ProRes and uncompressed on Intel Mac OS X Adobe Premiere Pro internal effects in DV, MJPEG and uncompressed Payment We only accept PayPal as a method of payment. All credit card payments must be made through PayPal. We reserve the right to deny any payment that we consider fraudulent or suspicious. Payment must be received within 4 days of the date of purchase. Otherwise, if no contact has been established, the listing will be void and non-paying bidder (NPB) reported to eBay. Shipping All packages will be shipped the following business day after the payment is cleared via FedEx ground, FedEx SmartPost, USPS Parcel Post or USPS First Class with tracking information unless expedited or international shipping is requested. Please note, all UPS quoted rates will be substituted for equivalent FedEx service unless requested otherwise. For listings listed with free shipping option:We do not offer free shipping to Alaska, Hawaii and US territories. Buyers from Alaska, Hawaii and US territories please contact us for a shipping quote or choose USPS priority mail instead of the free shipping option. Any merchandise sent to another country may be subject to duty under the customs regulations of that country. We do not maintain or provide information concerning the assessment of customs duty. Custom duties, carrier customs clearance brokerage fees and import taxes may apply to international buyers and are not included in shipping and handling charges you pay to us. Returns All sales are final. All listed items are sold with a DOA warranty. This means if the item is dead on arrival, we will replace the item(s) or process a refund at our discretion. Unless otherwise noted, DOA warranty usually extends 30 days from the date you receive the product unless otherwise noted in our listing. About Us We are an established eBay seller with 20,000+ positive feedbacks. We buy and sells networking equipment, servers, workstations, laptops and and parts thereof. Storage solutions, power and testing equipment. We offer lowest prices on hard to find parts! Asset recovery and recycling services. Contact Us Open: Mo-Fri 10:00am - 07:00pm CST Due to eBay new policies we are not allowed to list our contact information, so if you have a question please use eBay messaging system to contact us. At the bottom of the listing there is a "Ask a question" link. If it doesn't work for you, our contact information is published on the world wide web. Please use you imagination and investigative skills. The truth is out there! Home • About • Policies • Contact Us Copyright © 2019 TechyParts, LLC. All rights reserved. | eBay Template Design by OCDesignsOnline
