| MPN | BMD-BDLKULSDMINI4K |
|---|---|
| Connections | : |
| SDI Video Inputs | 1 |
| SDI Video Outputs | 2 x program out, 1 x loop out |
| SDI Rates | 270Mb, 1.5G, 3G, 6G, 12G |
| Analog Video Inputs | Component YUV or Composite NTSC/PAL. Component is switchable betw |
| Analog Audio Inputs | 2 channels of professional balanced analogue audio with 1/4-inch |
| Analog Audio Outputs | 2 channels of professional balanced analogue audio with 1/4-inch |
| SDI Audio Inputs | 16 Channels embedded in SD/HD/2K/UHD/4K |
| SDI Audio Outputs | 16 Channels embedded in SD/HD/2K/UHD/4K |
| HDMI 2.0b Video Inputs | 1 |
| HDMI 2.0b Video Outputs | 1 |
| HDMI Audio Inputs | 8 Channels embedded in SD/HD/UHD/4K |
| HDMI Audio Outputs | 8 Channels embedded in SD/HD/UHD/4K |
| Mic Input | 1 x XLR microphone input. 48V Phantom Power switchable via softwa |
| Sync Input | Tri-Sync or Black Burst |
| Device Control | Sony™ compatible RS-422 deck control port. Serial ports TxRx dire |
| USB | 1 x USB-C 3.1 Gen 1 (up to 5 Gb/s) |
| SD Card Reader | UHS-I and UHS-II compatible |
| Computer Interface | Thunderbolt™ 3 (Mac OS, Windows and Linux) with 45W host charging capability |
| Software | : |
| Software Included | DaVinci Resolve, Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS, Blackmagic Desktop Video Utility and Blackmagic driver on Linux |
| Internal Software Upgrade | Firmware built into software driver. Software driver loads upgrad |
| SDI Video Standards | : |
| SD Video Standards: | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards: | 720p50, 720p59.94, 720p60 <br>1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 <br>1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 <br>1080i50, 1080i59.94, 1080i60 |
| 2K Video Standards | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI <br>2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
| Ultra HD Video Standards: | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards: | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| 3D Video Standards 1: | 720p50, 720p59.94, 720p6 <br>1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 <br>1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 <br>1080i50, 1080i59.94, 1080i60 |
| 3D Video Standards 2: | 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 <br>DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI <br>2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 <br>4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| SDI Compliance | SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2036-1, SMPTE 2048-1, SMPTE 2081-10, SMPTE 2082-10 and SMPTE ST2108-1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning |
| Multiple Rate Support: | SDI video connections are switchable between SD/HD/2K/UHD and 4K |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24-bit |
| SDI Video Sampling | C4:2:2, 4:4:4 |
| SDI Colour Precision | 8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes |
| SDI Colour Space | REC 601, REC 709 and REC 2020 |
| HDMI Video Standards | : |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 <br>1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 <br>1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| 3D Video Standards | 720p50, 720p59.94, 720p60 <br>1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 <br>1080i50, 1080i59.94, 1080i60 <br>2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 <br>4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI |
| UPC | 9338716006087 |
| Video Format | SD |
| Special Effects | 3D/2D Transition |
| Functions | Video Capturing |
| Number of Outputs | 2 |
| Brand | Blackmagic Design |
| Form Factor | Software |
| Type | Capture Dock |
| Number of Inputs | 1 |
| Model | BDLKULSDMINI4K |
| Connectivity | BNC |
| Input Interfaces | HDMI |
| Media Format | SD Card |
| Features | Software Control |

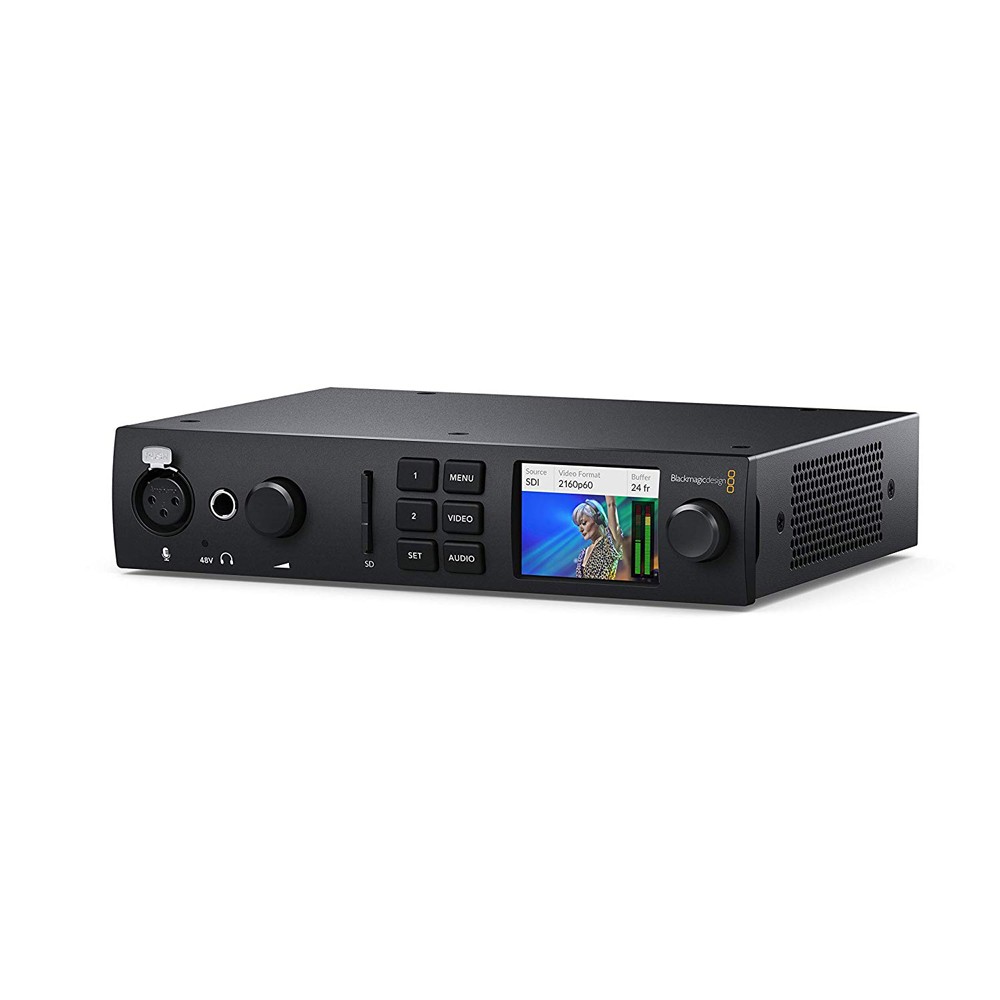

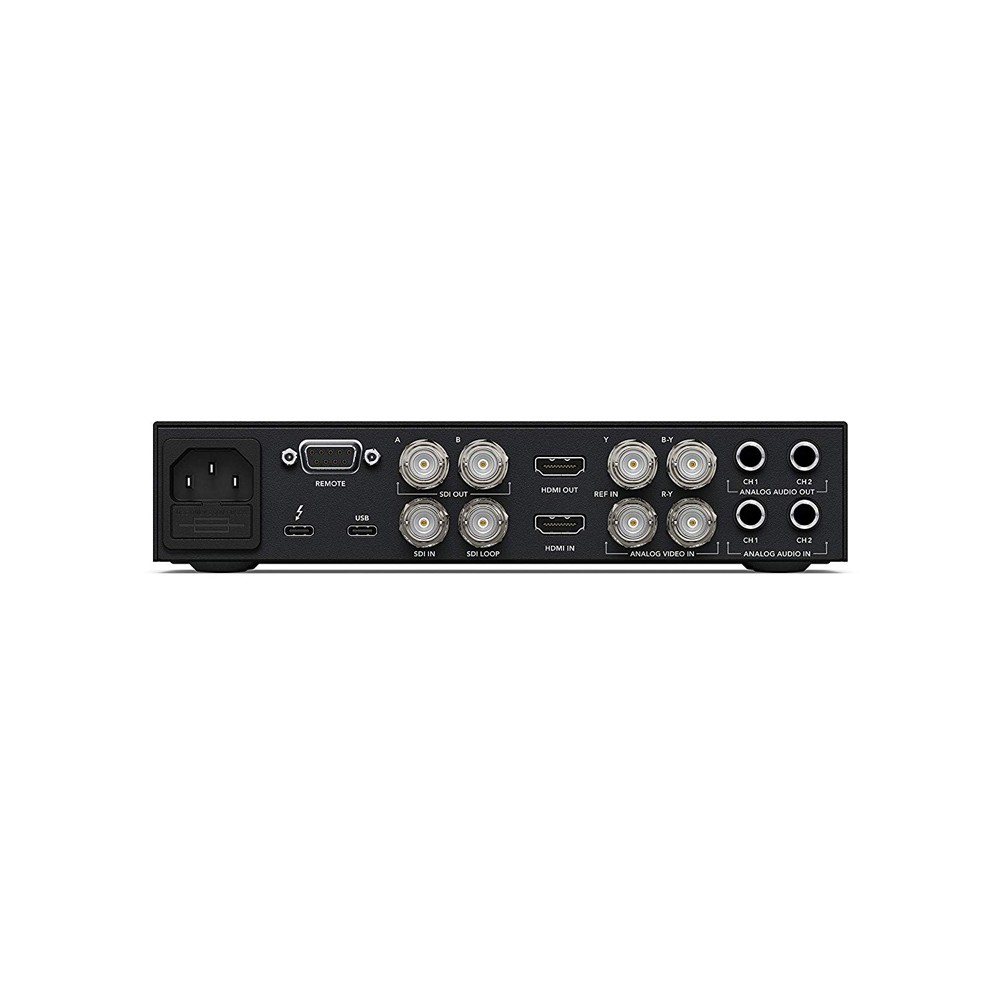

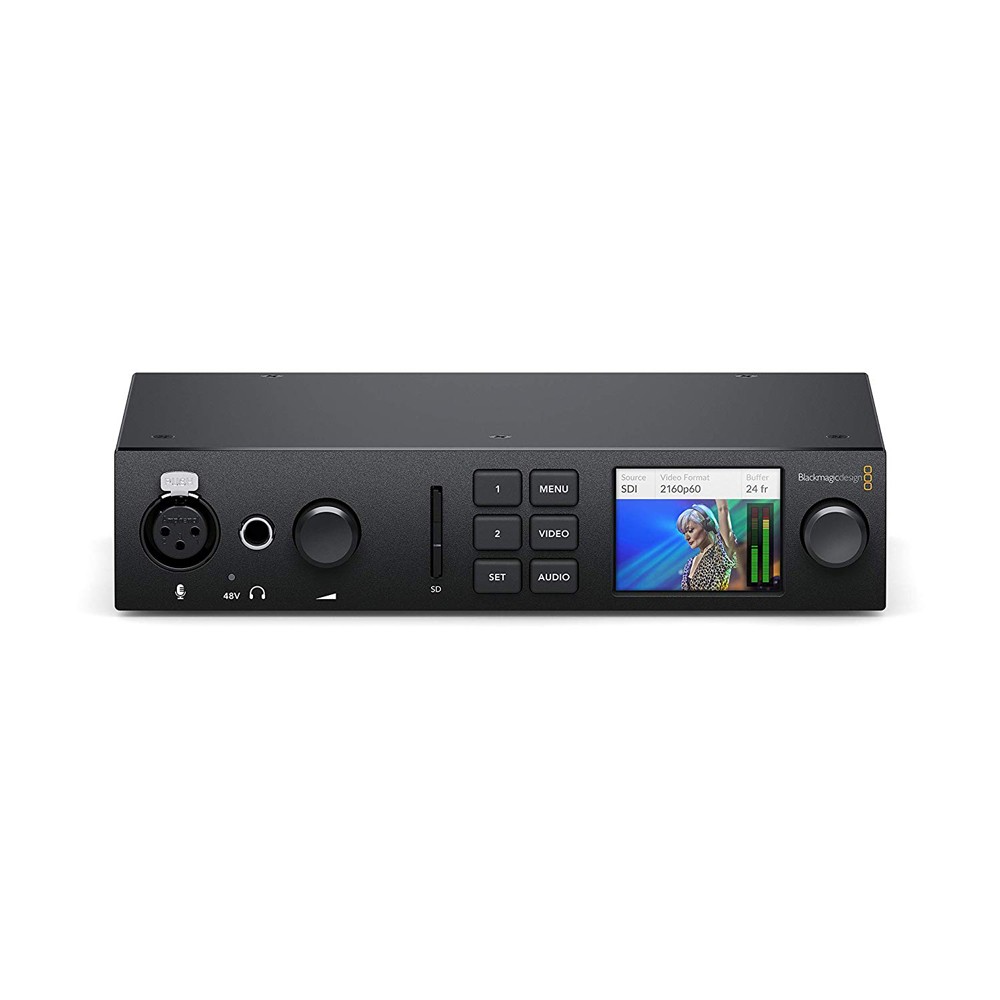

Check the listing for details. Blackmagic Design UltraStudio 4K Mini. Condition: New. Listed at 1165.00 USD. UltraStudio is perfect for everything from editing, color and visual effects to live capture and on-set monitoring during production. It’s small enough to fit in a rack or be used on a desktop. UltraStudio 4K Mini Features.
