| Embedded Audio | SDI: 16-Channel; HDMI: 8-Channel |
|---|---|
| Functions | Professional Video Capture (Up to DCI 4K60), Professional Video Playback, Thunderbolt 3 High‑Speed Interface, Built‑In Monitoring & Controls, Extensive Audio I/O, Versatile Connectivity Options, Built‑In SD Card Reader, Multi‑Platform & Software Compatibility |

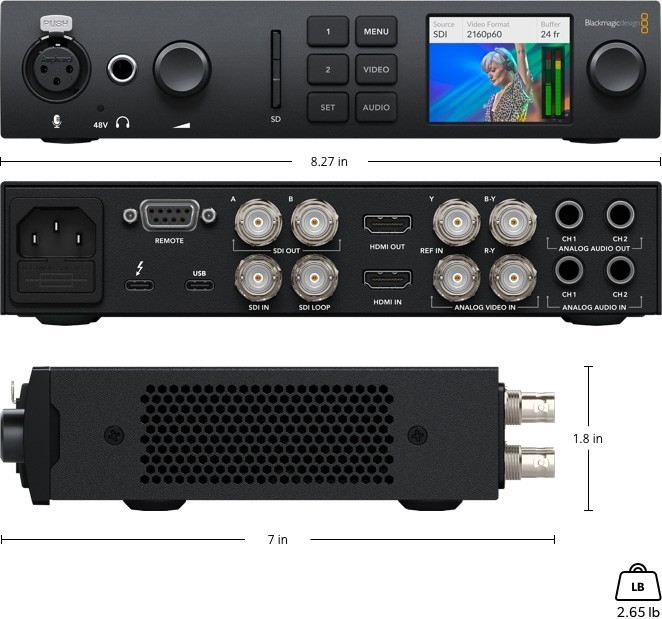

| Item Length | 8.27 inches |
| Brand | Blackmagic Design |
| Form Factor | Console/Tabletop |
| Type | Capture & Playback Unit |
| Power I/O | 1x USB-C Output; 1x Barrel Input (Power Cable Not Included) |
| Manufacturer Warranty | 3 Years |
| Item Height | 1.8 inches |
| Model | Blackmagic Design UltraStudio 4K Mini |
| Connectivity | 12G-SDI, Thunderbolt 3, HDMI 2.0 |
| System Connection | USB-C (Thunderbolt 3) |
| OS Compatibility | macOS 11.1 to 12.0 or Later; Windows 10/11 (64-Bit Only); Linux |
| Features | 12G-SDI & HDMI 2.0 Input/Output, 3" LCD Status/Preview Screen, DCI 4K30 4:4:4 Single-Link 12G-SDI I/O, 8-, 10- & 12-Bit Processing, RS-422 Deck Control, 1 x 40 Gb/s Thunderbolt 3 Interface, DCI 4K60 4:2:2 Single-Link 12G-SDI I/O, DCI4K60 4:4:4 via HDMI, 2K/HD/SD via SDI or HDMI, macOS, Windows & Linux Compatible |
| Item Width | 7 inches |
| Item Weight | 2.65 lbs |
| Product Line | Blackmagic Design UltraStudio |

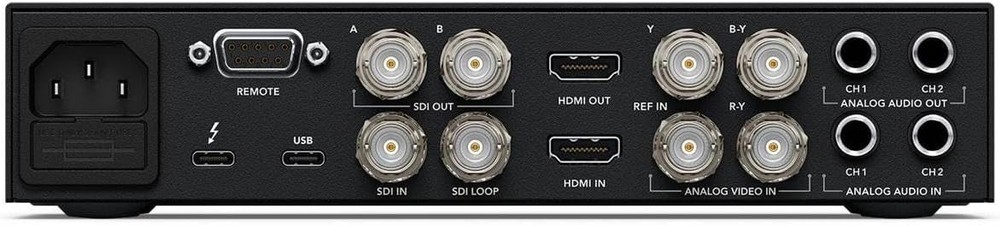

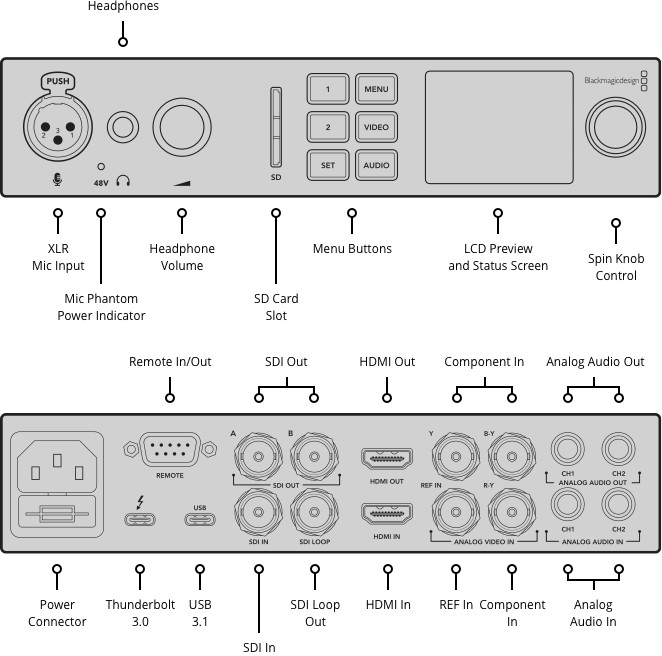

Check the listing for details. Blackmagic Design UltraStudio 4K Mini Thunderbolt 3 Capture & Playback Unit. Condition: New. Listed at 1165.00 USD. The new UltraStudio 4K Mini model is a portable Thunderbolt 3 capture and playback solution packed with the latest broadcast technology, including 12G SDI, HDMI 2.0 and analog connections. You get broadcast quality 8 and 10 bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12 bit high dynamic range capture in all formats up to 4K DCI at 30p. The front panel features push button controls, an LCD for monitoring signal and setup, an XLR microphone input and a ¼" headphone jack. UltraStudio 4K Mini features USB for connecting a keyboard and mouse, plus it will trickle charge your laptop computer when connected to the Thunderbolt 3 port. There's even a built in SD card reader allowing instant access to your camera media cards.
