| Brand | Unbranded |
|---|---|
| Material | Aluminum Alloy, #45 Steel |
| Operation Mode | Electric |
| Maximum Horizontal Load Capacity | 20kg/44.09 lbs |
| Maximum Vertical Load Capacity | 10kg/22.05 lbs |
| Bottom Movable Nut Size | M6 |
| Side Mounting Hole Size | M4 |
| Installation Hole on the Slider | M5 |
| Product Size | 10.63*3.94*3.15in |
| Effective Stroke | 100mm/3.94in |

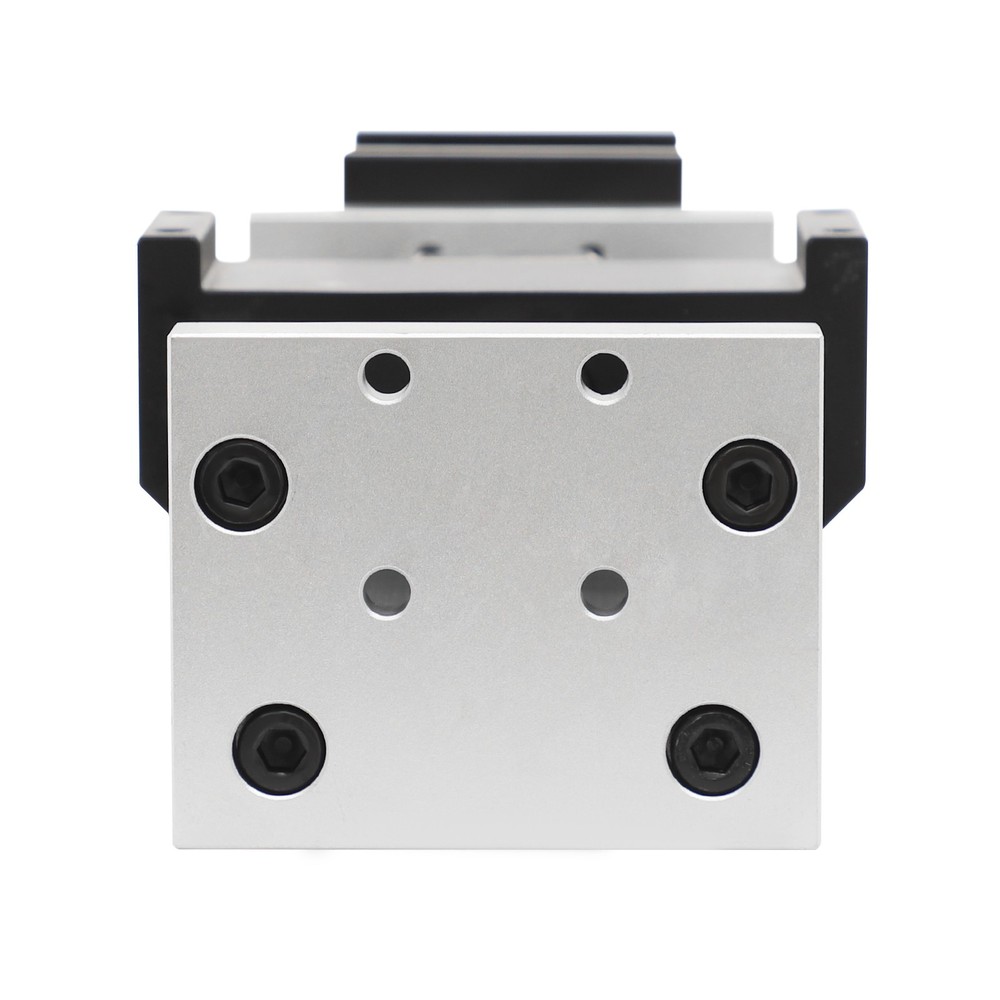

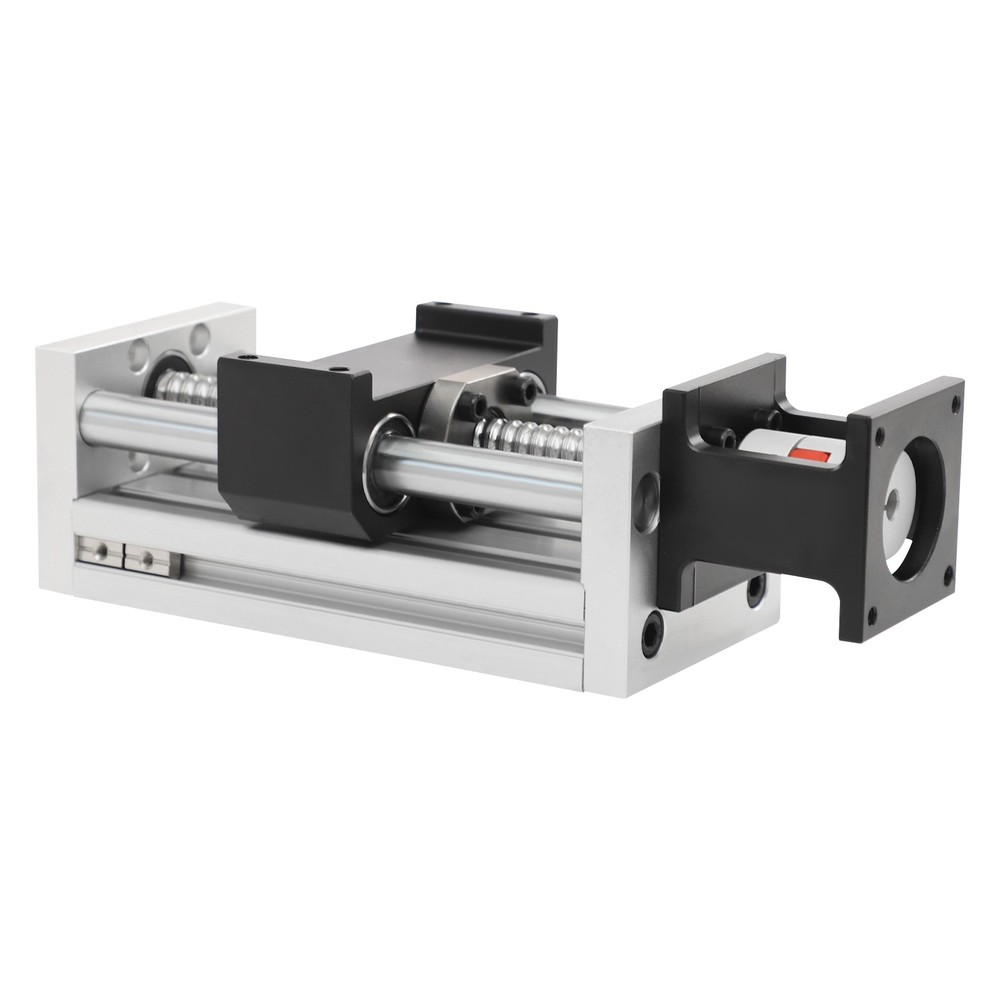

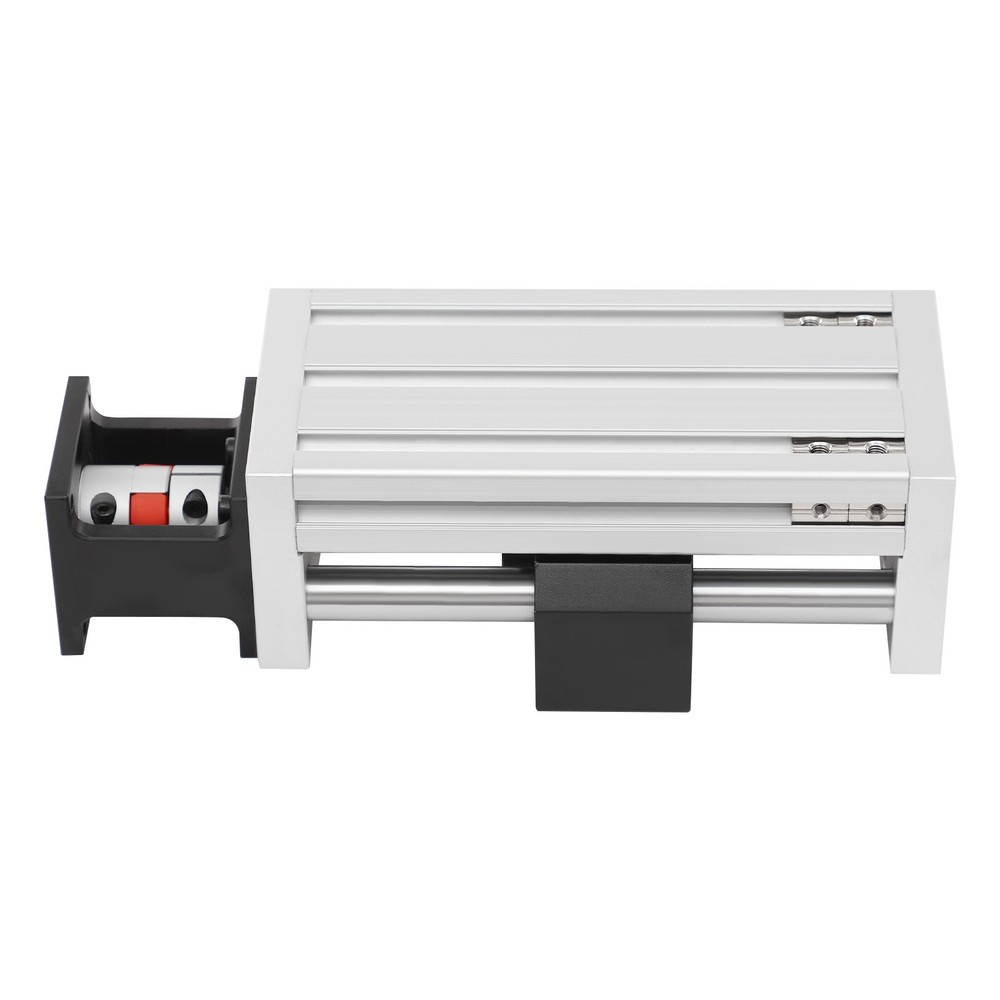

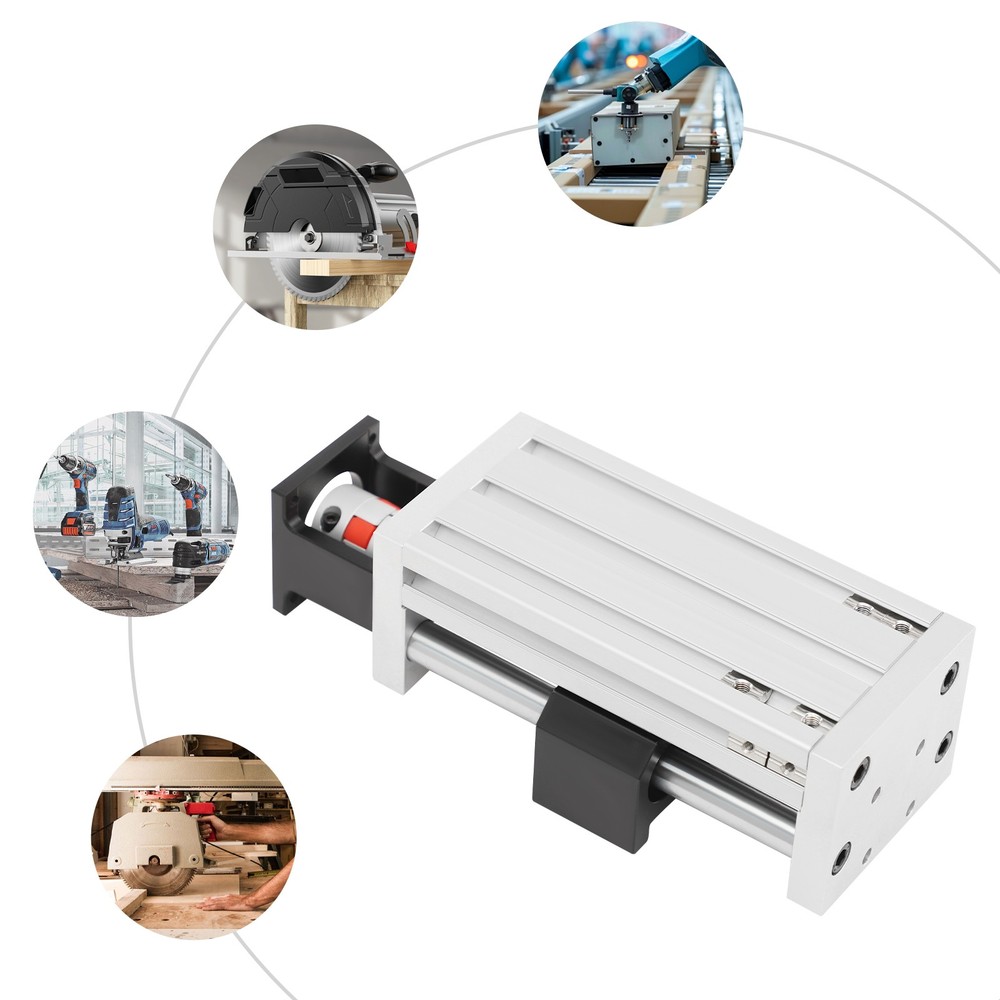

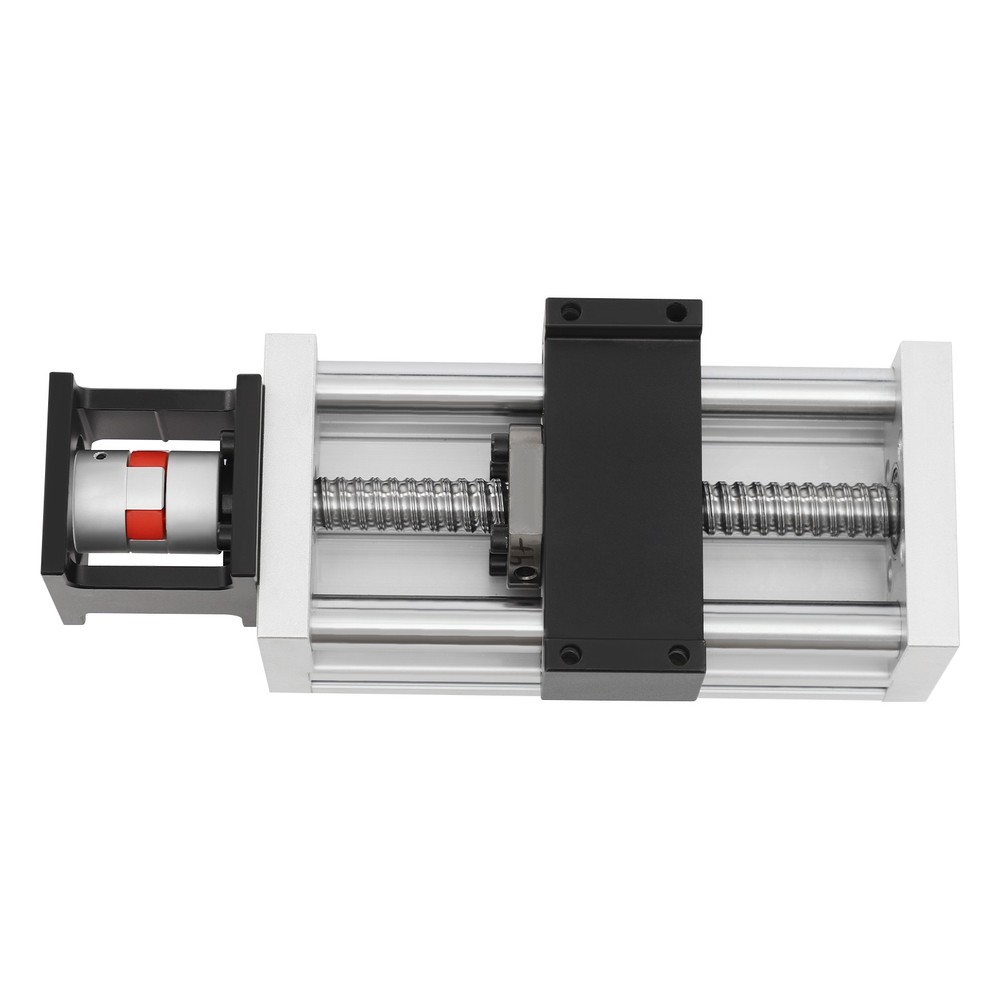

Check the listing for details. CNC Electric Linear Guide Rail Slide Stage Actuator Ball Screw Motion Table. Condition: New. Listed at 68.16 USD. Specification Material: Aluminum Alloy, #45 Steel Color: Black, Silver Style: Modern Process: Sandblasting, Chrome Plating Operation Mode: Electric Positioning Accuracy: 0.05mm/0.002in Maximum Horizontal Load Capacity: 20kg/44.09 lbs Maximum Vertical Load Capacity: 10kg/22.05 lbs Effective Stroke: 100mm/3.94in Lead: 5mm/0.2in Bearing Hole Diameter: 16mm/0.63in Bottom Movable Nut Size: M6 Side Mounting Hole Size: M4 Installation Hole on the Slider: M5 Ball Screw Diameter: 16mm/0.63in Applicable Motor: 57 Stepper Motor (Not Included) Product Size: 27*10*8cm/10.63*3.94*3.15in Package Size: 29*10*12cm/11.42*3.94*4.72in Gross Weight: 2.85kg/6.28 lbs Net Weight: 2.71kg/5.97 lbs Package Included 1* 3.94-in Sliding Table.
