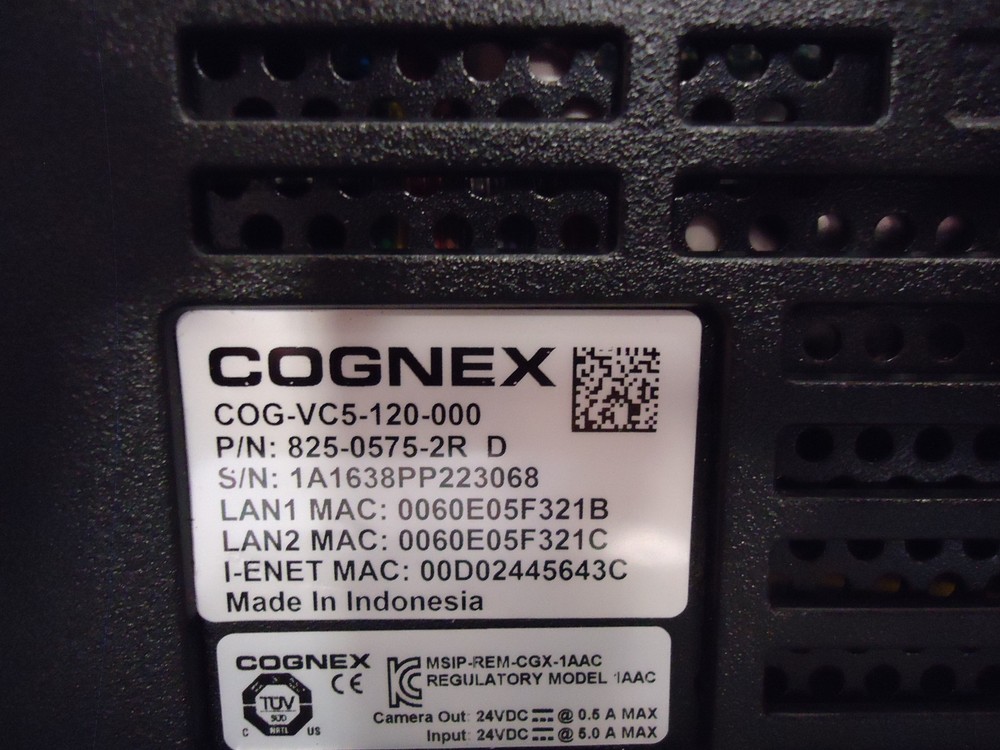

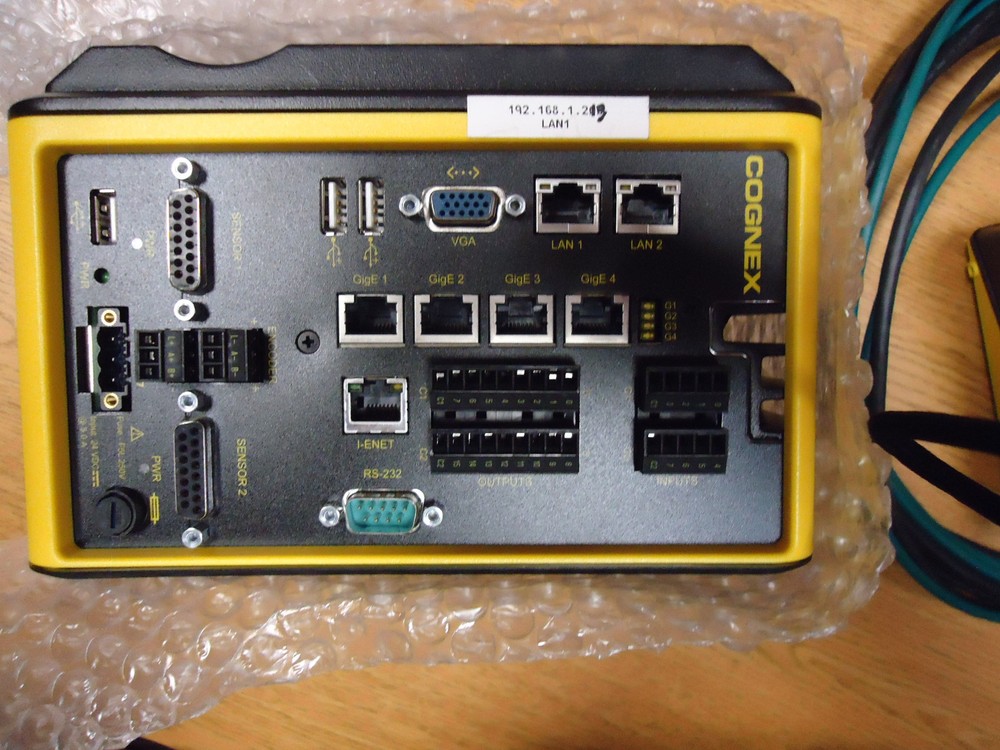

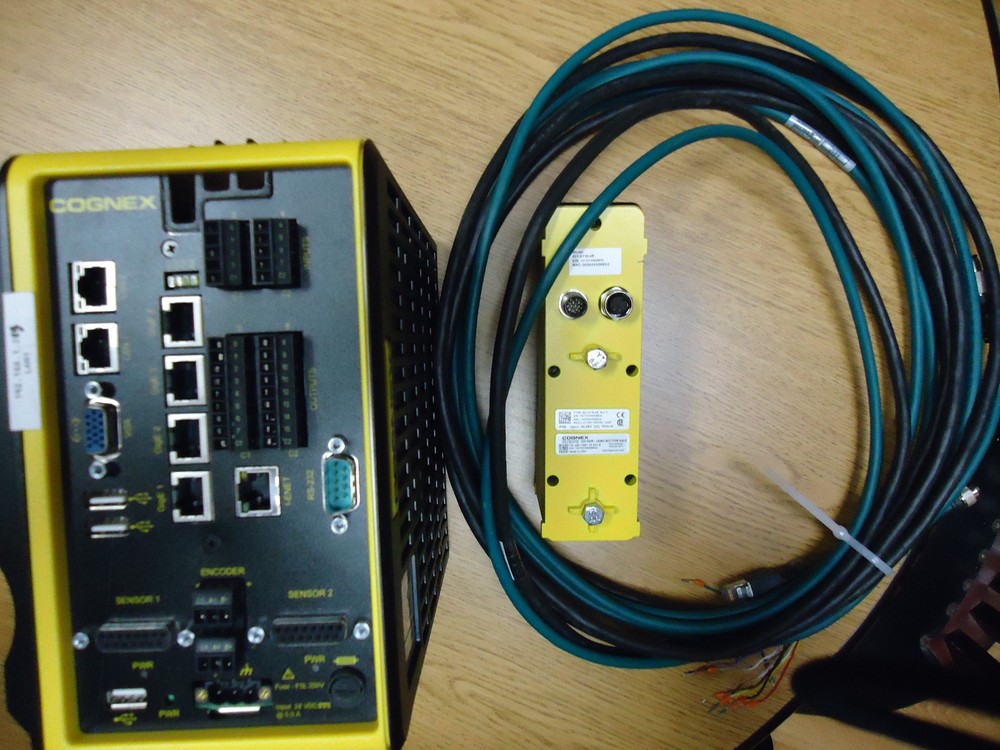

Check the listing for details. COG-VC5-120-000 COGNEX VISION SYSTEM. Condition: New – Open box. Listed at 8000.00 USD. INCLUDES CAMERA (THE DS1300R DISPLACEMENT SENSOR) AND CABLES CCB-84901-1003-02 Designed for high-performance machine vision and ease of use. The Cognex VC5 Vision Controller directly connects to Cognex industrial GigE cameras and DS1000 series 3D laser displacement sensors. The compact, network-ready VC5 allows for the combination of up to four area scan, line scan or 3D displacement sensors. Integrated and pre-qualified hardware and software does away with third party accessory evaluation and avoids driver incompatibility and similar performance issues to reduce development time and sourcing complexity. The robust, fanless design has no moving parts, which allows the VC5 to offer high vibration immunity and be suitable for dusty industrial environments. The VC5 offers high-speed parallel image acquisition from cameras or 3D displacement sensors and includes a rich set of discrete I/O and encoder inputs, deterministic precision I/O sub-system, and networking capabilities for common factory protocols. Supported Cognex Devices Cognex Industrial GigE cameras, Cognex DS1000 series sensors Job Program Memory 120 or 480GB non-volative flash memory, unlimited storage via remote network device Image Processing Memory 8GB SDRAM Cooling System Fanless design Digital Inputs 8 optically isolated discrete inputs Digital Outputs 16 optically isolated discrete outputs Encoder Inputs 4 non-isolated encoder inputs LAN Ports 2 RJ-45 Ethernet ports, 10/100/1000 BaseT IEEE 802.3 TCP/IP Protocol GigE Ports 4 GigE Vision compatible ports with Power over Ethernet (PoE) I-ENET Port 1 RJ-45 port for Ethernet-based industrial protocol communications Sensor Ports 2 DB15 ports that provide power, encoder and trigger connections to Cognex DS1000 series sensors. Each port supplies 24VDC, 500mA maximum. VGA Port Analog VGA, DB15 port to connect to monitors up to 1920x1200 USB Ports 3 host USB 2.0 (480 Mb/sec.) ports for connecting HID devices (mouse, keyboard or mass storage device) RS-232 Port 1 RS-232 port for serial communications Housing Aluminum die-cast, aluminum sheet metal and injection-molded ABS housing Mounting Four bottom and four backside M5 x 0.8 threaded mounting holes. DIN-rail mountable, using the DIN rail accessory or panel mount using 2-piece sheet metal bracket. Dimensions 207mm (8.15 in) X 231.9mm (9.06 in) x 133.5mm (5.24 in) I/O Terminal Connectors Detachable screw terminals Power 24 VDC (±10%), 5 amp (max) Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -30°C to 80°C (-22°F to 176°F) Humidity 10% - 85%, non-condensing (Operating and Storage) Regulatory Compliance CE, FCC, KCC, TÜV SÜD NRTL, RoHS
