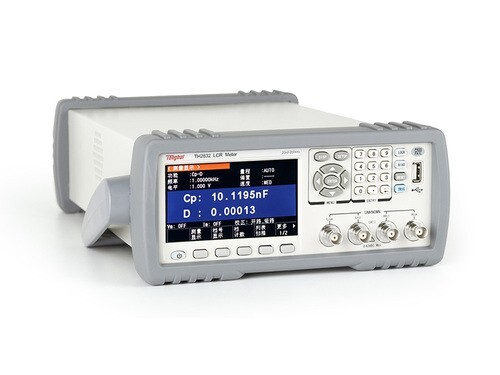

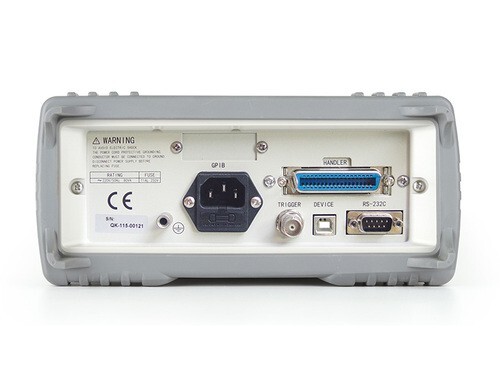

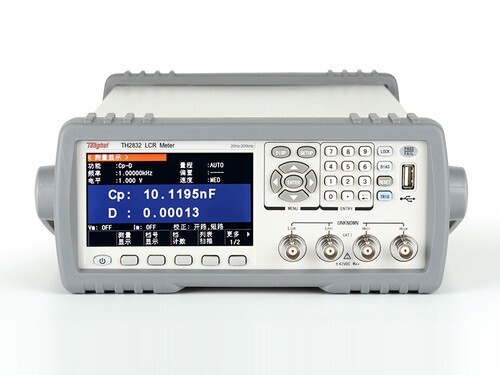

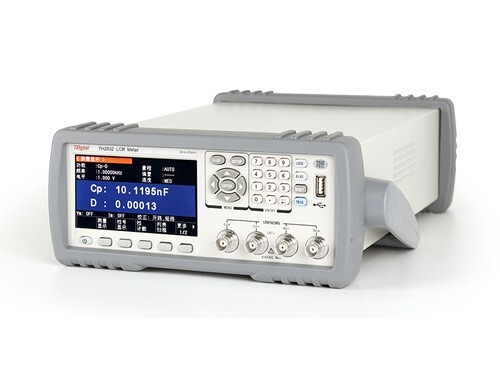

Check the listing for details. Compact LCR Meter Capacitance Inductance Resistance Tester 0.05% Accuracy. Condition: New. Listed at 2049.80 USD. Compact LCR Meter Capacitance Inductance Resistance Tester 0.05% Accuracy Features■ Low cost, high performance, small size■ 4.3 inch TFT LCD Display■ Soft power switch■ Selectable Chinese-English operation language■ Max. 200kHz test frequency■ Max. 6 digit reading resolution■ 10mVrms-2.0Vrms programmable signal level, built-in 0 - ± 5V/50mA bias source■ DCR, 50mV-2V programmable test level, resolution 10μΩ■ Ls-Rd / Lp-Rd Function (L, Rd display simultaneously) ■ Highest test speed 13ms/time■ Selectable 30Ω/100Ω signal source impedance ■ V/I monitor and auto level adjustment function■ Built-in comparator, 10 bins sorting and count function■ File storage and firmware update through U disk■ RS232, RS485, USB, HANDLER, GPIB interface Brief Introduction■ Adopting the latest technology & high density circuit design and concentrating the essence of LCR test, TH283X series is a new generation compact LCR meter of low cost and high performance. Instead of traditional mechanical power switch, it adopts software control power switch. The basic accuracy of 0.05% and good test stability can compare favourably with those high-end models. Being equipped with 4.3 inch TFT LCD Display and brand new interface system, TH283X series LCR meters possess elegant appearance and easy operation.Also, being provided with various interfaces and good compatibility with SCPI commands, TH283X series LCR meters are convenient for constituting all kinds of test system and satisfy various kinds of demands for inspection, production and scientific research. SpecificationsModelTH2832Basic Measurement Accuracy(See Details in Technical Specification)LCRZ0.05%DCR0.1%Calibration ConditionWarm up time: ≥ 30 minutes;Environment temperature: 23±5ºC Signal level: 1Vrms; Corretion: after OPEN, SHORTTesting cable length: 0 mTest Signal Frequency20Hz-200kHz, continuouslySignal Source Output ImpedanceSelectable 30Ω, 100Ω, ±1% @1kHzAC Test Signal LevelNormal10mV—2VrmsResolution: 10mV,Accuracy: 10% x setting voltage+2mV100μA—20mArmsResolution: 0.1mAConstant level(ALC ON)20mV—1VrmsResolution: 10mVAccuracy: 10%200μA—10mArmsResolution: 0.1mADCR test signal level50mV—2V DCResolution: 0.5mVDC bias voltage source0V— ± 5VResolution: 0.5mV,Accuracy: 1%0mA—± 50mAResolution: 0.5μATest Parameters|Z|,Y|, C, L, X, B, R, G, D, Q, θ, DCRDCR display range0.00001 Ω – 99.9999 MΩLCR Parameters Display Range|Z|, R, X 0.00001Ω — 99.9999MΩ|Y|, G, B 0.00001μs — 99.9999sC 0.00001pF — 9.99999FL 0.00001μH — 99.9999kHD 0.00001 — 9.99999Q 0.00001 — 99999.9θ(DEG) -179.999º — 179.999ºθ(RAD) -3.14159 — 3.14159Δ% -999.999% — 999.999%Display Digits6Measurement Time (≥10 kHz)Fast: 75 meas/sec(13ms), Medium:11 meas/sec(90 ms),Slow: 2.7meas/sec(370 ms)Equivalent CircuitSerial, ParallelRange ModeAuto, HoldTrigger ModeInternal, Manual, External, BusAverage Time1–255CorrectionOpen, Short, LoadMath OperationDirect reading, ΔABS, Δ%Trigger Delay Time Setting0 - 60.000s, 1ms stepsStep Delay Time Setting0 - 60.000s, 1ms stepsList Sweep10 points list sweep·Frequency, AC voltage/current, internal/ external bias voltage/ current can be swept.Each sweep point can be sorted separately.Comparator Function10 bins, BIN1–BIN9, NG, AUXBin count functionPASS, FAIL LED display on front panelBuilt-in StorageInternal 100 LCRZ instrument setting files, 201 times test resultsUSB StorageInstrument setting files , measurement result CSV files, printed screen (GIF format)InterfaceControl InterfaceHANDLERCommunicationInterfaceUSB HOST, RS232C, RS485(option), GPIB(option)Storage InterfaceUSB DEVICE (U-disk storage)
