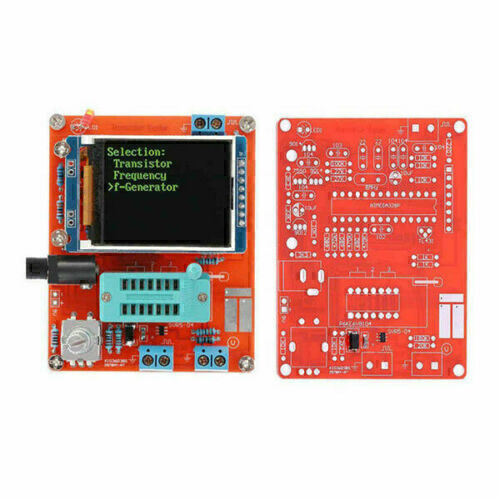

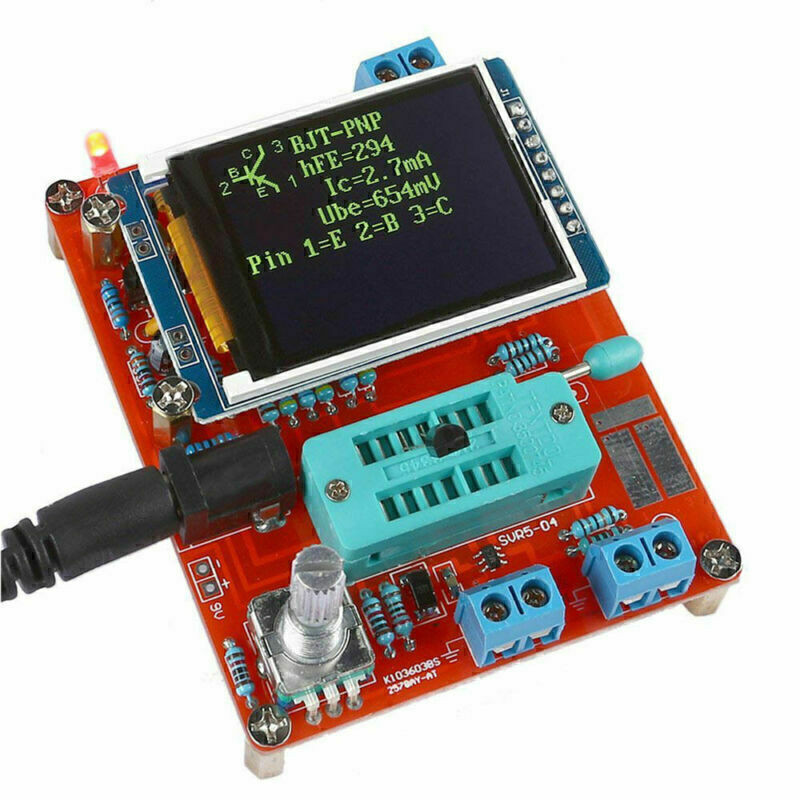

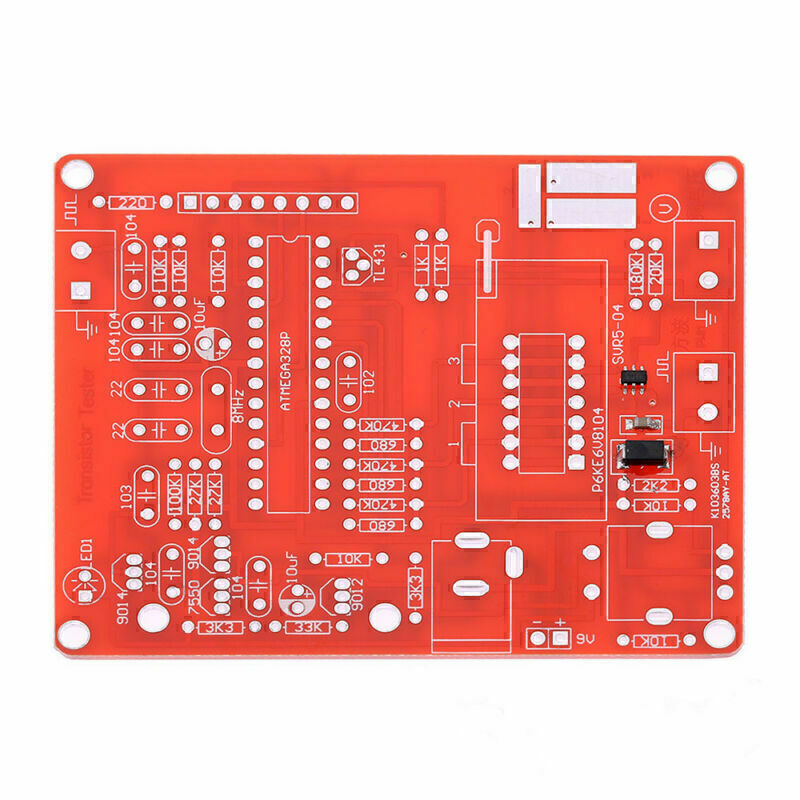

Check the listing for details. Component Tester Transistor Diode Capacitance ESR Meter Signal Generator Tool. Condition: New. Listed at 18.45 USD. Product Description If you have any questions, please contact customer service first, do not open disputes easily, thank you! Features:Digital LCD display for easy readings, can display measured data and graphicsRotary switch control, a key measurement for convenient useMain chip is the DIP, easy for electronic enthusiasts to DIY or update the main chipUse 9V battery(not included), can also use DC power(DC 6.8-12V)Automatic shutdown, shutdown current is only about 20nAAutomatically detects NPN and PNP transistors, FET, diodes, dual diode, thyristor, SCR,automatic identification of the transistor pinout.Test NPN and PNP transistor common-emitter current amplification factor,the base-emitter threshold voltage, off the collector - emitter leakage current.Support 2 resistors measurement, show its positive and negative, on-state voltage.Resistance measurement maximum resolution 0.01Ω, can be measured up to 50MΩ.Automatically test the pins of a component and show on the display.Measure FET gate threshold voltage and gate capacitance.For the following 2100Ω resistor while measuring its inductance measuring range from0.01mH - 20H.Can be used as signal generator and frequency meter: frequency range from 1Hz-2MHzand can generate 1%-99% PWM(pulse width modulation) signalsSpecifications:Type: Assembled KitsDisplay:160*128 LCDPower Supply:1 * 9V Battery(not included); DC 6.8-12VCurrent Approx. 30mAResistance Measurement Max. 50MΩResistance Resolution 0.01ΩCapacitance Measurement 25pF~100mFCapacitance Resolution 1pFDC Voltage Measurement Up to 50VScreen Size Approx. 3.7 * 3cm / 1.45 * 1.18inPCB Size Approx. 7.8 * 6.2cm / 3.1 * 2.44in Whats included:1 Set Assembled KitsNote: Please allow 1-3mm errors due to manual measurement.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same About Us We accept all payments authorized by eBay. About Us We accept all payments authorized by eBay. powered by
