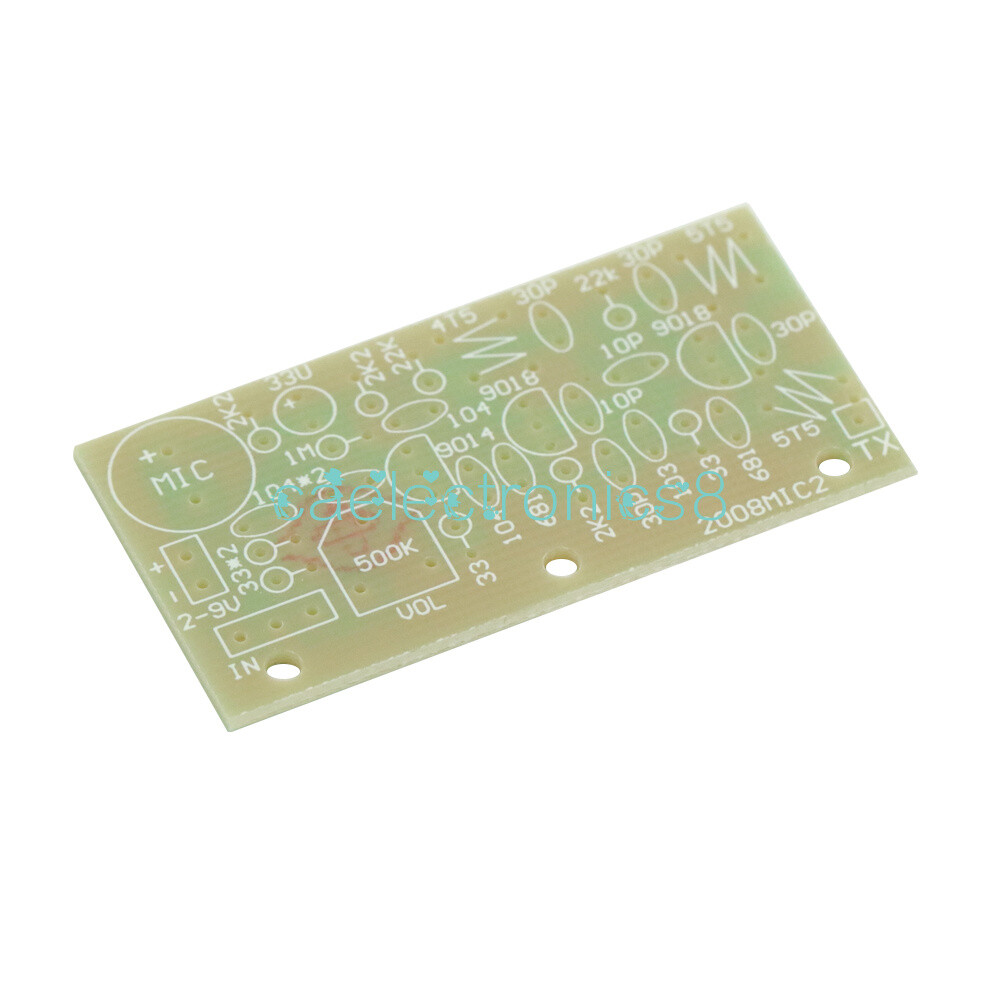

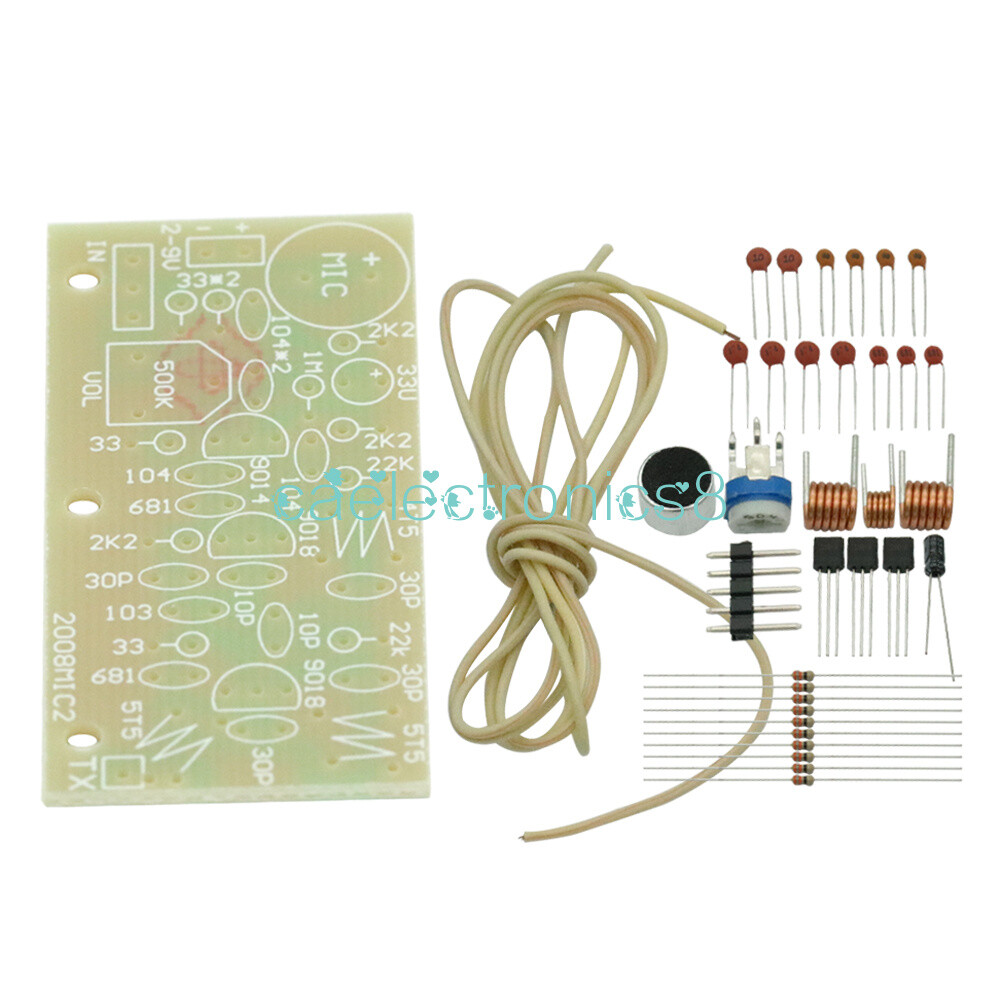

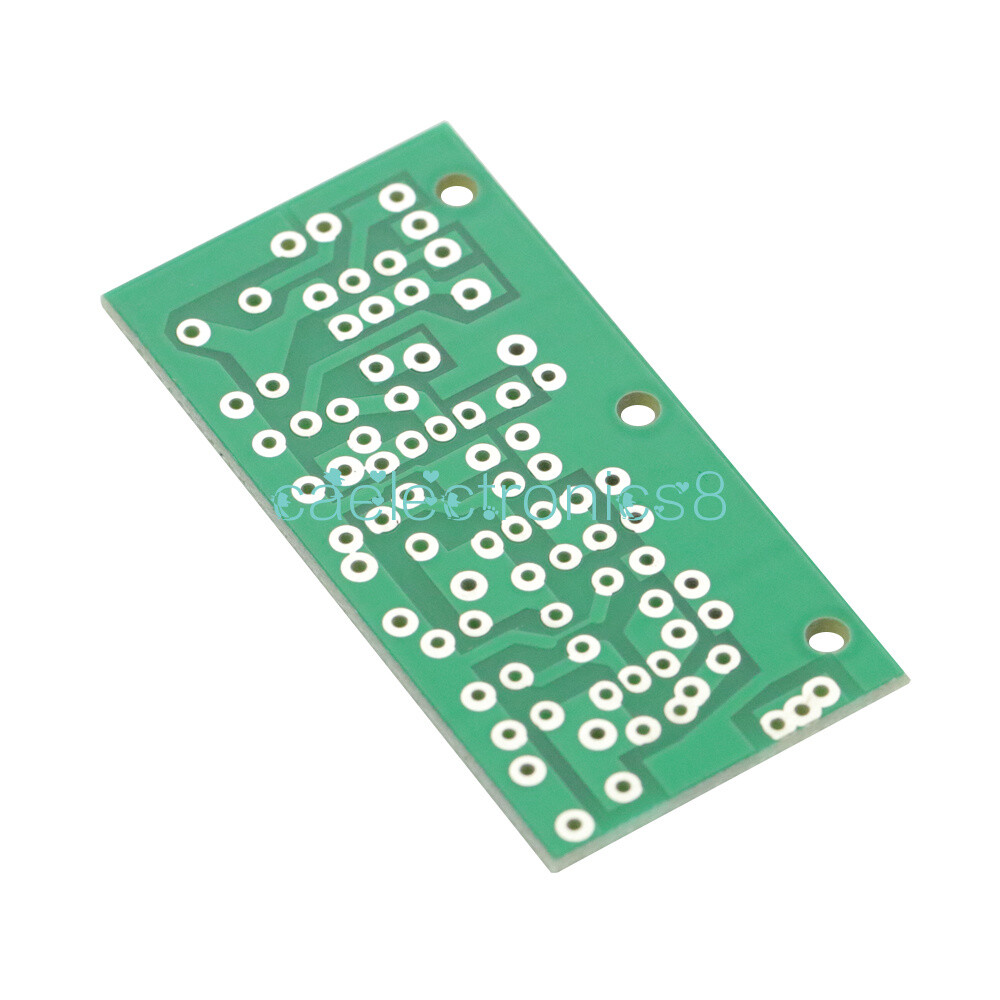

Check the listing for details. DC 1.5V-9V FM Wireless Microphone DIY Electronic Learning Kits 80MHz-108MHz. Condition: New. Listed at 1.54 USD. Product ViewProduct Description Enhanced wireless microphone, FM FM work, good sound quality, with ordinary radio to listen. Microphone to the sound signal into an electrical signal, the first level of audio voltage amplifier to send modulation level, so you can pick up farther and weaker sound. After the oscillation of the modulation of the high-frequency signal and then by a tuning power amplifier to send the antenna to launch, launch distance farther and reduce the impact of the antenna to the oscillation level, reduce harmonics. According to the circuit installed, the frequency of about 83MHz or so, just turn the coil L to a little bit, so that the oscillation frequency of work in the 88MHz-108MHz can be, with any FM radio to receive the high-frequency signal, And the sound signal is restored from the high frequency signal. Also equipped with an external audio socket and adjustable resistance to adjust the input audio signal attenuation. First, the performance parameters:Frequency range: 80MHz-103MHz (according to the circuit diagram parameters, only adjust the coil pitch)Working voltage: 1.5V -9VRadius: more than 100 meters 4.5V voltage, the general radio to receive, wireless microphone antenna for the 50cm long thin wire, in the high-rise residential area to do the experiment) The following is the schematic and working principle: MIC will be the natural sound signal into audio signal, the C2 coupling to the base of Q to be modulated, when there is a sound signal, the transistor junction capacitance will change → oscillation frequency changes, complete the frequency modulation, that is, FM The And then by the C6 coupling to the high-frequency tuning amplifier circuit has been modulated high-frequency signal amplification, and then through the C12, L3 and antenna TX out of the frequency of the sound signal changes with the changes in high-frequency electromagnetic waves.Where R1 is the microphone MIC bias resistance, generally selected in the 2K-5.6K. R4 is the collector resistance. R5 is the base resistor, providing a bias current to Q1. R7, R8, C5, L1, C8, C7 to form a high-frequency oscillation circuit, R7 to the Q2 base to provide bias, C5 and L1 oscillation circuit, Q3, R9, R10, L2, C10, C11 constitute a high-frequency power amplifier circuit. C8 is a feedback capacitor, R8 from the stability of Q2 DC operating point, C7 DC output AC capacitor; R9 to the power transistor Q3 to provide the base current, C10 and L2 amplification tuning circuit, and the oscillation circuit C5 and L1 tuning at the same frequency to get the maximum output power, the emission distance farthest.We will launch the frequency of the FM radio band, so you can cooperate with any FM radio to receive the high-frequency signal, and from the high-frequency signal to restore the sound signal to complete a variety of purposes. FeedBackGuaranteeReturn\RefundFeedBack We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can perform up your satisfaction. It is impossible to address issues if we do not know about them!Guarantee 1. 12 months Manufacturer’s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty. 2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY. Return\Refund 1. You have 7 days to contact us and 30 days to return it from the date received. If the item is in your possession more than 7 days, it will be considered used and WE WILL NOT ISSUEA REFUND OR REPLACEMENT to you. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half. 2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your order ID. 3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement. 4. We will bear all the shipping cost if the product(s) is (are) not as advertised.On 20-Aug-19 at 05:42:31 EDT, seller added the following information:
