| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money Back |
| Frequency Range | 1Hz – 1MHz |
| Signal Generator Type | Function Generator |
| Size | 3.43*2.36inch |
| Manufacturer Part Number | Does Not Apply |
| MPN | Does Not Apply |
| Input Voltage | 9-12V DC Input |
| Material | Plastic |
| Brand | DIY electronic Hobbies |
| Type | XR2206 Function Signal Generator |
| Model | XR2206 |
| Features | sine/triangle/square wave forms |
| Impedance | 600 Ohm + 10% |

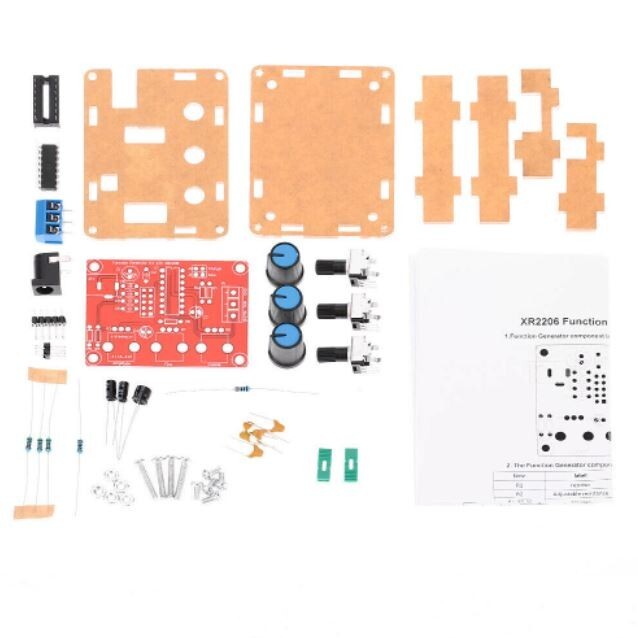

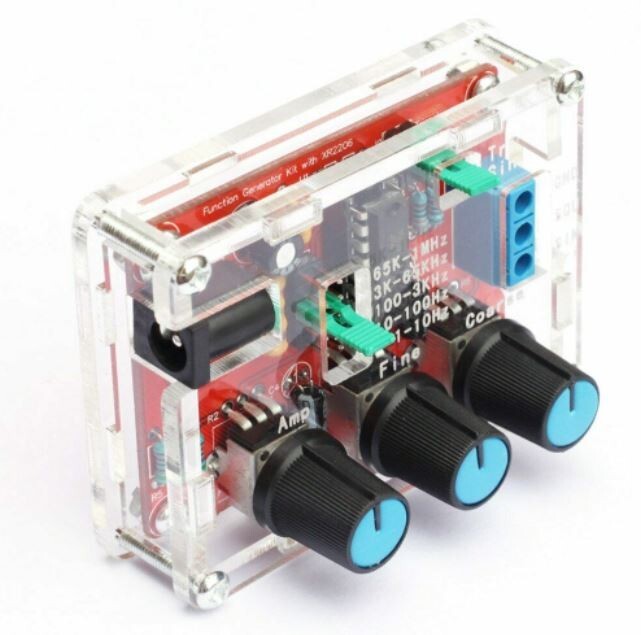

Check the listing for details. DC Function Signal Generator Sine/Triangle/Square Wave 1Hz – 1MHz with case. Condition: New. Listed at 12.99 USD. XR2206 Function Signal Generator DIY Kit Sine Triangle Square Wave Function Generator Output 1HZ-1MHZ Comes complete as a kit with case includedFeatures:Voltage Supply: 9-12V DC InputWaveforms: Square, Sine & TriangleImpedance: 600 Ohm + 10%Frequency: 1Hz - 1MHzSINE WAVEAmplitude: 0 - 3V at 9V DC inputDistortion: Less than 1% (at 1kHz)Flatness: +0.05dB 1Hz - 100kHzSQUARE WAVEAmplitude: 8V (no load) at 9V DC inputRise Time: Less than 50ns (at 1kHz)Fall Time: Less than 30ns (at 1kHz)Symmetry: Less than 5% (at 1kHz)TRIANGLE WAVEAmplitude: 0 - 3V at 9V DC inputLinearity: Less than 1% (up to 100kHz) 10mA2. The Function Generator component parameter table
