| Speed | 140 times/s, 67 times/s, 35 times/s, 12 times/s , 2 times/s |
| Dimension & Weight | 216x88x323mm Weight:4KG |
| Custom Bundle | No |
| Measurement Functions | LCR meter |
| Product | LCR Meter |
| MPN | 2022 |
| Range | automatic & manual, 10 ranges |
| Modified Item | No |
| California Prop 65 Warning | LCR Meter |
| Power Supply | V:198VAC~240VAC Fre:50Hz Power:15VA |
| Brand | VTSYIQI |
| Form Factor | LCR Meter |
| Accuracy | 0.05% |
| Model | LCR meter |
| Output Impedance | LCR Meter |
| Parameter | DCR |
| Measurement current | Max current:<1A |
| Country/Region of Manufacture | China |
| Display | show, ΔABS、Δ% sorting result |
| Measurement Range | 1μΩ~20MΩ |

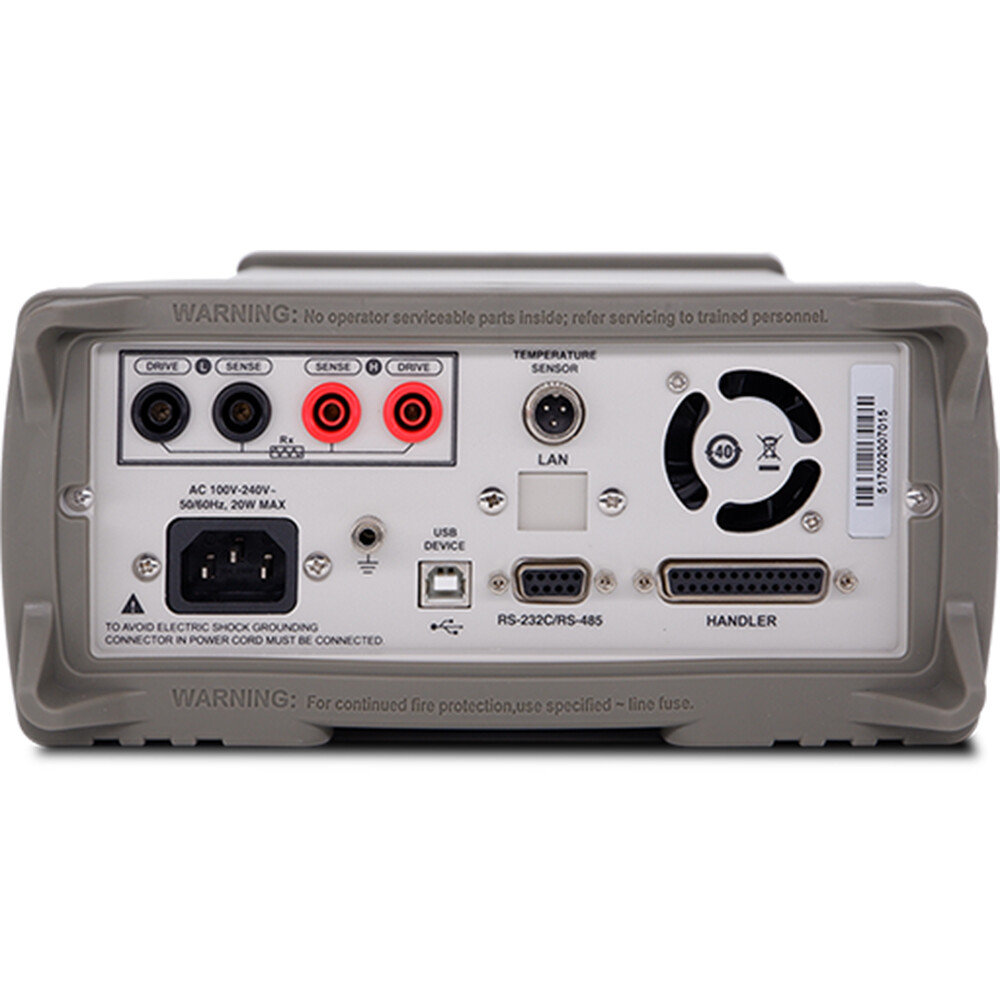

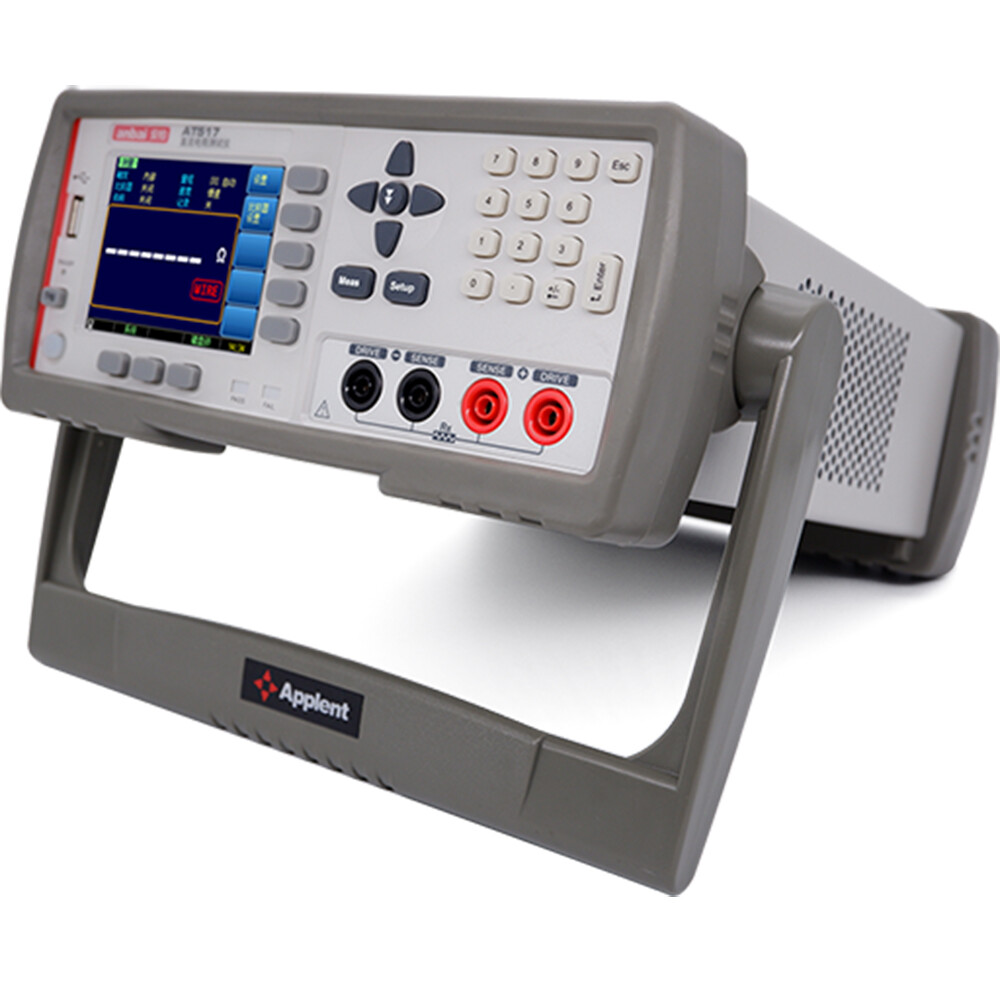

Check the listing for details. DC Resistance Tester Micro Ohm Meter Measurement Range 1μΩ~20MΩ Speed 7ms. Condition: New. Listed at 969.90 USD. DC Resistance Tester Micro Ohm Meter Measurement Range 1μΩ~20MΩ Speed 7ms *DC Resistance Tester is a benchtop instrument with fully automated real-time detection controlled by a high-performance ARM microprocessor. The instrument has an accuracy of 0.05% and a measurement range of 1μΩ~20MΩ. The resistance value is displayed in 5 bits with 30000 readings and a maximum sampling speed of 7ms. The instrument has built-in temperature compensation interface to compensate for errors due to temperature.*The instrument has built-in 14-step comparator output, which can set 10 qualified files, and all the comparator results can be output through the Handler interface.*The instrument comes standard with RS-232 interface, using SCPI (Standard Command for Programmable Instrument standard command set) and Modbus protocol (Modbus has become the national standard GB/T19582-2008) applied to automatic sorting system to complete automatic pipeline test. Communicate with computer, PLC or WINCE device to efficiently perform remote control and data acquisition functions. Feature:*Temperature compensation function.*High current test function (open circuit voltage
