| Brand | Unbranded/Generic |
|---|---|
| Working current | max 10A |
| Compatible Brand | For Unbranded |
| Type | Power Control Board |
| Working Voltage | 12-24V |
| Compatible Model | Positive inversion Switch Controller |

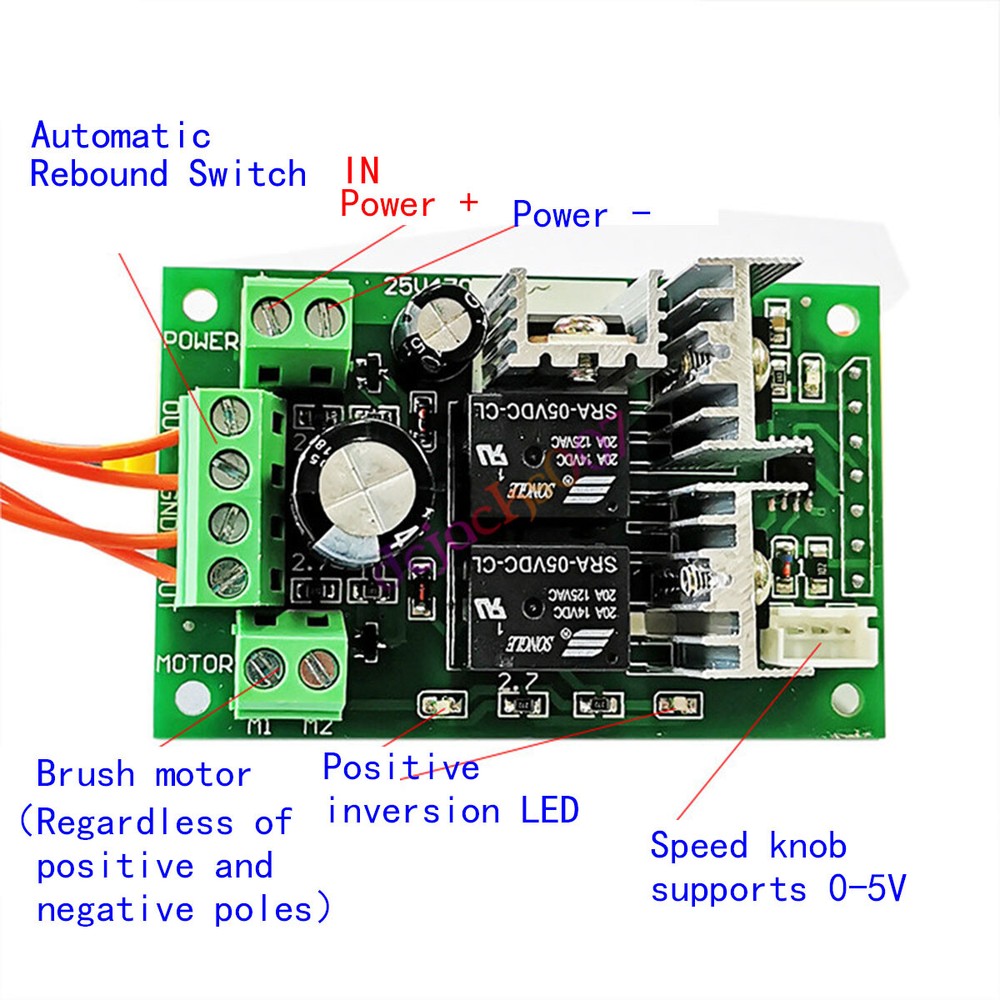

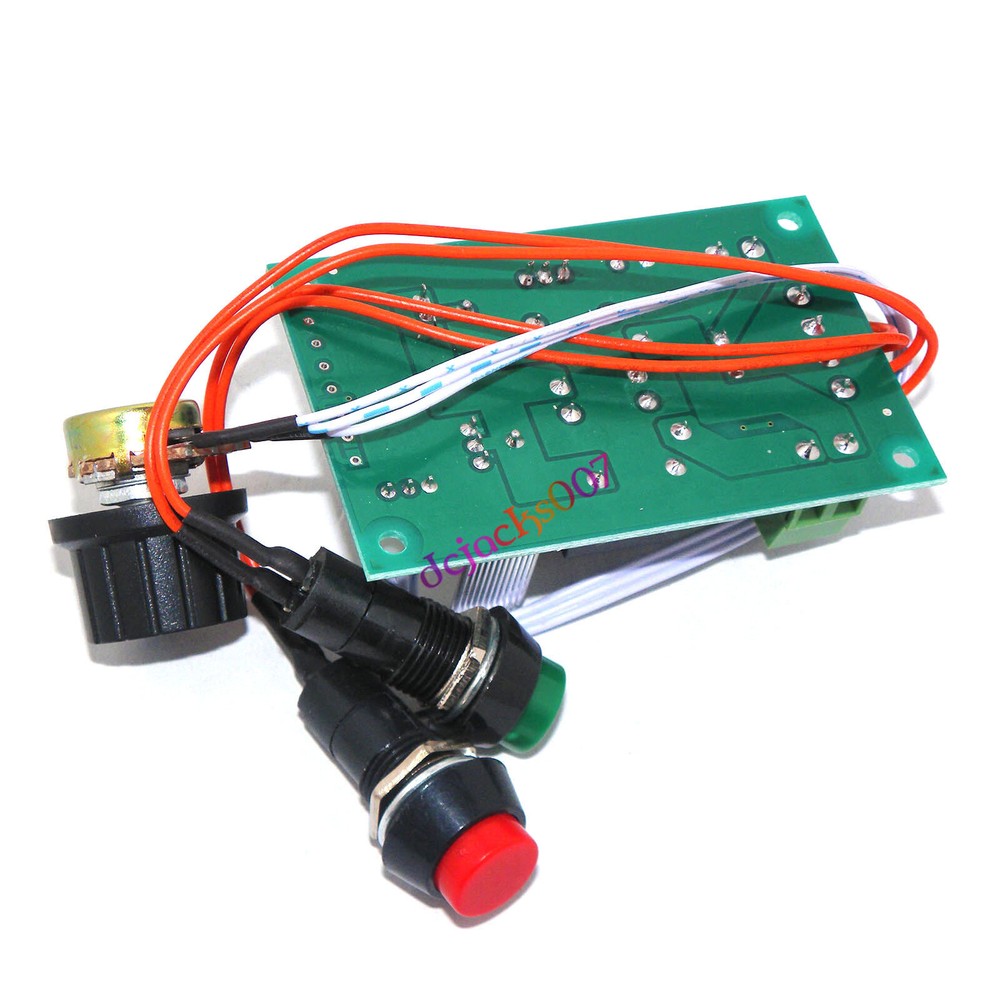

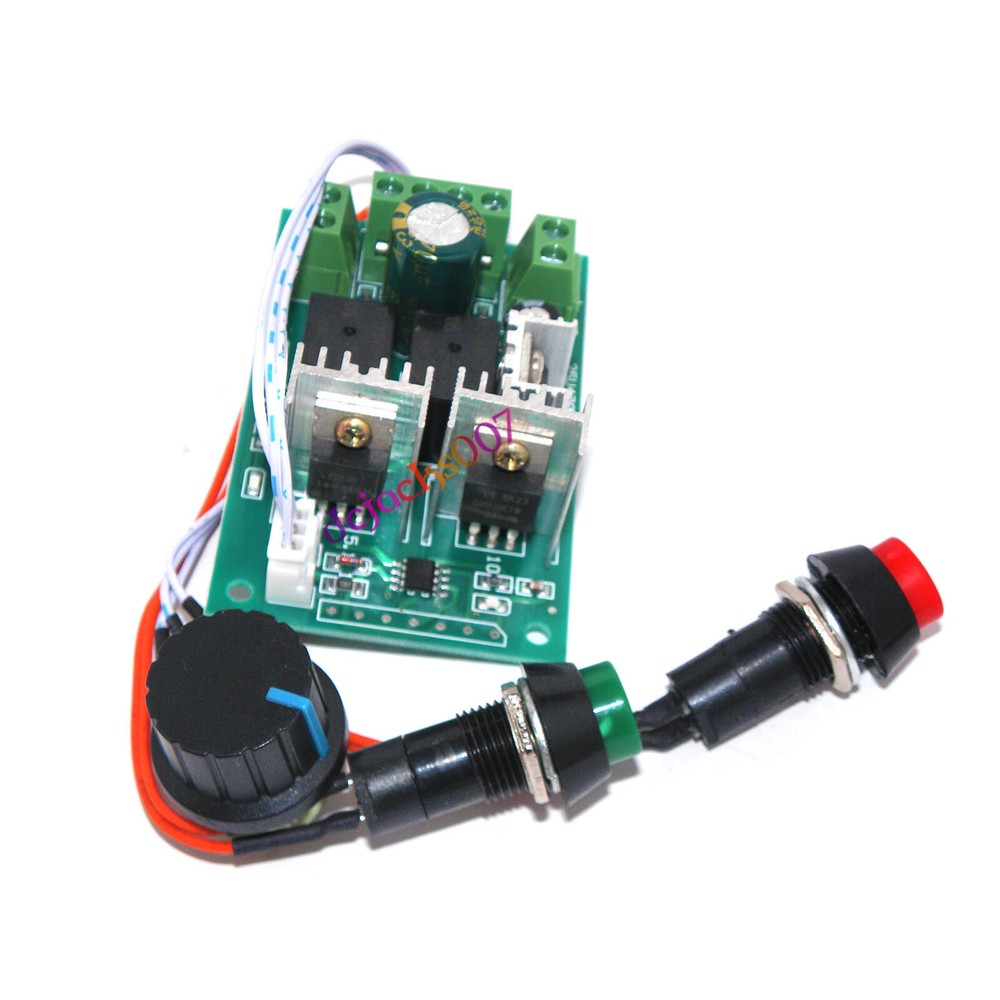

Check the listing for details. DC12V-24V 10A PWM Brush Motor Speed Controller Positive inversion Switch Control. Condition: New. Listed at 14.69 USD. This is Automatic Rebound Switch. When the hand is released, the motor will be powered off. Support PLC 0-5V input from the middle line of Speed regulating knob. Product parameters: Input voltage: dc5-30v Output voltage: linear under load Output current: 0-10a Continuous power: 300W Speed regulation type: current regulation Speed regulation mode: potentiometer (0-5V) Speed regulation range: 0-100% Control frequency: 15KHz Module size: length * width * height 74mm * 47mm * 28mm .
You may also like
$1.79
2000W High Power Voltage Regulator Switch Motor Speed Controller Module 50-220V
$12.68
12V 24V 48V 20A PWM DC Brush Motor Speed Regulator Controller Waterproof
$13.69
DC Motor Speed Controller Module PWM Governor Power Regulator Fan 12V24V36V48ˇ
$260

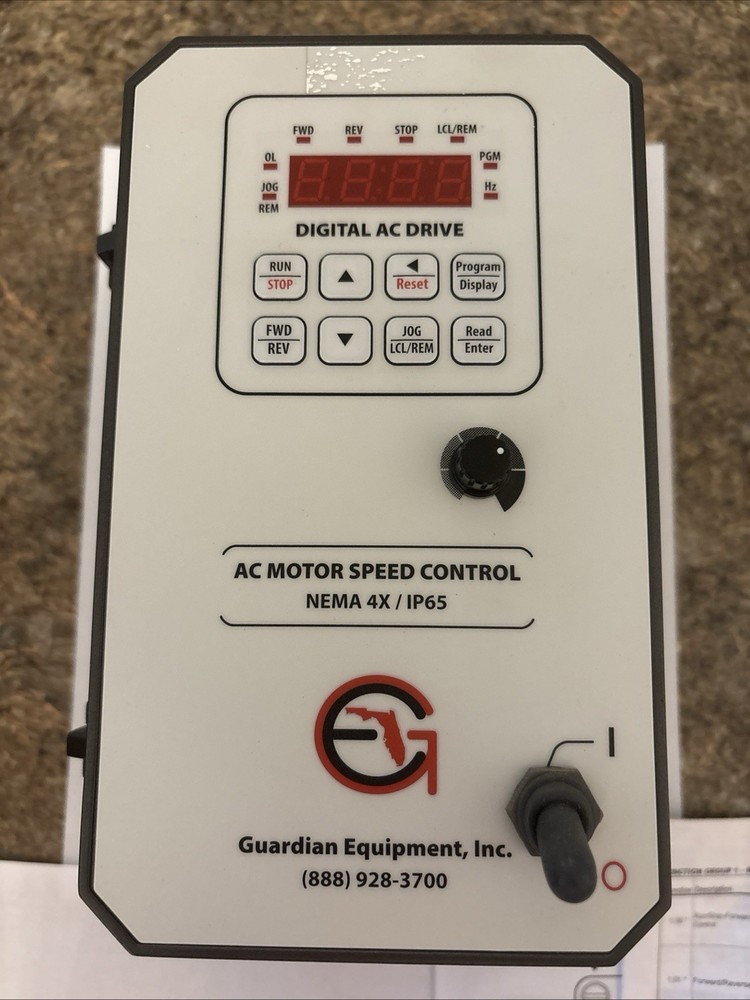

Ac Motor Speed Control NEMA 4X / IP65
