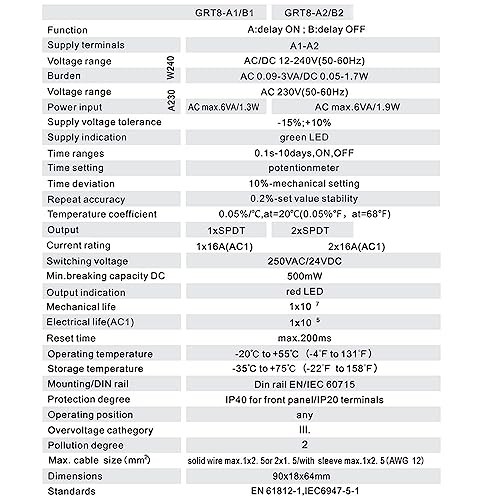

| Connector Type | Clamp |
|---|---|
| Contact Material | Silver |
| Contact Type | Normally Open |
| Current Rating | 16 Amps |
| Mounting Type | DIN Rail Mount |
| Operation Mode | ON |
| Wattage | 9 watts |
| Coil Resistance | 16 |
| Coil Voltage | 12 Volts |
| Contact Current Rating | 16 Amps |
| Maximum Switching Current | 16 Amps |
| Maximum Switching Voltage | 230 Volts |
| Minimum Switching Voltage | 12 Volts |
| Number of Terminals | 3 |
| Specification Met | Cb |
| Product Dimensions | 3.54 x 0.71 x 2.52 inches |
| Item Weight | 2.39 ounces |
| Manufacturer | ZHEJIANG GEYA ELECTRICAL CO.,LTD |
| Item model number | GRT8-A1,A230-h1 |
| Date First Available | May 17, 2018 |
| Item Length | 3.54 |
| Item Height | 2.52 |
| Item Width | 0.71 |
| Size | GRT8-A1,A230 |

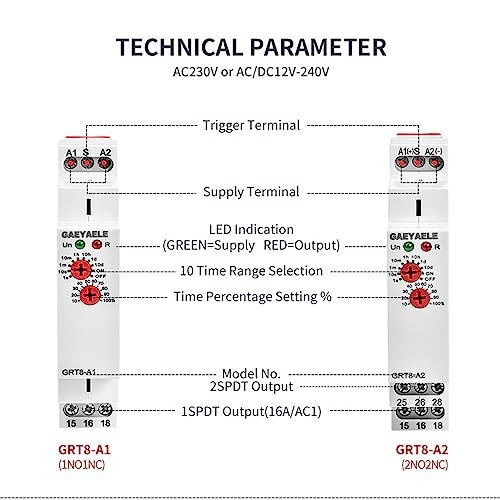

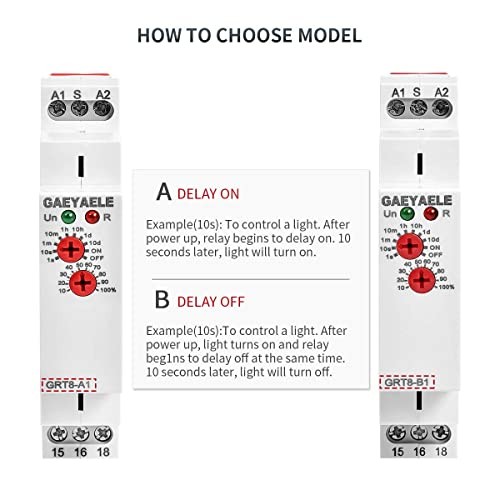

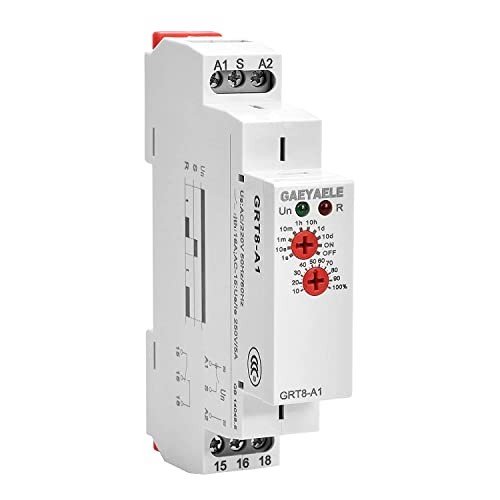

Check the listing for details. Delay on Time Relay Electronic 16A 1SPDT Adjustable Timer Delay GRT8-A1,A230. Condition: New. Listed at 34.01 USD. Function Mode: A1 model is Delay On device. Relay Status : Status is indicated by the LED indicators. Product Size: Ultra-small size, only 18mm width, 35mm rail mounting.
