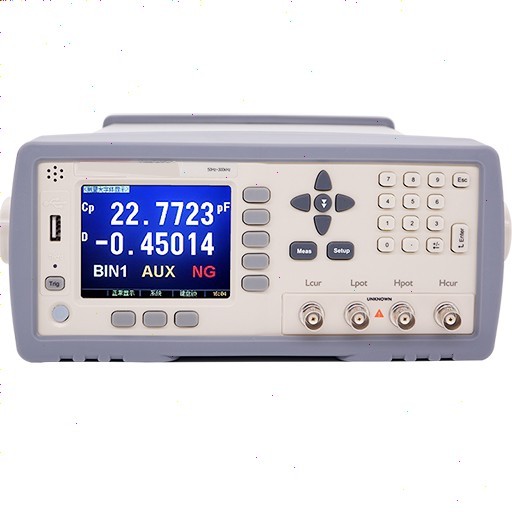

Desktop LCR Meter with Frequency Range 50Hz~200kHz and DCR DC ALC Bias Function

Name: Desktop LCR Meter with Frequency Range 50Hz~200kHz and DCR DC ALC Bias Function
SKU: 168099428719
Price: 1345.00 USD
Availability: InStock

$672.50

$1,345.00 -50%

Brand VTSYIQI

Condition New

Item ID 168099428719

Source Resistance	6 digits: 999999
Frequency Range	50Hz～200kHz
Basic Accuracy	0.1% ±5 dgt
Measurement Functions	L, C, R, D, Q, Z
Product	LCR Meter
Signal Level	10.00mV~2.00V AC (ALC) 100.0μA~20.00mA AC (ALC)
MPN	Digital LCR Meter
Monitor Parameter	Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
Form Factor	Benchtop
Files	built-in 10 files and USB Disk 10 files
Measurement Range	AUTO/HOLD/NOMINAL 9 Ranges
DC BIAS	-2.5V~+2.5V (0.5%+0.005V)
Color	White
Dimension	264(W)x107(H)x350(L)
Data Logger	9999 Log Files (.csv)
Display Reader	6 digits: 999999
Weight	3kg
Equivalent Circuit	Serial and Parallel
Brand	VTSYIQI
Model	Digital LCR Meter
Measurement Speed	40 times/s, 10 times/s, 3 times/s
Trigger Delay	0.01ms~60s
Country of Origin	China
Display	True color TFT-LCD display
Resolution	0.001Hz
UPC	607608748886

Check the listing for details. Desktop LCR Meter with Frequency Range 50Hz~200kHz and DCR DC ALC Bias Function. Color: White, Condition: New, Made in China. Listed at 1345.00 USD. It with continuous frequency point of 10Hz~200kHz with a resolution of 0.001Hz. 50Hz ～ 200kHz (Resolution 0.001Hz ）. Bias Function. Cs-Rs, Cs-D, Cp-Rp, Cp-D, Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, R-X, Z-θrad, Z-θdeg DCR. ).
