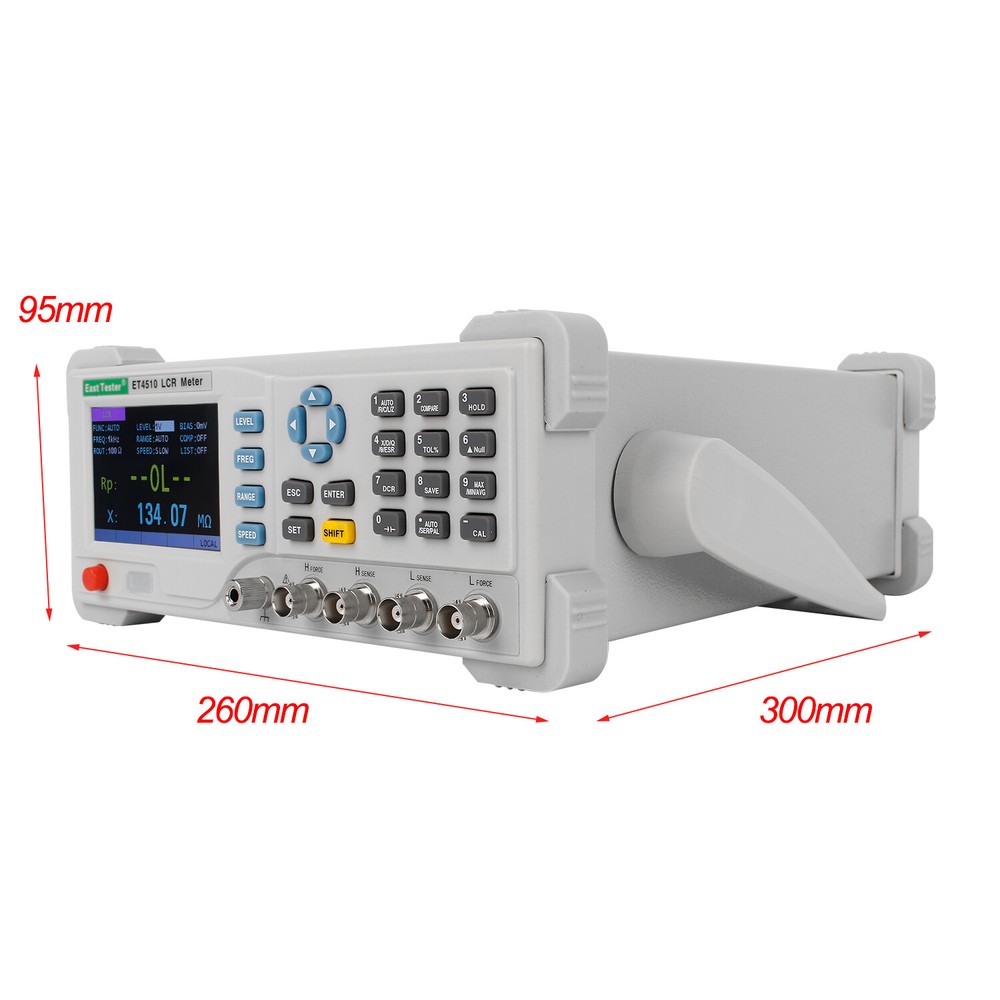

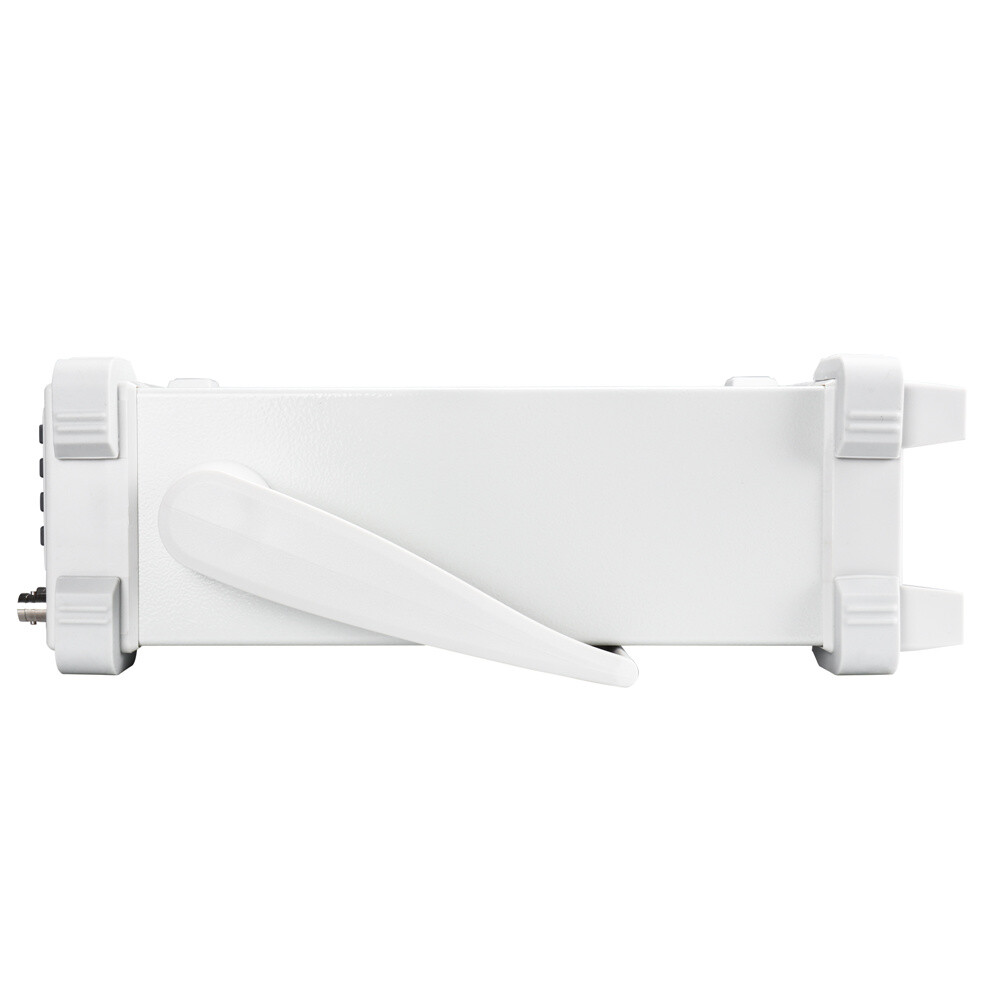

Check the listing for details. Digital Benchtop LCR Bridge Meter Electrolytic Capacitance DC Resistance Tester. Color: White, Condition: New. Listed at 499.95 USD. Digital Benchtop LCR Bridge Meter Electrolytic Capacitance DC Resistance Tester Introduction: ET45 series LCR digital bridge is a component parameter analyzer based on the principle of automatic balancing bridge. Its 10Hz-100kHz test bandwidth, frequency continuous adjustable, 0.2% basic measurement accuracy and the file classification function provided by the instrument provide accurate and complete measurement and analysis for most components and materials, which are widely suitable. Used in product development, component inspection, product on-line inspection and other applications. Features: ¤ The highest measuring frequency is 100kHz, and the stepping; frequency is continuously adjustable at 1Hz ¤ Test level 10~2000 mV, 1 mV step continuously adjustable ¤ Supporting DC Resistance (DCR) and Electrolytic Capacitance Measurement ¤ Internal bias voltage output 0mV~1500mV ¤ 3.5-inch TFT display, 5-bit display ¤ Data recording function (maximum, minimum, average) ¤ Supporting SCPI Communication Protocol ¤ Provide system settings to configure Chinese or English, buzzer, screen brightness, etc ¤ The basic measurement accuracy is 0.1% ¤ Manual and automatic range ¤ With open circuit and short circuit calibration function ¤ Comparator sorting (5 gears), alarm function Specifications: ModelET4510Testing frequency 10-100KHz continuous adjustable, 1Hz step by-step Display screenDisplay screen 3.5 inch TFT LCDNumber of display digitsPrincipal parameter: 5 digit，Secondary parameter: 5 digitMeasured parameterPrincipal parameter: L/C/R/Z，Secondary parameter: X/D/Q/θ/ESRMeasurement RangeL：0.001μH～9999HC：0.001pF～99.999mFR：0.0001Ω～99.99MΩBasic accuracy0.1%Measuring display speed2 time/s (slow), 4 times/s (medium), 8 time/s (fast)Internal bias0-1500mV adjustable, at a step of 1mV.Testing level0.01~2V adjustable, at a step of 1mV.Signal source output impedance30Ω、100ΩCalibration functionOpen circuit calibration, short circuit calibrationScreening functionThe limit range of screening can be set to -50%～＋50%, and the fixed points are 1%, 5%, 10% and 20%.Comparator5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary settingInterfacesstandard: RS232（or 485）, USB Device, Handler OthersSupport dc resistance (DCR), electrolytic capacitor measurement model, Adjustment of backlight brightness, Chinese and English are optional Specifications: ¤ Power supply voltage: 220V.AC±10%, or 110V.AC±10%, 45~65Hz ¤ Power consumption:
