| Model | 7200B 6000 Counts |
|---|---|
| DC Voltage Range | 600mV/6V/60V±(0.5%+2) 600V±(0.8%+2) |
| Temperature | -20-150 ℃(-4-302℉),150-1000℃(302-1832℉) |
| Maximum Input Voltage | 600V |
| Number of Counts | 6000 |
| MPN | HP-7200-APP |
| Brand | HoldPeak |
| Measurement Category | CAT III |
| Form Factor | Handheld |
| Current Range | 60A ±(2%+10) *400A ±(3.0%+10) |
| Test/Measurement Functions | AC Current, AC Voltage, Capacitance, Continuity Test, DC Current, DC Voltage, Diode Test, Duty Cycle, Frequency (Hz), Resistance, Temperature |
| AC Voltage Range | 6V/60V ±(1.0%+3) *600V ±(1.5%+3) |
| Capacitance | 6nF-60nF-600nF-6uF-60uF-600uF-6mF-60mF |
| Frequency | 9.999Hz~9.999MHz ±(0.1%+5) |
| Features | Auto Power Off, Auto-Ranging, Backlight, Clamp, Data Hold, Fused Current (mA/uA) Terminal, True RMS, Average Value Mode, Bar Graph Display, Manual-/Push-to-Hold Function, Relative Measurement, Battery Door Access, Data Logging, Over Range Protection |
| Duty Cycle | 0.1%～99.9%: ± ( 2.0% of rdg + 2 digits ) |
| Display | Digital |
| Resistance Range | 600Ω-6kΩ-60kΩ-600kΩ-6MΩ-60MΩ |

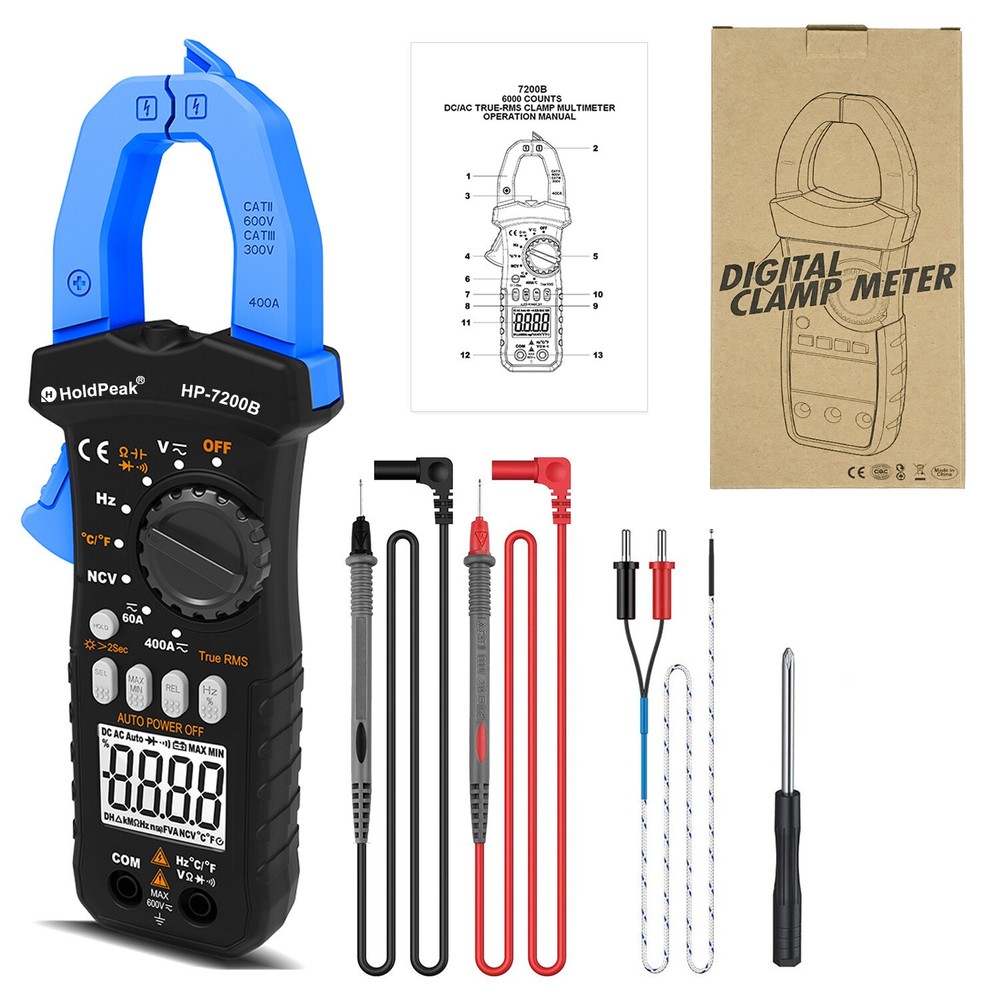

Check the listing for details. Digital Clamp Meter TRMS Multimeter AC DC Current Ohm Amp Volt Tester 6000Counts. Condition: New. Listed at 26.99 USD. ⚡⚡⚡HP-7200B TRMS Clamp Meter 6000 Counts (7200B without Bluetooth APP function,but 7200-APP With APP Bluetooth Function) ➤【Multifunction Clamp Meter】 6000 Counts Auto-range AC/DC amps clamp multimeter with the DC Voltage range:600mV~600V, AC Voltage range:6V~600V, AC/DC Current: 60A~400A; Resistance:600Ω~60MΩ; Ideal Non-contact ampere multimeter to troubleshoot electrical problems in automotive, household, HVAC, vehicle boat motor diagnosis. ➤【True-RMS Clamp Meter】 This multimeter can accurately measure AC/DC Current, AC/DC Voltage, Frequency or Duty Cycle, Resistance, Capacitance and also provides Diode, Continuity and Temperature tests in ℃. True RMS for accurate measurements on non-linear loads. Easy to use for labs factories and household. ➤【NCV Detection Function】Non-contact voltage d.
