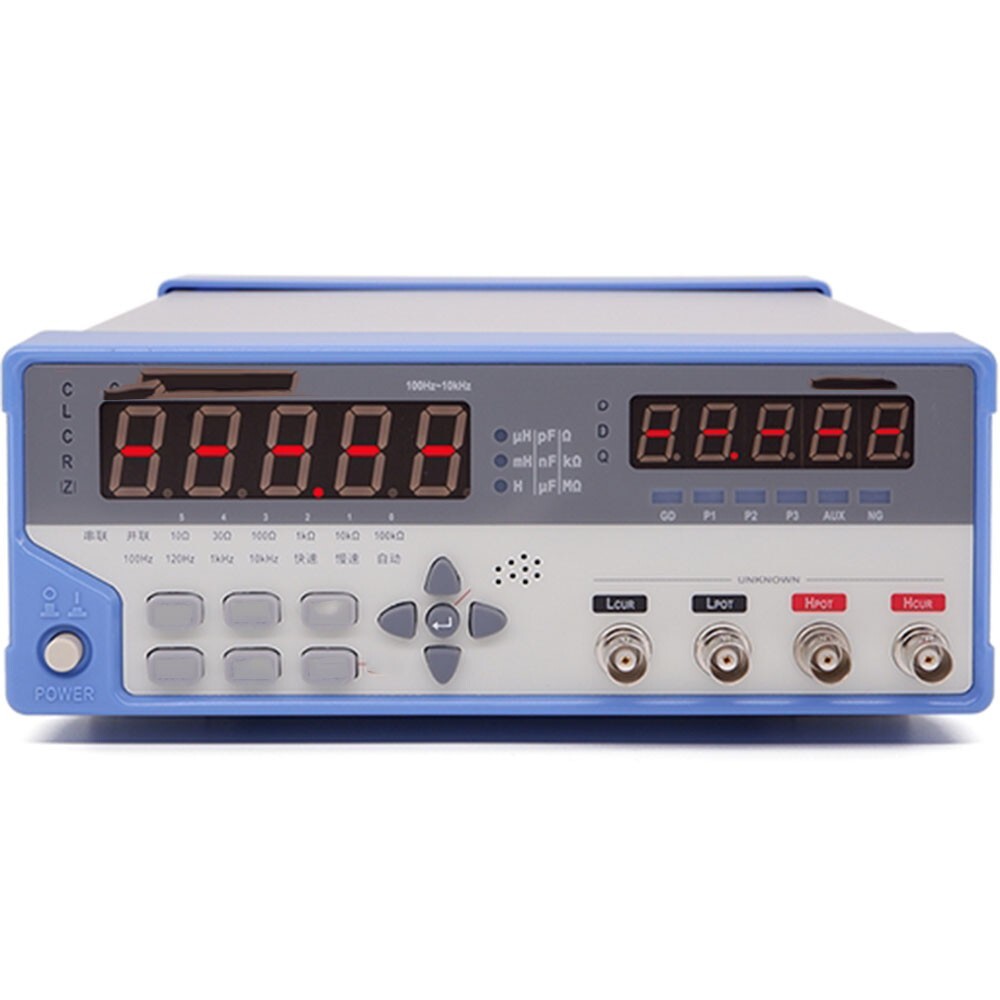

Check the listing for details. Digital LCR Bridge Meter LCR Meter Tester with Basic Accuracy 0.25% 10VA Power. Condition: New. Listed at 585.00 USD. Digital LCR Bridge Meter LCR Meter Tester with Basic Accuracy 0.25% 10VA Power General purpose LCR digital bridge, an economical miniature benchtop instrument. Test frequencies: 100Hz, 120Hz, 1kHz and 10kHz, 0.1V, 0.3V and 1V levels selectable, 30Ω, 100Ω source internal resistance selectable.The instrument can automatically measure inductance L, capacitance C, resistance R, complex impedance Z, quality factor Q, and loss angle tangent D. The AT2811 is designed to be used in a wide range of applications.It has a high cost-effective, foolproof operation interface, can easily meet the component manufacturers, schools, etc. for routine measurements, but also can meet the requirements of the production line mass production.The instrument has a built-in sorting function with a five-step sorting display and sorting alarm settings.Featuresl The main parameter has a 0.8“ LED display and the secondary parameter has a 0.5” LED display.l The number of display digits is 5.l Display A: L, C, R, Zl Display B: Q, Dl Short-circuit and open-circuit clearingl Comparator (sorting) function: 5 positions, 3 percentage pass positions, 1 subsidiary position and 1 unqualified position.l All comparator result alarm switches can be set Measurement ParameterL、C、R、Z、D、QBasic Accuracy0.25%Measurement Frequency100Hz, 120Hz, 1kHz, 10kHzMeasurement SpeedSlow: 3 times/sec, Fast: 10 times/secTest rangeAutomatic and manual, six rangesDisplay RangeL: 0.01uH-9999HC: 0.01pF - 9999uFR,Z: 0.0001Ω - 99.99MΩD:0.0001-9.999Q:0.0001~999.9Output Impedance30Ω,100ΩReadingPrimary parameter : 99999 Secondary parameter : 99999Equivalent ModeSeries and ParallelSignal Level0.1Vrms,0.3Vrms and 1VrmsComparator5-position selector, P1/P2/P3/AUX/NGCalibrationOpen-circuit clearing and short-circuit clearingAudible functionp1, p2, p3, aux, ng, offInterfaceUSB-HID CommunicationCommunication ProtocolSCPIPower Requirements198VAC to 240VAC, 50Hz/60HzPower:
