| Country of Origin | China |
|---|---|
| Source Resistance | 30Ω and 100Ω |
| Frequency Range | AUTO/HOLD/NOMINAL 6 Ranges |
| Comparator Mode | SEQ/ABS/PER |
| Basic Accuracy | 0.2% |
| Custom Bundle | No |
| Measurement Functions | LCR meter |
| Product | LCR Meter |
| UPC | 734730800226 |
| MPN | 2022 |
| Signal Level | 0.1Vrms,0.3Vrms 和 1Vrms |
| Power Supply | AC 198V-240V,50Hz-60Hz 15W MAX |
| Form Factor | LCR Meter |
| Monitor Parameter | Z,D,Q,Δ,Δ% |
| Output Impedance | LCR Meter |
| Protocol | SCPI |
| Measurement Frequency | 100Hz,120Hz,1kHz,10kHz |
| Dimension & Weight | 264(W)x107(H)x350(L) 4kg,net |
| Adjustment | OPEN/SHORT Zeroing |
| Test Functions | Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg |
| Display Reader | 5 digits: 99999 |
| Modified Item | No |
| Equivalent Circuit | Serial and Parallel |
| Brand | VTSYIQI |
| Beep Feature | OFF/P1/P2/P3/AUX/NG |
| Model | LCR meter |
| Measurement Speed | 2 times/s,5 times/s |
| Interface | RS232/HANDLER |
| Resolution | 100Hz,120Hz,1kHz,10kHz |

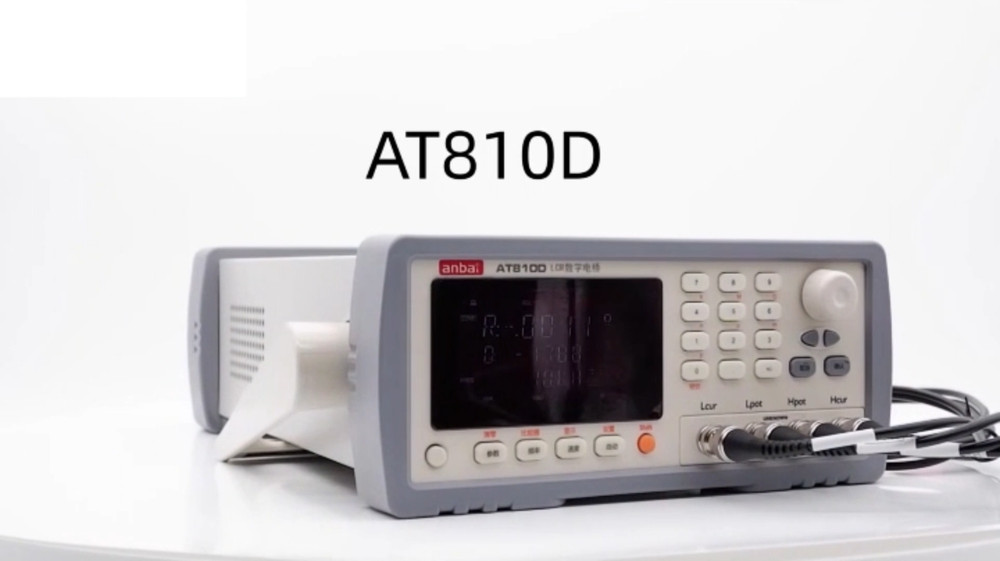

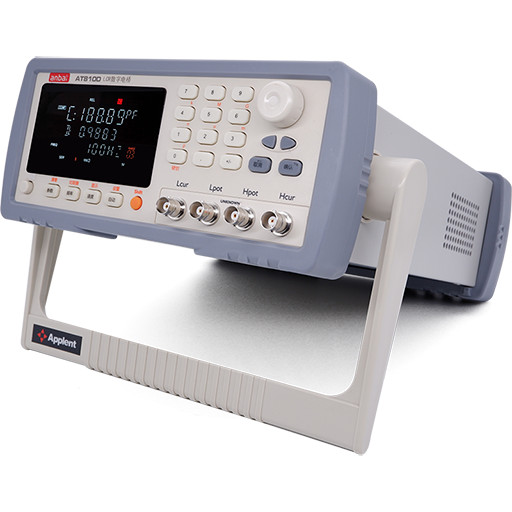

Check the listing for details. Digital LCR Meter Capacitance Inductance Resistance Tester Accuracy 0.2%. Condition: New, Made in China. Listed at 613.71 USD. The use of large-scale patch technology makes it only need a miniature chassis to accommodate it. Correction function: full range open circuit and short circuit sweep frequency clearing. Accuracy 0.2%.
You may also like
$1895
Agilent HP 4284A Precision LCR Meter 20Hz-1MHz, No option
$109.8

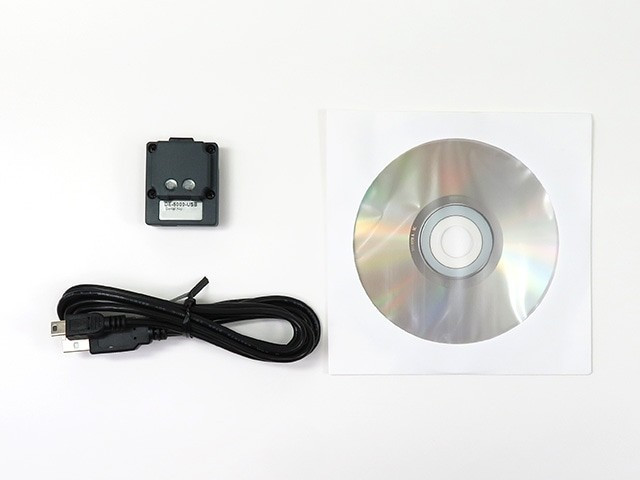

DE-5000 USB Interface Module for LCR Meter with Conversion Casing & CD-ROM F/S
