| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money back or replacement (buyer's choice) |
| Basic Accuracy | 0.2% |
| Model | LCR meter |
| Modified Item | No |
| Custom Bundle | No |
| California Prop 65 Warning | LCR Meter |
| Output Impedance | LCR Meter |
| MPN | 2022 |
| Brand | VTSYIQI |
| Resolution | 100Hz, 120Hz, 1kHz, 10kHz |
| Form Factor | LCR Meter |
| Country/Region of Manufacture | China |
| Product | LCR Meter |
| Display Reader | 5 digits: 99999 |
| Equivalent Circuit | Serial and Parallel |
| Signal Level | 0.1Vrms, 0.3Vrms 和 1Vrms |
| Comparator Mode | SEQ/ABS/PER |
| Adjustment | OPEN/SHORT Zeroing |
| Beep Feature | OFF/P1/P2/P3/AUX/NG |

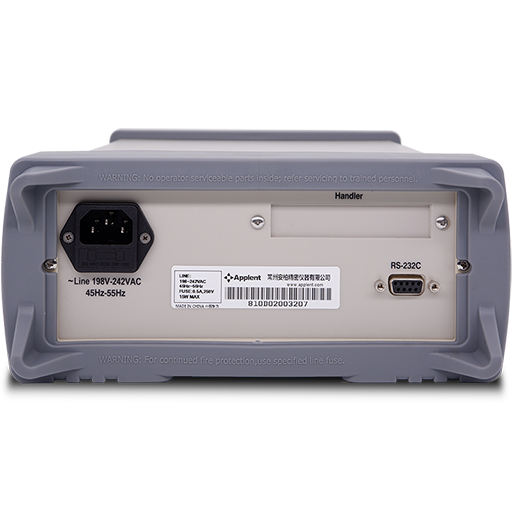

| Interface | RS232/HANDLER |
| Protocol | SCPI |
| Power Supply | AC 198V-240V, 50Hz-60Hz 15W MAX |
| Dimension & Weight | 264(W)x107(H)x350(L) 4kg, net |
| Test Functions | Cs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg |
| Measurement Frequency | 100Hz, 120Hz, 1kHz, 10kHz |
| Measurement Speed | 2 times/s, 5 times/s |
| Source Resistance | 30Ω and 100Ω |
| Monitor Parameter | Z, D, Q, Δ, Δ% |
| Measurement Functions | LCR meter |
| Frequency Range | AUTO/HOLD/NOMINAL 6 Ranges |

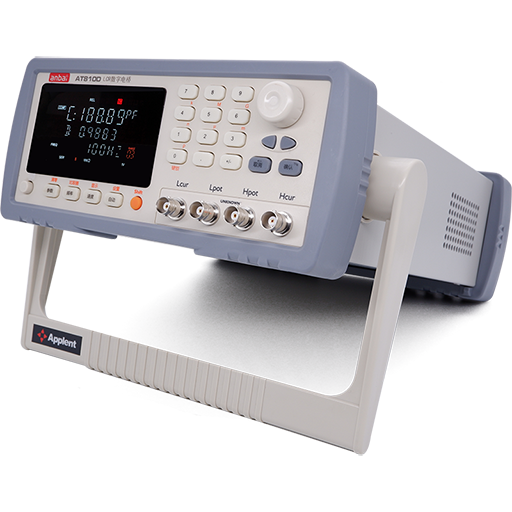

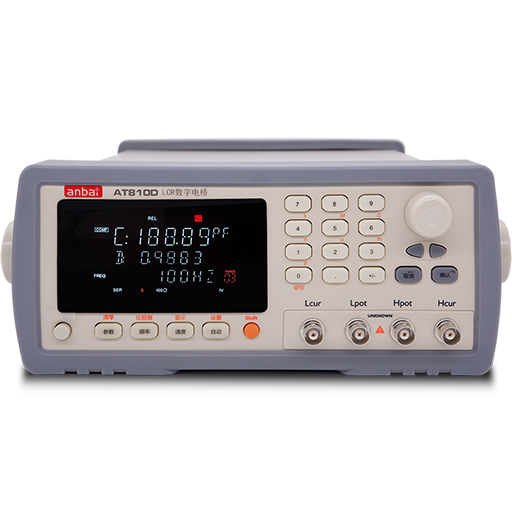

Check the listing for details. Digital LCR Meter Capacitance Inductance Resistance Tester Accuracy 0.2%. Condition: New. Listed at 579.94 USD. Digital LCR Meter Capacitance Inductance Resistance Tester Accuracy 0.2% Adopt high performance processor is an intelligent LCR test instrument with a bright color VFD screen. The use of large-scale patch technology makes it only need a miniature chassis to accommodate it. Relying on the exquisite technology of Anbai Instruments, its performance is impeccable. Built-in 100Hz, 120Hz, 1kHz and 10kHz test frequencies, and provide 0.3V and 1V test levels, so that it can fully meet the use of general production sites. Using Anbai Technology AT-OS 2005 micro-instrument operating system, has a fool-like operation interface.Feature:High brightness, ultra-clear four-color VFD display.Correction function: full range open circuit and short circuit sweep frequency clearing.The third window can display Z, D, Q, ΔABS, Δ% or sorting results at the same time.Specification:Test FunctionsCs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdegAccuracy0.2%Measurement Frequency100Hz, 120Hz, 1kHz, 10kHzMeasurement RangeAUTO/HOLD/NOMINAL 6 RangesMeasurement Speed2 times/s, 5 times/sDisplay RangeL: 0.01μH-9999HC: 0.01pF-9999μF R,Z:0.0001Ω-99.99MΩΔ%: -9999% - 9999% D: 0.0001 - 9.9999Q:0.0001 - 9999R,X,Z: 0.00001Ω - 99.9999MΩD, 0.00001 – 9.99999Q: 0.00001 – 99999.9Δ%: -999999% - 999999%θ(deg): -179.999° -179.999°θ(rad):-3.14159 – 3.14159DCR: 0.00001Ω ~ 99.9999MΩSource Resistance30Ω and 100ΩMonitor ParameterZ, D, Q, Δ, Δ%Display Reader5 digits: 99999Equivalent CircuitSerial and ParallelSignal Level0.1Vrms, 0.3Vrms 和 1VrmsTrigger ModeINT/HOLD/MAN/BUSComparator5 档分选 P1,P2,P3,AUX,NGComparator ModeSEQ/ABS/PERAdjustmentOPEN/SHORT ZeroingBeep FeatureOFF/P1/P2/P3/AUX/NGInterfaceRS232/HANDLERProtocolSCPIPower SupplyAC 198V-240V, 50Hz-60Hz15W MAXDimension & Weight264(W)x107(H)x350(L)4kg, net Application:Component Sorting Machine Version.Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
