| Comparator | P1/P2/P3/AUX/NG |
| Adjustment | OPEN/SHORT Zeroing |
| Dimension & Weight | 264(W)x107(H)x350(L) 4kg, net |
| Basic Accuracy | 0.1% |
| Model | LCR meter |
| Modified Item | No |
| Custom Bundle | No |
| California Prop 65 Warning | LCR Meter |
| Output Impedance | LCR Meter |
| MPN | 2022 |
| Brand | VTSYIQI |
| Resolution | 100Hz, 120Hz, 1kHz, 10kHz |
| Form Factor | LCR Meter |
| Country/Region of Manufacture | China |
| Product | LCR Meter |
| Trigger Mode | INT/HOLD/MAN/BUS |
| Power Supply | AC 198V-240V, 50Hz-60Hz 15W MAX |
| Measurement Functions | LCR meter |
| Frequency Range | AUTO/HOLD, 6 Ranges |
| Equivalent Circuit | Serial and Parallel |
| Measurement Frequency | 100Hz, 120Hz, 1kHz, 10kHz |
| Measurement Speed | 15 times/s, 5 times/s, 3 times/s |
| Source Resistance | 30Ω/100Ω |
| Monitor Parameter | Z, D, Q, θ, ΔABS, Δ% |
| Display Reader | 5 digits: 99999 |

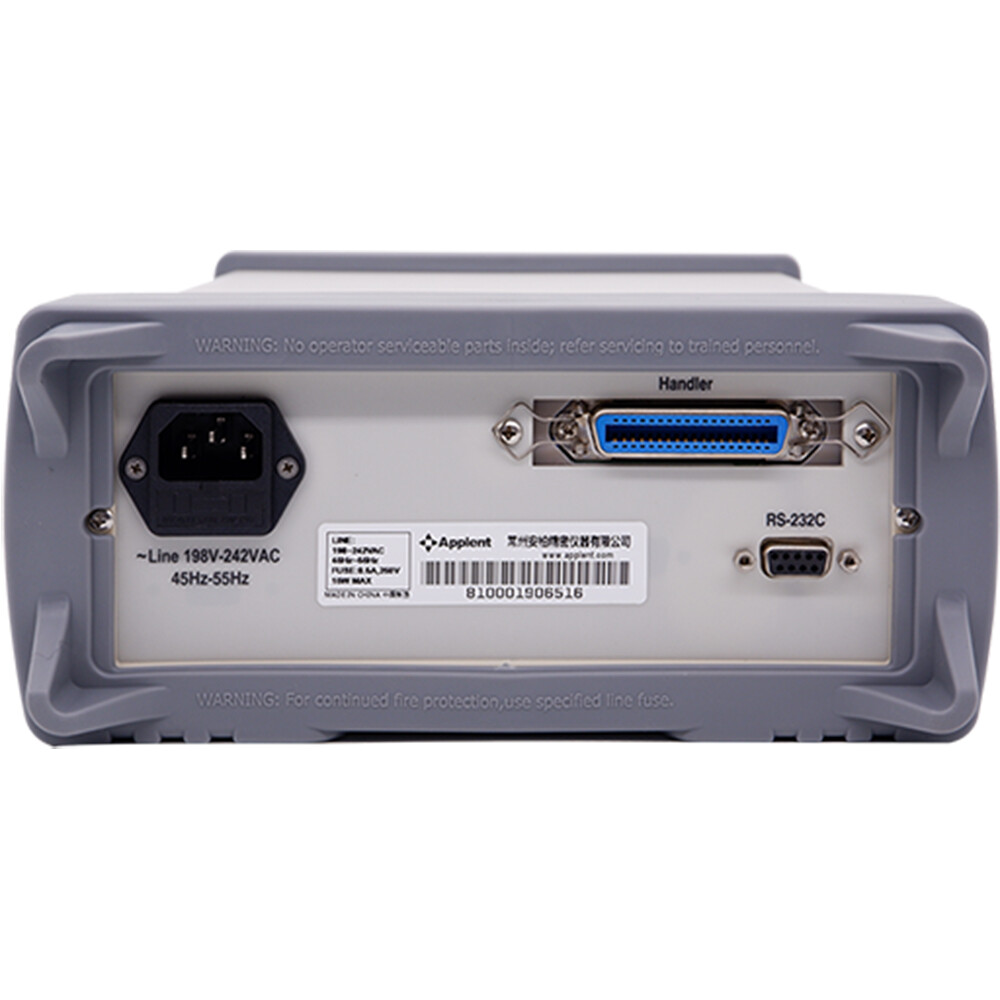

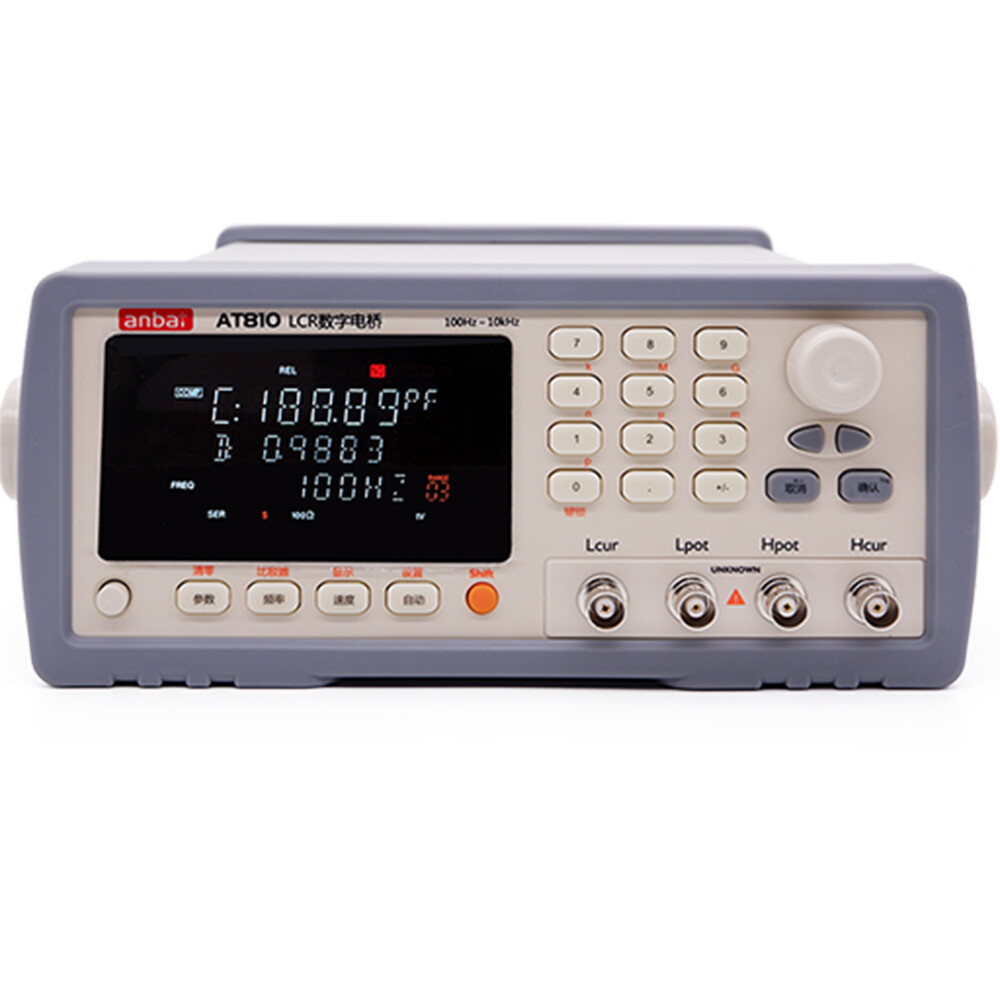

Check the listing for details. Digital LCR Meter with Capacity Measuring Instruments RS232C Interface. Condition: New. Listed at 628.94 USD. Digital LCR Meter with Capacity Measuring Instruments RS232C Interface The AT810 LCR Meter features both high performance, high speed measurements with a low prices.The basic accuracy of 0.1% makes the AT810 suitable for use on production lines and laboratories.The built-in high speed comparator significantly reduces production line tact time and allows the construction of automatic production lines.The very compact body features a clearly visible VFD display that facilitates easy operation and allows settings to be confirmed at a glance.Feature:VFD DisplayCorrection: OPEN and SHORTView: ΔABS, Δ% or Sorting Result on 3rd LineComparator Function: 20 files, P1,P2,P3,NG,AUX, HI, IN, LOInterface: RS232C and HandlerKey lock functionData Hold functionSpecification:Test FunctionsL,C.R,Z,D,QAccuracy0.1%Measurement Frequency100Hz, 120Hz, 1kHz, 10kHzMeasurement RangeAUTO/HOLD, 6 RangesMeasurement Speed15 times/s, 5 times/s, 3 times/sDisplay RangeL: 0.01μH-9999HC: 0.01pF – 9999μFR,X,Z: 0.0001Ω - 99.99MΩD, 0.0001 – 9.9999Q: 0.0001 – 9999.9Source Resistance30Ω/100ΩMonitor ParameterZ, D, Q, θ, ΔABS, Δ%Display Reader5 digits: 99999Equivalent CircuitSerial and ParallelSignal Level10.00mV~2.00V AC 100.0μA~20.00mA ACTrigger ModeINT/HOLD/MAN/BUSComparatorP1/P2/P3/AUX/NGComparator ModeSEQ/ABS/PERAdjustmentOPEN/SHORT ZeroingBeep FeatureOFF/P1/P2/P3/AUX/OUTInterfaceRS232/HandlerProtocolSCPIPower SupplyAC 198V-240V, 50Hz-60Hz15W MAXDimension & Weight264(W)x107(H)x350(L)4kg, net Application: Componets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.
