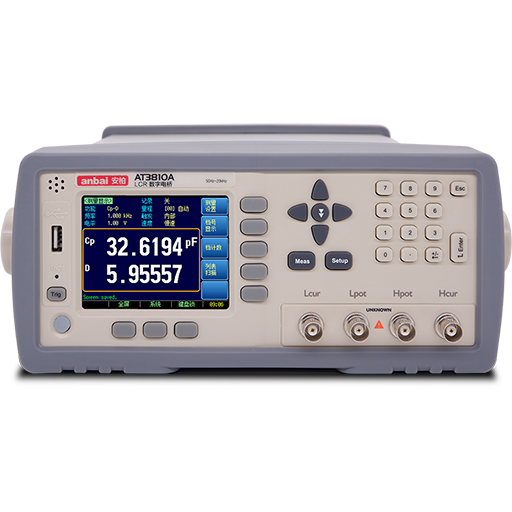

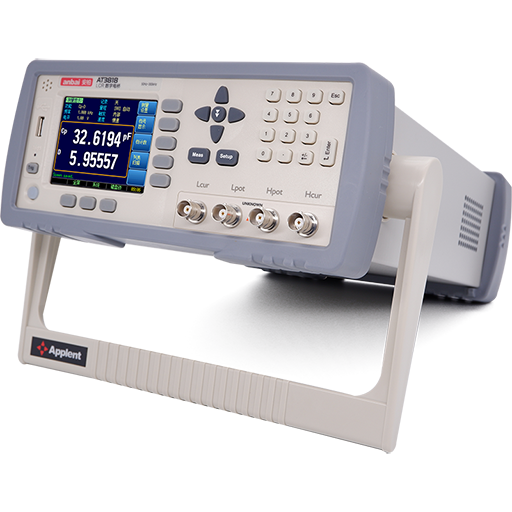

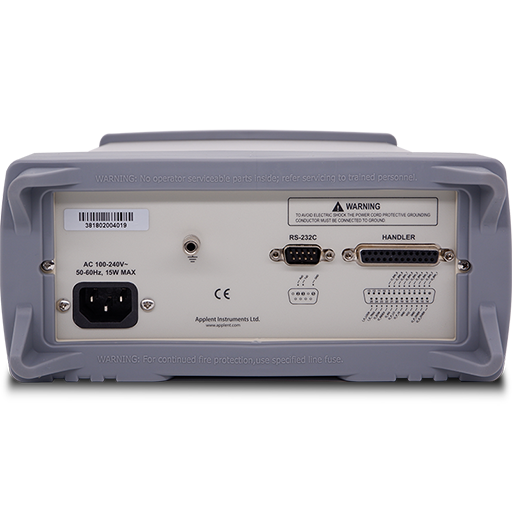

Check the listing for details. Digital Meter LCR Meter DCR Function Measurement Frequency 10Hz～300kHz. Condition: New. Listed at 839.92 USD. FEATURESTrue color 16M color, TFT-LCD display.Store 999 LCD screen files, trigger delay, automatic level control (ALC)Correction function: full-scale open circuit and short-circuit sweep frequency clear, three groups of users point frequency calibration.Multi-frequency test: support 10 frequency scan testsMulti-level test: support 10 level scan tests10 sets of file management for full storage of instrument status, list scan settings and comparator settings.Enhanced comparator (sorting) function: Programmable P1~P9 Nine-segment sorting, main parameters HI, IN, LO display and output, NG, AUX, SREJ, IDX, EOM, etc. Output.Absolute deviation (ABS) comparison mode, relative deviation (PER) and order (SEQ) comparison.Switchable accessory file (AUX) sorting.Programmable from 1 to 200 times to provide stability.Custom sorting results are heard.Built-in RS232C interface and Handler interface.1000V super shock protection Test FunctionsCs-Rs,Cs-D,Cp-Rp,Cp-D,Lp-Rp,Lp-Q,Ls-Rs,Ls-Q,R-X,Z-θrad,Z-θdeg DCR AccuracySLOW/MED: 0.05%; FAST: 0.1% Measurement Frequency10Hz～300kHz (Resolution 0.001Hz） Measurement RangeAUTO/HOLD/NOMINAL 9 Ranges Measurement Speed40 times/s, 10 times/s, 3 times/s Display RangeL: 0.00001μH-9999.99H C: 0.00001pF – 9999.99μF R,X,Z: 0.00001Ω - 99.9999MΩ D, 0.00001 – 9.99999 Q: 0.00001 – 99999.9 Δ%: -999999% - 999999% θ(deg): -179.999° -179.999° θ(rad):-3.14159 – 3.14159 DCR: 0.00001Ω ~ 99.9999MΩ Source Resistance30Ω, 50Ω and 100Ω Monitor ParameterZ, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ% Display Reader6 digits: 999999 Equivalent CircuitSerial and Parallel Signal Level10.00mV~2.00V AC (ALC) 100.0μA~20.00mA AC (ALC) DC BIAS-2.5V~+2.5V (0.5%+0.005V) Average1~256 Trigger ModeINT/HOLD/MAN/BUS Trigger Delay0.01ms~60s ComparatorOK: 10-BINS NG:1-BIN AUX: 1-BIN List Test10 Steps (Frequency/Voltage/Current) Comparator ModeSEQ/ABS/PER AdjustmentOPEN/SHORT Zeroing (ALL,SPOT) Filesbuilt-in 10 files and USB Disk 10 files Data Logger9999 Log Files (.csv) Beep FeatureOFF/PASS/FAIL InterfaceRS232/RS485/USB/HANDLER/GPIB(OPTION) ProtocolSCPI/Modbus Other FunctionsAUTO LCZ Power SupplyAC 100V-240V, 50Hz-60Hz 20W MAX Dimension & Weight264(W)x107(H)x350(L) 3kg, net APPLICATIONSComponets and materials measurement such as Inductor, Magnetic core, Ferrite core, Capacitor, Transformer and etc.Laboratory quality controlFeed inspectionComponent sorting
