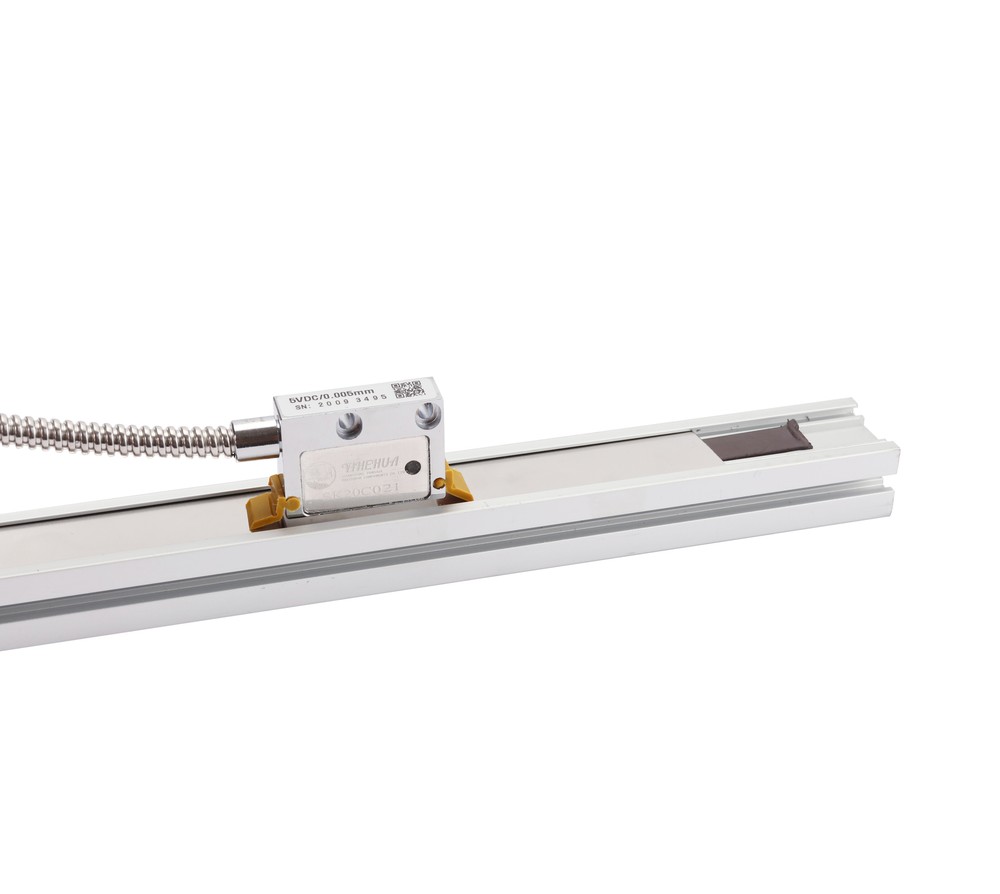

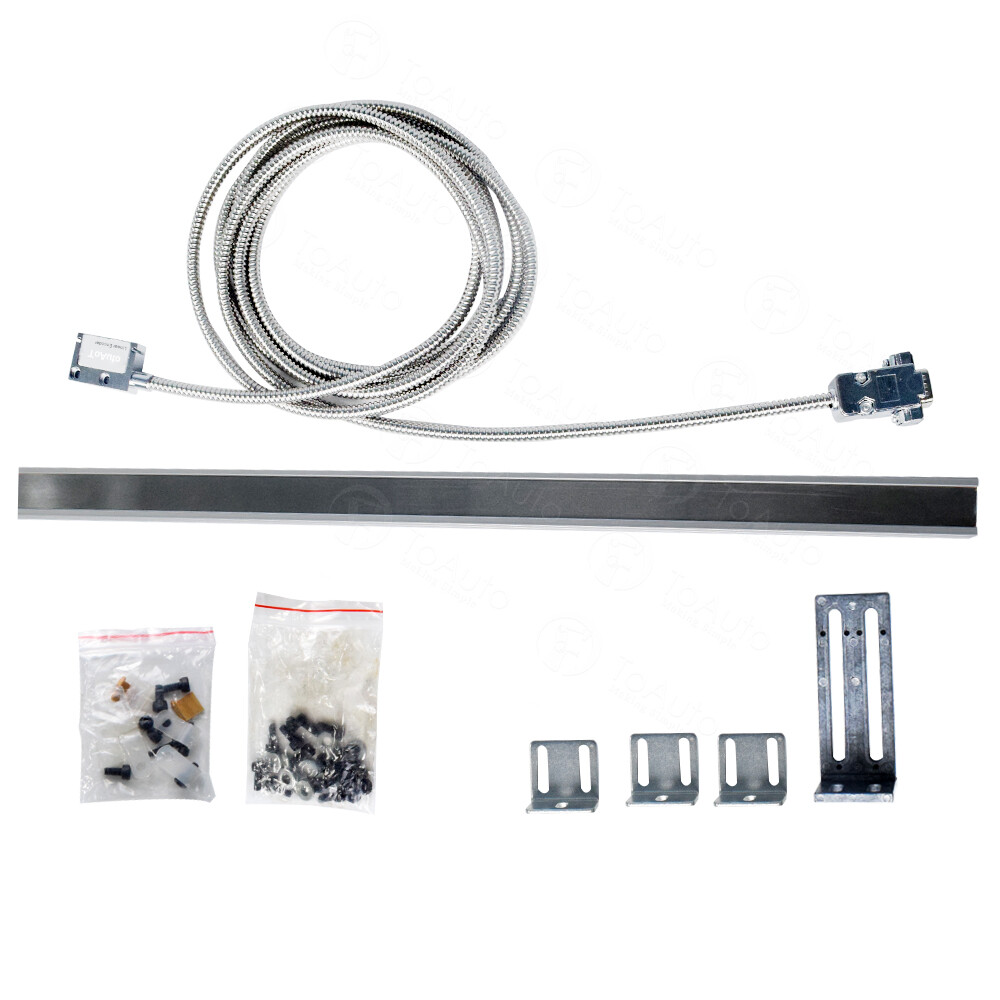

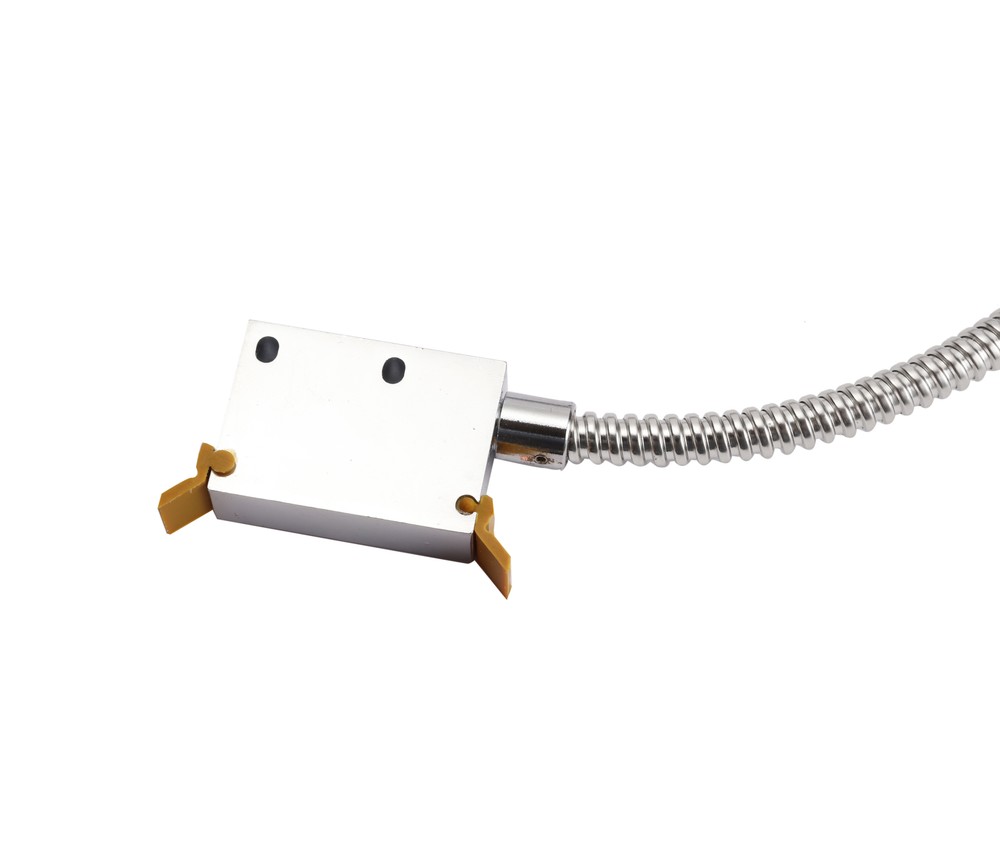

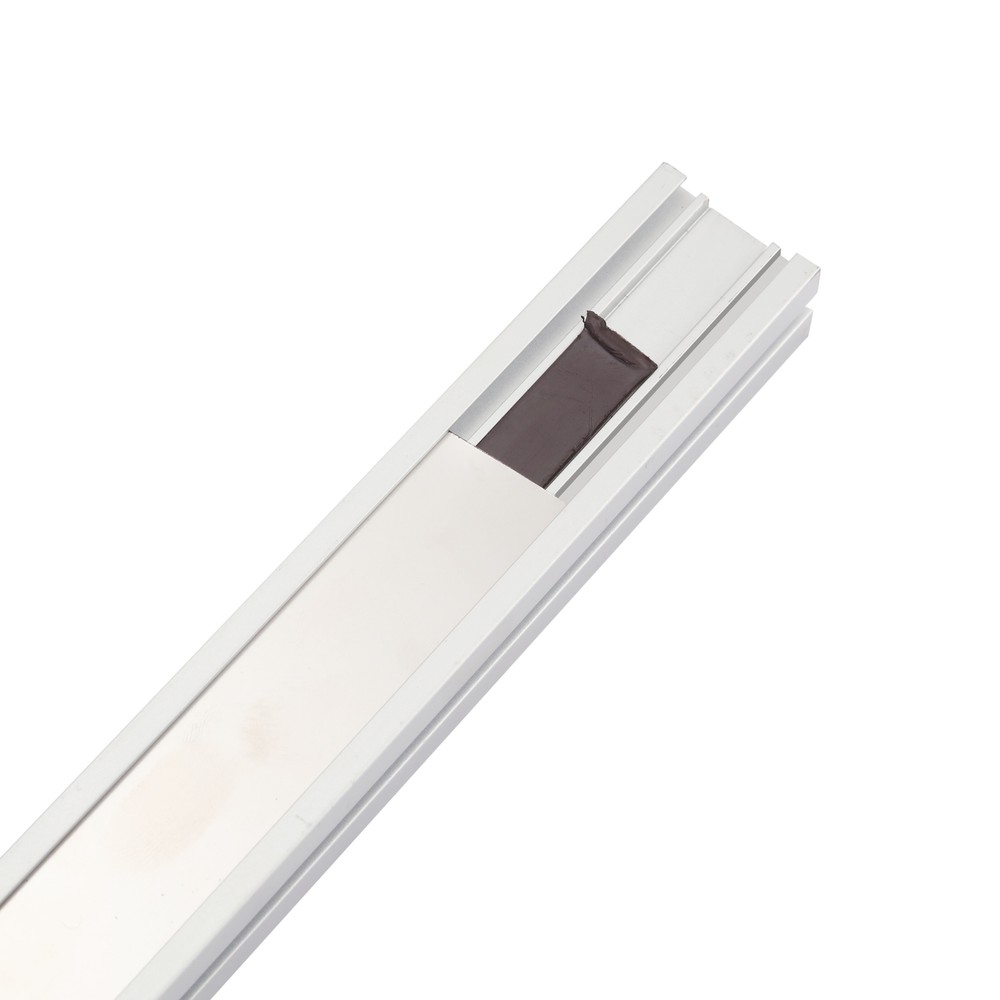

Check the listing for details. Digital Readout 100mm-6000mm Read Head 5um Magnet Linear Scale CNC Milling. Condition: New – Open box. Listed at 98.43 USD. Magnetic Read Head Sensor 5um 2Axis 3Axis Digital Readout Display Milling Lathe Applications : Through non-contact induction, the linear motion is converted into orthogonal pulse signal output, which can accurately measure the length, acceleration and so on. Suitable for： Machineing Centers PVC Cutting Machines Wood Cutting Machines Lathes, Milling Drilling, Grinding Machines Sheet Metal Working Machines Marble Machines Welding Machines Bending Machines Electrical Discharge Machines Robotics/Material Handing Glass Working Machinery Resolution:5um/0.005mm/0.0002" Output Signal Type: TTL square wave RS422 Line Driver Output Signals: A, /A, B, /B, Z, /Z Current： Maximum 30 mA per Channel Supply Voltage: 5VDC Body Material: Aluminum Gap Between Tape and Sensor: 2mm is recommended, Max. 4mm 5um Magnetic Read Head Sensor 2Axis 3Axis Digital Readout Display Milling Lathe Applications : Through non-contact induction, the linear motion is converted into orthogonal pulse signal output, which can accurately measure the length, acceleration and so on. The shape design is small, the installation is convenient, saves the installation space, the straight line length can reach more than 100 meters. Suitable for： Machineing Centers PVC Cutting Machines Wood Cutting Machines Lathes, Milling Drilling, Grinding Machines Sheet Metal Working Machines Marble Machines Welding Machines Bending Machines Electrical Discharge Machines Robotics/Material Handing Glass Working Machinery Features : Resolution:5um/0.005mm/0.0002" Output Signal Type: TTL square wave RS422 Line Driver Output Signals: A, /A, B, /B, Z, /Z Current： Maximum 30 mA per Channel Supply Voltage: 5VDC Body Material: Aluminum Gap Between Tape and Sensor: 2mm is recommended, Max. 4mm Operating Speed: 3m/s Repeatbility: +/- 1 Plus Oerating Temperature range: -10 to + 70 Celsius degrees Sensor Cable length: 3 meter Protection class: IP67 1. Non-contact induction to detect rotation position and speed, no need to worry about mechanical wear 2. The highest reaction speed is 20m/s, the highest resolution is 0.005mm, and the system precision is ±0.01mm/m 3. The sensor head is small in size and suitable for small installation space.And high protection grade design (IP67), can be used for oil pollution, cutting, vibration and other harsh environment 4. In industrial applications, it can avoid the sensitivity of general optical environmental pollution and increase the long-term stability of the system. 5. It’s especially suitable for the facilities: metal processing facilities, stone material machinery, and wood working machine. Package Included : 1pc digital readout only or 1pc read head sensor only or 1pc Magnetic scale&Read Head only . Accessory ( Note : Due to the shipping limits ,scales with is beyond 1100mm may be cut into segments , you may need to stick the scale with the magnet strip and make sure the strip won't be broken . Please contact customer service if you do not agree to cut off. ） On Dec 5, 2023 at 23:27:05 PST, seller added the following information:
