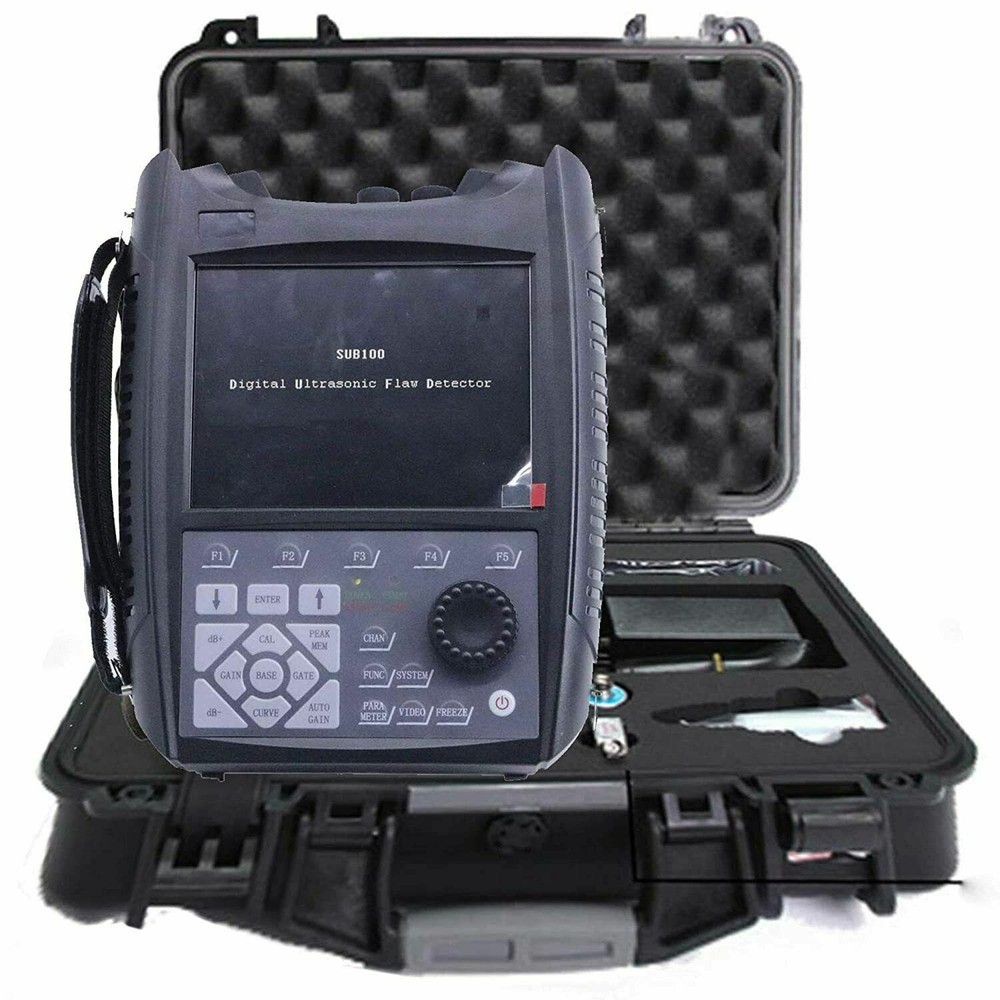

Check the listing for details. Digital Ultrasonic Flaw Detector Flaw Detection NDT Tools Testing Scope 0～9999mm. Color: Black, Condition: New. Listed at 2159.78 USD. Digital Ultrasonic Flaw Detector Flaw Detection NDT Tools Testing Scope 0～9999mmNote: Battery not Included During The Shipping !!! Introduction: Portable ultrasonic default detector series is specially designed for engineering personnel use on nondestructive testing. And its main usage scopes are: testing、 position、evaluation and diagnosis of various destruction。It can easily and accurately conduct nondestructive testing on welding defects, cracks, internal pores of the work piece and other defects. It is widely used on industries such as electrical power project、boiler and pressure vessels、steel structure、military industry、aviation 、railway transportation、automatic machine equipment and so on. it is an indispensable testing tool in the field of nondestructive testing. Features: High right electroluminescent, strength light, weak light and sunlight viewable. 32 independent sets of parameters can be set and save lots of inspection procedure and standards, need no test block outside, high work efficiency. Menu and sub-menu display in the same window, no need to search, clear at a glance, simple and convenient to operate. Large capacity Li battery, low power consumption design, 20+ hours run time. Can be connected to the printer, print inspection report and wave. Has auto-calibration function for normal probe, angle probe, convenient to use. Square wave pulse generator, amplitude and pulse width can be adjusted, suitable to test the defects of work piece with different materials and depth. Peak value in the gate can be captured automatically. DGS(AVG) curve suitable to inspect forged piece etc. A-scan and B-scan to be selected. Waveform and channel parameters can be saved into U disk directly or copied from the detector memory to the U disk then to be processed by the host computer software. Based the curve surface diameter to calibrate the flaw location by the curve surface calibration function. Specifications: Key technical indicators Item Indicator Item Indicator Testing scope 0～9999mm linear inhibition 0～80%(digital suppression) Working frequency 0.2MHz～15MHz Vertical linear error ≤3% Sound velocity 1000m/s～9999m/s Horizontal linear error ≤0.1% Gain Coverage 0dB～110dB Dynamic Scope ≥32dB Sampling rate 100MHz Battery 6*3.7V(lithium battery) Display delay -20μs～+3400μs Electricity 8.4V Probe zero-offset 0μs～99.99μs Ambient Temperature -20°C～50°C Level of electrical noise ≤10% ambient humidity 20%～90%RH Surplus sensitivity ＞63dB size 23cm*17cm*5.5cm Resolution Ratio ＞40dB(5P14) Weight 1.56KGS(including leather case) ItemSUB100Gate capture×Number of channels10Wave shape100Video time5*10minColor B scanning×Grayscale scanning×Eco Encoding×Calculation aperture×Welding Picture×Crackle Detecting×Thin plate enhancement×Correction of curved surface×TCG×ICAM(English、Chinese)×Number of Battery1 Standard accessories: Configuration List No Name Quantity Remark 1 Ultrasonic Flaw Detector 1 2 Charger 1 3 Probe connection cable 2 1m 4 Straight probe 1 2.5M ￠20 5 Slanted probe 1 2.5M 9*9 K2 6 Bounding agent 1 95% Glycerin 7 Leather case 1 8 User’s manual 1 9 Package Box 1 10 Battery 1 11 USB Flash Disk 1 12 MINI-USB cable 1 13 Warranty Card 1
