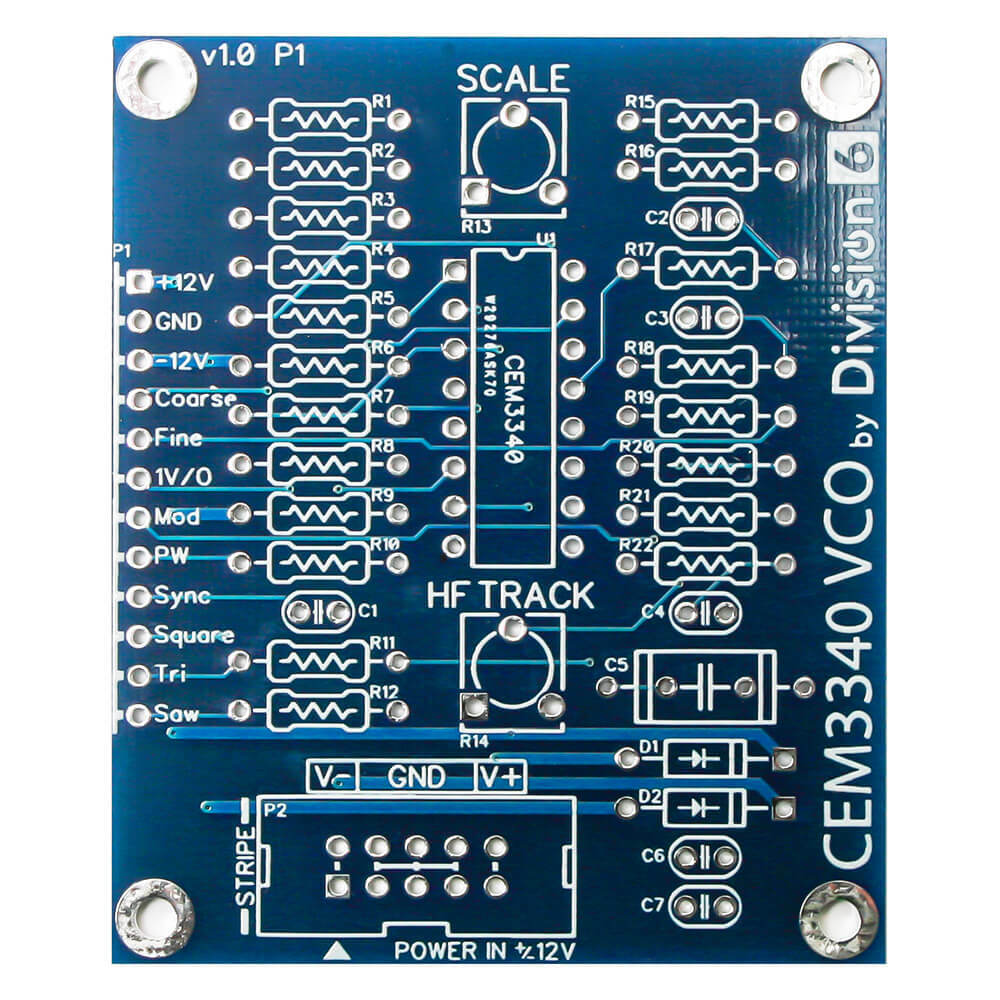

Check the listing for details. Division 6 CEM3340 VCO Main Board PCB. Condition: New. Listed at 12.00 USD. Please note: this includes a PCB only. A Eurorack version is also available. Please see the bill of materials link below to source parts. This Voltage-Controlled Oscillator is based on the Curtis CEM3340 IC. The boards are available fully-assembled or in kit format. Can be used as a standalone board, put in an enclosure, or mounted behind a modular synthesizer panel (a Eurorack-format panel is available from us, or create your own). FeaturesSquare, triangle, and sawtooth wavesCoarse and fine-tuning controlsAdjustable 1V/O CV inputMod, PW and hard-sync inputsReverse-polarity protectedEurorack-style power inputI/O connections on one edge of board; can be connected to wires or separate control boardInputs1V/O CVMod CV (AC-coupled)PW (Adjusts duty-cycle of square wave up or down)Hard-syncOutputsSquare / pulse waveTriangle waveSawtooth waveControlsCoarse tuneFine tuneSpecificationsPower supply: +/- 12V to 15 VDCPower connection: Eurorack 10-pin shrouded header (Can hook wires to pin holes instead if not building for Eurorack)Current draw: 9mA (+12V) / 6mA (-12V) / 0mA (+5)Dimensions, main board: 50mm x 60mmEurorack HP: 4Eurorack depth: 64mm You can find the building instructions and bill of materials on the Division 6 website. Division 6 CEM3340 - Time Lapse Build - YouTube Video will open in a new window Using the eBay App? Paste link into a browser window:
