| All returns accepted | ReturnsNotAccepted |
|---|---|
| Brand | Yagi |
| Type | Antenna |
| Items Included | Mount |
| MPN | CAYLP825 |
| Remote Antenna | Indoor/Outdoor |
| Country/Region of Manufacture | China |
| Mounting Location | Pole |
| Mounting Type | clamp |

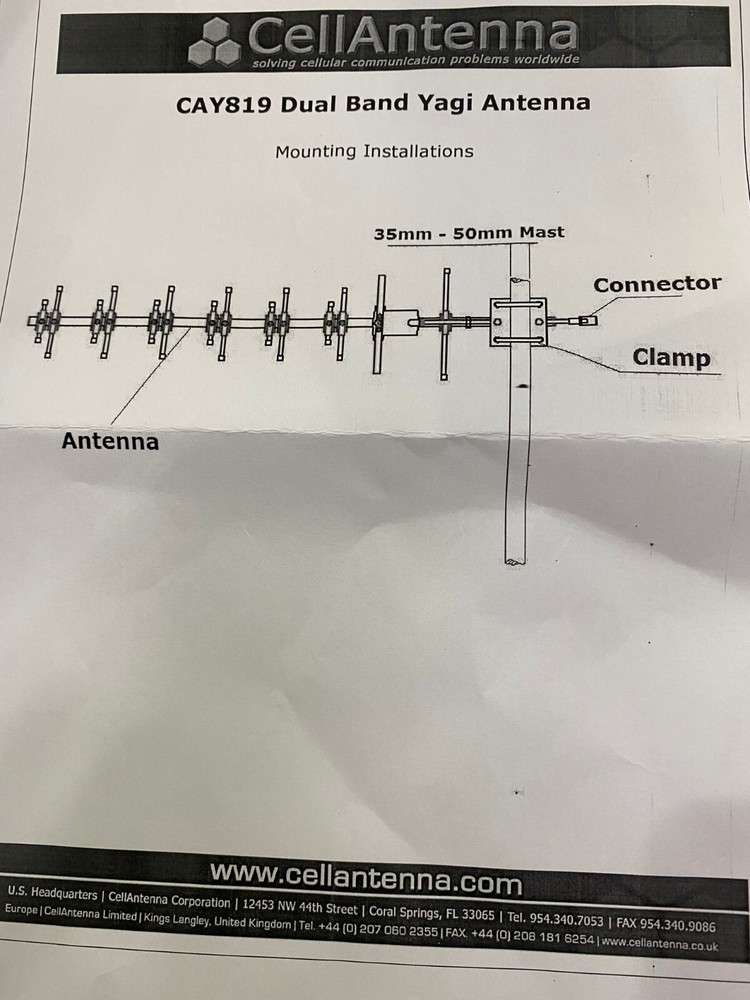

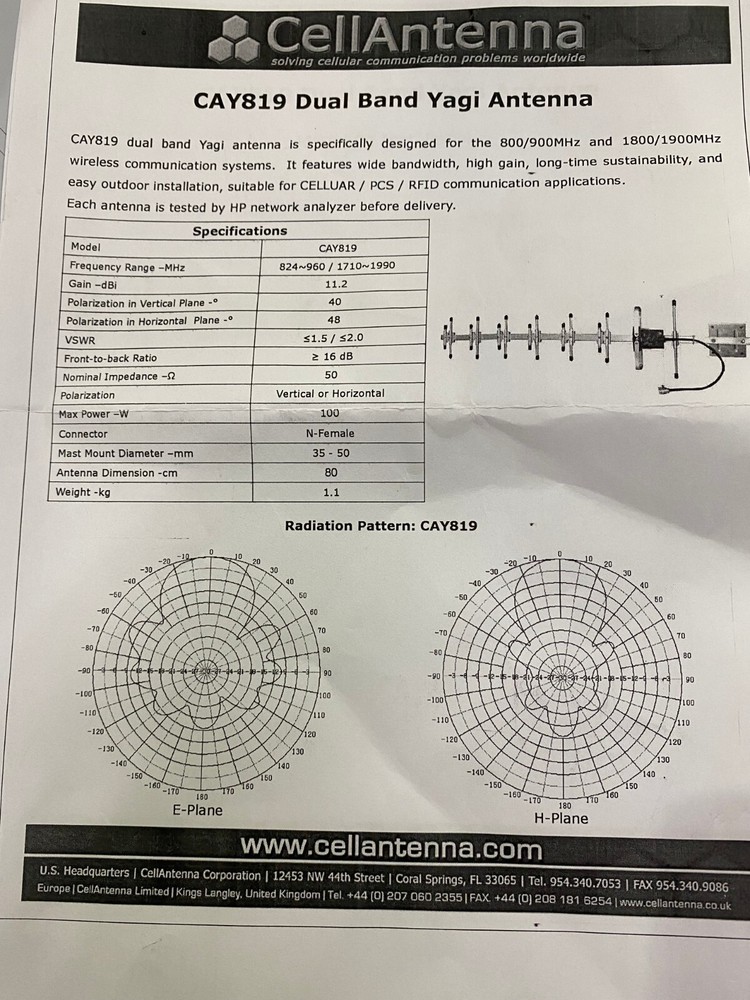

Check the listing for details. Dual Band Yagi Antenna 11db. Condition: New. Listed at 28.00 USD. CAY 81914 element Dual Band Yagi.10 dB directional gain. Aluminum clear coated antenna, 34″ long boom. Female N connector with 10cm cable at rear. Includes hardware for easy installation on pole. Weighs 1.25 lbs and is 35″ long. Can be used with any service provider in the world operating between 824-960 MHz and 1710-1990 MHz which is every USA and European carriers.Technical specs.Frequency Range –MHz 824~960 / 1710~1990 Gain –dBi 11.2 Polarization in Vertical Plane -° 40 Polarization in Horizontal Plane -° 48 VSWR ≤1.5 / ≤2.0 Front-to-back Ratio ≥ 16 dB Nominal Impedance –Ω 50 Polarization Vertical or Horizontal Max Power –W 100 Connector N-Female Mast Mount Diameter –mm 35 – 50 Antenna Dimension -mm 80 Weight -kg 1.1
