| Return shipping will be paid by | Buyer |
|---|---|
| All returns accepted | Returns Accepted |
| Item must be returned within | 60 Days |
| Refund will be given as | Money Back |
| Actual Rated Input Voltage | 24VDC |
| Power Rating | 140 Watt |
| No-Load Current | 6.8A |
| Shaft Diameter | 14mm |
| MPN | BG65X75PI-PLG60-RE30 |
| Insulation Class | B (Max 266°F) |
| Holding Torque | .403Nm |
| Brand | AMETEK |
| Continuous Torque | .403Nm |
| Type | Brushless DC |
| No-Load RPM | 5360 |
| Protection Against Liquids | Splashing Water |
| Performance Level | Low Inertia |
| IP Rating | IP65 |
| Model | BG6575I-PLG60-RE30 |
| Nominal Rated Input Voltage | 24 V |
| Pulses per Revolution | 500 |
| Country/Region of Manufacture | Switzerland |
| Unit Quantity | 1 |
| Protection Against Solids | Dust Tight |
| Stall Current | 9.6A |

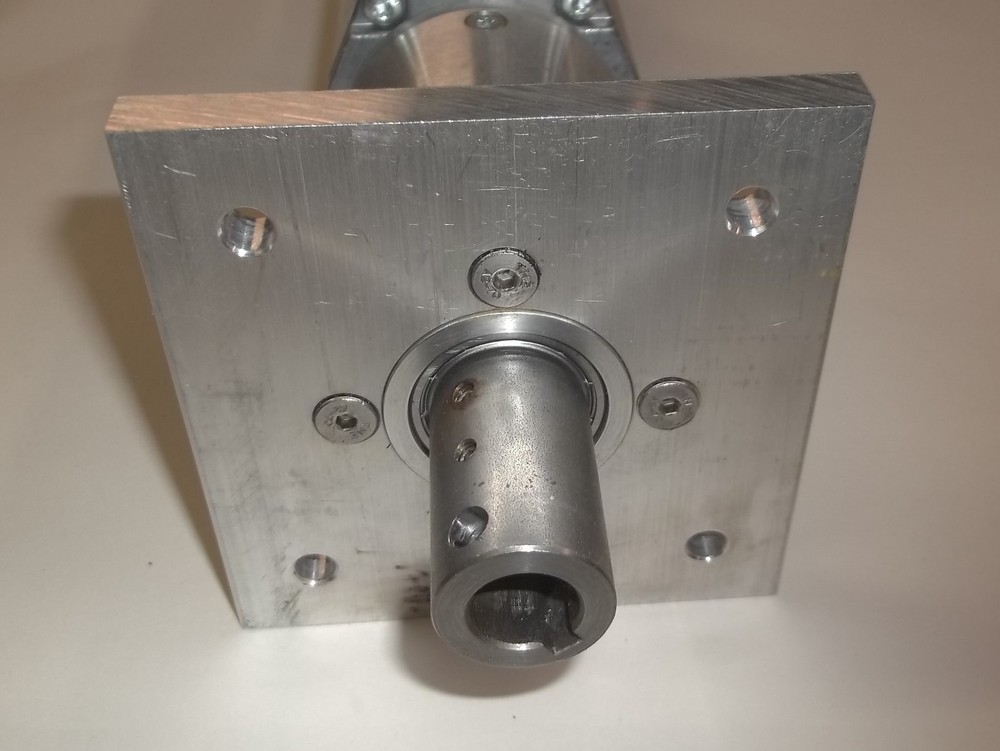

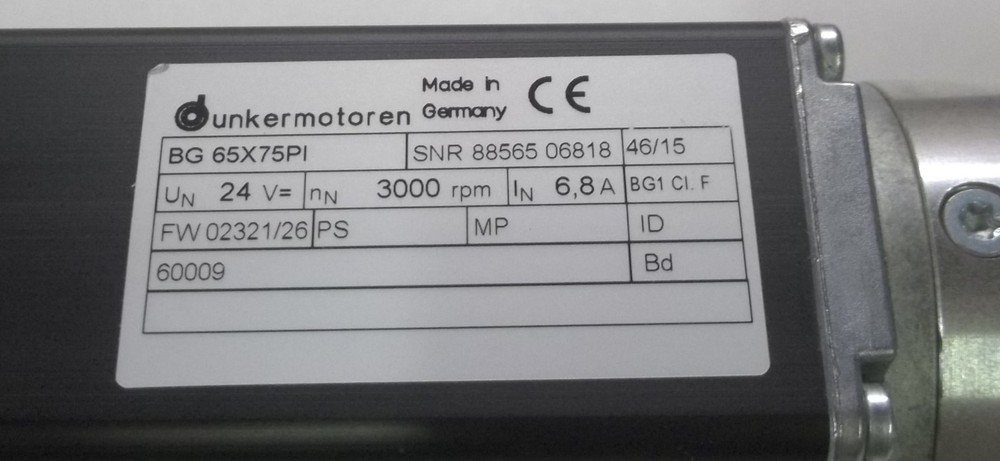

Check the listing for details. Dunkermotoren BG 65X75PI Integrated Controller Servo Motor & PLG60 Gear Reducer. Condition: Used. Listed at 129.99 USD. Free eBay listing template designed by dewiso.com Dunkermotoren BG 65X75PI Integrated Controller Servo Motor & PLG60 Gear Reducer Manufacturer: Dunkermotoren AMETEKPart Number: BG65X75PI-PLG60-RE30Part: (88565-06818)Type: Brushless Linear DC Servo Motor (BLDC)Frame Size: 65mm/ Shaft Size: 14mm KeyedSupply: 24VDC 140 Watt12-Pin Logic Supply Round Connector (Male)Rated Speed: 2960-3100rpmContinuous Torque: 40 NCM ( 57 oz.in/ .403Nm)Integrated 4 Quadrant ControllerParameterization/ Software Inclusive/ Speed-Torque-PositionInterfaces: CAN-Open/ I/O ModeIncremental Encoder: RE30-3-500 (3-Channel/ 500ppr)5-Pin Round Parametrization Connector (Male)Planetary Gearbox: PLG 60 2500NCM (Ratio: 70:1)Actual RPM Output w/ PLG60: 43rpmOverall Length: 13.5"Square Mounting Flange: 100 x 100 x 10mmIncludes: Keyed 14mm x 40mm Shaft CouplingCondition: Pulled from a working unit in excellent condition. Good torque, very quiet. Guaranteed! Free eBay listing template designed by © dewiso.com.
