| Restocking Fee | No |
|---|---|
| Return shipping will be paid by | Buyer |
| All returns accepted | Returns Accepted |
| Item must be returned within | 60 Days |
| Refund will be given as | Money Back |
| Brand | JJ Electronics |
| MPN | T-E34L-JJ |
| Compatible Brand | Any |
| Compatible Model | Any |
| Features | None |
| Amplifier Type | Unknown |
| Item Diameter | 33.3 mm |
| Item Height | 112 mm |
| Body Height | 98 mm |
| Filament Voltage (U<sub>f</sub>) | 6.3 V |
| Filament Current (I<sub>f</sub>) | 1.5 A |
| Plate Voltage (U<sub>a</sub>) | ≤ 800 V, 250 V typical |
| Plate Current (I<sub>a</sub>) | 100 mA |
| Grid Voltage 1 (U<sub>g1</sub>) | -10 V to -13.5 V typical |
| Grid Voltage 2 (U<sub>g2</sub>) | ≤ 800 V, 265 V typical |
| Grid Voltage 3 (U<sub>g3</sub>) | 0 V typical |
| Grid Current 2 (I<sub>g2</sub>) | 14.9 mA |
| Transconductance (S) | 11 mA/V |
| Internal Resistance (R<sub>i</sub>) | 15 kΩ |
| Gain (μ<sub>g2/g2</sub>) | 11 |
| Plate Dissipation (W<sub>a</sub>) | ≤ 25 W |
| Grid 2 dissipation (W<sub>g2</sub>) | 8 W |
| Cathode Current (I<sub>k</sub>) | ≤ 150 mA |
| Heater to cathode voltage (U<sub>k/f</sub>) | ≤ 100 V |
| Heater to cathode resistance (R<sub>k/f</sub>) | 20 kΩ |
| Grid capacitance (c<sub>g1</sub>) | 15.5 pF |
| Plate Capacitance (c<sub>a</sub>) | 10 pF |
| Grid to Plate Capacitance (c<sub>a/g</sub>) | 1.3 pF |
| Type | Vacuum Tube |

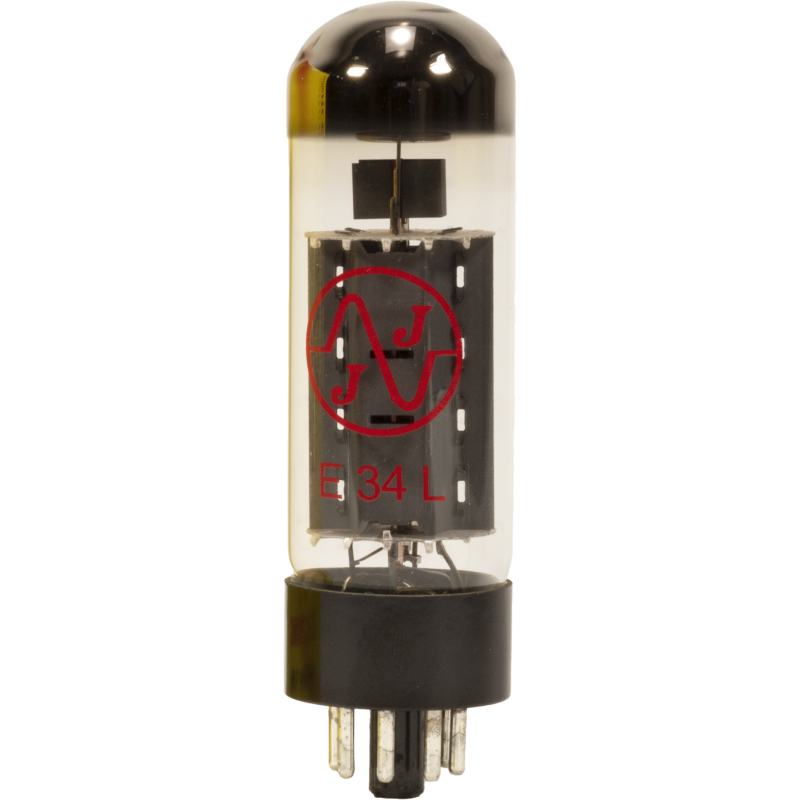

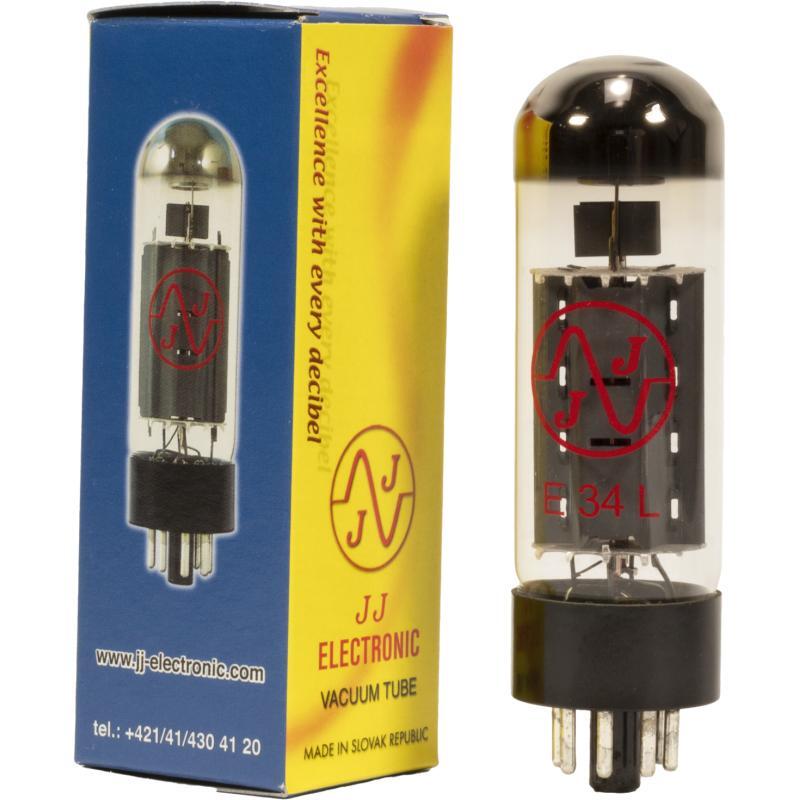

Check the listing for details. Vacuum Tube, E34L, JJ Electronics, Power. Condition: New. Listed at 23.65 USD. Product Details Vacuum Tube, E34L, JJ Electronics, PowerT-E34L-JJSold individually The JJ Electronic E34L adds more power to a standard EL34 due to its higher grid voltage rating. This increase gives the tube more headroom and a tighter response on the low end. The wide frequency response of this tube offers excellent harmonics that work in a variety of genres ranging from the cleanest cleans to rich and aggressive breakup. Not what you're looking for? Check out our other products in this category:Vacuum Tubes -> PowerClick here to visit our ebay store's homepage.MeasurementsProduct Measurements:Body Height98 mmCathode Current (Ik)≤ 150 mAFilament Current (If)1.5 AFilament Voltage (Uf)6.3 VGain (μg2/g2)11Grid 2 dissipation (Wg2)8 WGrid capacitance (cg1)15.5 pFGrid Current 2 (Ig2)14.9 mAGrid to Plate Capacitance (ca/g)1.3 pFGrid Voltage 1 (Ug1)-10 V to -13.5 V typicalGrid Voltage 2 (Ug2)≤ 800 V, 265 V typicalGrid Voltage 3 (Ug3)0 V typicalHeater to cathode resistance (Rk/f)20 kΩHeater to cathode voltage (Uk/f)≤ 100 VInternal Resistance (Ri)15 kΩItem Diameter33.3 mmItem Height112 mmPlate Capacitance (ca)10 pFPlate Current (Ia)100 mAPlate Dissipation (Wa)≤ 25 WPlate Voltage (Ua)≤ 800 V, 250 V typicalTransconductance (S)11 mA/VPackaging Information:Packaging Dimensions1.6 in. x 1.6 in. x 4.5 in.Weight (Packaging)0.1279 lbs.About UsAbout Amplified Parts:Backed by over 30 years of experience serving the electronic hobbyist market, Amplified Parts® provides the parts you need to modify, repair, or build your own audio and musical instrument equipment, from transistor radios to vacuum tube amplifiers, guitar pedals, and modular synthesizers. Our mission is to provide our customers with high quality products from an inventory of over 12,000 unique items, and to share our expertise via our large library of tech articles and equipment build guides.Whether you are building cutting-edge equipment or restoring classic gear with historical accuracy, Amplified Parts® has what you need.We typically ship the same day if your order is placed before 12:00pm Arizona Time Monday through Friday excluding holidays.All packages are insured and we assume responsibility for the shipment until the carrier shows delivery.Click here to visit our ebay storefront.
