| Brand | Elder Audio |
|---|---|
| Type | Tweeter |
| Compatible Brand | Universal |
| MPN | 01156 |
| Unit Type | Unit |
| California Prop 65 Warning | This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. |
| Manufacturer Warranty | NO |

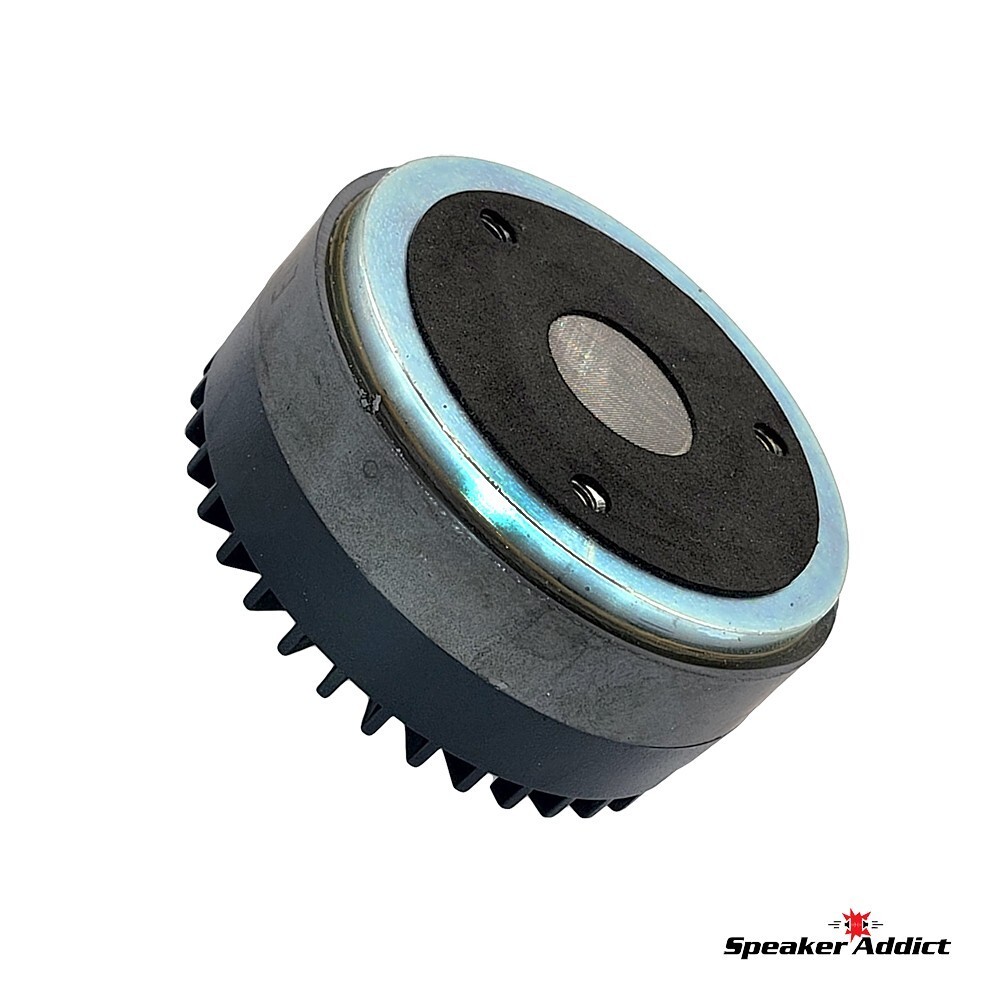

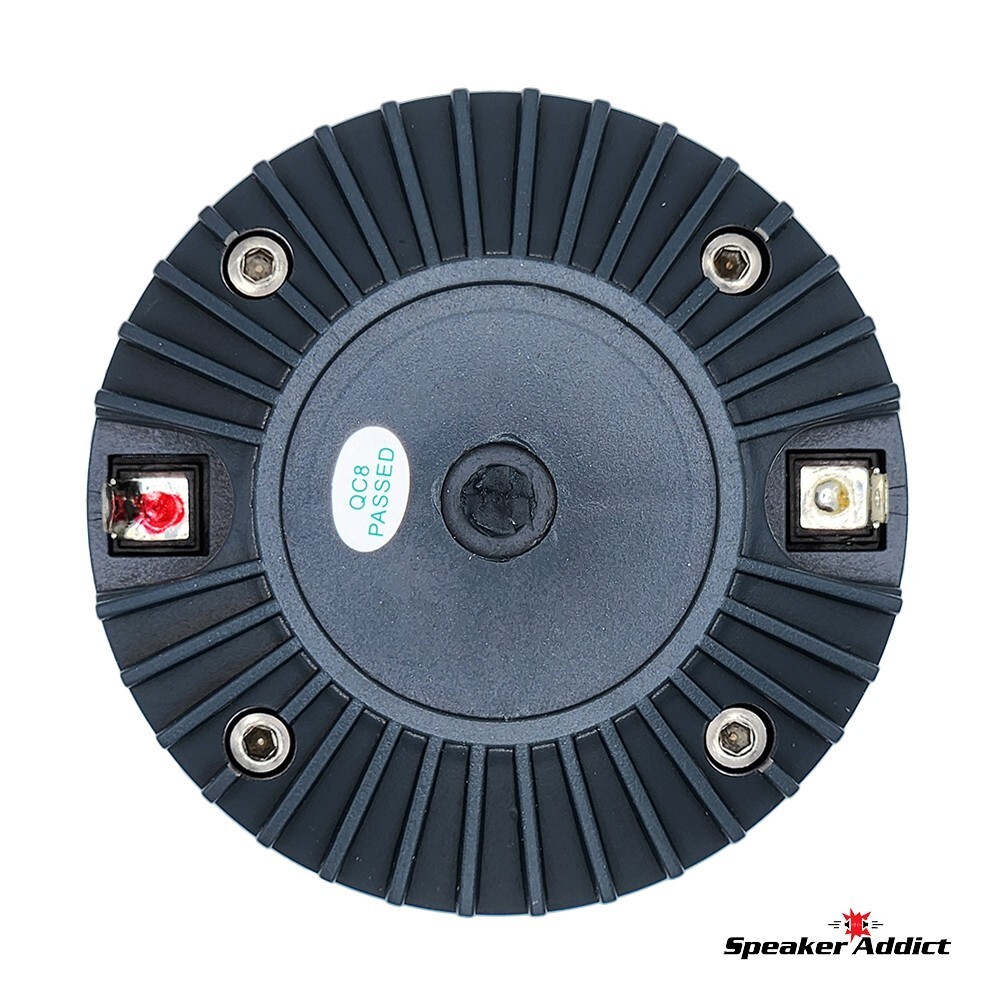

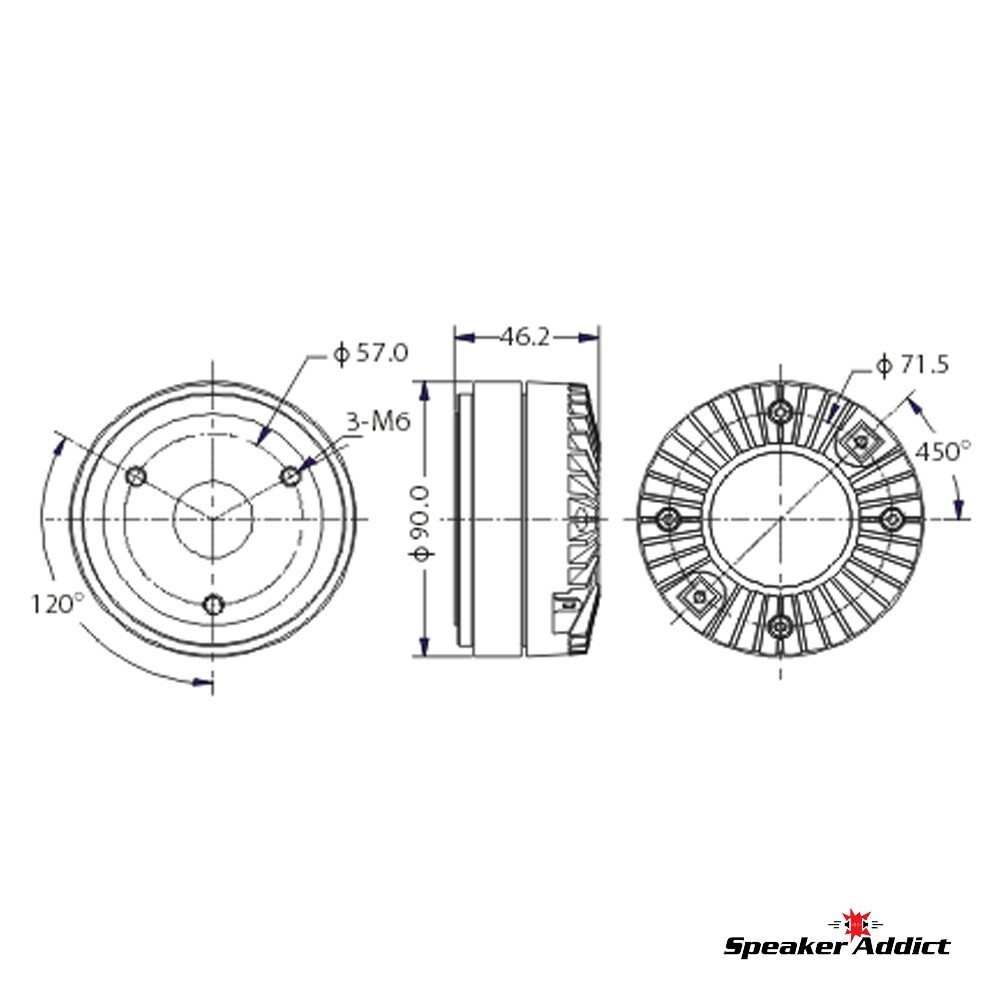

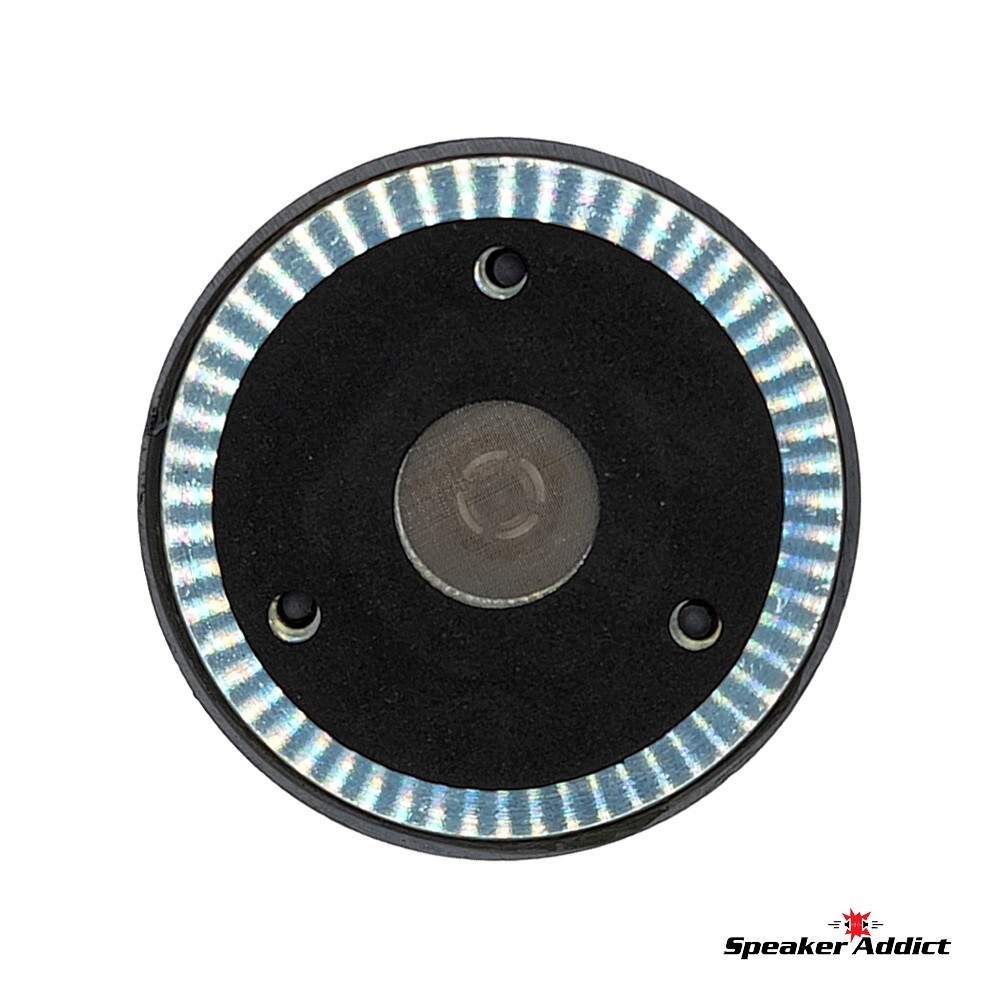

Check the listing for details. Elder Audio Beta 3 1" 3 Bolt Titanium Compression Driver 8ohm 800-20Khz. Condition: New. Listed at 30.23 USD. Elder Audio Beta-3 ED3402 1", 8ohm, bolt on (3-BOLT ONLY) , 1.3" titanium diaphragm compression driver. Specifications: Testing Horn: H4403 Throat diameter 25mm Rated Impedance 8Ohm IEC Power 20W Sensitivity(with horn) 98dB Frequency response 800-20KHz Voice coil diameter 34.4mm Magnet material Ferrite Magnetic flux density 1.3t Voice coil material Copper Voice coil formal Kapton™ Diaphragm material Titanium Mounting information Overall diameter 90mm Depth 46.2mm Net weight 0.88Kg Recommended crossover is 2khz or higher at a minimum of 12dB/octave slope for high power use. If using with lower power you can cross it much lower 20 watt RMS, same as about any other compression driver with a 1.3" coil.
