| Brand | Electra-Print |
|---|---|
| Model | PSA-2 |
| MPN | PSA-2 |
| Country of Origin | United States |

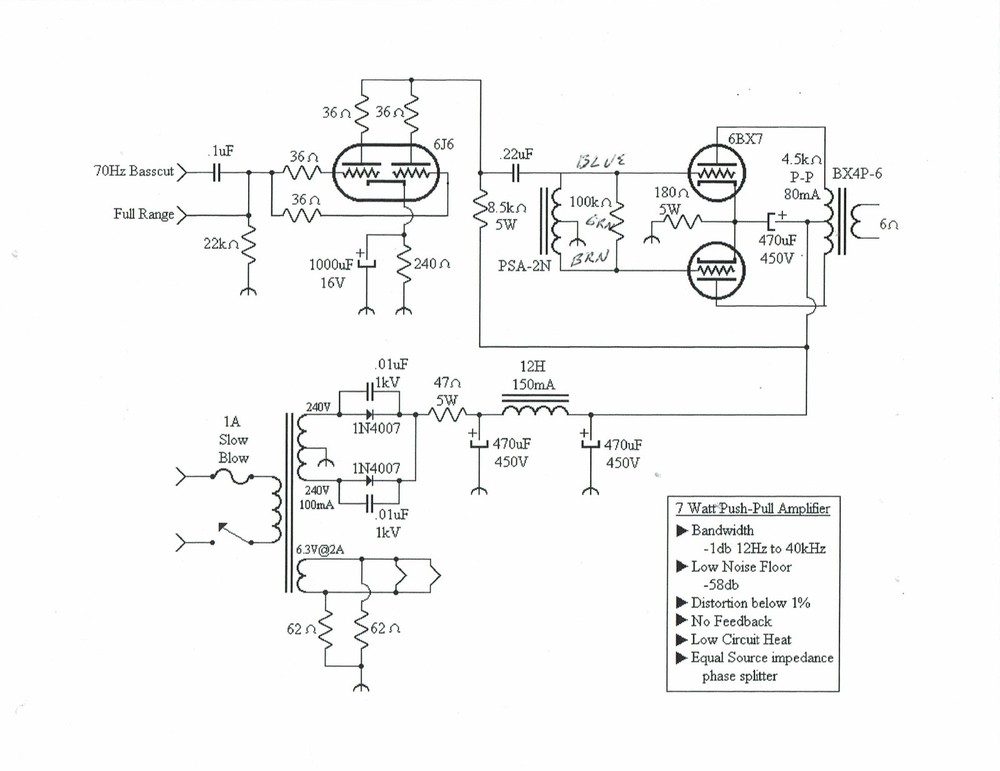

Check the listing for details. Electra-Print PSA-2 Phase Splitter Autoformer Pair. Condition: New, Made in United States. Listed at 150.00 USD. One pair of PSA-2 transformers. Phase splitter autoformer. Single plate or cathode to P-P grids. High level M6 laminations (no dc through coil). The schematic with values is included. The PSA transformer is a center tapped, full bandwidth, cross coupled inductor, that will offer an inverted and non-inverted phase, to the grids of a push pull output stage. The circuit showing its placement in any p-p circuit used. The load resistor selection is determined by the output impedance of the driver stage. Just use a 50k pot. This selected resistor value of pot, is for best distortion (THD) measured in operation. Add this resistor value across grids.
