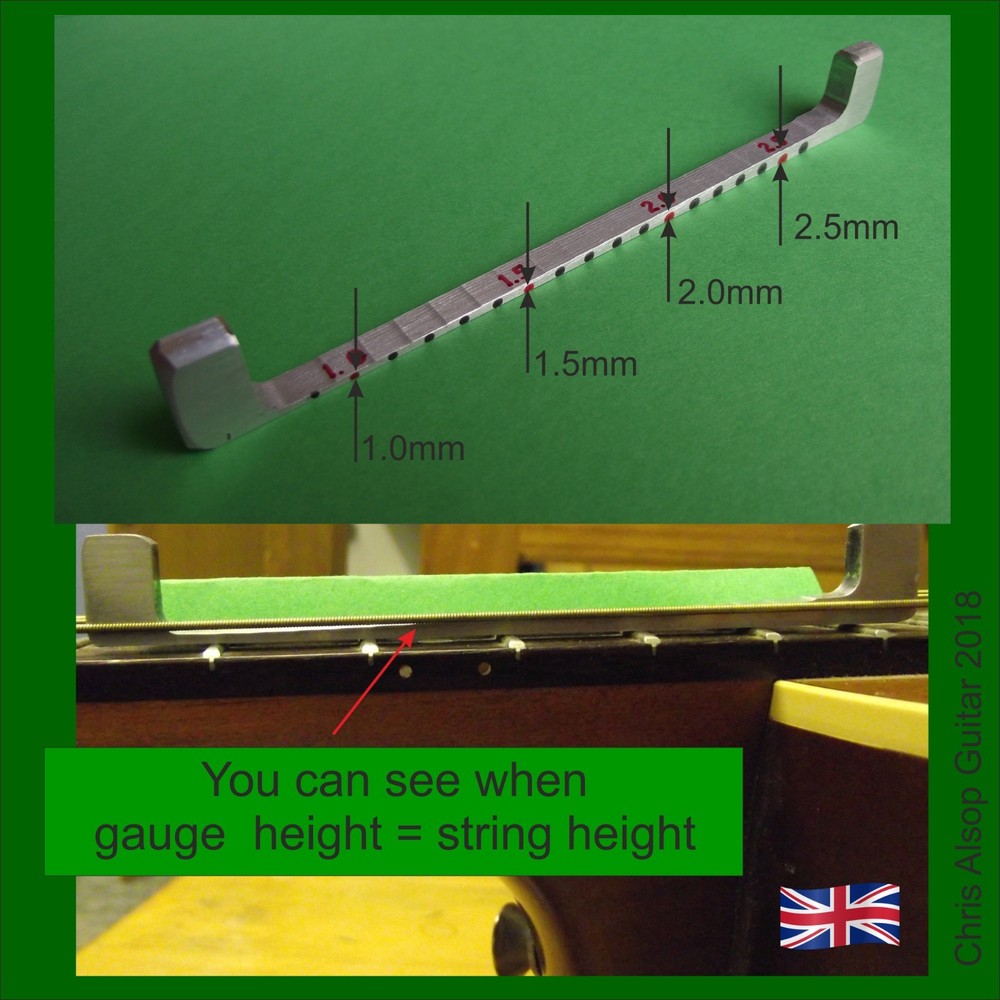

Check the listing for details. Electric Guitar String Action Gauge 0.9 to 2.6mm Transmitted light method TA006. Condition: New. Listed at 17.32 USD. Aluminium Guitar Action Gauge in Wooden Case Made By Chris Alsop Guitar Ltd in Derbyshire, UK. The most reliable way of measuring the action of a guitar is to compare the height of the string to something of known height which is also sitting on the frets. This aluminium action gauge allows you to do this visually without touching the string or the gauge. This gauge is intended for use on Electric Guitars with a action measurement range of 0.9mm to 2.6mm. We also sell action gauges for Steel Strung Acoustic guitars and Classical Guitars - please see the Action Gauge section in our shop. Features Light passing through (transmitted light) the little gap below the string and above the gauge lets you accurately determine which step on the gauge is the same height as the action - then you read of the action in mm from the gauge calibration. Using transmitted light in this way gives a high level of optical contrast, and results in a sensitive and reproducible method of measuring such small distances. The gauge is a thick aluminium sheet with steps milled in it that are 0.1mm lower each step. Each step is 5mm long. These steps provide a very accurate visual height reference that can be placed anywhere on the fretboard. The action gauge is 4mm by 100mm and stepped in 0.1mm increments and comes in a wooden case. A small handle has been milled on each end of the gauge so the the gauge can be positioned by either hand when the guitar is in normal playing position. Alternatively, with the guitar laid down horizontally, the gauge can rest on the guitar fretboard with no need to support it by hand. This means you can carefully adjust the gauge position and then judge the action without having to hold anything in position. The main advantage of this is that you cannot possibly change the string position by accidentally touching it while trying to assess the action. 12th Fret Action A typical use is to place the gauge behind the low E string at the 12th fret and slide the gauge along so its height matches the string height then you have a direct measurement of the action at the 12th fret. For electric guitar, the action at 12th fret is typcially 2.0mm for low E and 1.6mm for high e. This gauge covers these regions of height in 0.1mm steps and so offers a very precise way of assessing the action. The total range of the gauge is 0.9mm to 2.6mm, allowing for a very low action to be measured and set. FREE WITH THIS ITEM • An advice sheet for the gauge usage • A calibration table for the gauge • A comprehensive guide to fret replacement Other Products We also manufacture and sell gauges for Steel Strung Acoustic Guitars and gauge for Classical guitars. We produce a wide range of guitar tools. All tools are produced from our workshop in Woodville, Derbyshire, UK by Chris Alsop. See our eBay shop for Fret Pullers and Cutters, Fret Bevel Diamond Files, Fretboard Protectors, Crowning and Dressing Diamond Files, Guitar Neck Rests, Fret Levelling Diamond Files, Fretting hammers, Fret Polishing and Sanding Kits and String Action Gauges. Also, see our eBay shop for a wide variety of Custom Made Guitar Saddles, Nuts and Pins - all made by Chris Alsop to customer specified dimensions. We offer these components in many materials, specialising in crafted high quality Ox Bone, Buffalo Horn and European Hardwoods. Shipping • Fast & Secure Shipping : We ship all our items by Royal Mail Tracked Services. • Discounts : On multiple item orders, shipping costs are discounted by 75% on additional items • International (Non UK) Orders : Please note that the buyer is responsible for payment of any customs and import duties on the items.
