| Shipping notice | Can not ship to Puerto Rico/Alaska/Hawaii |
|---|---|
| Table size | Φ100mm |
| Load | 45kg |
| Itinerary | 360° |
| Packing size | 23*13*16cm |
| Parallelization | 80μm |
| Resolution / Pulse(no subdivision) | 0.01 ° |
| Recoil | 0.005° = 18" |
| Material | Aluminum-black anodized |
| Top board beat | 15μm |
| Transmission mode | worm gear (reduction ratio 1/180) |
| Weight | 1.7kg |
| Guide rail | bearing |
| Product model | HT03RA100 |
| Absolute on-axis accuracy | 0.01° = 36" |
| Repeatability | 0.005° = 18" |
| Rotation speed (maximum) | 25° / sec |
| Gross weight | 2kg |
| Resolution / Pulse(20 subdivisions) | 0.0005° |
| Eccentricity | 10μm |
| Lost movement | 0.005° = 18" |
| Brand | Unbranded |

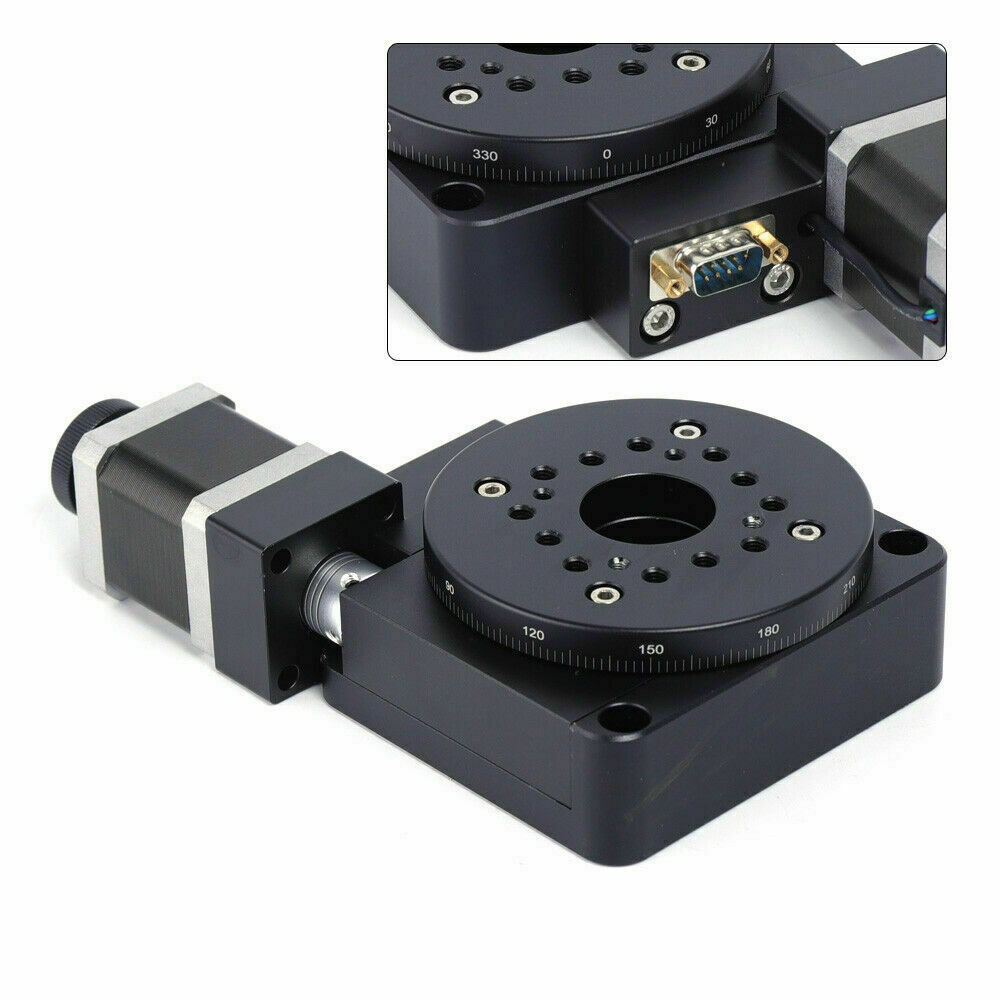

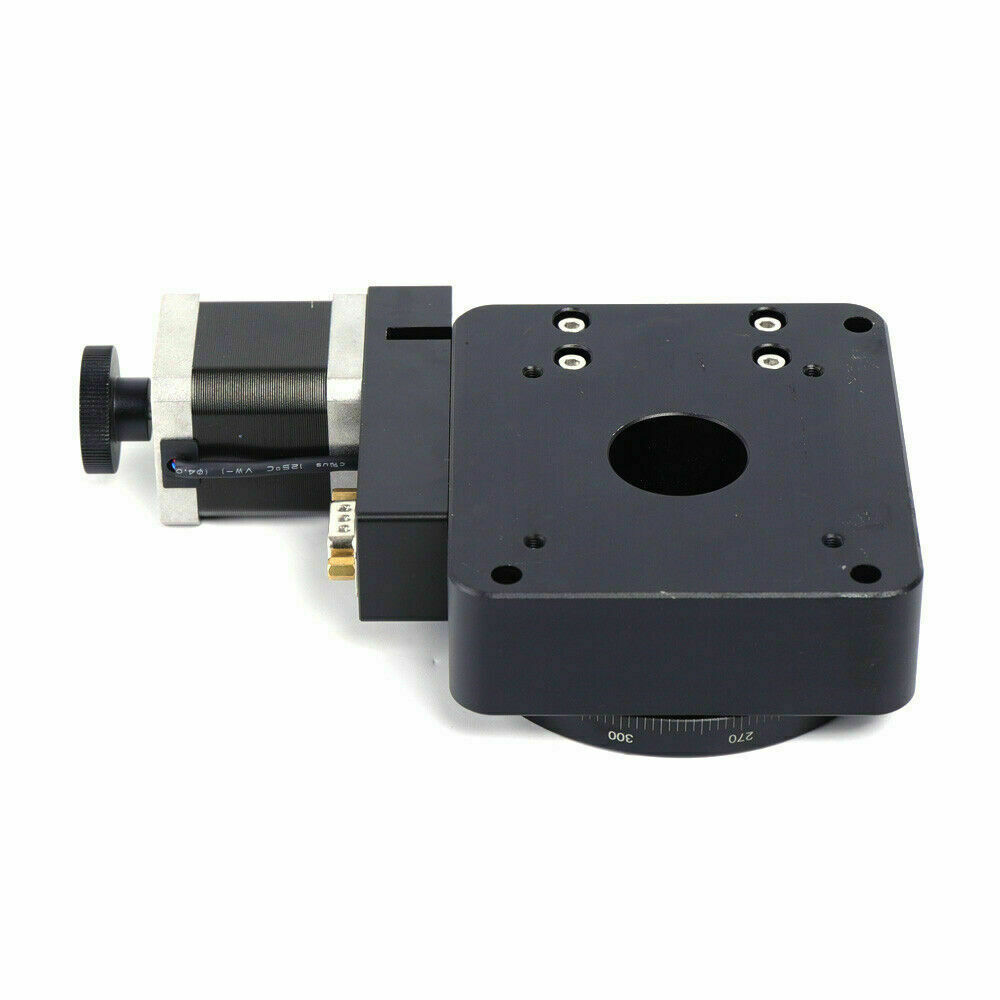

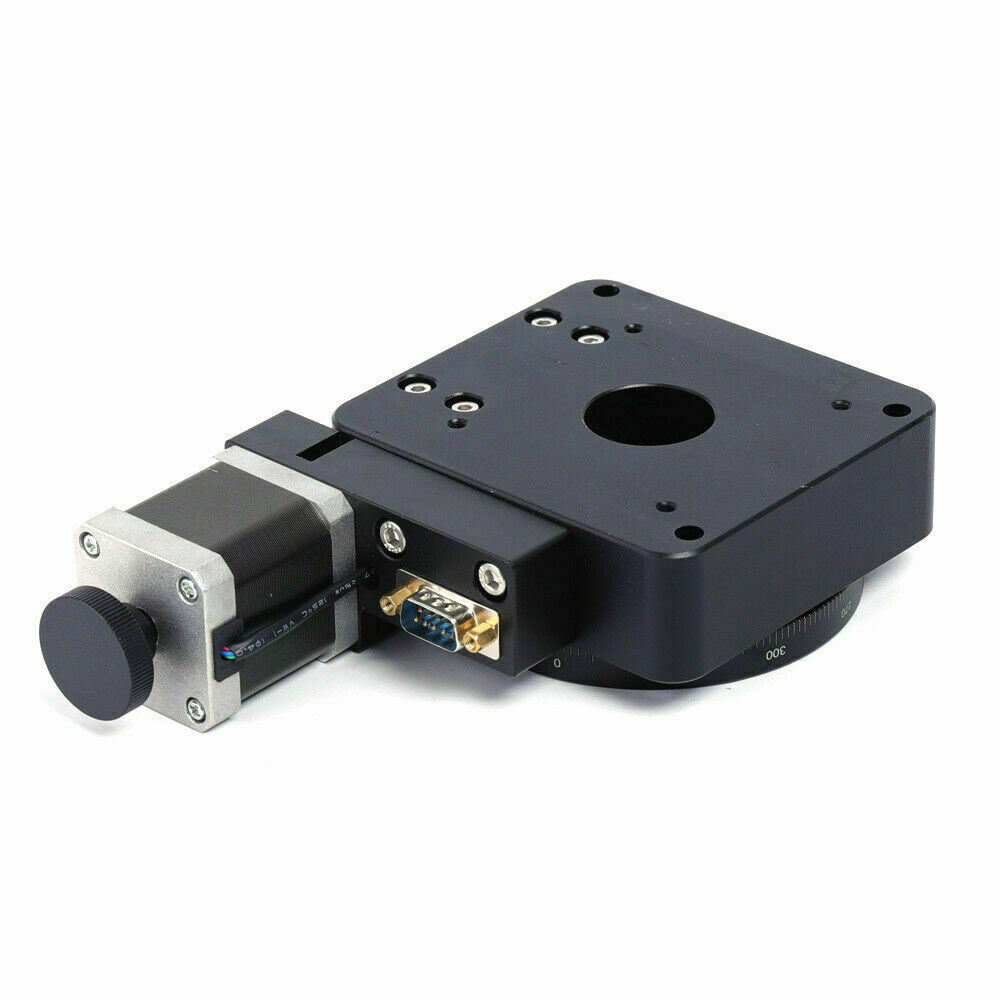

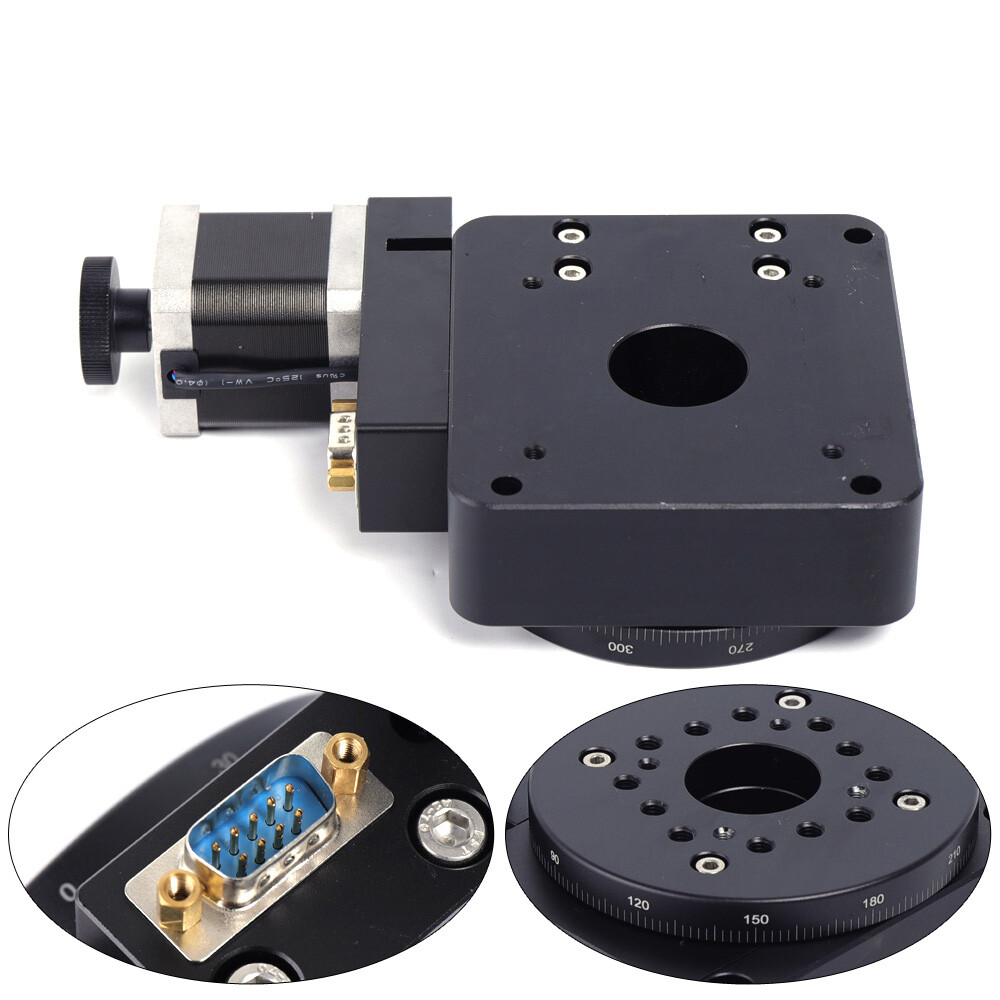

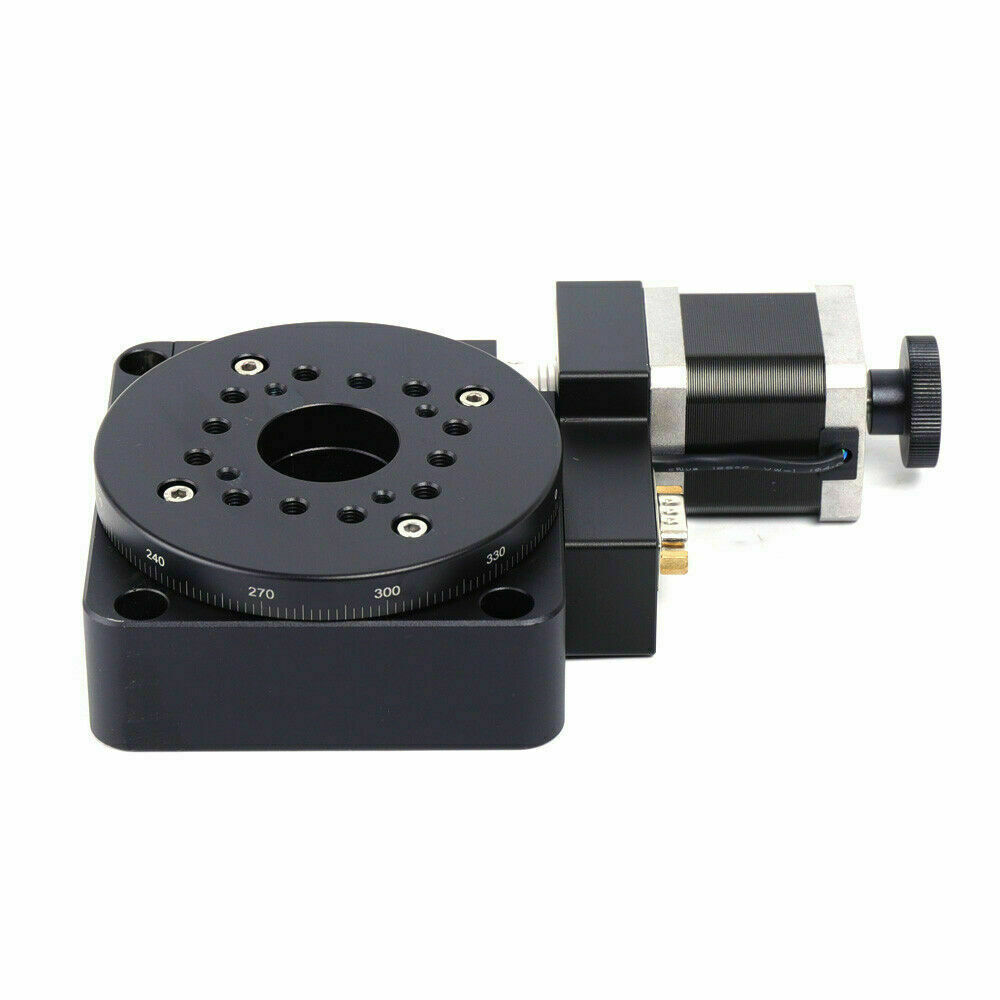

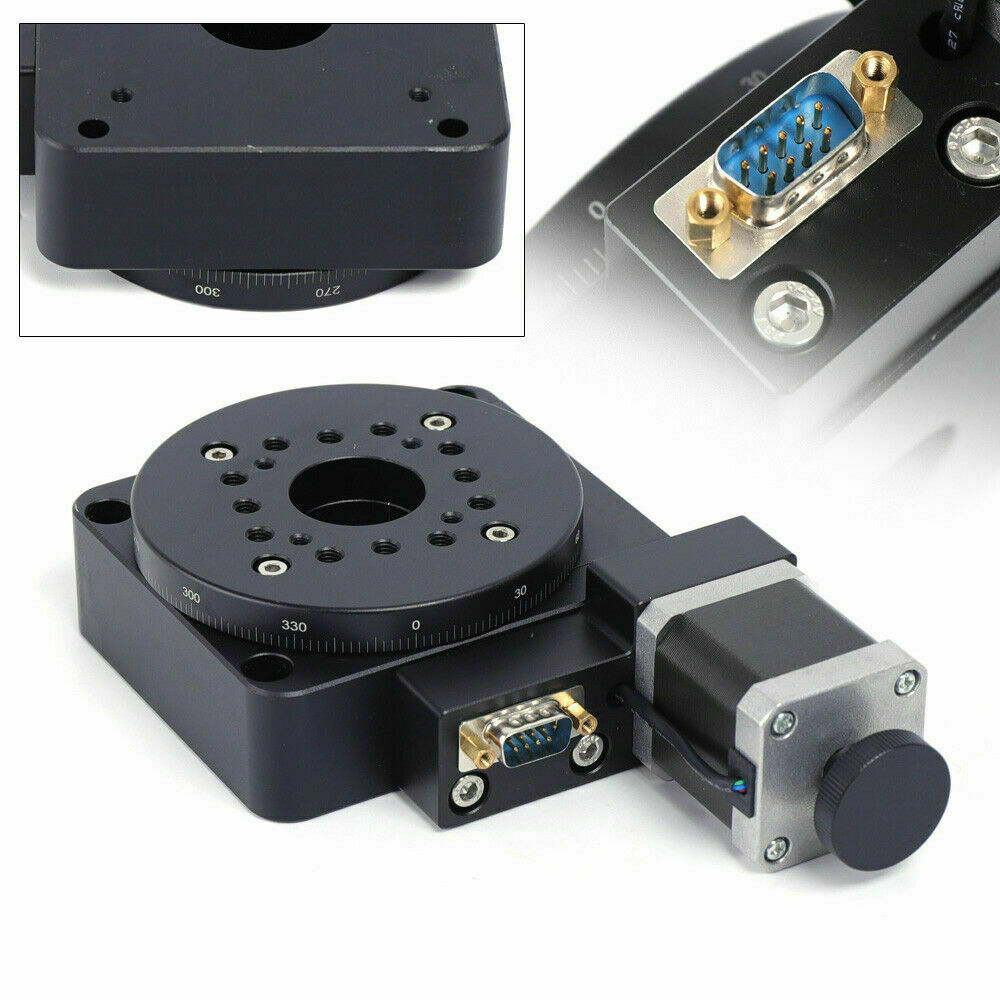

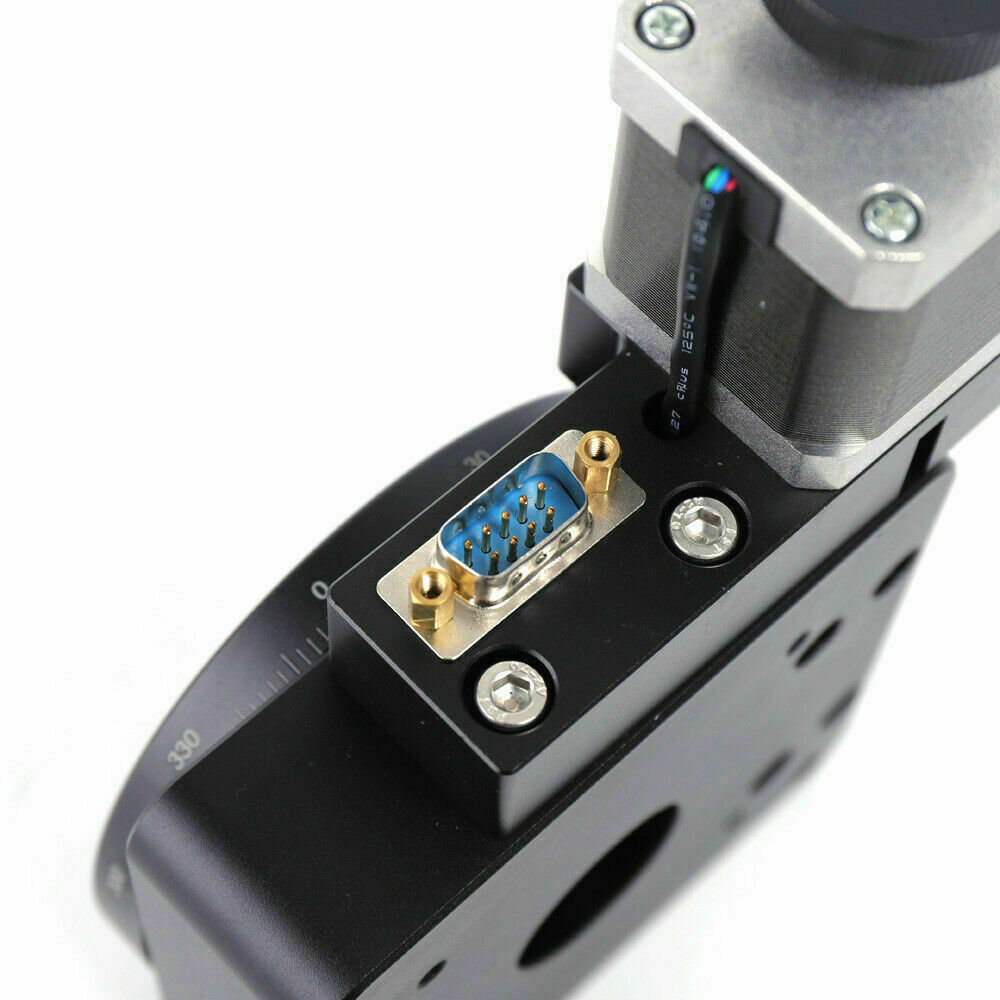

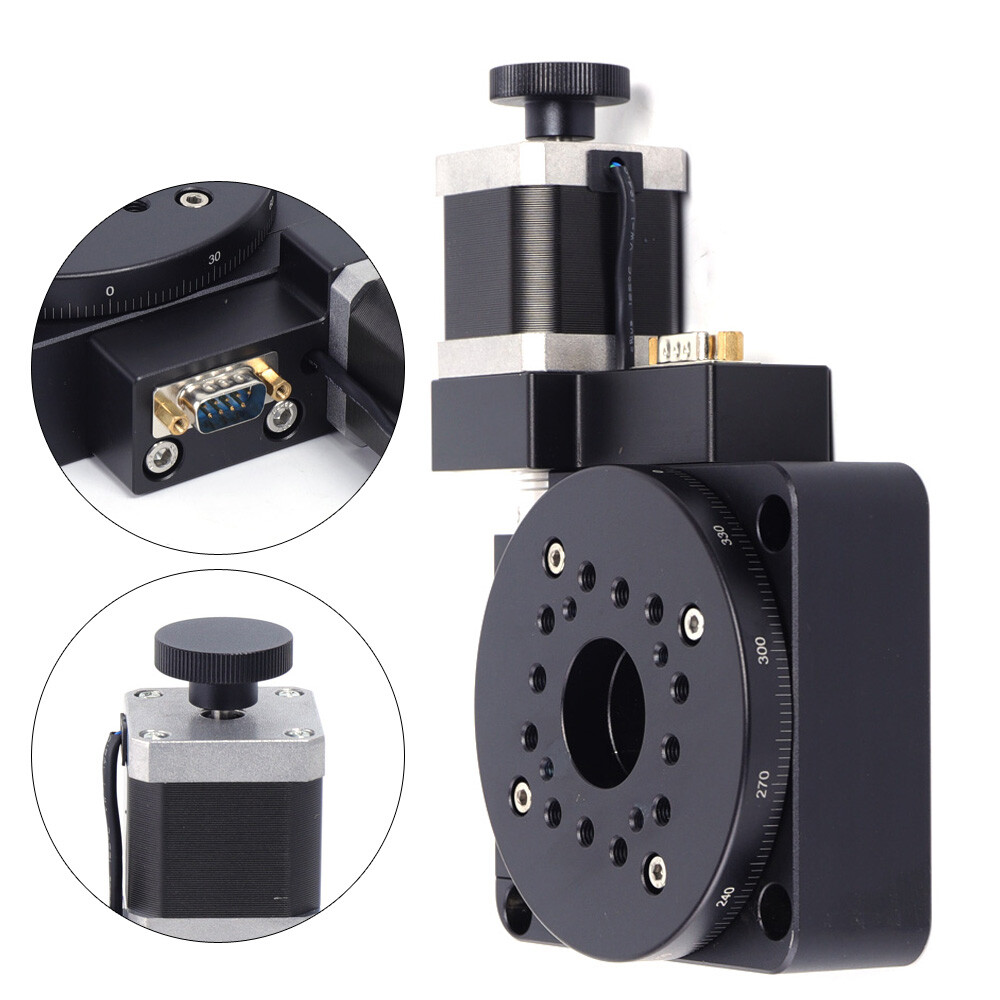

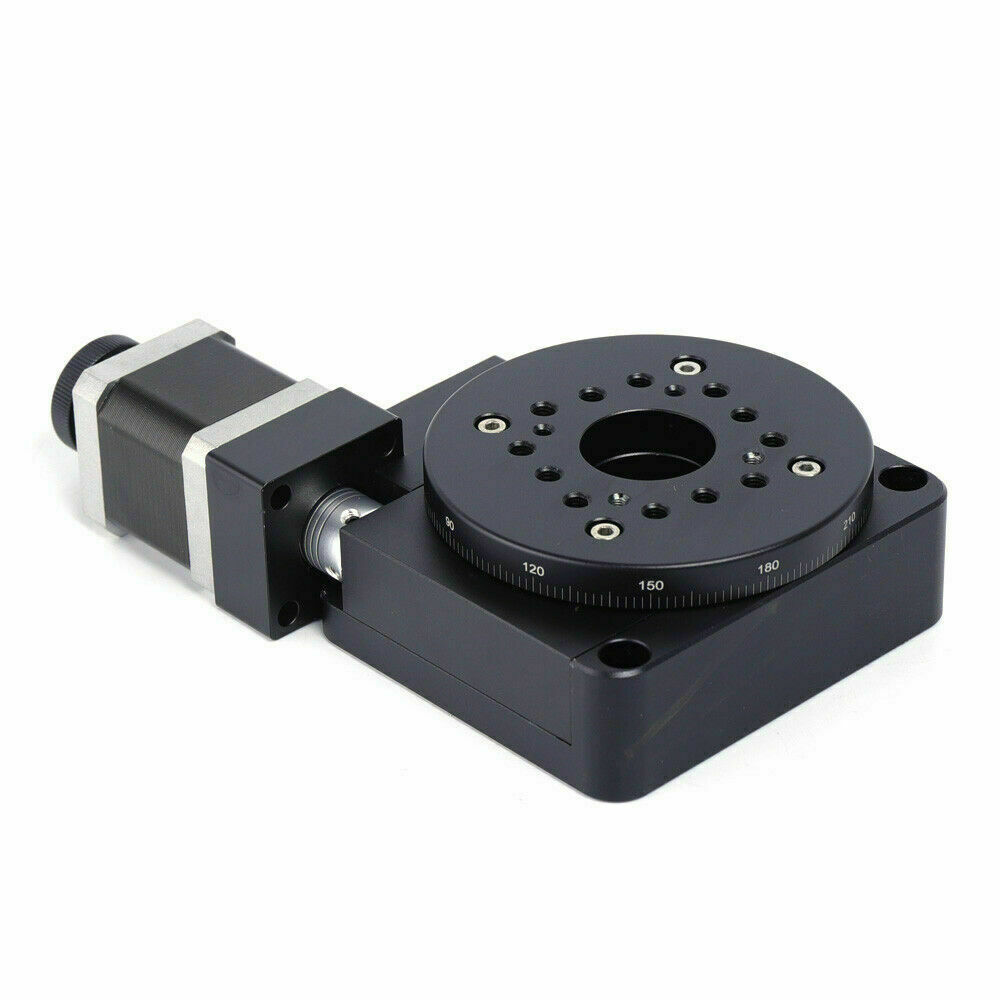

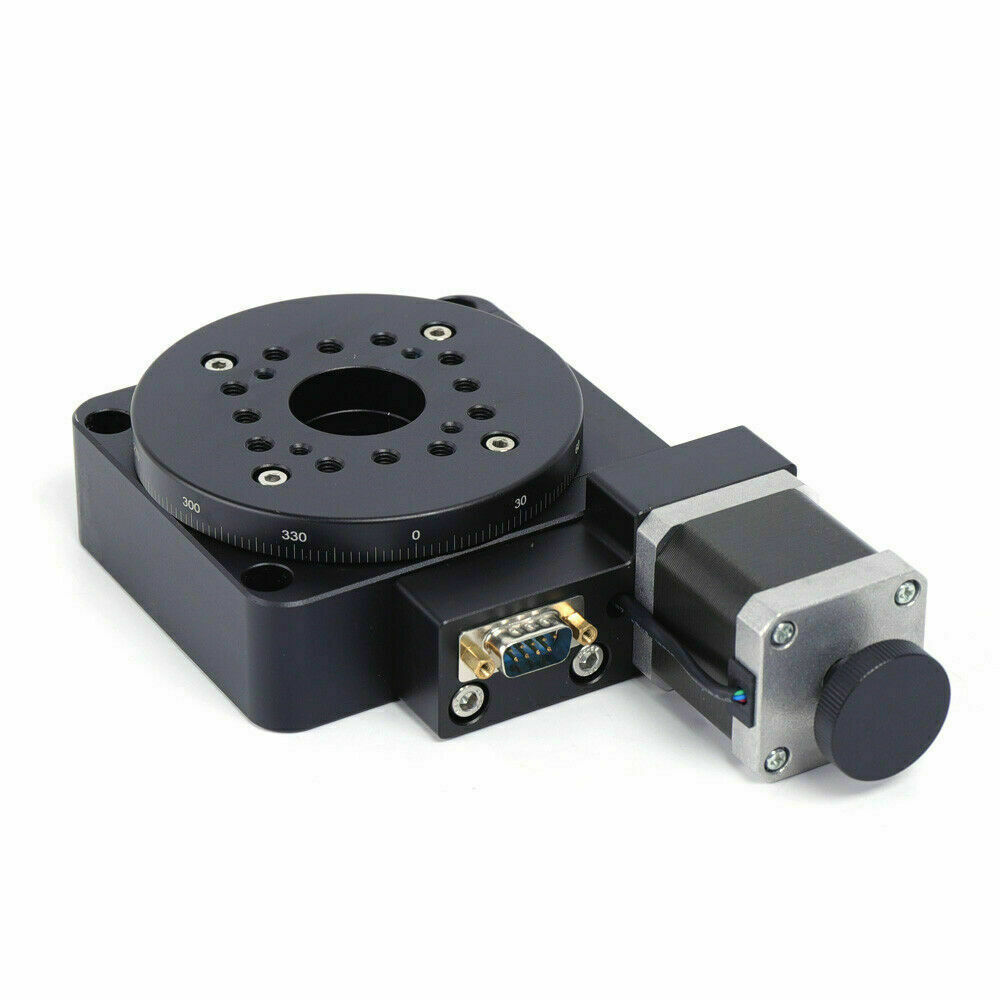

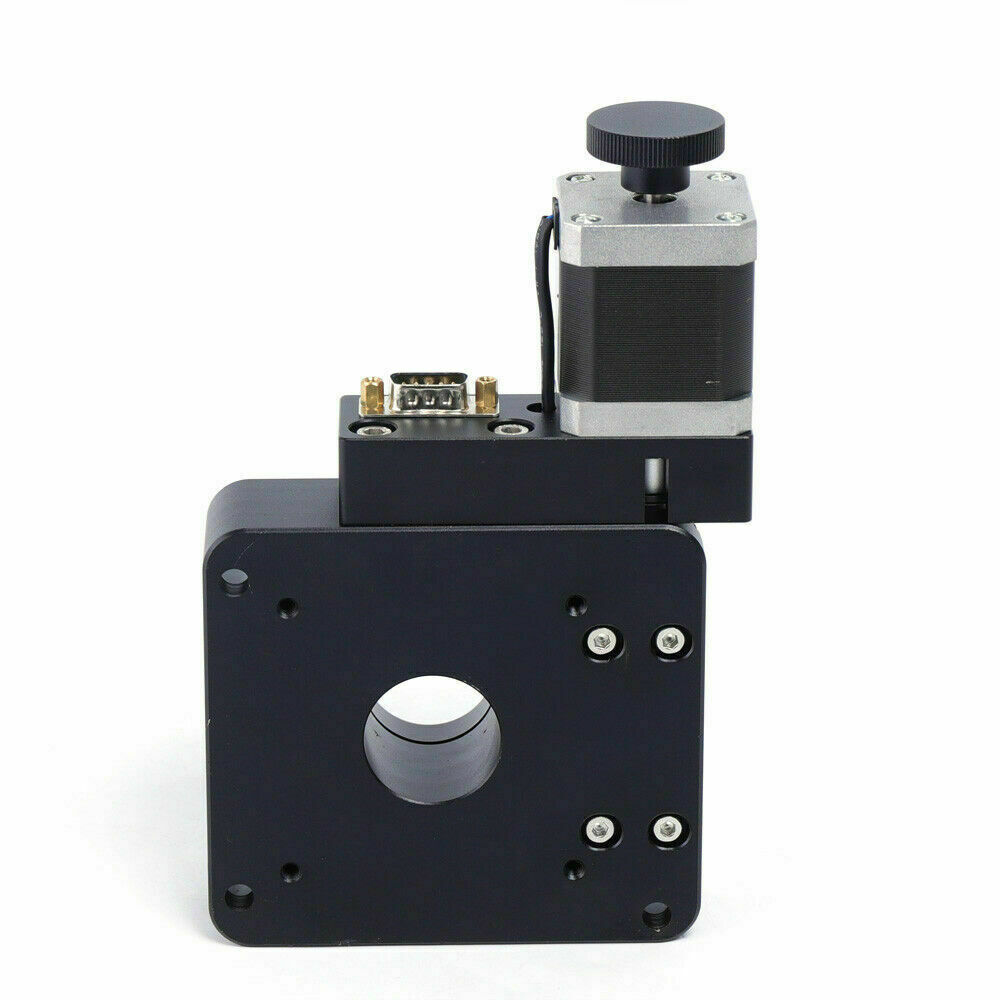

Check the listing for details. Electric Optical Rotation Platform Motorized Rotation Stage Optical Rotary Table. Condition: New. Listed at 312.66 USD. Structural specifications: Product model: HT03RA100 Itinerary : 360° Table size: Φ100mm Transmission mode: worm gear (reduction ratio 1/180) Guide rail: bearing Material: Aluminum-black anodized Weight: 1.7kg Resolution / Pulse: 0.01 ° (no subdivision) 0.0005° (20 subdivisions) Design resolution: 0.01°, non-MS drive; 0.0005° = 1.8", 20MS drive Rotation speed (maximum): 25° / sec Repeatability: 0.005° = 18" Absolute on-axis accuracy: 0.01° = 36" Top board beat: 15μm Recoil: 0.005° = 18" Eccentricity: 10μm Lost movement: 0.005° = 18" Parallelization: 80μm Load: 45kg Packing size: 23*13*16cm Gross weight: 2kg Package Included: 1X HT03RA100 rotating platform.
