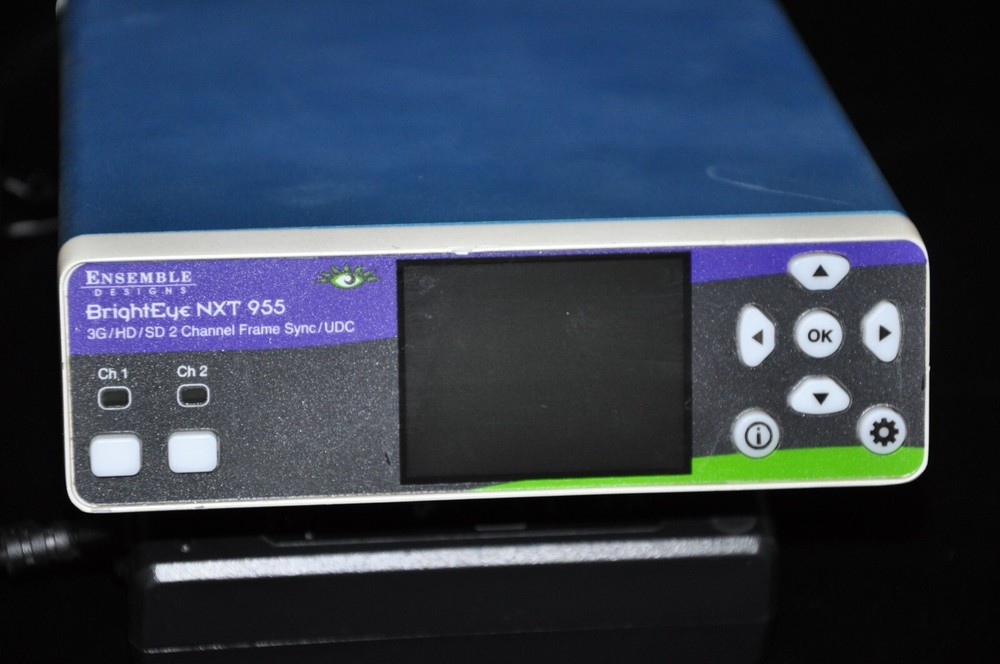

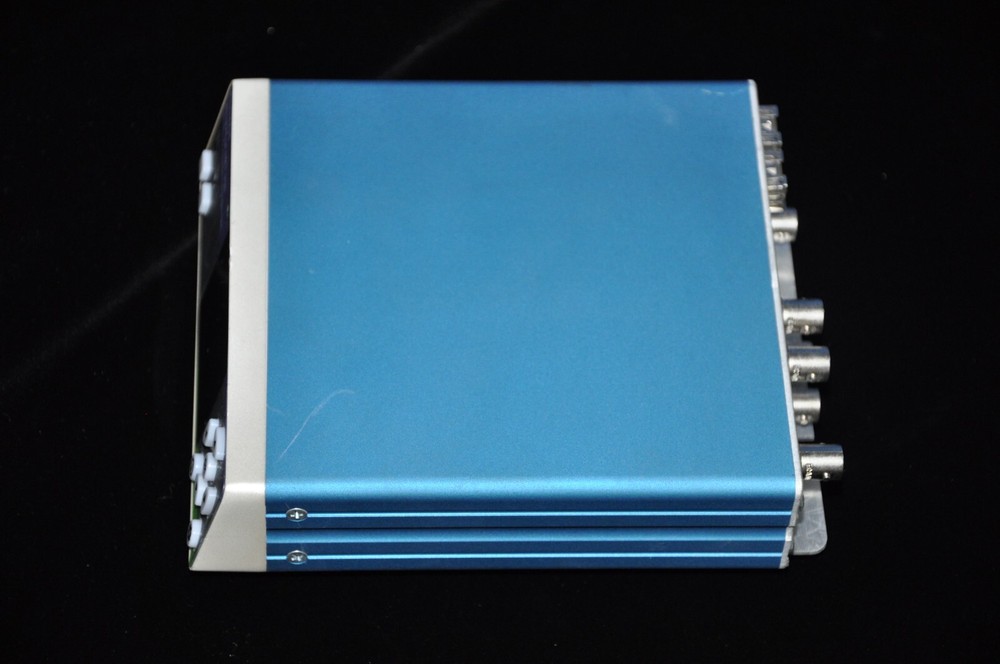

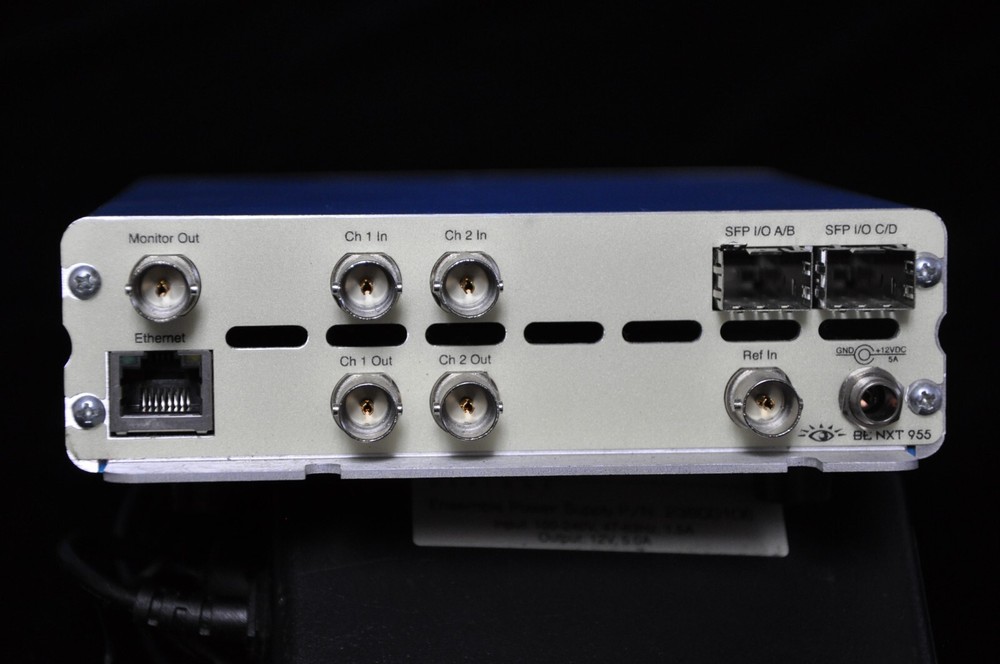

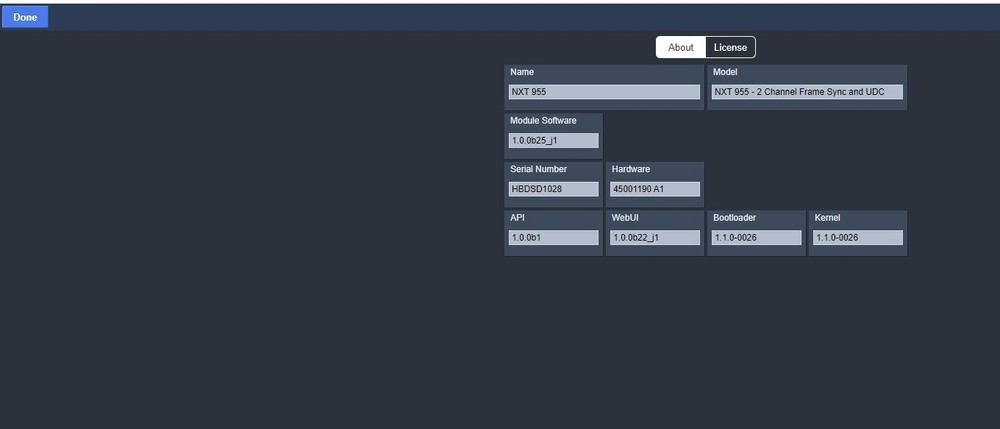

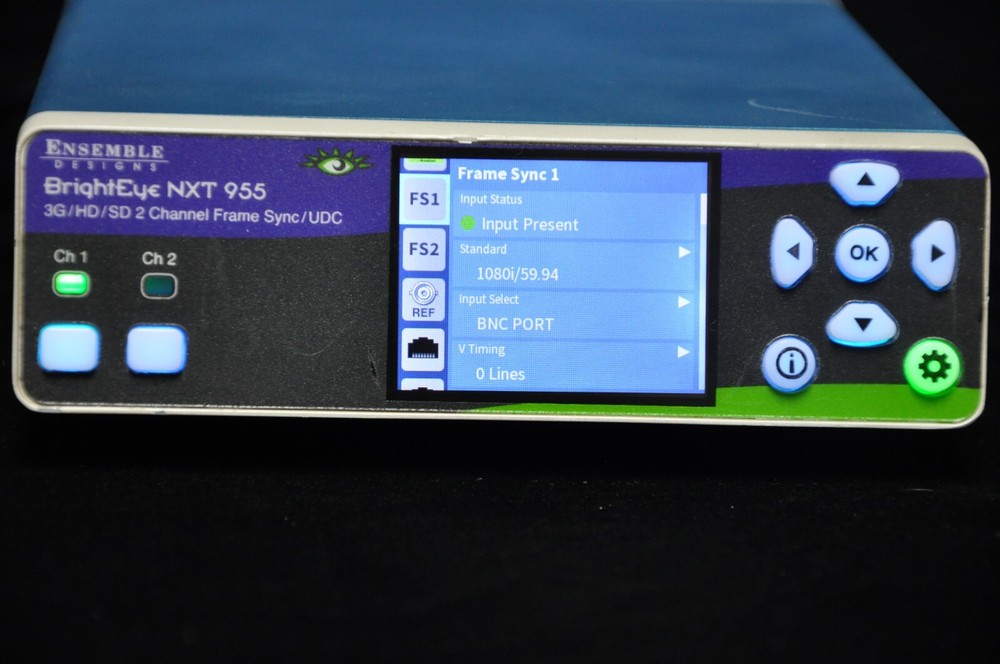

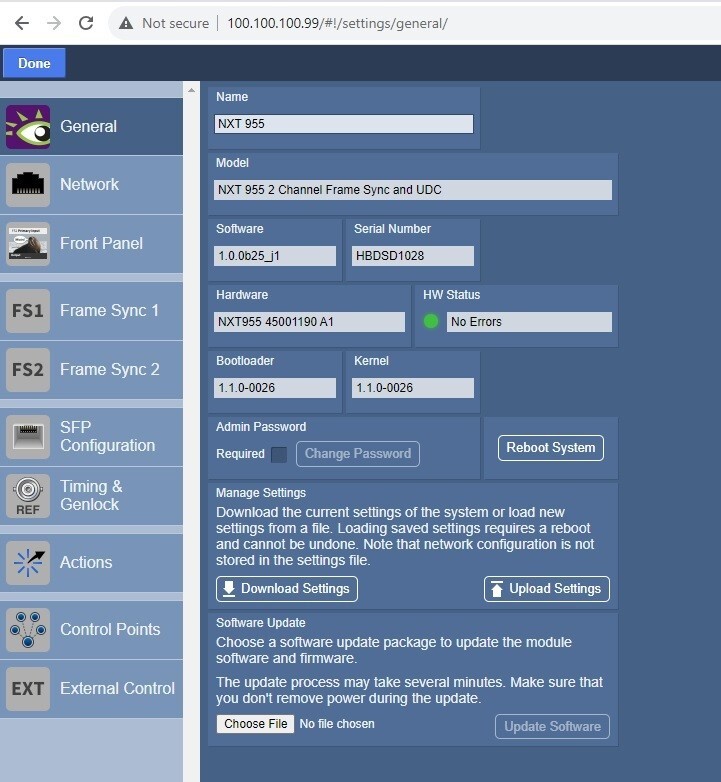

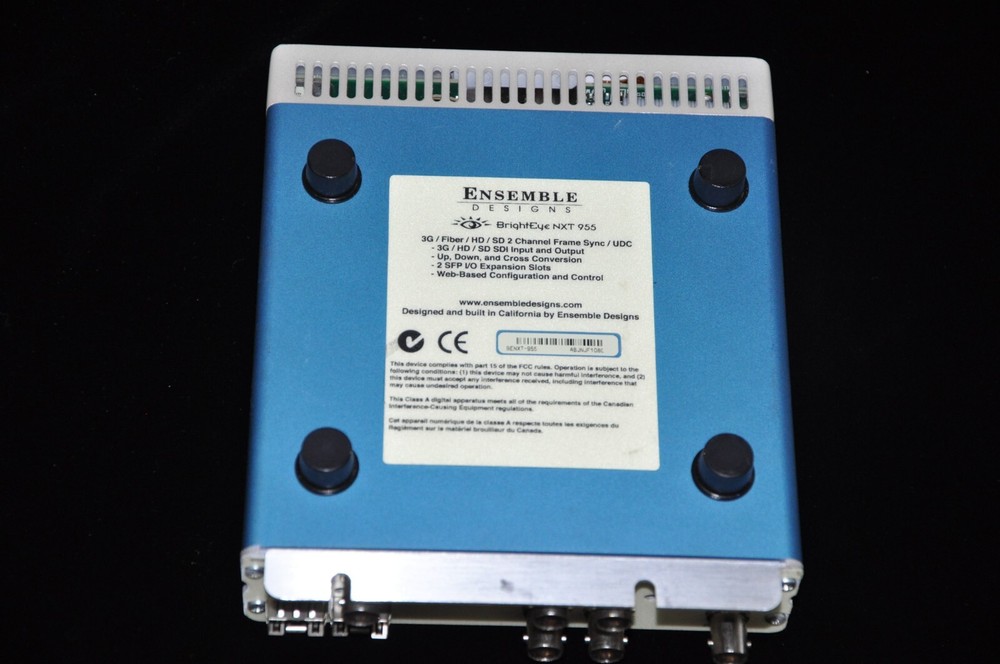

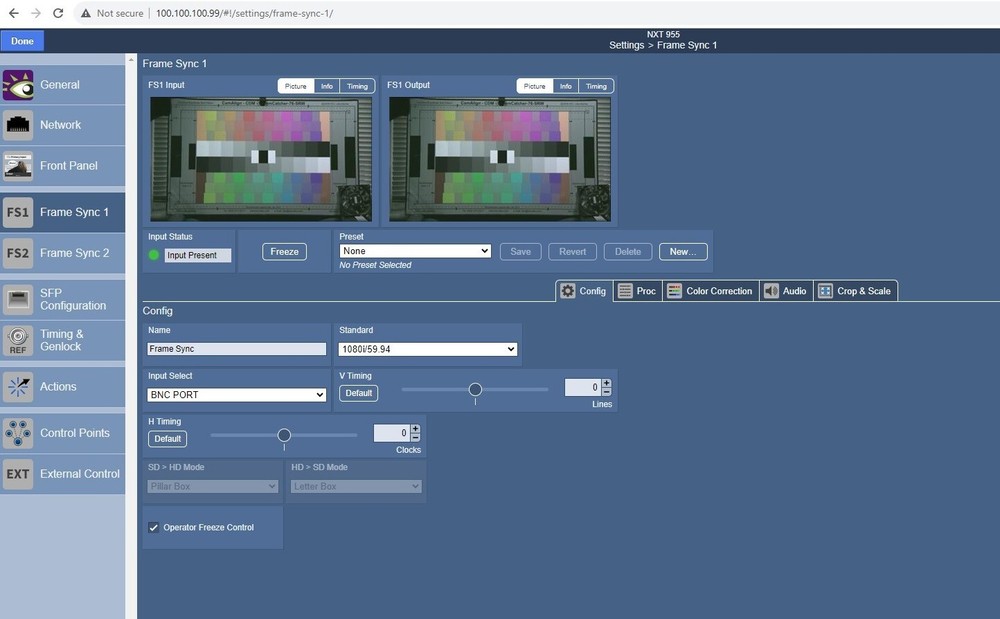

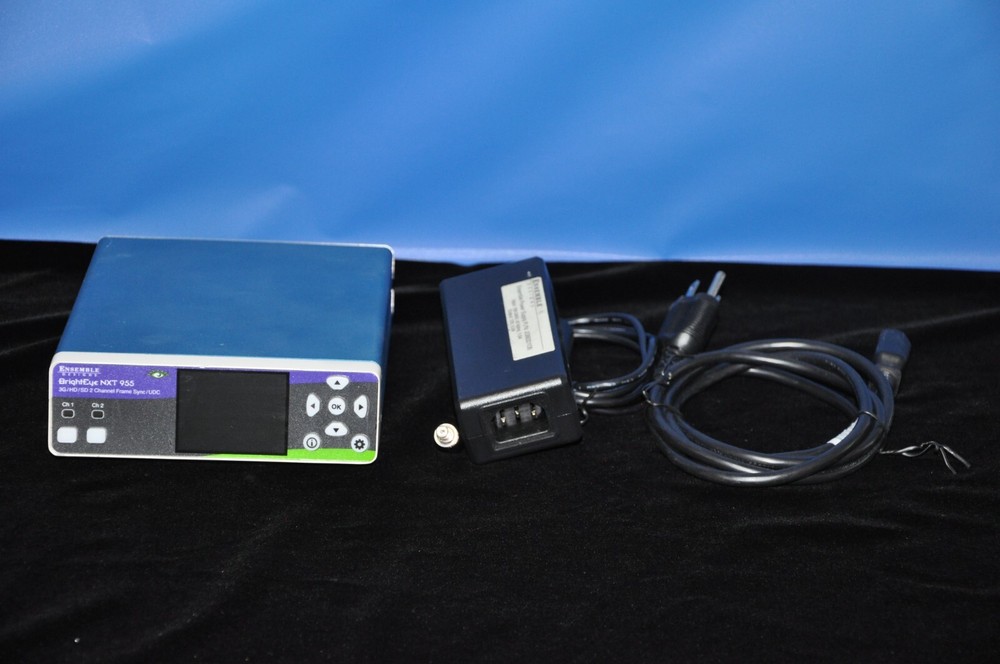

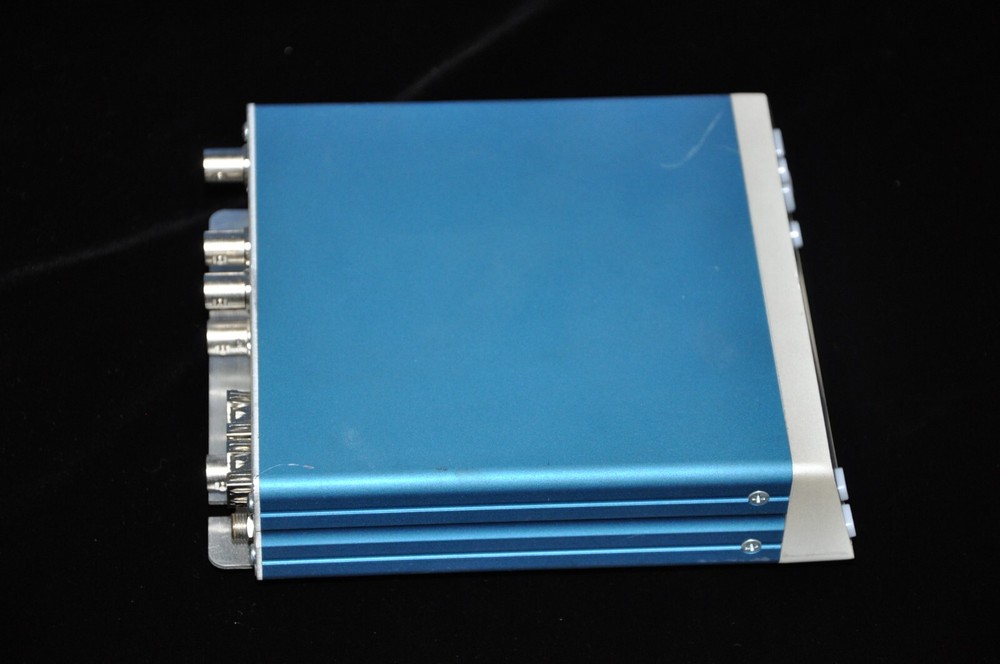

Check the listing for details. Ensemble Designs NXT 955 2-Channel SDI Frame Sync & U/D/C. Condition: Used. Listed at 2200.00 USD. Bright Eye NXT 955 Frame Synchronizer packs a lot of features in a tiny package. Frame Synchronization and Format Conversion, with 16 channels of embedded Audio. The NXT 955 has two independent frame synchronizers. Each supports automatic input format detection and conversion to desired output format. Adjust video and chroma gains with the built-in Proc Amp. Color Correct to compensate for input material or to match projectors and monitors. Adjust levels and swap/mix channels in Embedded Audio. Even embedded surround sound (Dolby, AC-3) is synchronized from input to output. Control the Frame Syncs and monitor each channel’s input and output from the front panel, or through the interactive Web interface. Specifications Serial Digital Inputs Number: Two Type: 270 Mb/s SD SDI SMPTE 259M, 1.485 Gb/s HD SDI SMPTE 274M, 292M, 296M, 2.97 Gb/s HD (3G) SDI SMPTE 424M, 425M Impedance: 75 Ohms Return Loss: > 15 dB Cable Length: 300 meters for 270 Mb/s, 100 meters for 1.485 Gb/s, 70 meters for 2.97 Gb/s Cable EQ Automatic Serial Digital Outputs Number: Two Monitor Output: One Type: 270 Mb/s SD SDI SMPTE 259M, 1.485 Gb/s HD SDI SMPTE 274M, 292M, 296M, 2.97 Gb/s HD (3G) SDI SMPTE 424M, 425M Impedance: 75 Ohms Return Loss: > 15 dB Cable Length: 300 meters for 270 Mb/s, 100 meters for 1.485 Gb/s, 70 meters for 2.97 Gb/s SDI Standards Supported – for both Input and Output 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3 1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11 1080p 50, 59.94, 60 Hz, SMPTE 424M, 425M, Level A 1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16 625i 50 525i 59.94 Standards: 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3 1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11 1080p 50, 59.94, 60 Hz, SMPTE 424M, 425M, Level A 1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16 625i 50 525i 59.94 SFP (Small Format Pluggable) Interfaces Number: Two Ports: HDMI: One per SFP SDI, Fiber: Two per SFP IP Encapsulate (SMPTE 2022, and more): One per SFP Usage: Assignable to Channel Input or Output As Input: in place of SDI or HDMI As Output: in addition to SDI Frame Synchronizers Number: Four (910, 950) Two (955) Range: Infinitely adjustable in H and V Format Conversion Integrated with Frame Synchronizer Automatic conversion from any input to configured output format Audio Synchronization Sample Rate Conversion of Embedded PCM Audio SDI Inputs Supports 16 channels HDMI Inputs Supports 8 channels Re-Synchronization of encoded Surround Sound Dolby-E, Dolby-D, AC-3 Automatically detected Reference Input Number: One Type: 1 V P-P Composite Video, PAL or NTSC or Tri-Level Sync Impedance: 75 Ω Return Loss: >40 dB Ethernet Control Type: RJ-45 Speed: 10/100 Mb/s Protocols: HTTP, TCP/IP General Specifications Size: 5.63” W x 1.65” H x 6.75” D (143 mm x 42 mm x 172 mm) including connectors and flange Weight: 1 lb 12oz Power: 12 volts, 35 watts (100-230 VAC modular power supply) Temperature Range: 0 to 40° C ambient (all specs met) Relative Humidity: 0 to 95%, non-condensing Altitude: 0 to 10,000 ft.
