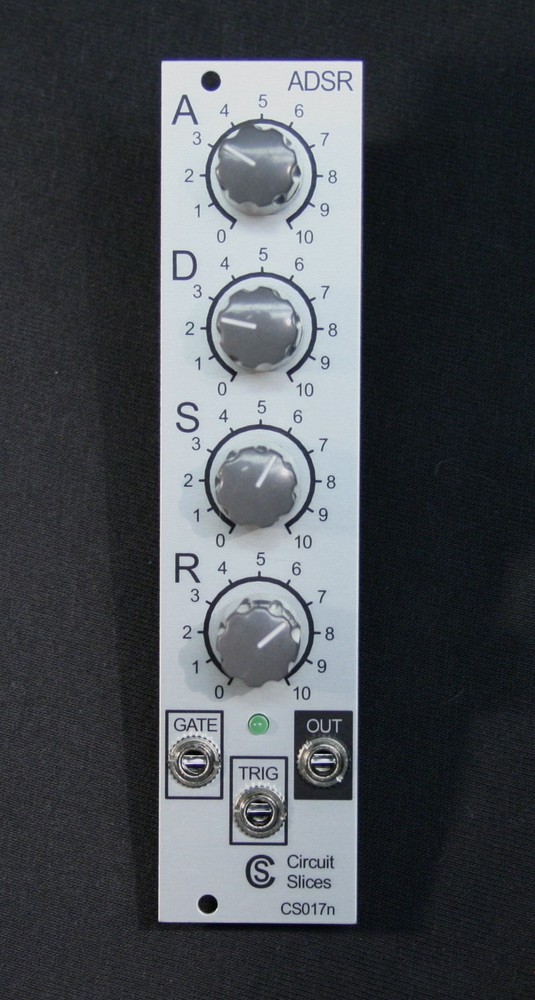

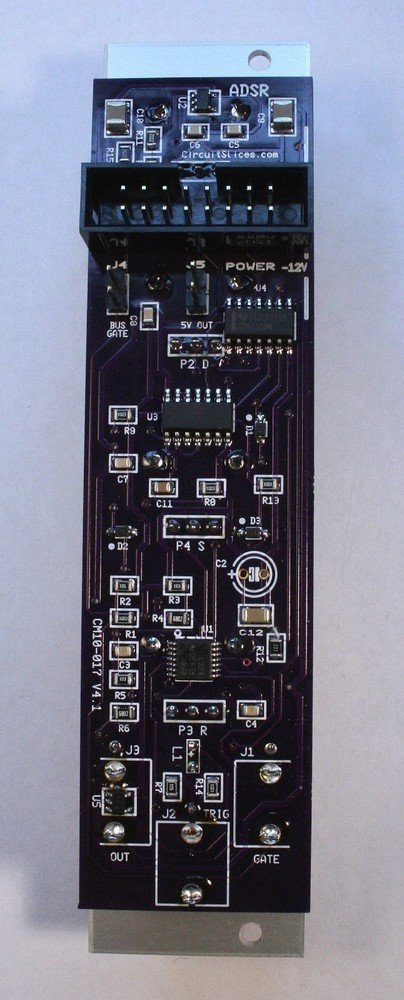

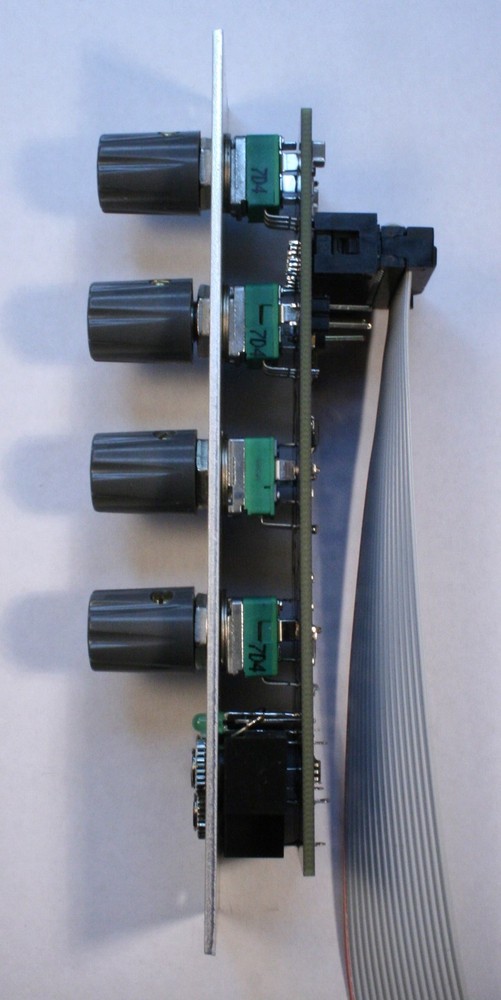

Check the listing for details. Eurorack ADSR Envelope Generator with retrigger -- NEW. Condition: New. Listed at 56.00 USD. The Circuit Slices ADSR module is a re-triggerable envelope generator for modular Eurorack-compatible synthesizers. This popular module includes a PCB jumper to select a maximum output of either 5V or 10V. It also includes an LED on the front panel to indicate the ADSR's output. Brand new from the manufacturer with one year warrantee. A great addition to fill-out any synth rack. Free shipping in continental US.NOTE: A trigger input is not necessary to achieve the full ADSR output. The Trigger input simply allows for re-trigging after the initial attack, while the Gate is still high. If you have a keyboard controller or MIDI-CV that only produces Gate outputs, you may utilize the Trigger input function with a clock signal to produce interesting multiple attacks. The retrigger function is only enabled while the gate is high.Module includes power cable and two mounting screws. Specifications Attack time: ~2mS to over 5s Decay time: ~2mS to over 12s Sustain level: 0 to 10V Or 0 to 5V (shorting jumper selectable) Release time: ~2mS to over 12s Output level: 0 to 10V OR 0 to 5V, user selectable Gate threshold: 2.5V Power: +12VDC @ 3mA, -12DC @ 2mA (standby) Depth: 35mm (with power cable plugged in) Panel width: 6 HP Features Affordable price High quality single PCB design using surface-mount technology “TRIG” input for re-triggered attacks User selectable maximum output voltage, 5V or 10V Includes an LED to indicate output state High-quality anodized aluminum panel User selectable option to control from power-bus ‘gate’ using PCB shorting jumper Low power consumption Shallow depth is great for use in "Skiff" cases Includes power cable and case screws User Manual in PDF The user manual is available as a downloadable PDF. Find the link near the bottom of the circuit slices home page.
