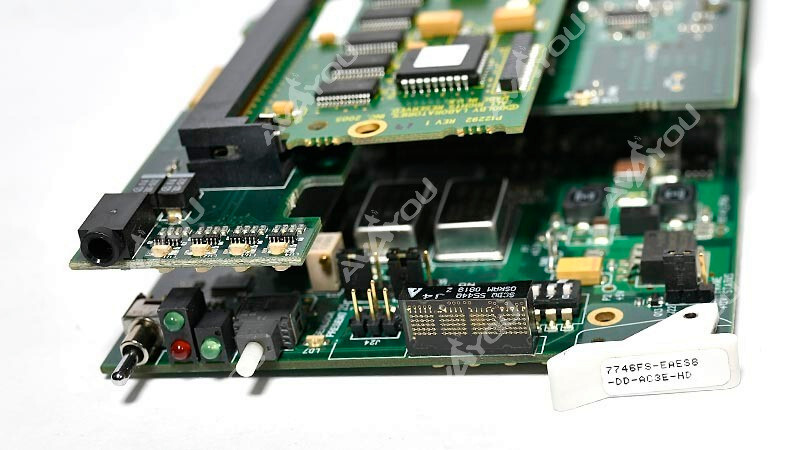

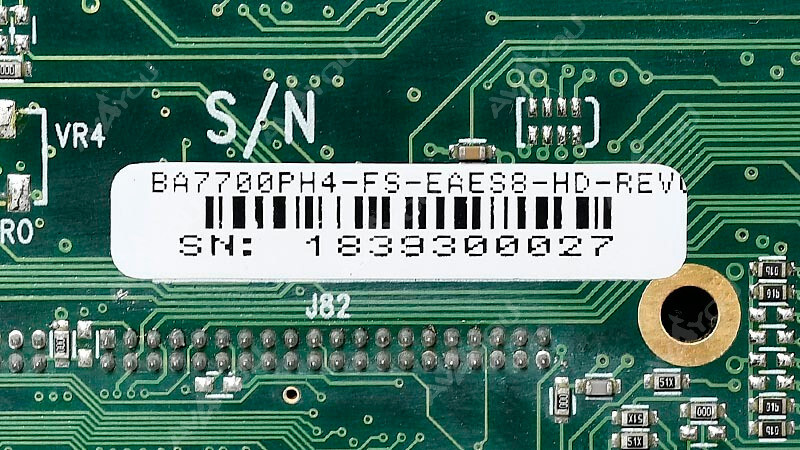

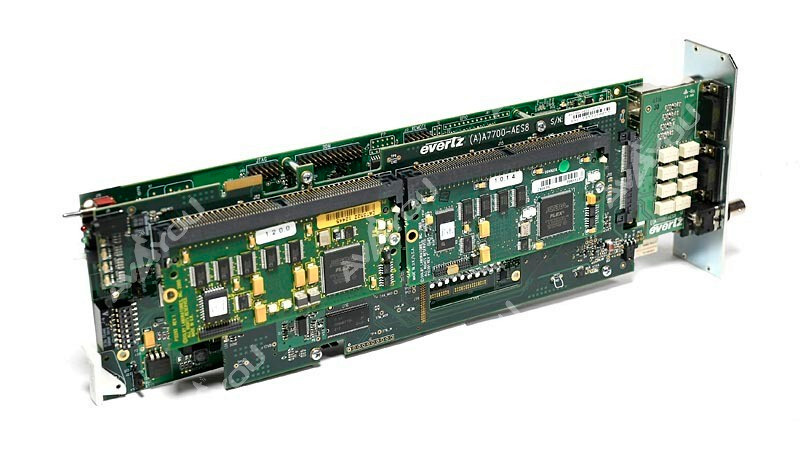

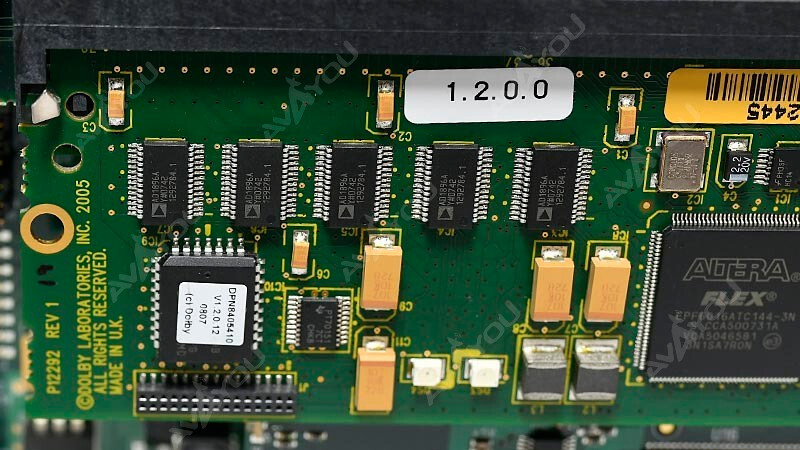

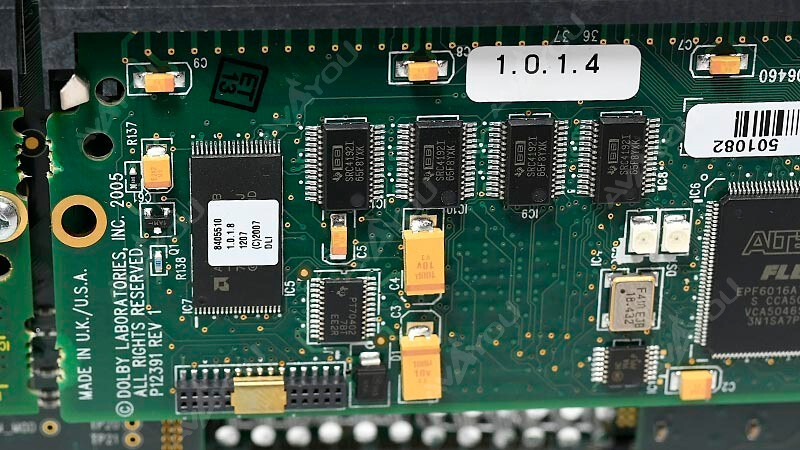

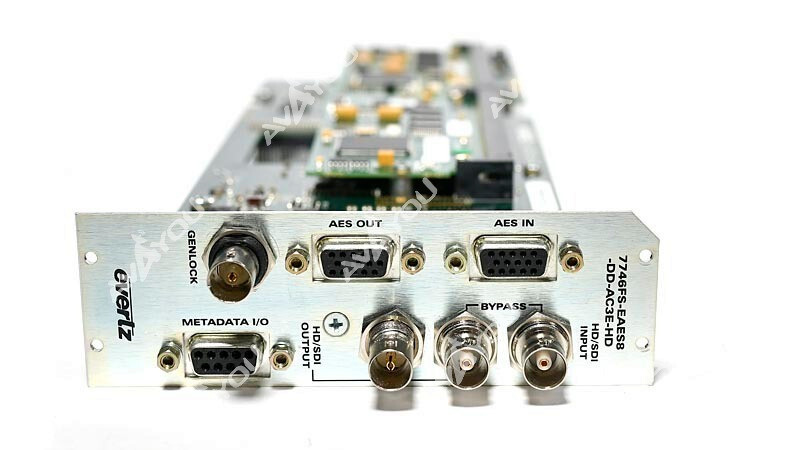

Check the listing for details. Evertz 7746FS-EAES8-DD-AC3E-HD Frame Synchronizer w/ Dolby Decoder + Encoder 3RU. Condition: Used. Listed at 341.00 USD. Evertz 7746FS-EAES8-DD-AC3E-HD Frame Synchronizer w/ Dolby Decoder + Encoder Evertz 7746FS-EAES8-DD-AC3E-HD Frame Synchronizer w/ Dolby Decoder + Encoder Evertz 7746FS-EAES8-DD-AC3E-HD Frame Synchronizer w/ Dolby Decoder + Encoder Functional Condition: Fully Functional Cosmetic Condition: Very Good CONDITION: Functional: Fully Functional Cosmetic: Very Good Scroll down for additional photos Overview: For sale is ONE (1) Evertz synchronizer board. Excellent working & cosmetic condition. Fully functional, tested. Backplane (3RU) included. Because we have a quantity of these, appearances may vary, but condition is guaranteed to be better or equal to pictured sample. Serial numbers are unique to each unit sold and may be different from one depicted in the photos - we record all serial numbers of all items shipped. If you are looking for any other Evertz modular cards - we probably have them. Thousands of cards available. Check out our inventory. SKU# 4157 Description: The 7746FS-EAES8-DD-AC3E-HD HD/SD-SDI Frame Synchronizer is designed to re-time the input to a local reference tri-level or composite sync signal. When necessary, frames are repeated or dropped to maintain synchronization. This device provides: HD/SD frame, synchronization, HD/SD video proc functions, Dolby E decode from embedder or discrete source, 16 channel audio proc, Audio synchronization, Dolby AC-3™ encode, 16 channel audio demux & re-mux. The module will also pass all VANC data after switching line. When the input video is lost, it will pass the input AES or mute if embedded audio is selected for synchronizing. The frame synchronizers also have the ability to set the audio delay independently from the video delay. Video proc features are provided allowing the ability to adjust video parameters such as brightness, contrast and saturation. Hue control is available for SD standards (525i/59.94 and 625i/50). The on-board Dolby Decoder processes one user selectable audio channel. If the channel contains Dolby-E or Dolby Digital (AC-3), it will yield up to 8 additional discrete audio channels, 2 channels of stereo downmix and the associated Dolby metadata. This metadata can be optionally embedded into the VANC, used to program the Dolby Digital (AC-3) encoder, or can be provided as an output for downstream devices. Six audio channels can be selected and encoded to Dolby Digital (AC-3). The encoder supports bit ranges from 56 to 640kb/s and channel configurations from mono to 5.1-channel surround sound. Dolby Metadata can be accepted from the input Dolby E stream, extracted from the VANC, from an external source or authored (via VistaLINK® PRO). Features: Synchronizes 1080i/60, 1080i/59.94, 1080i/50, 1080p/24sF, 1080p/23.98sF, 720p/60, 720p/59.94, 720p/50, 1035i/59.94, 1035i/60, 480p/59.94, 525i/59.94 or 625i/50Minimum video input to output delay -3 linesDolby E decode from embedder or discrete sourceMaximum video input to output delay -1 frame plus 3 lines12 additional frames of delay can be added for interlaced video formats, 28 frames for progressive formats.Dolby E/AC-3 decoding for a selected audio source, Dolby Digital (AC-3) encoding for a selected 6 audio channelsAudio Sample Rate Converters can be disabled, or set to automatically detect non-PCM data (i.e. Dolby-E or AC-3) and disable on a per-input basisSynchronized audio is output as 8 AES signalsAES and embedded outputs can choose from two independent mixersAES outputs bypass relay protected on power lossDe-embeds and embeds Dolby-E meta data to and from video VANC spaceVistaLINK® capable for remote monitoring, control and configuration capabilities via SNMP; using VistaLINK® PRO, 9000NCP or 9000NCP2 Network Control Panel. VistaLINK® is available when modules are used with the 3RU 7800FR frame and a 7700FC VistaLINK® Frame Controller module in slot 1 of the frame TERMS & CONDITIONS PAYMENTS SHIPPING RETURNS DISCLAIMER You agree to all terms and condition All Items are sold with a 30 guarantee, unless specified. No refunds will be given after 30 days Any item sold AS-IS in the title line will not be accepted as a returned item nor will any refunds given. This means that the item has not been tested and therefore we cannot issue guarantees on such Payment is due at time of purchase or within next 48 hours Item ships within 1-2 business days after receipt of payment Shipping charges posted on listings are quoted to the 48 lower states. Puerto Rico, Alaska and Hawaii for an added expense. Please inquire We ship through UPS ground and small packets less than 1 lbs by USPS Heavy and bulky items are shipped by freight, various carriers Freight shipping is least costly when shipped to a business address. Extra charges are for lift gate and residential delivery For international orders: Our shipping quotes do not include duties and taxes. You as a buyer are responsible for charges related to shipping the winning items to you If an item arrives damaged, we MUST be notified within 14 days in order to assist you in filing a claim with the shipping company You must keep all original packaging and inform your local delivery person if visible damage to the box is evident at the time of delivery Please check the description carefully; we do not grant refunds or returns on items bought by mistake If you are not completely satisfied with your purchase, please notify us via email as soon as possible. Do not open case immediately as most errors can be fixed. We strive to provide honest description and actual photos on all items sold, but sometimes mistakes happen. Contact us first, call or email. Your satisfaction is our priority. Any issues must be brought to our attention within 30 days of your receipt of the item/s. After 30 days we will not accept a return or refund Refund will be given as: money back or merchandise credit; buyer choice All trademarks, logos and brand names are the property of their respective owners. All company, product and service names used in this website are for identification purposes only. Use of these names, trademarks and brands does not imply endorsement. 1.63
