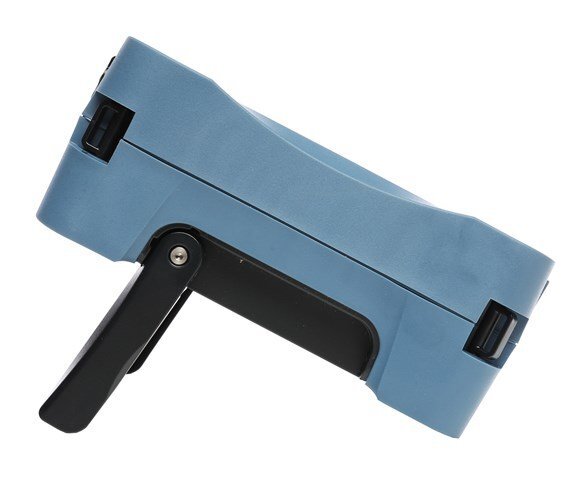

Check the listing for details. EXFO MAX-720C-SM2 1310/1550/1625 SM OTDR with 35dB Range with Basic iOLM Package. Condition: New. Listed at 6119.10 USD. Contact us Soldering Equipment Measuring Equipment Ultrasonic Cleaners Consumables Fiber Optic Tools Bundle offers STEM Toys & Hobbies Visit shop EXFO Maxtester MAX-720C-SM2 is a powerful lightweight handy OTDR with 7-inch outdoor-enhanced touchscreen display, tablet-inspired design, 12-hour battery operation, rugged design for outdoor operation. EXFO Maxtester MAX-720C may be supplied with iOLM software: intelligent and dynamic application that turns complex OTDR trace analysis into a one-touch task Features Handy, lightweight, powerful, tablet-inspired design. Wavelength: 850 ± 20/1300 ± 20/1310 ± 20/1550 ± 20/1625 ± 10 nm Test fiber type: SM (singlemode), MM (multimode) 7-inch, outdoor-enhanced touchscreen. 12-hour autonomous operation. Dynamic range of up to 27/29/36/35/35 dB Fully featured and integrated field test solution. Technical Specifications Wavelength 850 ± 20/1300 ± 20/1310 ± 20/1550 ± 20/1625 ± 10 nm Dynamic range 27/29/36/35/35 dB Event dead zone singlemode: 0.7 m; multimode: 0.5 m Attenuation dead zone singlemode: 3 m; multimode: 2.5 m PON dead zone 35 m Distance range multimode: 0.1 to 40 km; singlemode: 0.1 to 260 km Pulse width multimode: 3 to 1000 ns; singlemode: 3 to 20 000 ns Launch conditions EF-compliant Linearity ±0,03 dB Loss threshold 0.01 dB Loss resolution 0.001 dB Sampling resolution multimode: 0.04 to 5 m; singlemode: 0.04 to 10 m Sampling points up to 256 000 Distance uncertainty ±(0.75 m + 0.005 % × distance + sampling resolution) Measurement time user-defined Reflectance accuracy ±2 dB Typical real-time refresh 4 Hz Display 7-in (178-mm) outdoor-enhanced touchscreen, 800 × 480 TFT Interfaces Two USB 2.0 ports RJ45 LAN 10/100 Mbit/s Storage 2 GB internal memory (20 000 OTDR traces, typical) Batteries rechargeable lithium-polymer battery (12 hours of operation) Power supply power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz Operating temperature –10 °C to 50 °C (14 °F to 122 °F) Storage temperature –40 °C to 70 °C (–40 °F to 158 °F) Relative humidity 0 % to 95 % non-condensing Dimensions (H × W × D) 166 mm × 200 mm × 68 mm Weight (with battery) 1.5 kg Package Contents Optical Time Domain Reflectometer EXFO Maxtester MAX-720C-SM2 — 1 pc. Hand Strap — 1 pc. Battery — 1 pc. 20 W Power Supply — 1 pc. Soft Carrying Case — 1 pc. Stylus — 1 pc. Calibration Certificate — 1 pc. CD — 1 pc. Please note that all goods are shipped from Hong Kong. Therefore, additional charges may apply for customs clearance in your region. Package content and appearance may differ from those presented on the website. Please ask the sales specialist before purchase.
