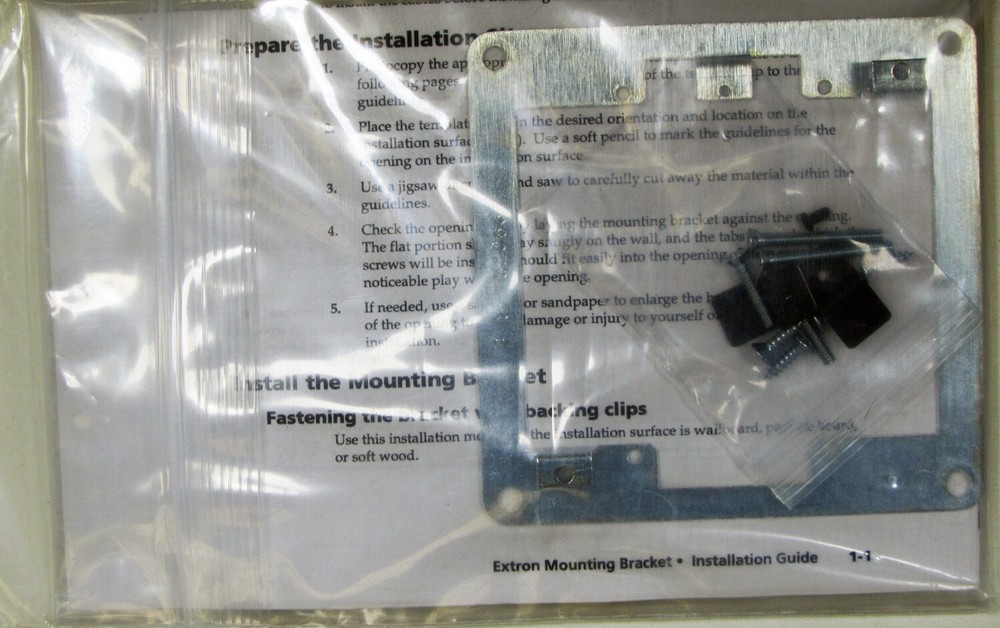

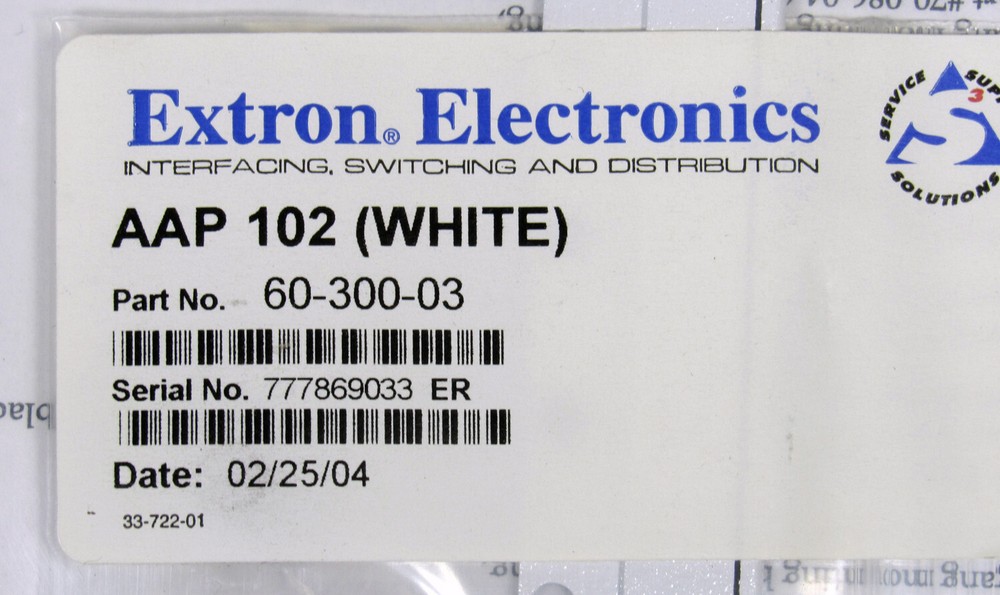

Check the listing for details. Extron AAP 102, White – NEW. Condition: New. Listed at 19.95 USD. Normal 0 false false false EN-US X-NONE X-NONE Extron AAP 102, White – NEW Please Read NOTE 1 Below. Extron Electronics, known as Extron, is a manufacturer of professional audiovisual equipment. It is headquartered in Anaheim, California. Extron is a global leader in the manufacturing of high-quality audio / visual solutions that are reliable and that last. These specifications apply to all models unless otherwise noted. Video Gain Unity (0.7V), 15% with 3dB peaking (0.8V), 30% with 6dB peaking (0.9V) Bandwidth 300 MHz (-3dB) Video input Number/signal type 1: analog RGBHV, RGBS, RGsB Connectors 1: 9-pin male D connector for MBC/LBC cable or buffer Minimum/maximum levels Analog: 0.3V to 1.45V p-p with no offset at unity gain Impedance 75 ohms or Hi Z,: switchable (set to 75 ohms if no local monitor is connected) Horizontal frequency 15 kHz to 150 kHz (optimum 15 kHz to 62 kHz) Vertical frequency 30 Hz to 170 Hz Return loss -30dB @ 5 MHz Video output Number/signal type 1 analog RGBHV, RGBS, RGsB Connectors 6 BNC female Nominal level Analog: 0.7V p-p, 0.8V p-p, or 0.9V p-p (internal jumper-selectable) w/peaking Impedance 75 ohms Return loss -30dB @ 5 MHz Sync Input type Autodetect: RGBHV, RGBS, RGsB (accepts RGsB but does not strip from video) Output type RGBHV: at all times RGBS at all times RGsB only when input is RGsB Input level 2.0V to 5.5V p-p with +0.2VDC offset max. Output level 4.0V to 5.0V p-p Input impedance 10 kohms Output impedance 75 ohms Max propagation delay 50 nS Max rise/fall time 2.5 nS Polarity Positive or negative Audio — RGB 404 (channels 1 and 2), RGB 406 and RGB 408 Gain Unbalanced 0dB, balanced +6dB Response 20 Hz to 20 kHz, ±0.5dB THD + Noise 0.03% @1 kHz, 0.3% @ 20 kHz at rated maximum output drive S/N >90dB at rated maximum output (14dBu), balanced Stereo channel separation >95dB @ 1 kHz to 20 kHz Audio input — RGB 404 Number/signal type 2 stereo, unbalanced;: 1.0Vrms (+4dBu), 20 Hz to 20 kHz Connectors Ch. 1: 2 RCA female jacks Ch. 2 3.5 mm stereo female jack (2 channel), unbalanced;: tip (L), ring (R), sleeve (ground) Impedance >10 kohms unbalanced, DC coupled Maximum level +8.5dBu Audio input — RGB 406 and RGB 408 Number/signal type 1 stereo, unbalanced;: 1.0Vrms (+4dBu), 20 Hz to 20 kHz Connectors 3.5 mm stereo female jack (2 channel), unbalanced; tip (L), ring (R), sleeve (ground) Impedance >10 kohms unbalanced, DC coupled Maximum level +8.5dBu Audio output — RGB 404 (channels 1 and 2) Number/signal type 2 buffered, stereo (2 channel), balanced/unbalanced Connectors 3.5 mm captive screw connector, 5 pole Impedance 50 ohms unbalanced, 100 ohms balanced Gain error ±0.1dB channel to channel Maximum level (600 ohm) +14dBu, balanced at stated %THD+N Audio output — RGB 406 and RGB 408 Number/signal type 1 buffered, stereo (2 channel), balanced/unbalanced Connectors 3.5 mm captive screw connector, 5 pole Impedance 50 ohms, unbalanced, 100 ohms balanced Gain error ±0.1dB channel to channel Maximum level (600 ohm) +14dBu, balanced at stated %THD+N General Power 12 to 24VAC or VDC, 0.25 A, 5 watts, external (Order the power supply separately.) Temperature/humidity Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, non condensing Operating +32° to +122°F (0° to +50°C) / 10% to 90%, non condensing Rack mount No, but wall or furniture mountable Enclosure type Metal Enclosure dimensions — RGB 404 Plate 4.50" H x 6.40" W (11.43 cm H x 16.26 cm W) Box 3.75" H x 5.3" W x 2.5" D (9.5 cm H x 14.2 cm W x 6.35 cm D): 3-gang Interface 2.8" H x 5.3" W x 2.5" D (7.1 cm H x 13.5 cm W x 6.4 cm D): (Depth is given with an HR cable attached.) (Depth excludes front panel connectors and controls.) Enclosure dimensions — RGB 406 Plate 4.50" H x 4.60" W: (11.43 cm H x 11.68 cm W) Box 3.75" H x 3.75" W x 2.5" D (9.5 cm H x 9.5 cm W x 6.35 cm D): 2-gang Interface 2.8" H x 3.5" W x 2.5" D (7.1 cm H x 8.9 cm W x 6.4 cm D): (Depth is given for the circuit board with an HR cable attached.) (Depth excludes front panel connectors and controls.) Enclosure dimensions — RGB 408 Plate 4.50" H x 8.33" W (11.43 cm H x 21.15 cm W) Box 3.75" H x 7.38" W x 2.50" D (9.50 cm H x 18.73 cm W x 6.35 cm D): 4-gang Interface 2.8" H x 3.5" W x 2.5" D (7.1 cm H x 8.9 cm W x 6.4 cm D): (Depth is given for the circuit board with an HR cable attached.) (Depth excludes front panel connectors and controls.) NOTE 1 1. This item is new. 2. Due to the highly unscrupulous parts-swappers on eBay, every item is being sold on an “as-is” basis. 3. As much as we would like to do so, we do not control the speed of the shippers. We usually ship the same day as we receive the order. If your package seems to be shipping slow, check the tracking number for progress. Free shipping only applies to the 48 contiguous states. Alaska, Hawaii, Puerto Rico, etc. please contact with your zip code for correct shipping charges.
