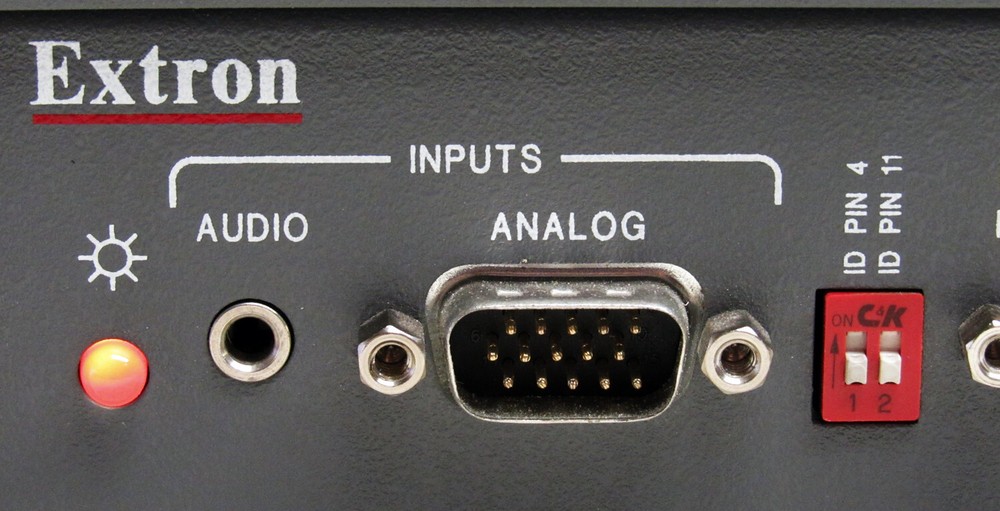

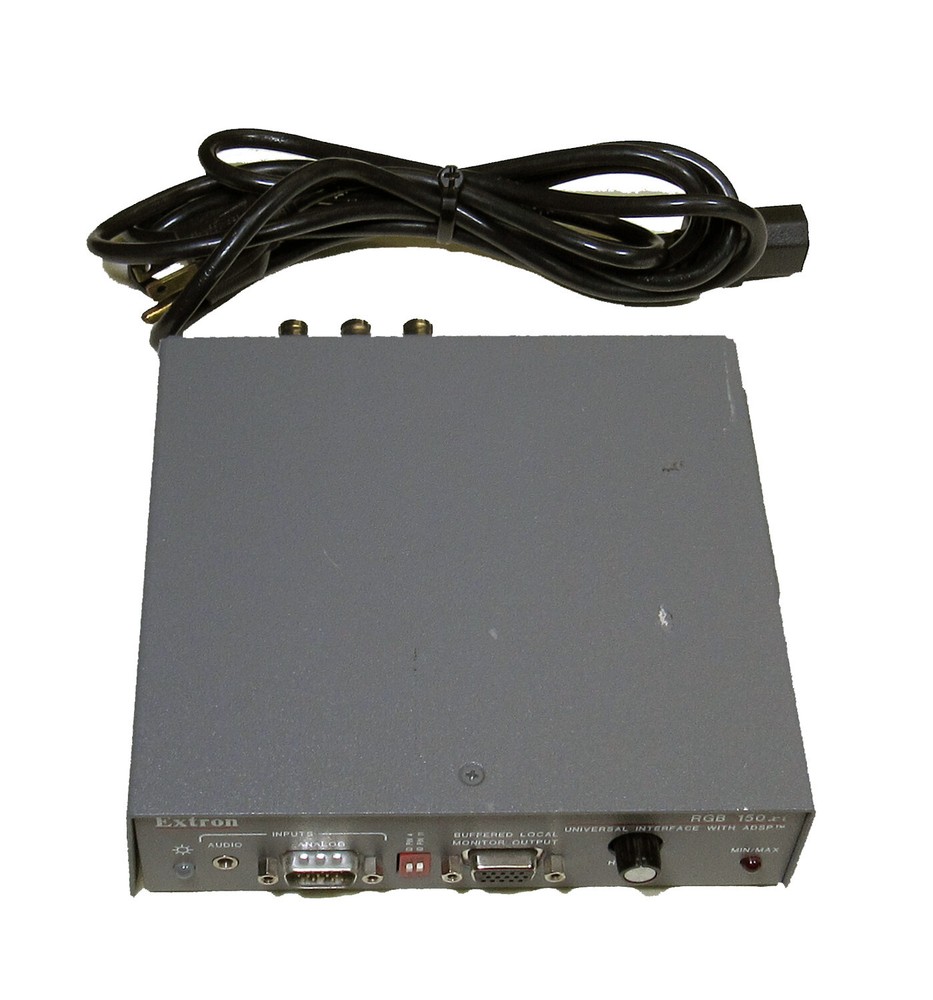

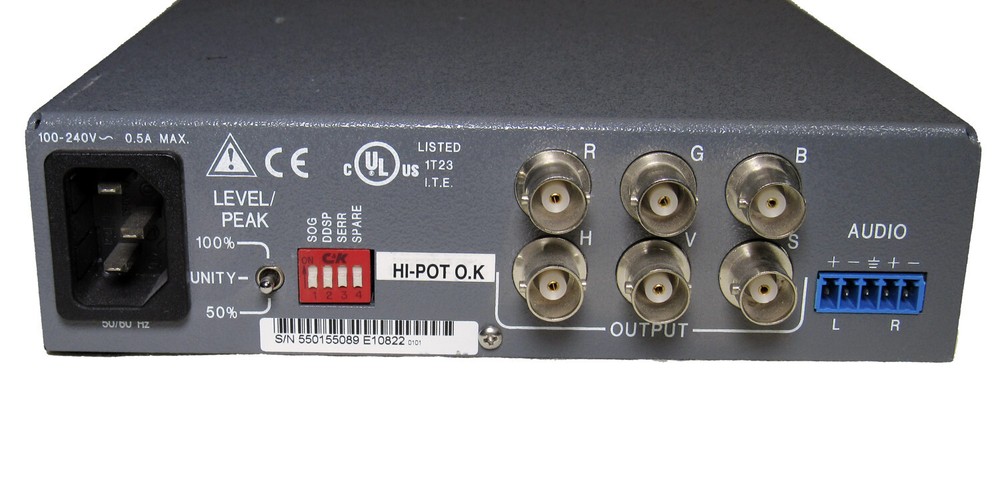

Check the listing for details. Extron RGB 150xi. Condition: Used. Listed at 74.95 USD. Normal 0 false false false EN-US X-NONE X-NONE Extron RGB 150xi This unit worked when it was pulled from a working environment. Please Read NOTE 1 Below. Extron Electronics, known as Extron, is a manufacturer of professional audiovisual equipment. It is headquartered in Anaheim, California. Extron is a global leader in the manufacturing of high-quality audio / visual solutions that are reliable and that last. Video Gain Unity: (0.725V p-p) 50% peaking, (0.75V p-p) 100% peaking Bandwidth 300 MHz (-3dB) Video input Number/signal type 1 analog RGBHV, RGBS, RGsB, RsGsBs Connectors RGB 130xi, RGB 134xi: 1 9-pin D male RGB 150xi 1: 15-pin HD male Minimum/maximum levels Analog: 0.3V to 1.5V p-p with no offset at unity gain Impedance RGB 130xi, RGB 134xi: 75 ohms or Hi Z, switchable (set to 75 ohms if no local monitor is connected) RGB 150xi 75 ohms Horizontal frequency Autoscan 15 kHz to 130 kHz Vertical frequency Autoscan 30 Hz to 120 Hz Return loss -30dB @ 5 MHz Maximum DC offset 4.0V Video output Number/signal type RGB 130xi, RGB 150xi: 1 analog RGBHV, RGBS, RGsB RGB 134xi: 2 analog RGBHV, RGBS, RGsB Connectors RGB 130xi, RGB 150xi: 6 BNC female RGB 134xi: 2 x 6 BNC female RGB 150xi: 1 15-pin HD female local monitor buffered output Nominal level Unity,: (0.725V p-p) 50% peaking, (0.75V p-p) 100% peaking Impedance 75 ohms Return loss -30dB @ 5 MHz Sync Input type RGBHV TTL (±), RGBS TTL (±), RGsB 0.3V (-), RsGsBs 1.3V (-) Output type RGBHV (±), RGBS(±), RGsB (-) Input level 2V to 5.5V p-p with ±0.2VDC offset (max.) Output level 4V to 5V p-p Input impedance 10 kohms Output impedance 75 ohms Max. propagation delay 48 nS Max. rise/fall time 3.5 nS Polarity RGBHV: when RGBHV is input, polarity follows input; otherwise negative RGBS, RGsB negative Audio Gain Unbalanced 0dB,: balanced +6dB Frequency response 20 Hz to 20 kHz, ±0.05dB THD + Noise 0.03% @ 1 kHz,: 0.3% @ 20 kHz at rated maximum output drive S/N >90dB, at the rated maximum output (14dBu), balanced Stereo channel separation >95dB @ 1 kHz to 20 kHz Audio input Number/signal type 1 PC level stereo, unbalanced Connectors 1: 3.5 mm stereo jack, 2 channel; tip (L), ring (R), sleeve (ground) Impedance >10 kohms, DC coupled Maximum level +8.5dBu,: (unbalanced) at stated %THD+N Audio output Number/signal type 1 stereo (2 channel), balanced/unbalanced Connectors 1: 3.5 mm stereo captive screw connector, 5 pole, for left and right output Impedance 50 ohms unbalanced,: 100 ohms balanced Gain error ±0.1dB channel to channel Maximum level (600 ohm) >+14dBu, balanced at stated %THD+N General Power 100VAC to 240VAC, 50/60 Hz, 15 watts, internal, auto-switchable MBC power jack 9.0VDC, 150 mA Temperature/humidity Storage -40° to +158°F (-40° to +70°C) / 10% to 90%, non-condensing Operating +32° to +104°F (0° to +40°C) / 10% to 90%, non-condensing Rack mount No Furniture mount Yes, with optional kits, #70-077-01 and #70-077-02 Enclosure type Metal Enclosure dimensions RGB 130xi, RGB 150xi 1.75" H x 6.4" W x 6.0" D 4.5 cm H x 16.2 cm W x 15.2 cm D (Depth excludes connectors.) What is included in this package: (1) Extron RGB 150xi, Gray (1) Extron NOTE 1 1. This item is used and shows minor signs of normal wear and tear. 2. Due to the highly unscrupulous parts-swappers on eBay, every item is being sold on an “as-is” basis. 3. As much as we would like to do so, we do not control the speed of the shippers. We usually ship the same day as we receive the order. If your package seems to be shipping slow, check the tracking number for progress. Free shipping only applies to the 48 contiguous states. Alaska, Hawaii, Puerto Rico, etc. please contact us with your zip code for correct shipping charges.
