| Return shipping will be paid by | Seller |
|---|---|
| All returns accepted | Returns Accepted |
| Item must be returned within | 30 Days |
| Refund will be given as | Money back or replacement (buyer's choice) |
| Power Handling | 160 W |
| General Application | Pro |
| Voice Coil Diameter | 1.26" |
| Magnet Composition | Ferrite |
| Max Linear Excursion | 5.25 mm |
| Model | 5FE100 |
| Country/Region of Manufacture | Italy |
| Suited For | Mid-Range Frequencies |
| Part Number | 294-1171 |
| Nominal Impedance(Ohms) | 8ohm |
| Nominal Diameter | 5" |
| MPN | 8FE200 |
| Compatible Brand | Universal |
| Brand | Faital |
| Type | Subwoofer |

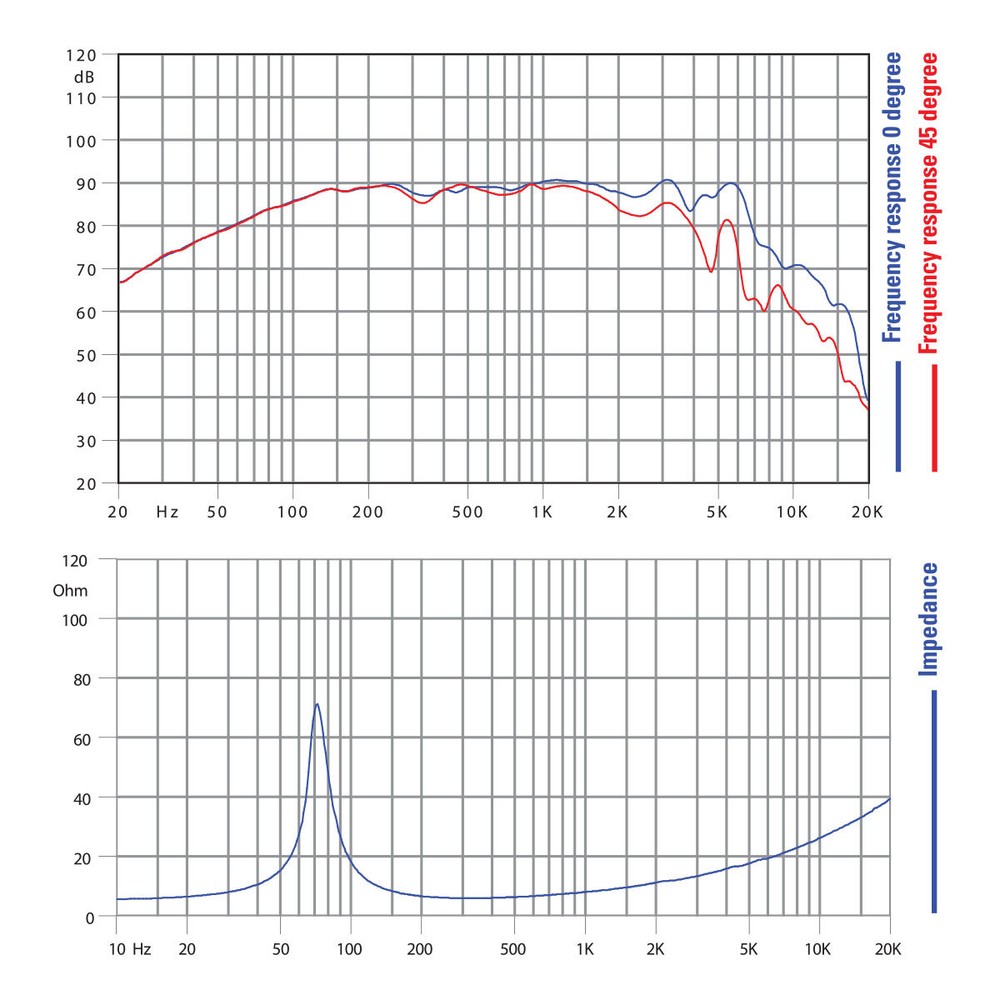

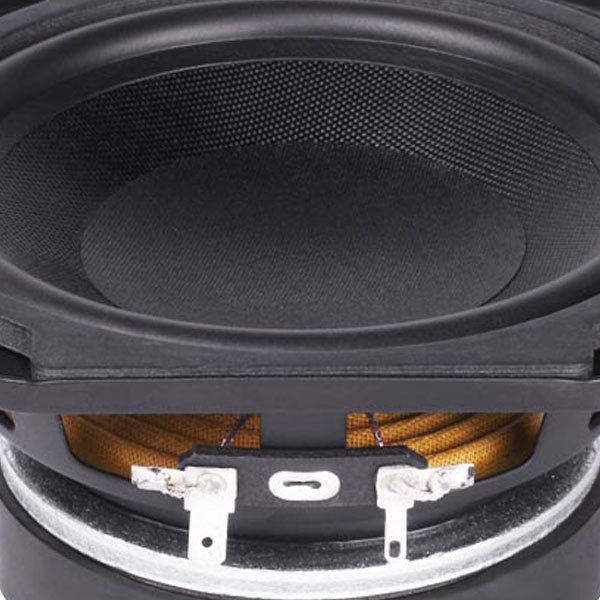

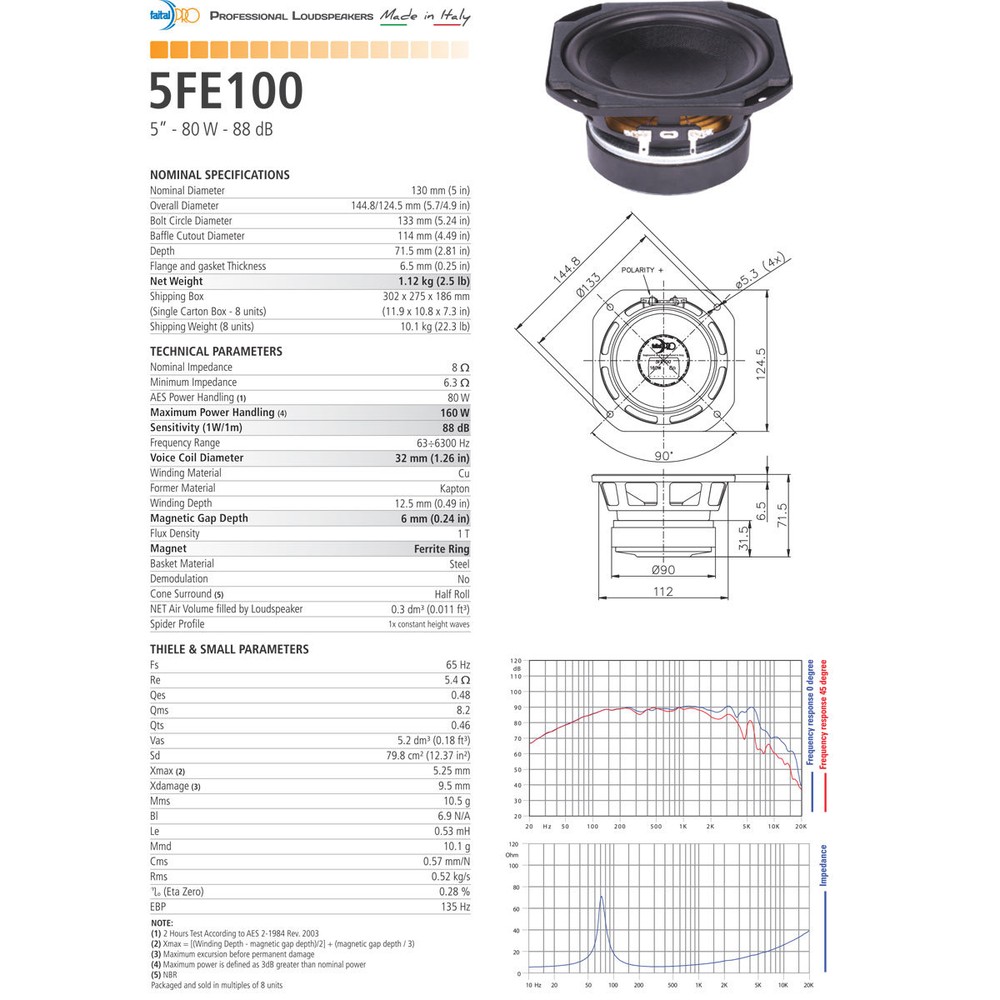

Check the listing for details. Faital Pro 5FE100 8ohm 5" 160W Woofer Midrange Line Array Replacement Speaker. Condition: New. Listed at 47.00 USD. Faital Pro 5FE100 8ohm 5" 160W Woofer Midrange Line Array Replacement SpeakerSpecificationsBrandFAITAL PROModel5FE100Nominal Diameter5"Nominal Impedance8ohmRMS Power80 WPeak Power (Watts)160 WSensitivity (dB)88 dBMax Excursion(Xdam)(Xlim)9.5 mmMax Linear Excursion (Xmax)5.25 mmUsable Frequency Range (Hz)63-6.3k HzSurround ShapeHalf RollBasket / Frame MaterialSteelSpider Detail/Material1x constant height wavesVoice Coil Diameter1.26"Voice Coil FormerKaptonVoice Coil Wire MaterialCopperVoice Coil Winding Depth12.5 mmVoice Coil Gap Height6 mmDemodulating RingNoMagnet MaterialFerriteParametersCompliance Equivalent Volume (Vas)0.18 Ft3Total Q (Qts)0.46Mechanical Q (Qms)8.2Electromagnetic Q (Qes)0.48Minimum Impedance (Zmin)6.3ohmDC Resistance (Re)5.4 ohmMechanical Resistance (Rms)1.15 lbs/secSurface Area of Cone (Sd)12.37 in2Voice Coil Inductance (Le)0.53 mHFlux Density1 TBL Product(Bl)6.9 T-mMoving Mass Of Diaphragm (Mmd)10.1 gMoving Mass(MMs)10.5 gReference Efficiency (No)0.0028Mechanical Compliance (Cms)0.57 mm/NEBP135 HzDriver Displacement19 in3Mounting and Shipping InformationOverall Diameter4.9"Largest Dimension5.7"Baffle Hole Diameter4.49"Bolt Circle Diameter5.24"Flange and Gasket Thickness0.25"Depth2.81"Net Weight(lb)2.5
