| Phase | Single |
|---|---|
| Pump Technology | Vane |
| Minimum Fluid Temperature | -40 °F |
| Suction Tube OD | 1 in |
| Power Source | Corded Electric |
| Housing Finish | Baked Enamel |
| Housing Material | Cast Iron |
| Motor Enclosure Design | Totally Enclosed Non-Ventilated |
| Adapter Connection Diameter | 2 in |
| Maximum Flow Rate | 15 gpm |
| HP | 1/4 HP |
| MPN | 1200 |
| Full Load Current | 26A |
| Unit Type | Unit |
| Mount Type | Bung |
| Inlet Diameter | 1” |
| Maximum Viscosity | 4 cSt |
| Seal Material | Buna-N |
| Unit Quantity | 2 |
| Adapter Material | Cast Iron |
| Wetted Materials | Buna-N/Ceramic/Cork/Stainless Steel/Steel/Thermoset/Viton |
| Thermal Protection | Yes |
| Runs Dry | Yes |
| Height Above Container | 8-3/8 in |
| Pump Connection Type | NPT |
| Self-Priming | Yes |
| Overall Length | 12-1/4 in |
| Chemical Compatibility | Biodiesel; Diesel; Ethanol; Gasoline; Kerosene; Mineral Spirits |
| Maximum Head Pressure | 16 psi |
| Standards | cULus |
| Rated Voltage | 12V DC |
| Brand | Fill-Rite |
| Static Protection | Grounding Line Included |
| Motor Speed | 2,600 RPM |
| Adapter Connection Standard | MNPT |
| Maximum Fluid Temperature | 150 °F |
| Maximum Head | 37 ft |
| Maximum Outlet Pressure | 16 psi |
| Pump Connection ID | 3/4 in |
| Max. Flow Rate | 15 GPM |
| Hazardous Location Class | Class I/Division 1 |
| Duty Cycle | 30 Minutes On/30 Minutes Off |
| For Container Size | 35 gal; 55 gal; 275 gal; 500 gal |
| For Container Type | Tank |
| Country of Origin | United States |

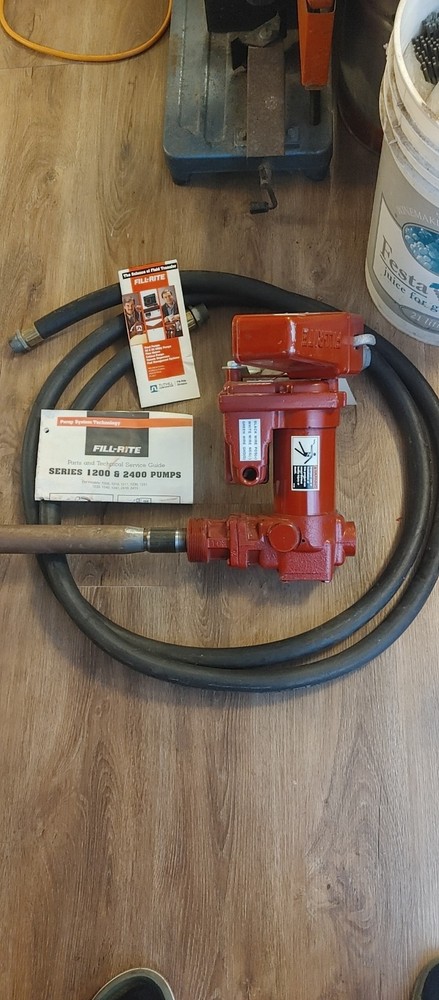

Check the listing for details. Fill-Rite 1200 Pump. 12Vdc. Condition: New – Open box, Made in United States. Listed at 235.00 USD. For sale new pump don t have original box.
