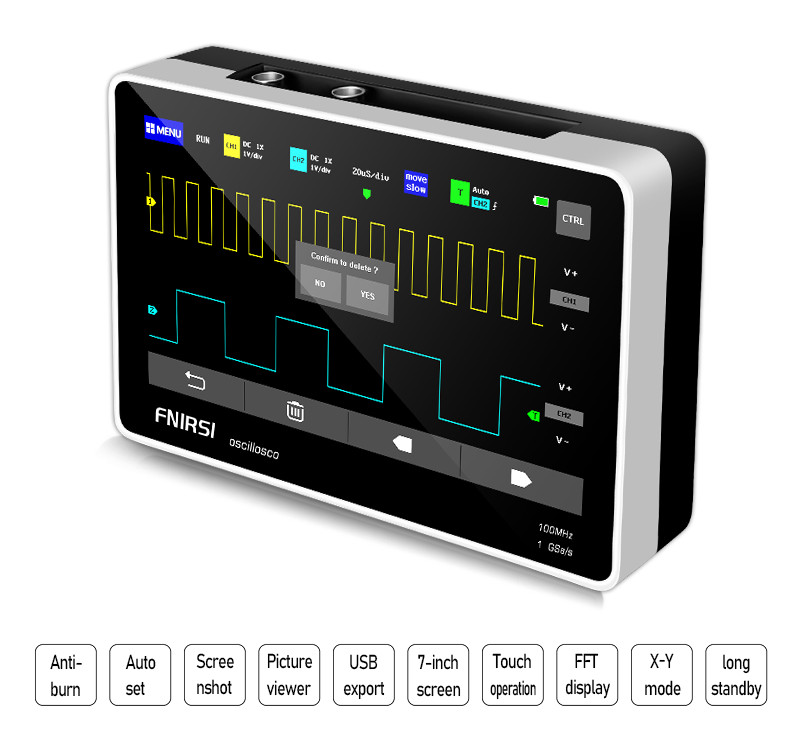

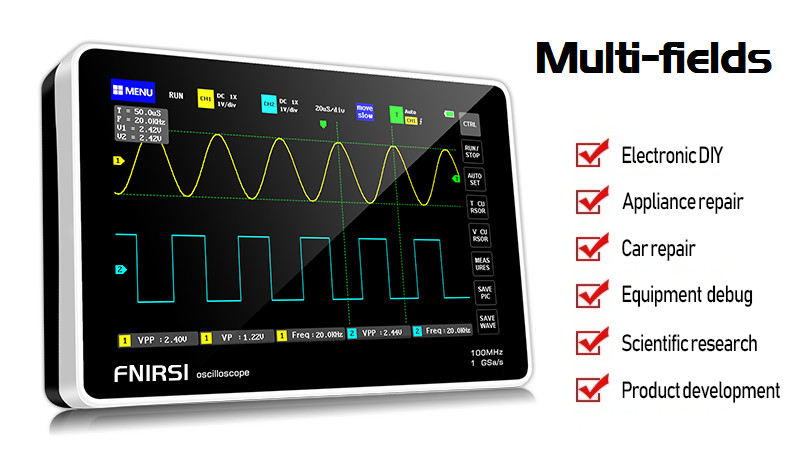

FNIRSI 1013D Plus 7" Touch Panel Digital Oscilloscope 2CH 100MHz Bandwidth 1GS

Name: FNIRSI 1013D Plus 7" Touch Panel Digital Oscilloscope 2CH 100MHz Bandwidth 1GS
SKU: 389900212836
Price: 166.99 USD
Availability: InStock

$83.50

$166.99 -50%

Brand FNIRSI

Condition New

Item ID 389900212836

External trigger voltage	0 – 40 V
Power Source	Lithium Battery
Horizontal time base range	50S/div ~ 10nS/div
Vertical sensitivity	50 mV/div ~ 500 V/div
MPN	FNIRSI 1013D Plus
Maximum Real-Time Sampling Rate	1 GSa/s
Maximum Bandwidth	100 MHz
Charging Time	95 minutes
Oscilloscope Type	Digital Oscilloscope
Number of Channels	2
Voltage	40-400V
Features	Handheld/ Portable, With Probe, With USB
Digital Oscilloscope Resolution	240Kbit
Trigger mode	Single, Normal, Auto
Coupling mode	AC/DC
ADC precision	8bits
Operating	Capacitive touch screen + gesture
Brand	FNIRSI
Battery Capacity	6000Mah
Trigger edge	Rising edge/Falling edge
Model	FNIRSI 1013D Plus
Maximum test voltage	40 V (1X probe), 400 V (10X probe)
Extension ports	USB picture export
Country of Origin	China
Storage depth	240Kbit
Display	7 inch - 800*480

Check the listing for details. FNIRSI 1013D Plus 7" Touch Panel Digital Oscilloscope 2CH 100MHz Bandwidth 1GS. Condition: New, Made in China. Listed at 166.99 USD. FNIRSI 1013D is a portable dual-channel oscilloscope with bandwidth up to 100 MHz. FNIRSI 1013D also has a USB interface for connecting to a computer. 100MHz analog bandwidth @ 1GSa/s sampling rate (1X=5MHz 10X=100MHz).
