| Bandwidth | 200K |
|---|---|
| Brand | Unbranded |
| Calibration square wave | Frequency: 1K; Duty cycle: 50% |
| Coupling mode | AC/DC |
| Display | 2.8 inches 320*240 resolution |
| Features | Handheld/ Portable |
| Li-ion battery capacity | 1000mAh |
| Main body size | 99*68.3*19.5mm |
| Material | plastics+electronic component |
| Model | For FNIRSI-DSO 152 |
| Oscilloscope Type | Digital Oscilloscope |
| Sampling rate | 2.5MS/s |
| Time base range | 10μs/Div-50s/Div (according to 1-2-5 incremental) |
| Trigger mode | automatic/regular/single |
| Type | high configuration |
| USB charging | 5V/1A |
| Vertical sensitivity | 10mV/Div-20V/Div (according to 1-2-5 progressive) |
| Voltage range | X1:±40V (Vpp:80V); X10:±400V (Vpp:800V) |

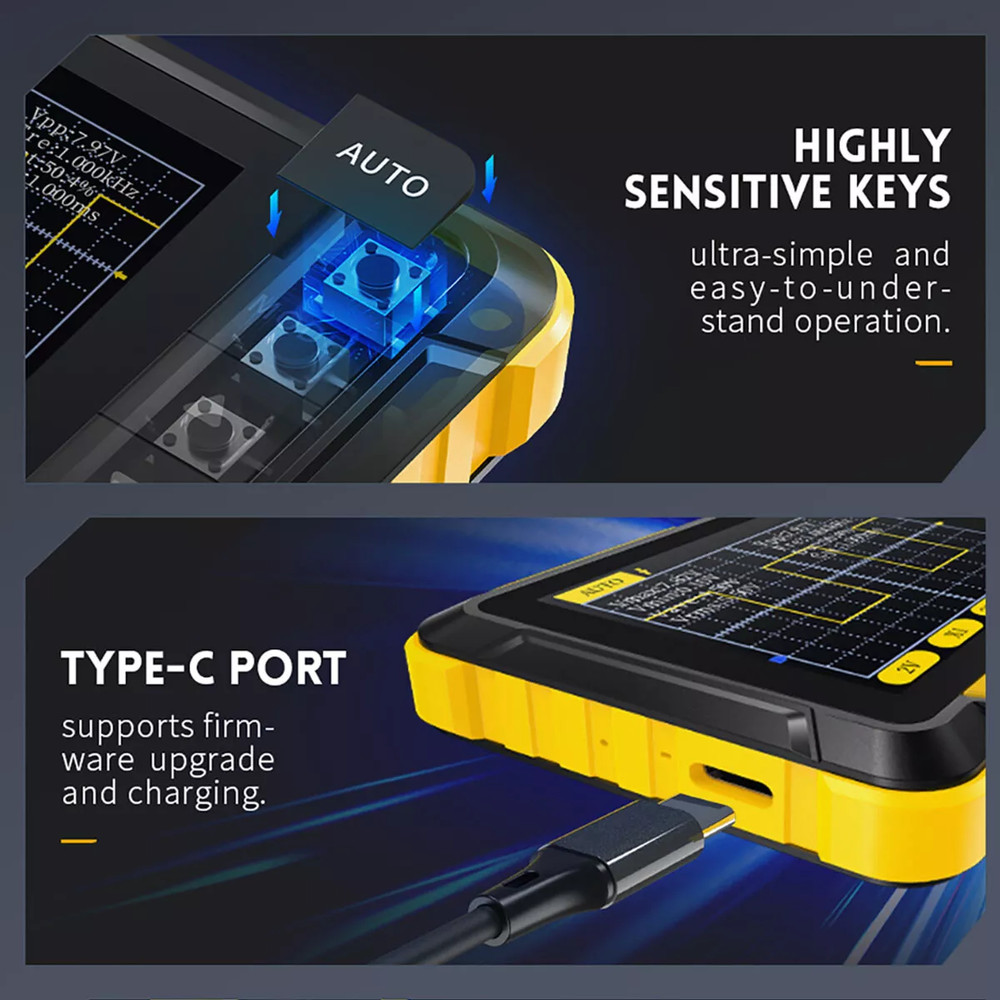

Check the listing for details. FNIRSI DSO152 Handheld Mini Oscilloscope Type-C Portable Digital Oscilloscope. Condition: New. Listed at 40.00 USD. 5、Wide range of application: suitable for a variety of occasions, lightweight and space-saving, can work, maintenance and DIY tools. USB charging: 5V/1A. Li-ion battery capacity: 1000mAh. Coupling mode: AC/DC.
