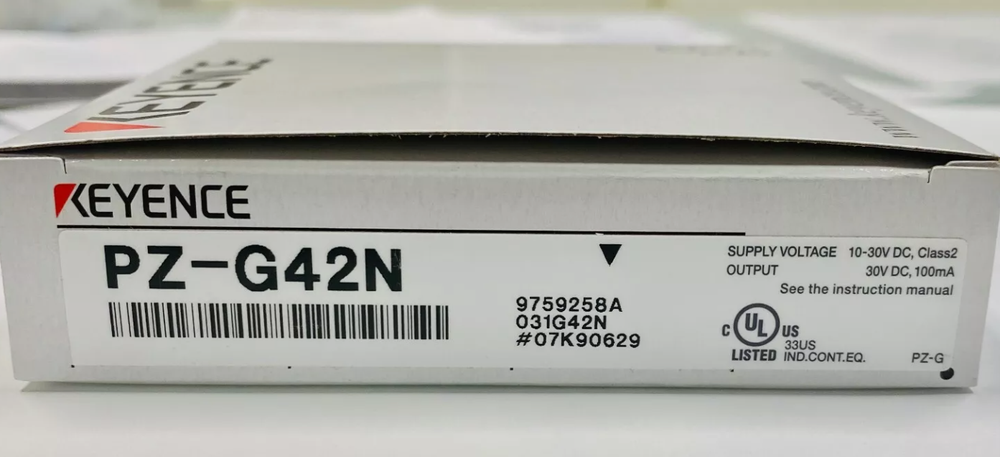

Check the listing for details. For KEYENCE PZ-G42N Photoelectric Sensor Switch. Condition: New. Listed at 23.41 USD. Store Categories Store Categories PLC Sensors Cooling Fans Power Supplies IC & DIY Industrial & Electrical Other Hot Items Hot Items SICK Photoelectric Switch GSE6-P1112 GSE6-P1111 $50 Free Shipping Sick 1003865 PL80A Reflector NewKd $19.17 Free Shipping Sick LL3-DB01 Photoelectric Sensor New✦Kd $23.32 Free Shipping SICK WL250-2P2431 Photoelectric Retro-reflective Sensor ,PNP,New✦Kd $92.12 Free Shipping Sick WL170-P420 Sensor New✦Kd $63.23 Free Shipping --> --> Product Description Specifications Model PZ-G42N Type Diffuse Reflective Short-range Shape Rectangular Output NPN Cable connection Cable (2 m 78.74") *1 Detecting distance 300 mm 11.81" (When detecting 10 x 10 cm 3.94" x 3.94" white paper) Spot diameter ― Light source Red LED Sensitivity adjustment 1-turn trimmer (230°) Response time 500 μs Operation mode LIGHT-ON/DARK-ON (switch-selectable) Indicators (LED) Output: Orange LED, Stable operation: Green LED Control output Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. Protection circuit Reversed polarity, overcurrent protection, surge absorber Interference suppression Up to 2 units (with the automatic different frequency function) Tightening torque Rectangular models (Mounting hole part): 0.5 N m max. Rating Power voltage 10 to 30 VDC, including Ripple (P-P) 10 % Current consumption 34 mA or less Environmental resistance Enclosure rating IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K Ambient light Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. Ambient temperature -20 to +55 °C -4 to 131 °F (No freezing) Relative humidity 35 to 85 % RH (No condensation) Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions Shock resistance 1,000 m/s2, 6 times in each of the X, Y, and Z directions Material Housing, M18 nut (threaded models only) Glass-fiber reinforced PBT Lens cover Polyarylate (PAR) Trimmer Glass-fiber reinforced polyamide (PA) Case connection Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR) Cable (cable models only) Polyvinyl chloride (PVC) Connector (connector type with cable only) ― Accessories Instruction manual Weight Rectangular cable models: Approx. 60 g (Thrubeam-models transmitter: Approx. 50 g) *1 Cable sold separately for connector models Payment Policy Shipping Policy Returns Policy About us Payment Policy Shipping Policy Returns Policy About us You may like --> --> --> --> --> --> --> --> --> --> --> -->
