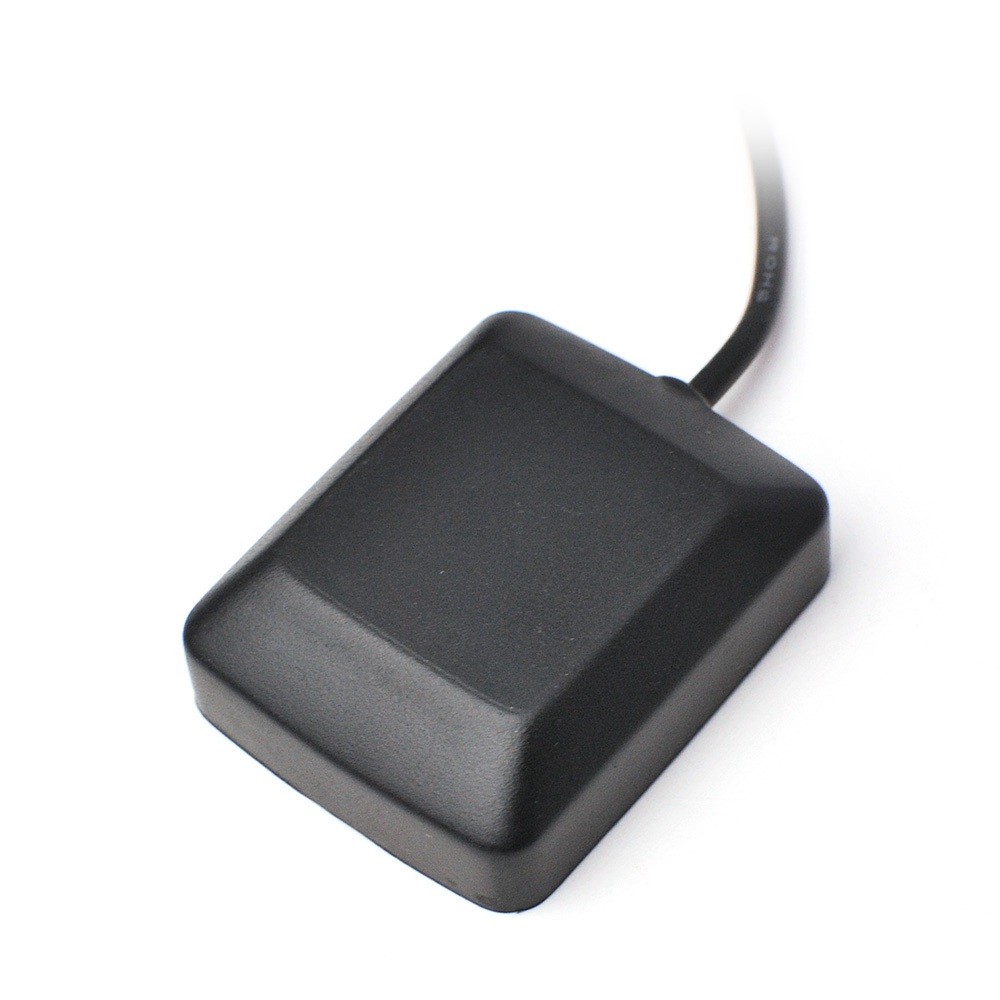

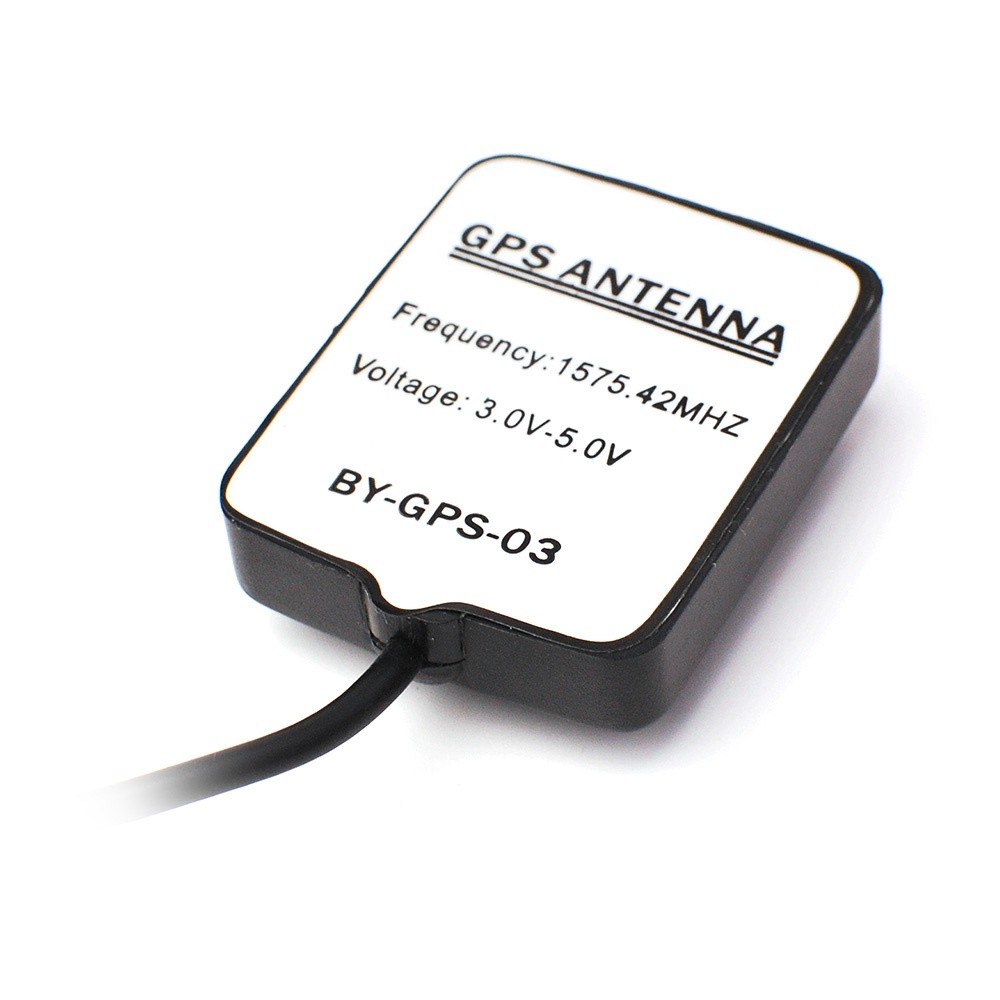

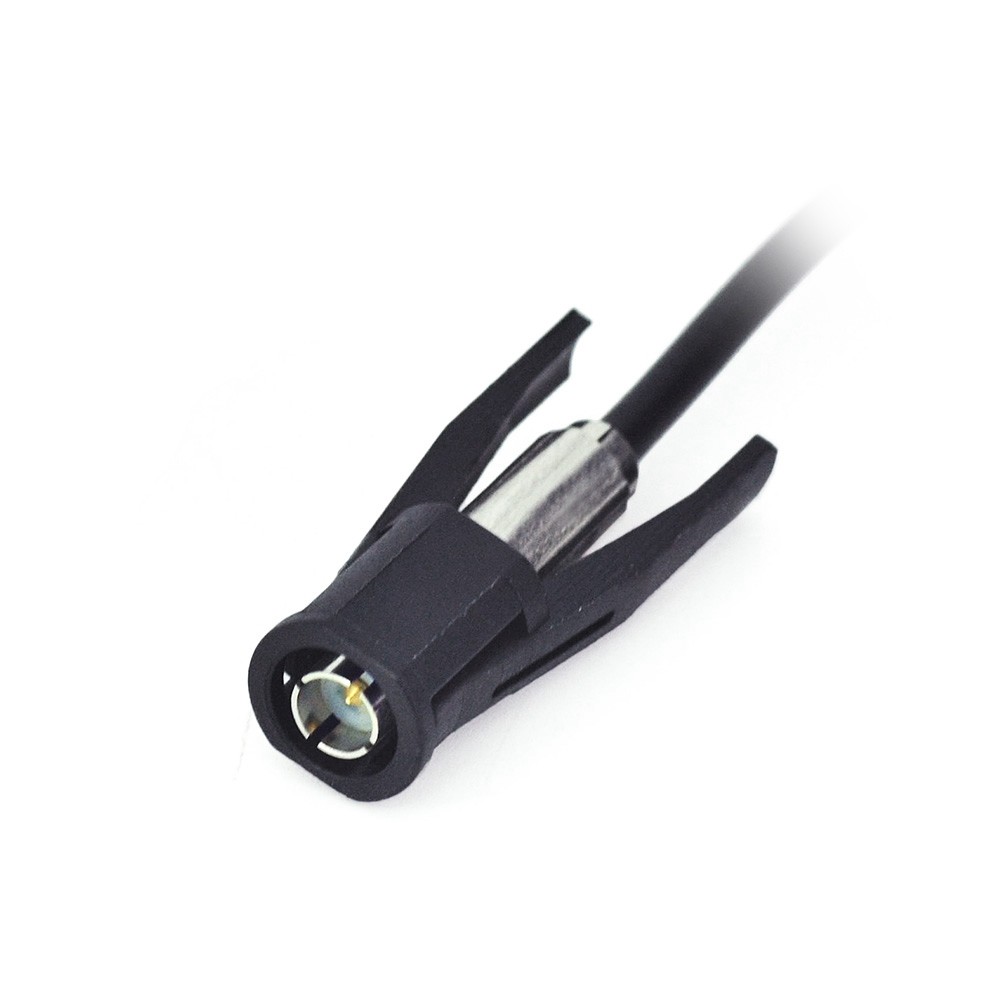

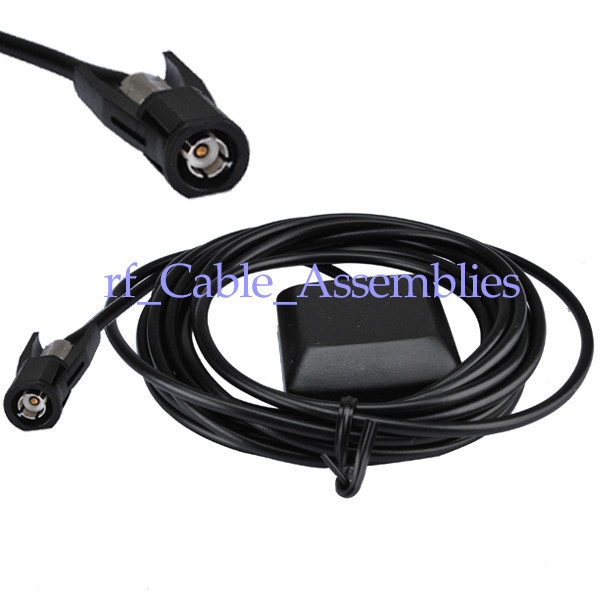

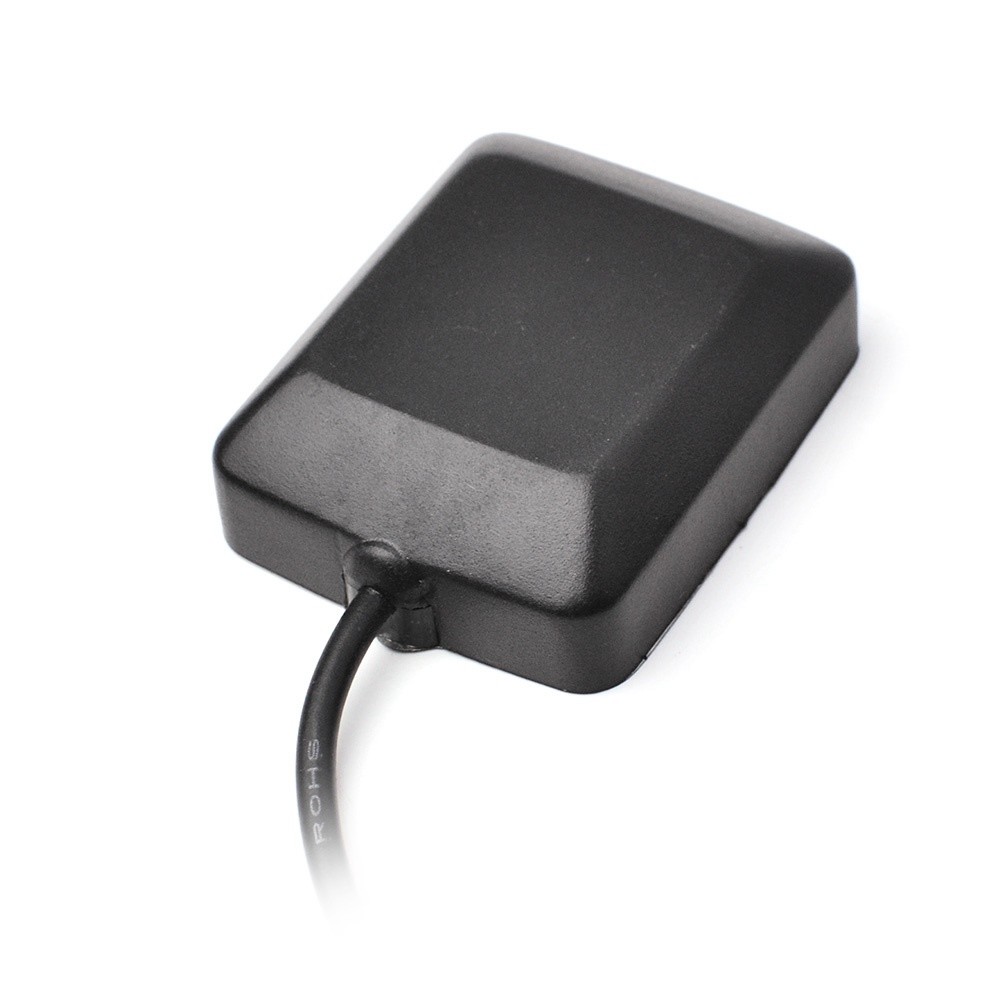

Check the listing for details. GPS Navigation antenna Command Alpine WICLIC plug for Becker Traffic Star/Becker. Condition: New. Listed at 14.50 USD. --> rfbat --> --> Store Home Best Deals Wholesale Transaction Terms About Us 3G Antenna GPS Antenna WiFi Antenna Fakra Connector RF Adapter RF Cable U.S. Warehouse Product Description Click here - add $3 for registered airmail Characteristic: （i） Dieletric Antenna Center Frequency 1575.42MHz±3 MHz V.S.W.R 1.5:1 Band Width ±5 MHz Impendence 50 ohm Peak Gain ＞3dBic Based on 7×7cm ground plane Gain Coverage ＞-4dBic at –90°＜0＜+90°(over 75% Volume) Polarization RHCP （ii） LNA/Filter LNA Gain (Without cable) 28+/-3dB Noise Figure 1.5dB Typ. Filter Out Band Attenuation (f° =1575.42MHz) 7dB Ｍin f0+/-20MHZ ; 20dB Ｍin f0+/-50MHZ; 30dB Ｍin f0+/-100MHZ V.S.W.R ＜2.0 DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other DC Current 5mA /11mA/15mA Max （iii）Mechanical Weight ＜100gram Cable :RG174 3 meter / Contact us for other length Connector :WICLIC male straight default/SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/WICLIC in straight or right angle please give us some notes if the antenna connector is chosen.Tks! Mounting Magnetic base Housing Black （iv）Environmental Working Temp -40℃~+85℃ Storage Temp. -45℃~+100℃ Vibration Sine sweep 1g(0-p)10~50~10Hz each axis Relative Humidity 95% non-condensing Weatherproof 100% Waterproof (V) FEATURES: Compact Construction/ Low Profile/ Fully Waterproof Magnet and Screw Mount Base Excellent Temperature Stability Low Noise Figure High Sensitivity (VI) APPLICATIONS: Automobile GPS Bluetooth Receiver Vehicles /Car Tracking Navigation System AVL / Fleet Management Systems External Antenna for Handheld GPS External Antenna for PDA Navigation GPS antenna with WICLIC compatibility: * Becker Traffic Pro 4720, 4723, 4724, 4725, 4730, 4733, 6549 * Becker Traffic High Speed 7820, 7822, 7823, 7824, 7825, 7830, 7833 * Becker Indianapolis 7920, 7922, 7925, 7923, 7935 * Becker DTM 7802, 7810, 7813 * Becker DTM High Speed * Becker Online Pro * Becker Traffic Star * Pioneer ANH-P9R, ANH-P-9R-BK, ANH-P 10MP * Mercedes APS30... and similar models with round connector * Sony MEX.100NV...and similar models with round connector * JVC KD-NX1, KD-NX1R, KD-NX1B, KDNX301....and similar models with round connector * APS 30 Mercedes-Benz Package included: 1pcs GPS Active Antenna WICLIC 3M with Excellent Signal Amplification for GPS receivers/systems and Mobile Applications We have other products, click RF Cable Assemblies RF Connector RF Coaxial Cable Crimp Tool Accessories Coaxial Attenuator Power Divide Antenna The GPS antenna connectors we could customize with : Welcome to visit other items in our Shop GPS Antenna GT5-1S for kenwood DNX7000EX DNX7100 NAVIGATION GPS SATELLITE ANTENNA MOTORCRAFT FORD LINCOLN MERCURY GPS Active Antenna With RF SMA Plug Connector For GPS Receivers/Systems 3m Cable Mini GPS Active Antenna MCX male right angle 3M for Garmin GA25MCX 60 60C GPS XM Satellite Radio Sirius Satellite Radio Fakra female "D" GPS Shark Antenna new Marine Fish Boat GPS Antenna 5M BNC GARMIN GPS128 GPS15 GPS-15H GPS-15L New 50ohm 1575.42MHz±3 MHz Center Frequency GPS Antenna TNC Plug Connector RF Connector RF Cable Assemblies RF Adapter Shipping Payment Returns Contoct us On Jul-08-21 at 01:54:25 PDT, seller added the following information:
