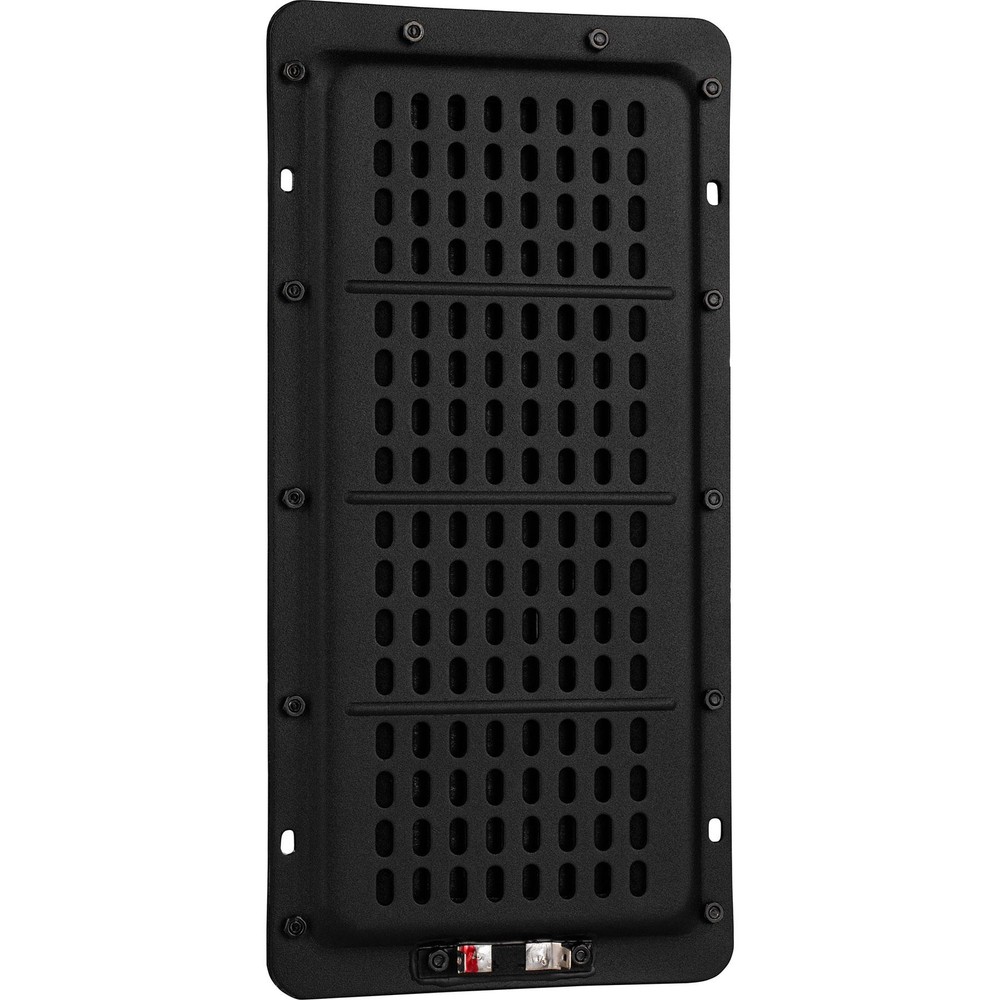

Check the listing for details. GRS PT5010-8 10" Planar Mid/Tweeter 8 Ohm. Condition: New. Listed at 149.98 USD. GRS PT5010-8 10" Planar Mid/Tweeter 8 OhmDesigned to deliver high efficiency with extremely smooth response. With the ability to provide low distortion output from 200-8,000 Hz, the GRS PT5010-8 open back midrange/tweeter is an excellent choice for use in 2-way designs or even as a drop in replacement for many existing systems.Key Specs: Tweeter Type: Planar MagneticPower Handling (RMS): 70 WattsPower Handling (MAX): 140 WattsImpedance: 8Ω Frequency Response: 200 - 8,000 HzSensitivity: 94dB 2.83V/1mDiaphragm Material: Polyethylene Naphthalate Full SpecificationsManualFrequency Response & Impedance Thanks to a lightweight damped Polyethylene Naphthalate film diaphragm driven by 56 powerful neodymium magnets in a push-pull arrangement, this driver is capable of incredible transient response and detail. With a nearly linear 6.8 ohm impedance keeps crossover design simple with predictable final results. In addition, the open back design gives this midrange/tweeter true dipole radiation making it the perfect choice for use in high end open baffle speaker designs.Optional Faceplate Available Add the final touches to any build that uses the PT5010-8 with the optional faceplate! When the tweeter is attached to the faceplate, the resulting shape is easier to flush mount into your speaker baffle, creating a clean aesthetic and reducing diffraction.Buy Now!Shop all GRS Planar Tweeters and Faceplates GRS Planar Tweeters provide great transients, and frequency response at the fantastic value you expect from GRS GRS PT2522-4Nominal Impedance: 4ohm Frequency Response: 1800-20kHz Buy NowGRS PT6825-8Nominal Impedance: 8ohm Frequency Response: 250-20kHz Buy NowGRS PT6816-8Nominal Impedance: 8ohm Frequency Response: 320-20kHz Buy NowGRS PT5010-8Nominal Impedance: 8ohm Frequency Response: 200-8kHz Buy Now  GRS PT2522-FP Face Plate for PT2522-4 and PT2522C-4Buy NowGRS PT6825-FP Face Plate for PT6825-8 Planar TweeterBuy NowGRS PT6816-FP Face Plate for PT6816-8 Planar TweeterBuy NowGRS PT5010-FP Face Plate for PT5010-8 Planar TweeterBuy Now Shop All GRS Planar Tweeters and Faceplates  Learn MoreRequest QuoteÂ
