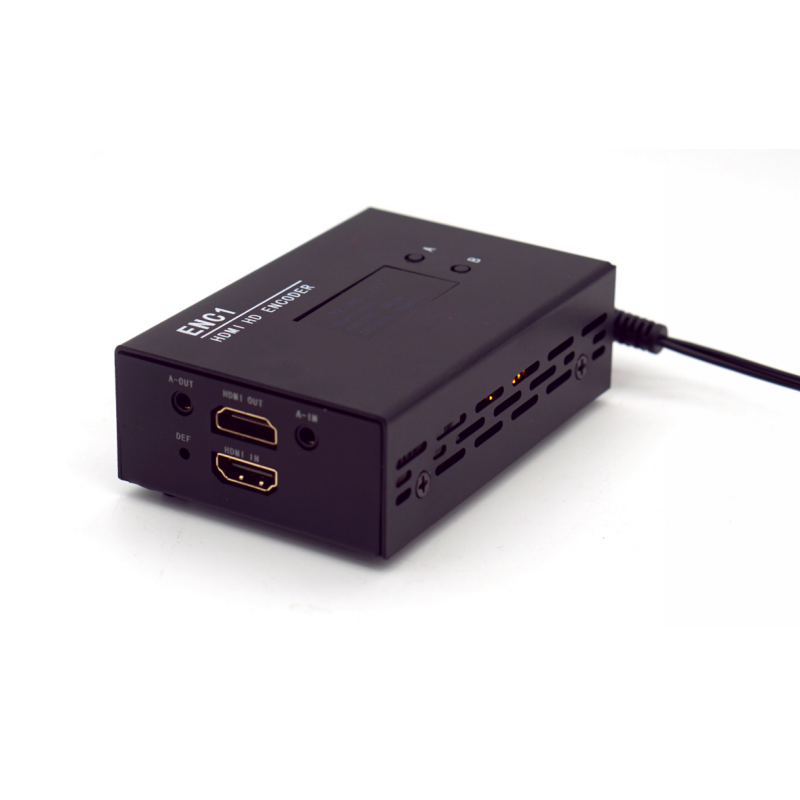

Check the listing for details. H.265/H.264 video encoder and decoder HDMI to IP & IP to HDMI & USB Camera to IP. Condition: New. Listed at 136.00 USD. H.265/H.264 video encoder and decoder HDMI to IP & IP to HDMI & USB Camera to IP Features: 1) HDMI to IP video encoderCEL-BI503 high-definition encoder supports 1080P@60fps input, which is mainly used for embedded hardware devices for high-definition video and audio signal encoding and network transmission. CEL-BI503 has built-in self-developed full frame rate de-interlacing technology (such as 1080i @ 60 input, 1080p @ 60 after de-interlacing, not 1080P @ 30, which is especially important for football live and game live).CEL-BI503 supports video encoding format H.264 And H.265, the supported audio encoding formats are AAC, MP3, PCMA, etc. CEL-BI503 supports HTTP, HLS, RTSP, RTMP push streaming, RTMP pull streaming, UDP, Multicast and other network protocols, and all network streams can be enabled at the same time on the same channel. 2) IP to HDMI video decoderCEL-BI503 supports foreign network streaming and local video and audio files (such as U disk) for transcoding and streaming. 3) USB camera to IP video encoderCEL-BI503 supports USB UVC cameras. In the future, external USB UVC cameras can be added for encoding, storage and live broadcasting. 4) Video MIX funcitonCEL-BI503 supports multi-input source splicing output (such as 9-square grid, 2 + 1 picture, picture-in-picture, etc.). The main parameters of the processor are as follows: CEL-BI503 uses Huawei's HiSilicon chip: Hi3520DV400 Processor core ARM Cortex A9 dual-core@1.4GHz32KB L1 I-Cache, 32KB L1 D-Cache256KB L2 CacheSupport NEON / FPU Multi-protocol video codecH.265 Main Profile, Level 5.0 encodingH.265 Main Profile, Level 5.1 decodingH.264 Baseline / Main / High Profile, Level 5.1 encodingH.264 Baseline / Main / High Profile, Level 5.2 decodingMPEG-4 SP, L0 ~ L3 / ASP L0 ~ L5 decodingMJPEG / JPEG Baseline codec Video codec processingH.265 / H.264 & JPEG multi-stream codec performance:8x1080p @ 30fps H.265 / H.264 encoding + 8xD1 @ 30fps H.265 / H.264 encoding +8x1080p @ 30fps H.265 / H.264 decoding + 8x1080p @ 2fps JPEG encoding16x720p @ 30fps H.265 / H.264 encoding + 16xD1 @ 30fps H.265 / H.264 encoding +16x720p @ 30fps H.265 / H.264 decoding + 16x720p @ 2fps JPEG encoding32x960H @ 30fps H.265 / H.264 encoding + 32xCIF @ 30fps H.265 / H.264 encoding +16x960H @ 30fps H.265 / H.264 decoding + 32x960H @ 2fps JPEG encodingSupport CBR / VBR / AVBR / FIXQP / QPMAP five rate control modesThe output code rate is up to 40Mbps Input interfaceHDMIHDMI 1.4, up to 1080P @ 60, HDCP1.4Supported resolutions: 1080p @ 60, 1080p @ 50, 1080i @ 60, 1080i @ 50, 720p @ 60, 720p @ 50, 640P @ 60, 480P @ 60, etc.USBUSB 3.0Audio IN NetworkLANRJ45，100/1000 adaptiveOutput interfaceHDMI+Audio OutMax1920x1080 @60Audio codingSampling Rate16k, 32k, 44.1k, 48kBit rateRecommended 64k ~ 256k bpsEncoding formatAAC, PCMA, MP3, MP2Video codingRate controlCBR, VBRBit rate range16kbps~40Mbps，1080P H264 recommend 4M，4K recommend 8M，H265 reduce 25~40%。Encoding formatH.264，H.265Network protocolNetwork protocolHTTP, HLS, RTSP, RTMP，RTMP，UDP，Multicast General characteristicsSize220mm x 116mmworking environment0~45°CPowerDC12V2A，less than 25W Interface: Web Control Interface HDMI to IP configurationIP to HDMI configuration USB camera to IP configuration Stream Configuration Video MIX confiuration Status System Configuration
