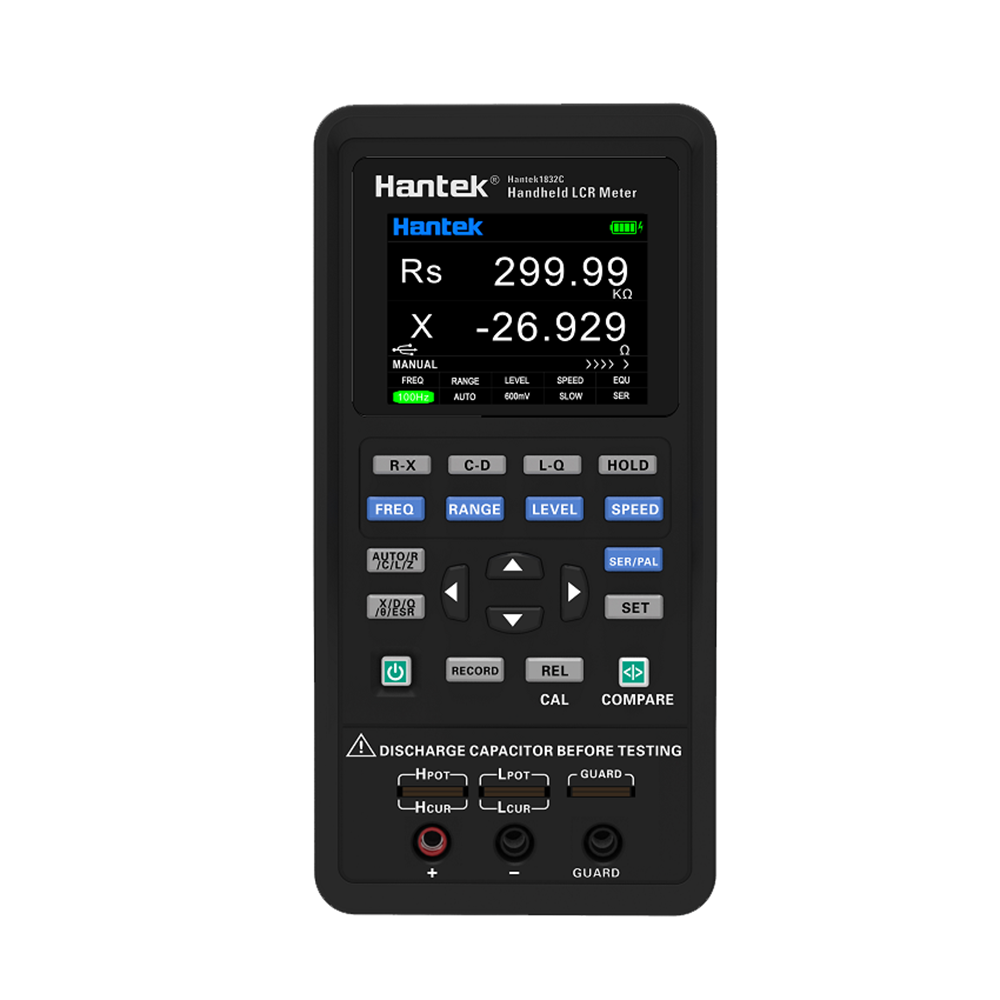

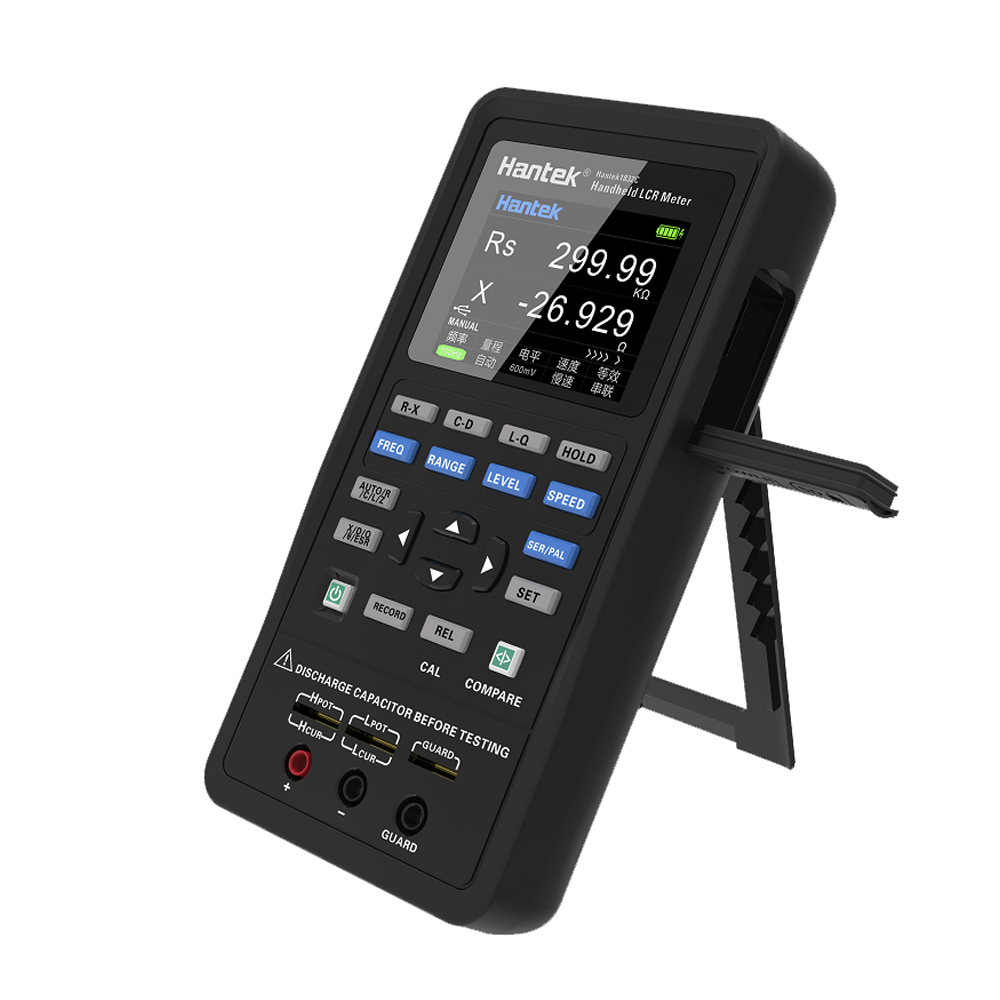

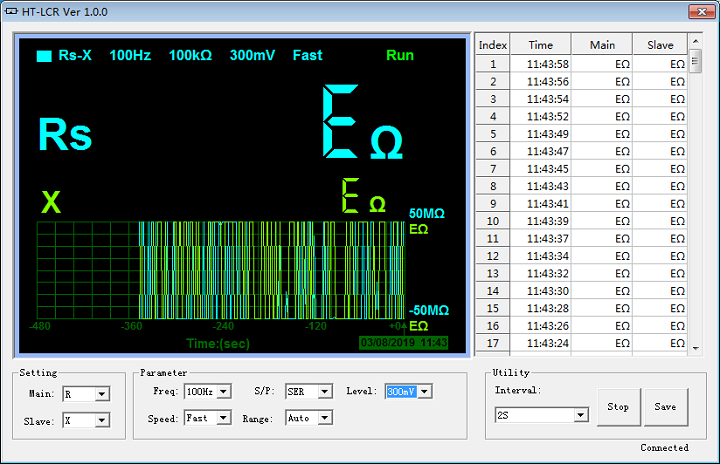

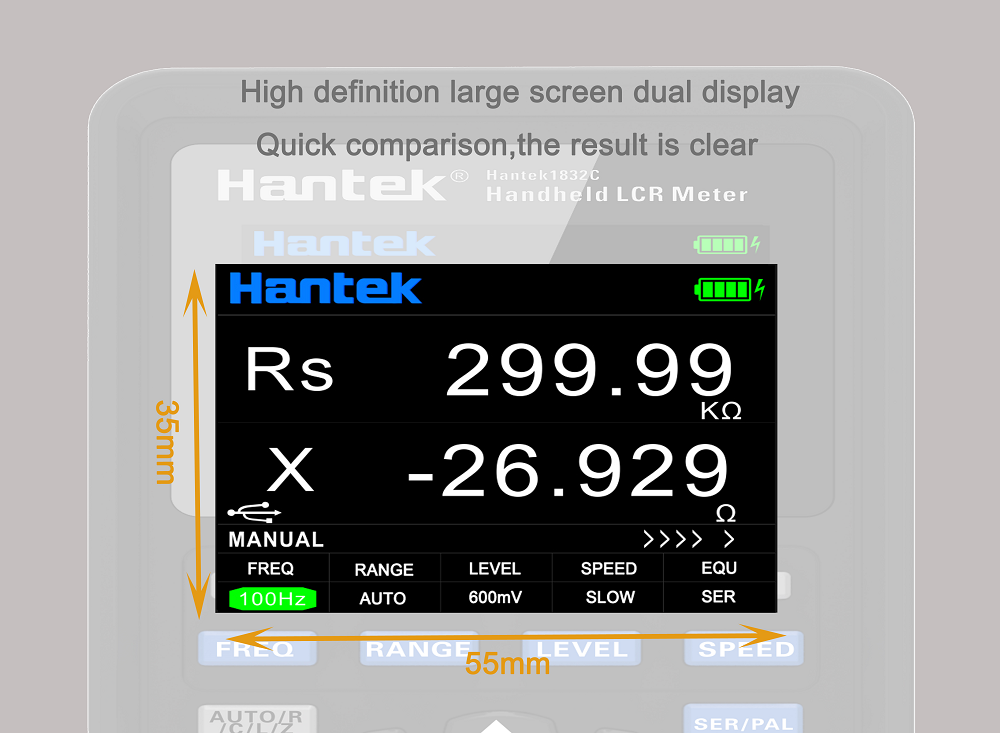

Check the listing for details. Handeld LCR Meter Measuring Instrument 40kHz 0.6Vrms Data Record Analysis. Condition: New. Listed at 179.06 USD. Handeld LCR Meter Measuring Instrument 40kHz 0.6Vrms Data Record Analysis handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component such as inductance, capacitance, resistance and so on.small volume, powered by 5V lithium battery, it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement. handheld LCR Meter is a portable handheld measuring instrument to measure the parameters of the component such as inductance, capacitance, resistance and so on. small volume, powered by 5V lithium battery, it can meet the requirements of desktop LCR application, and can also be applied to flow measurement and handheld measurement. 1.100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz 10 typical test frequency (Hantek1832C) 7 typical test frequency 2.8 inch TFT LCD, Switch between Chinese and English 3.HD display, dual display of measurement data, the result is clear 4.Support data record analysis 5.Support PC upper computer, easy to control and measure remotely 6.Test lead: 3 terminal/5 terminal switch 7.Measuring speed: high speed/intermediate speed/low speed switch 8.Range: support manual/auto switch, easy to do quick measurement 9.LCR adopted rechargeable design, Large capacity lithium battery, super standby 10.Double shock protection sleeve, all-round protection, shakeproof, fall-arrest, protect 11.the machine from damage, longer use time, more comfortable measurement 12.Bracket design, easy to put and measure Specification： Model Hantek1832C Hantek1833C Test frequency 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz 100Hz, 120Hz, 400Hz, 1kHz, 4kHz, 10kHz, 40kHz, 50kHz, 75kHz, 100kHz Accuracy 0.30% Equivalent Circuit series, parallel Test level 0.6Vrms 0.6Vrms, 0.3Vrms Measurement way manual, auto Display screen 2.8 inch TFT LCD Measurement parameters principle parameter: L/C/R/Z deputy parameter: X/D/Q/θ/ESR Principle parameter L/C/R/Z Deputy parameter X/D/Q/θ/ESR Inductance Measurement range (L) 0-2000H Capacitance Measurement range (C) 0-20mF Resistance Measurement range (R) 0-20MΩ Measurement speed high speed(4 times/s), intermediate speed(twice/s), low speed(once/s) Reset function open circuit calibration, short-circuit calibration Test terminal configuration 3 termianl, 5 terminal General feature standard with 1.Type-C data cable; 2.power adapte; 3.short circuit card; 4.red and black rubber plug; 5.large capacity lithium battery Capacitance C and dissipationD 100Hz/120Hz Range Display range Accuracy Ce Accuracy De Recommended equivalent mode 20mF 4.000mF~20.000mF 8.00%+5 digits 0.08 series 4mF 400.0μF~3.9999mF 2.00%+3 digits 0.02 series 400μF 40.00μF~399.99μF 0.60%+2 digits 0.006 series 40μF 4.000μF~39.999μF 0.40%+2 digits 0.004 series 4μF 400.0nF~3.9999μF 0.40%+2 digits 0.004 ---- 400nF 40.00nF~399.99nF 0.4%+2 digits 0.004 parallel 40nF 4.000nF~39.999nF 0.5%+3 digits 0.005 parallel 4nF 0pF~3.999nF 1.5%+5 digits ------ parallel 1KHz Range Display range Accuracy Ce Accuracy De Recommended equivalent mode 1000uF 400.0uF~999.9uF 3.00%+5 digits 0.03 series 400μF 40.00μF~399.99μF 1.50%+3 digits 0.015 series 40μF 4.000μF~39.999μF 0.60%+2 digits 0.006 series 4μF 400.0nF~3.9999μF 0.40%+2 digits 0.004 ---- 400nF 40.00nF~399.99nF 0.4%+2 digits 0.004 parallel 40nF 4.000nF~39.999nF 0.6%+3 digits 0.006 parallel 4nF 400.0pF~3.9999nF 0.6%+3 digits 0.006 parallel 400pF 0.0pF~399.9pF 3%+5 digits ------ parallel 10KHz Range Display range Accuracy Ce Accuracy De Recommended equivalent mode 100μF 40.00μF~100.00μF 4.00%+5 digits 0.04 series 40μF 4.000μF~39.999μF 2.0%+3 digits 0.02 series 4μF 400.0nF~3.9999μF 0.60%+2 digits 0.006 series 400nF 40.00nF~399.99nF 0.4%+2 digits 0.004 series 40nF 4.000nF~39.999nF 0.4%+2 digits 0.004 ------ 4nF 400.0pF~3.9999nF 0.4%+2 digits 0.004 parallel 400pF 40.00pF~399.99pF 0.6%+3 digits 0.006 parallel 40pF 0.00pF~39.99pF 2.5%+5 digits ------ parallel 40KHz Range Display range Accuracy Ce Accuracy De Recommended equivalent mode 100μF 40.00μF~100.00μF 6.00%+5 digits 0.06 series 40μF 4.000μF~39.999μF 4.0%+3 digits 0.04 series 4μF 400.0nF~3.9999μF 1.0%+2 digits 0.01 series 400nF 40.00nF~399.99nF 0.6%+2 digits 0.006 series 40nF 4.000nF~39.999nF 0.6%+2 digits 0.006 ------ 4nF 400.0pF~3.9999nF 0.6%+2 digits 0.006 parallel 400pF 40.00pF~399.99pF 1%+3 digits 0.01 parallel 40pF 0.000pF~39.999pF 3%+5 digits ------ parallel 100KHz Range Display range Accuracy Ce Accuracy De Recommended equivalent mode 10μF 4.000μF~10.000μF 8.0%+20 digits 0.08 series 4μF 400.0nF~3.9999μF 5.0%+10 digits 0.05 series 400nF 40.00nF~399.99nF 1.5%+5 digits 0.015 series 40nF 4.000nF~39.999nF 1%+2 digits 0.01 series 4nF 400.0pF~3.999nF 1%+2 digits 0.01 ------ 400pF 40.00pF~399.99pF 1.5%+2 digits 0.015 parallel 40pF 4.000pF~39.999pF 2%+5 digits 0.02 parallel 4pF 0.000pF~3.999pF 5%+10 digits ------ parallel Inductance L and quality factor 100Hz/120Hz Range Display range Accuracy Le Accuracy De* Recommended equivalent mode 1000H 400.0H~999.9H 2.00%+3 digits 0.02 parallel 400H 40.000H~399.99H 0.60%+2 digits 0.006 parallel 40H 4.000H~39.999H 0.40%+2 digits 0.004 parallel 4H 400.0mH~3.9999H 0.40%+2 digits 0.004 ---- 400mH 40.00mH~399.99mH 0.4%+2 digits 0.004 series 40mH 4.000mH~39.999mH 0.6%+3 digits 0.006 series 4mH 0uH~3.999mH 3.0%+5 digits ------ series 1kHz Range Display range Accuracy Le Accuracy De* Recommended equivalent mode 1H 400.0mH~999.9mH 1.50%+3 digits 0.015 parallel 400mH 40.00mH~399.99mH 0.4%+2 digits 0.004 parallel 40mH 4.000mH~39.999mH 0.4%+2 digits 0.004 ------ 4mH 400.0uH~3.9999mH 0.4%+2 digits 0.004 series 400uH 40.00uH~399.99uH 0.8%+3 digits 0.008 series 40uH 0.00uH~39.99uH 3.0%+5 digits ------ series 10kHz Range Display range Accuracy Le Accuracy De* Recommended equivalent mode 100H 40.00H~100.00H 2.0%+3 digits 0.02 parallel 40H 4.000H~39.999H 0.60%+2 digits 0.006 parallel 4H 400.0mH~3.9999H 0.40%+2 digits 0.004 parallel 400mH 40.00mH~399.99mH 0.4%+2 digits 0.004 ------ 40mH 4.000mH~39.999mH 0.4%+2 digits 0.004 series 4mH 400.0uH~3.9999mH 1%+3 digits 0.01 series 400uH 0.0uH~399.9uH 3.0%+5 digits ------ series 40kHz Range Display range Accuracy Le Accuracy De* Recommended equivalent mode 1H 400.0mH~999.9mH 2.0%+4 digits 0.02 parallel 400mH 40.00mH~399.99mH 0.8%+2 digits 0.008 parallel 40mH 4.000mH~39.999mH 0.8%+2 digits 0.008 ------ 4mH 400.0uH~3.9999mH 0.8%+2 digits 0.008 series 400uH 40.00uH~399.99uH 1.5%+3 digits 0.015 series 40uH 0.000uH~39.999uH 4.0%+5 digits ------ series 100kHz Range Display range Accuracy Le Accuracy De Recommended equivalent mode 100mH 40.00mH~399.99mH 2.5%+2 digits 0.025 parallel 40mH 4.000mH~39.999mH 1.5%+2 digits 0.015 parallel 4mH 400.0uH~3.9999mH 1.0%+2 digits 0.01 ------ 400uH 40.00uH~399.99uH 1.0%+2 digits 0.01 series 40uH 4.000uH~39.999uH 1.5%+5 digits 0.015 series 4uH 0.000uH~3.999uH 4%+10 digits ------ series Impedance Z and phase angle 100Hz, 120Hz, 1kHz, 10kHz Range Display range Accuracy Ze Accuracy Recommended equivalent mode 20MΩ 4.000MΩ~20.000MΩ 3.0%+10 digits 3.4° parallel 4MΩ 400.0kΩ~3.9999MΩ 1.2%+3 digits 0.7° parallel 400kΩ 40.00kΩ~399.99kΩ 0.3%+3 digits 0.2° parallel 40kΩ 4.000kΩ~39.999kΩ 0.25%+2 digits 0.1° ------ 4kΩ 400.0Ω~3.9999kΩ 0.25%+2 digits 0.1° series 400Ω 40.00Ω~399.99Ω 0.25%+2 digits 0.1° series 40Ω 4.000Ω~39.999Ω 0.5%+3 digits 0.3° series 4Ω 0.4000Ω~3.9999Ω 2.0%+3 digits 1.1° series 0.4Ω 0.0000Ω~0.3999Ω 4.0%+3 digits ------ series 40kHz Range Display range Accuracy Ze Accuracy Recommended equivalent mode 20MΩ 4.000MΩ~20.000MΩ 7.0%+41 digits 4.0° parallel 4MΩ 400.0kΩ~3.9999MΩ 2.5%+3 digits 1.4° parallel 400kΩ 40.00kΩ~399.99kΩ 1.0%+4 digits 0.6° parallel 40kΩ 4.000kΩ~39.999kΩ 1.0%+4 digits 0.6° ------ 4kΩ 400.0Ω~3.9999kΩ 0.5%+3 digits 0.3° series 400Ω 40.00Ω~399.99Ω 0.5%+3 digits 0.3° series 40Ω 4.000Ω~39.999Ω 0.7%+4 digits 0.4° series 4Ω 0.4000Ω~3.9999Ω 2.0%+6 digits 1.1° series 0.4Ω 0.0000Ω~0.3999Ω 5.0%+10 digits ------ series 100kHz Range Display range Accuracy Ze Accuracy Recommended equivalent mode 20MΩ 4.000MΩ~20.000MΩ 9.0%+20 digits 5.2° parallel 4MΩ 400.0kΩ~3.9999MΩ 4.0%+10 digits 2.3° parallel 400kΩ 40.00kΩ~399.99kΩ 1.5%+4 digits 0.9° parallel 40kΩ 4.000kΩ~39.999kΩ 1.0%+2 digits 0.6° parallel 4kΩ 400.0Ω~3.9999kΩ 0.7%+2 digits 0.4° ------ 400Ω 40.00Ω~399.99Ω 0.7%+2 digits 0.4° series 40Ω 4.000Ω~39.999Ω 1.0%+5 digits 0.6° series 4Ω 0.4000Ω~3.9999Ω 3.0%+10 digits 1.7° series 0.4Ω 0.0000Ω~0.3999Ω 7%+20 digits ------ series
