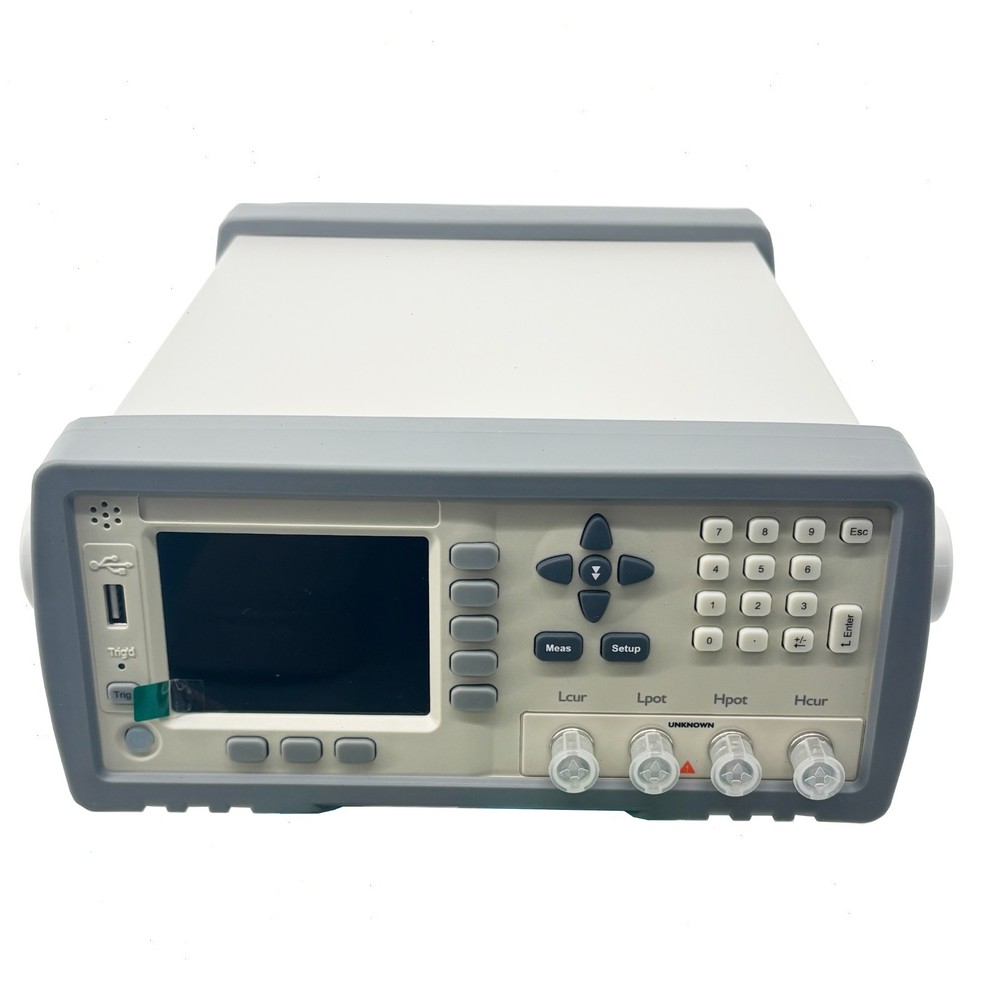

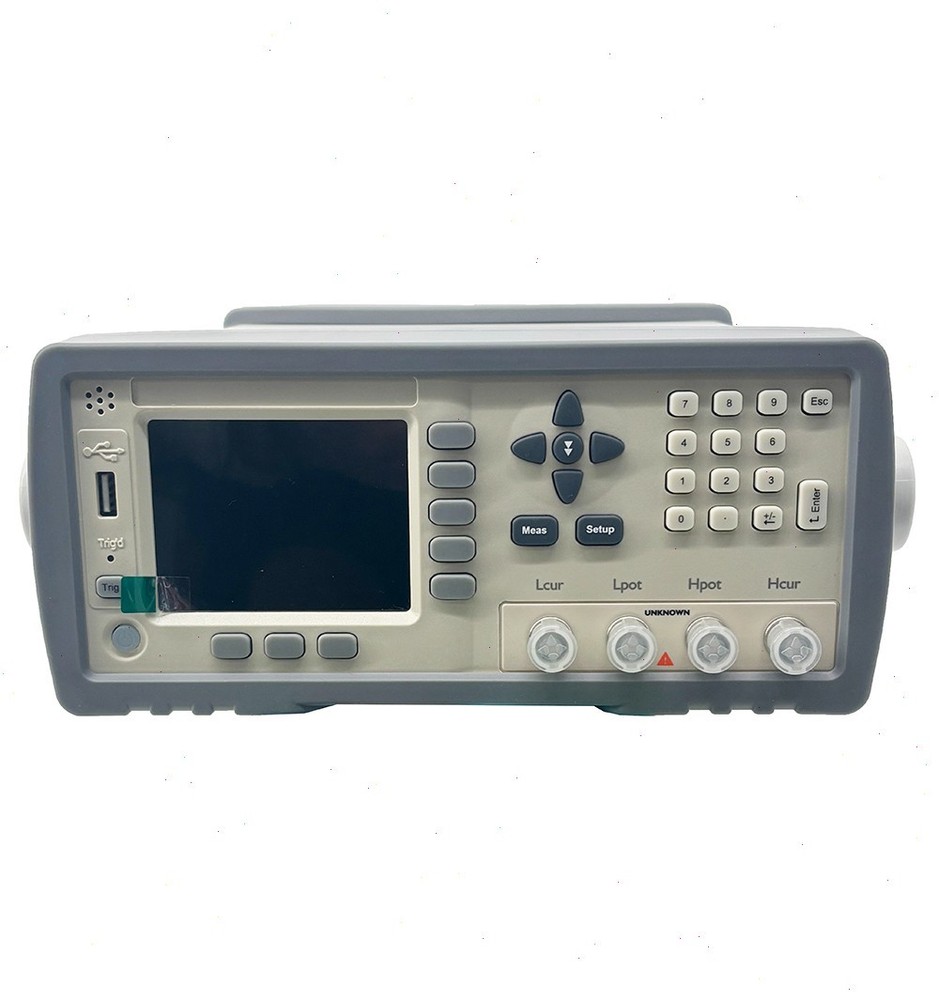

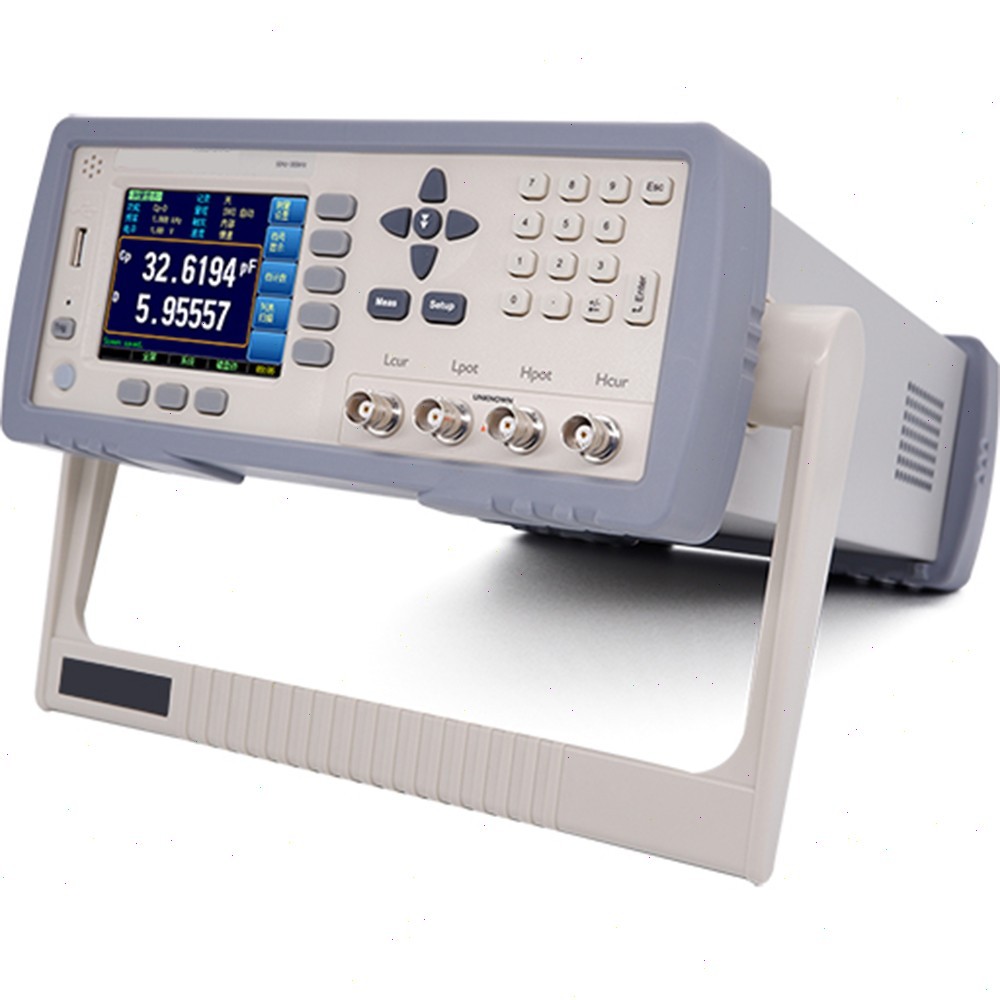

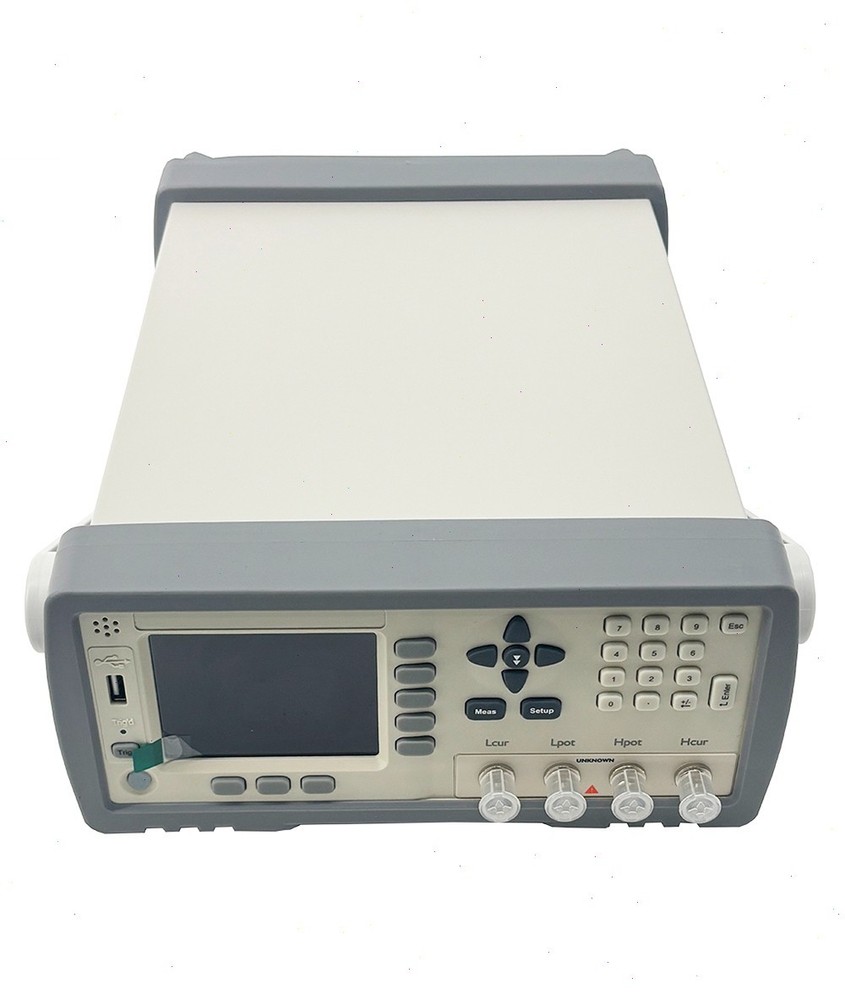

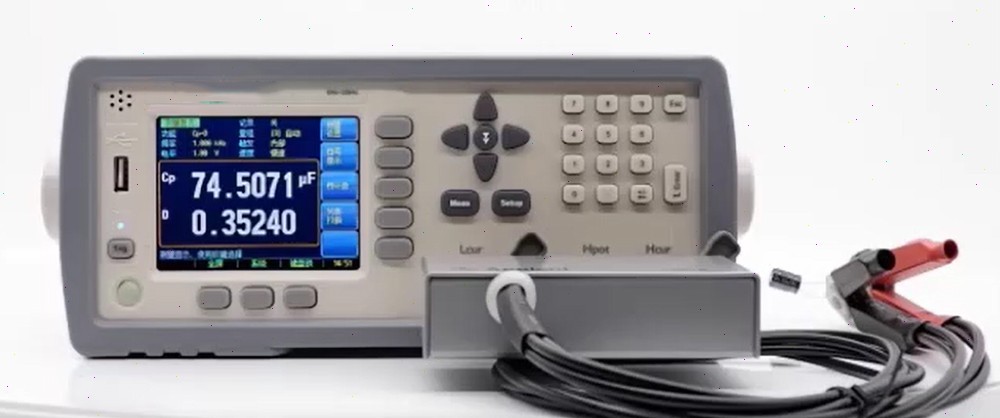

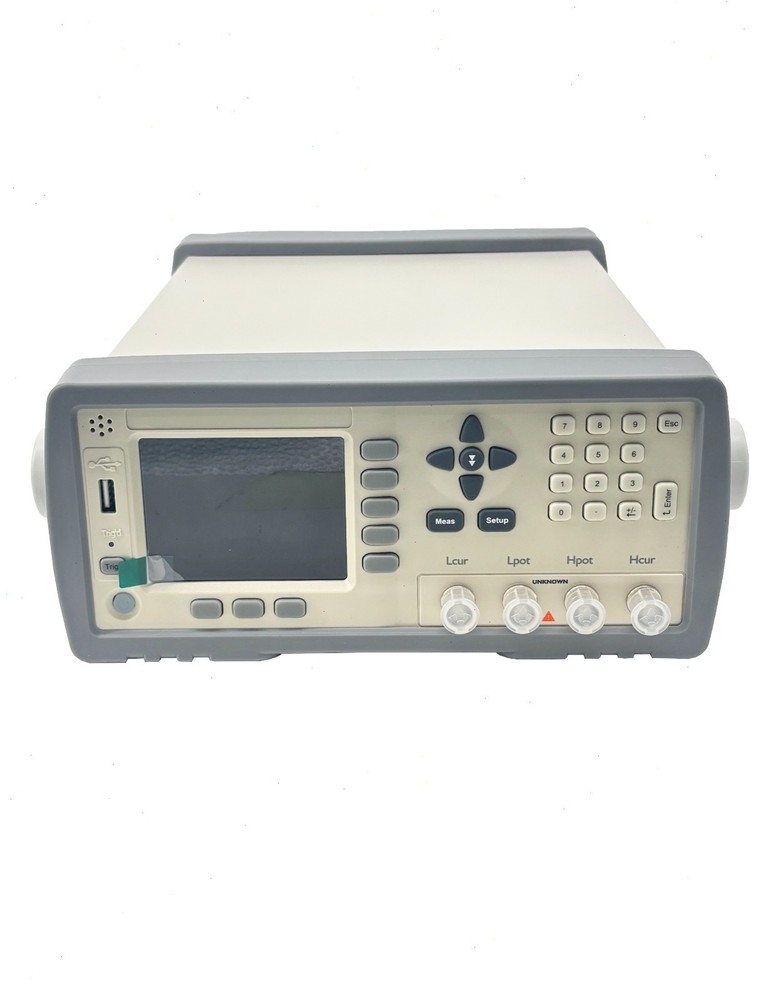

High Precision LCR Meter with Programmable P1~P9 Nine-segment Sorting Function

Name: High Precision LCR Meter with Programmable P1~P9 Nine-segment Sorting Function
SKU: 168099366650
Price: 1690.00 USD
Availability: InStock

$845.00

$1,690.00 -50%

Brand VTSYIQI

Condition New

Item ID 168099366650

Source Resistance	6 digits: 999999
Frequency Range	10Hz～200kHz (Resolution 0.001Hz）
Basic Accuracy	SLOW/MED: 0.05%; FAST: 0.1%
Measurement Functions	L, C, R, D, Q, Z
Product	LCR Meter
Signal Level	10.00mV~2.00V AC (ALC) 100.0μA~20.00mA AC (ALC)
MPN	Digital LCR Meter
Monitor Parameter	Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
Form Factor	Benchtop
Files	built-in 10 files and USB Disk 10 files
Measurement Range	AUTO/HOLD/NOMINAL 9 Ranges
DC BIAS	-2.5V~+2.5V (0.5%+0.005V)
Color	White
Dimension	264(W)x107(H)x350(L)
Data Logger	9999 Log Files (.csv)
Display Reader	6 digits: 999999
Weight	3kg
Equivalent Circuit	Serial and Parallel
Brand	VTSYIQI
Model	Digital LCR Meter
Measurement Speed	40 times/s, 10 times/s, 3 times/s
Trigger Delay	0.01ms~60s
Country of Origin	China
Display	True color TFT-LCD display
Resolution	NO
UPC	607608748879

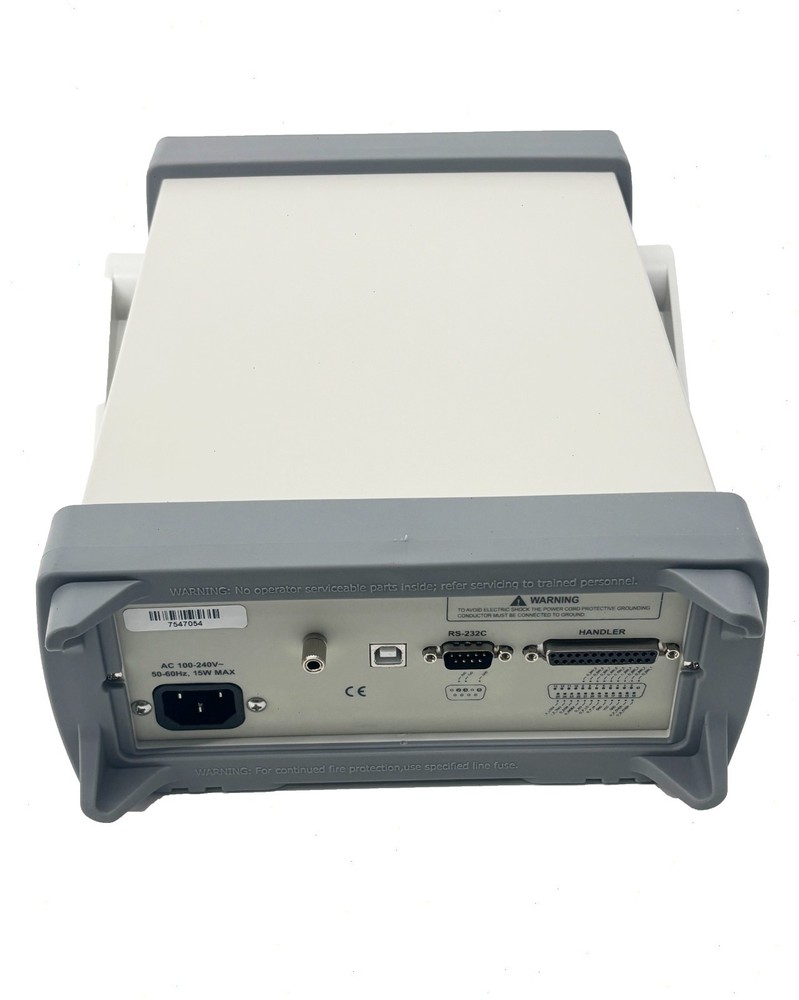

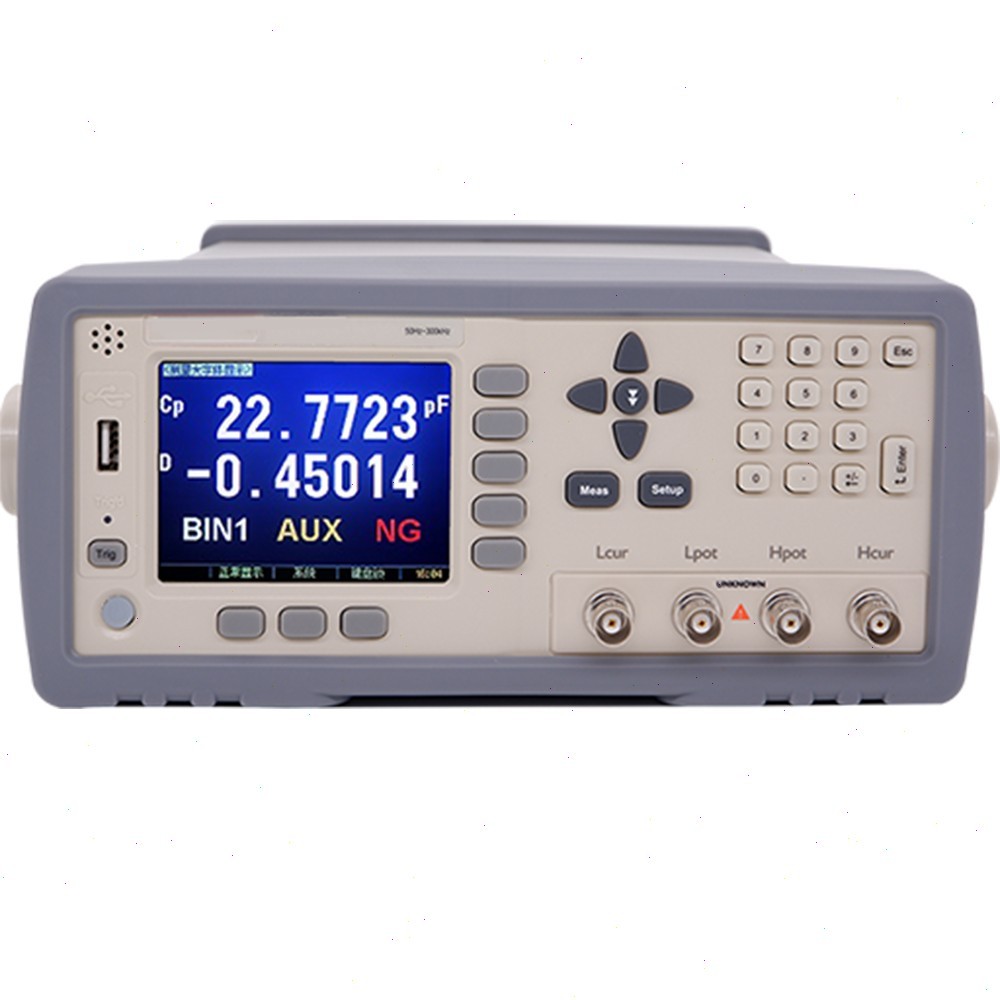

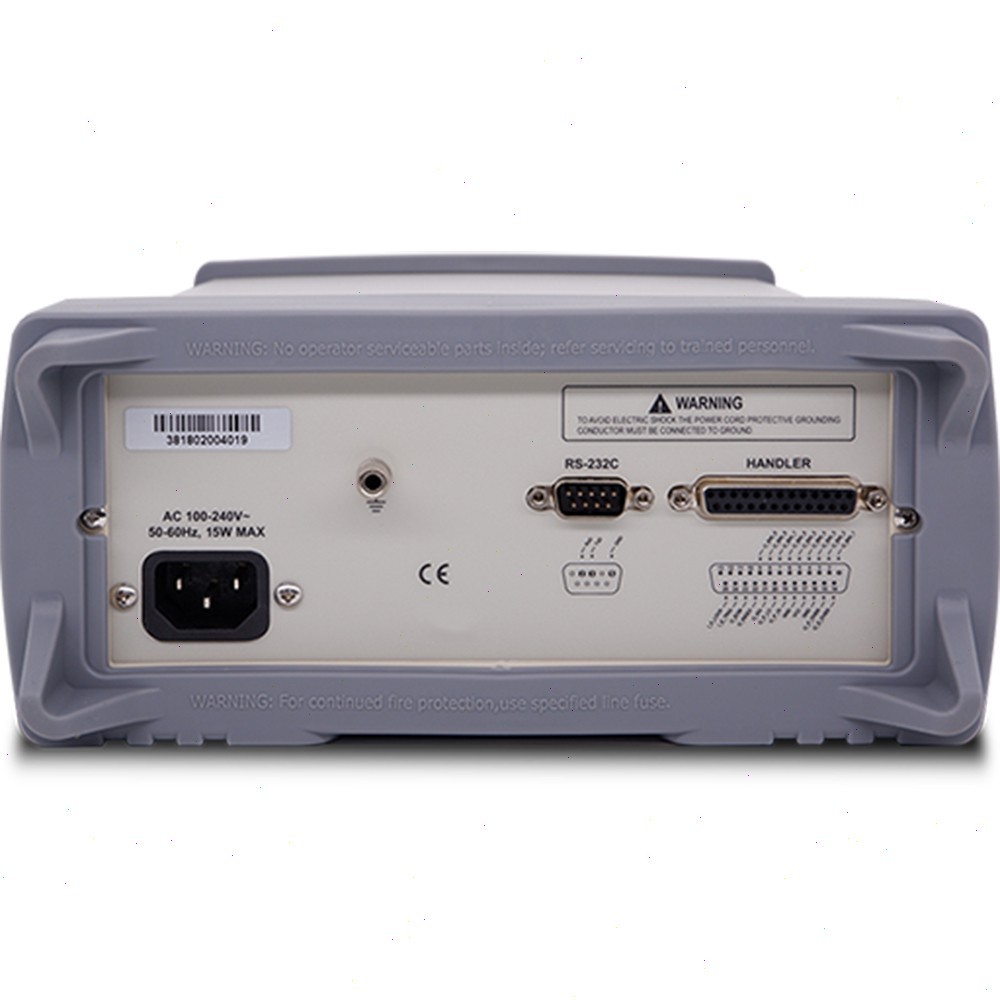

Check the listing for details. High Precision LCR Meter with Programmable P1~P9 Nine-segment Sorting Function. Color: White, Condition: New, Made in China. Listed at 1690.00 USD. Built-in comparator, through the HANDLER interface combined with PLC to complete the automatic sorting of components. Switchable accessory file (AUX) sorting. Custom sorting results are heard. Component sorting.
