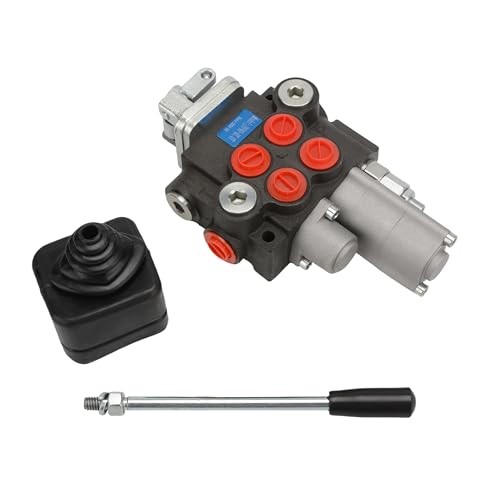

Hydraulic Control Valve with Joystick w/Float, 2 Spool 11GPM Hydraulic

Name: Hydraulic Control Valve with Joystick w/Float, 2 Spool 11GPM Hydraulic
SKU: 157672875505
Price: 223.96 USD
Availability: InStock

$111.98

$223.96 -50%

Condition New

Item ID 157672875505

Material	Steel
Item dimensions L x W x H	11 x 6.1 x 4.7 inches
Exterior Finish	Powder-coated
Inlet Connection Type	1A & B Ports: #8 SAE (3/4-16 UNF). 2P & T Ports: #10 SAE (7/8-14
Outlet Connection Type	SAE
Maximum Operating Pressure	3600 Pound per Square Inch
Number of Ports	6
Outlet Connection Size	0.81 Inches
Specification Met	ASME B16.34
Part Number	HCV-F
Item Weight	11.2 pounds
Product Dimensions	11 x 6.1 x 4.7 inches
Item model number	HCV-F
Size	6.1 x 11 x 4.7 inches
Color	Black
Included Components	Hydraulic Control Valve
Batteries Included	No
Batteries Required	No
Date First Available	April 29, 2022
Customer Reviews	3.0 out of 5 stars
Item Length	11
Item Height	4.7
Item Width	6.1

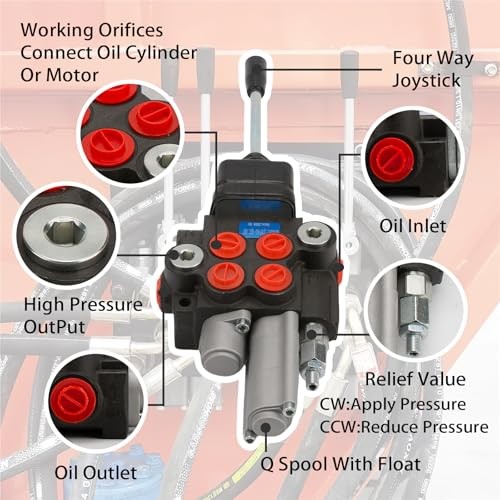

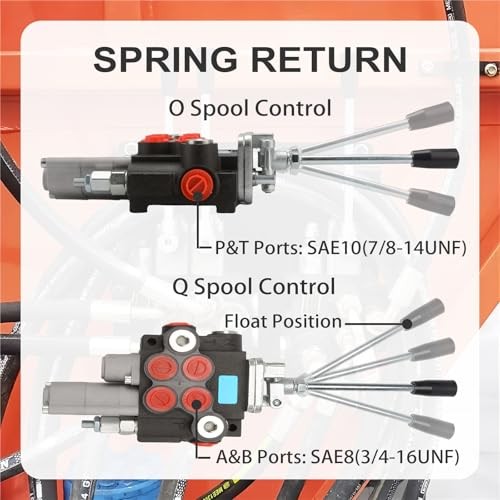

Check the listing for details. Hydraulic Control Valve with Joystick w/Float, 2 Spool 11GPM Hydraulic. Color: Black, Condition: New. Listed at 223.96 USD. [FUNCTION] Used to raise and lower the laoder, and dump and retract the bucket. The hydraulic lever supports automatic reset. [PROPERTIES] Supports double acting cylinders. P & T Ports feature 7/8-14 UNF (SAE #10), while the A & B Ports feature 3/4-16 UNF (SAE #8).
