| All returns accepted | ReturnsNotAccepted |
|---|---|
| Brand | Ikegami |
| Type | Cameras |
| Camera Type | Box/Body |
| Color Mode | Color |
| Model | IKEGAMI ICD-505 |
| Connectivity | Wired Closed System (CCTV) |

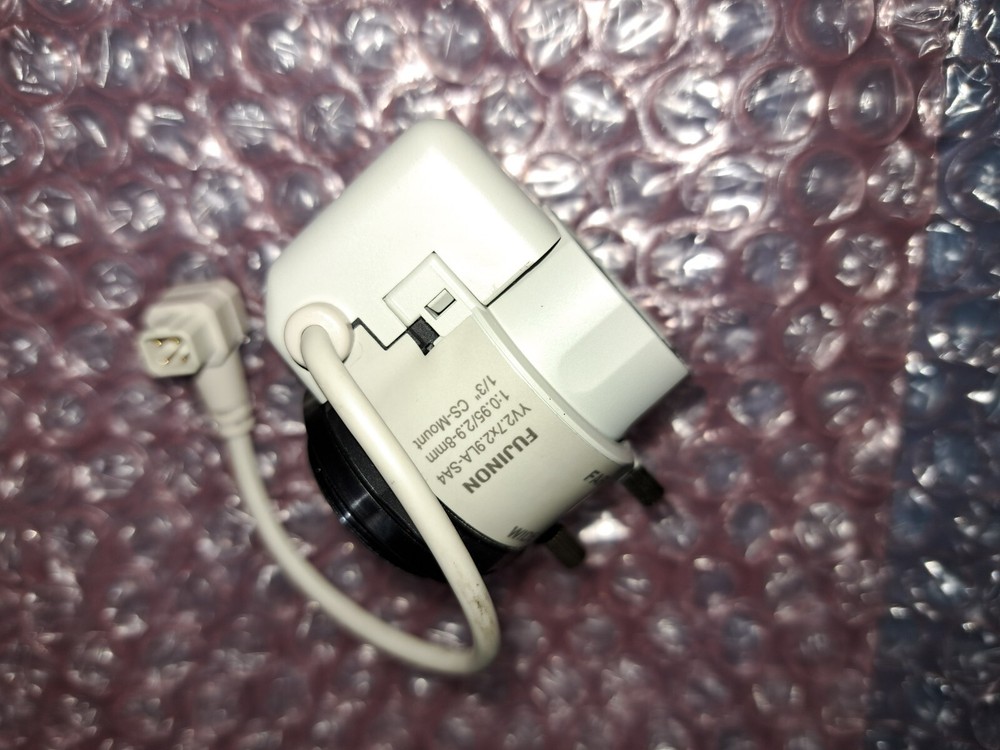

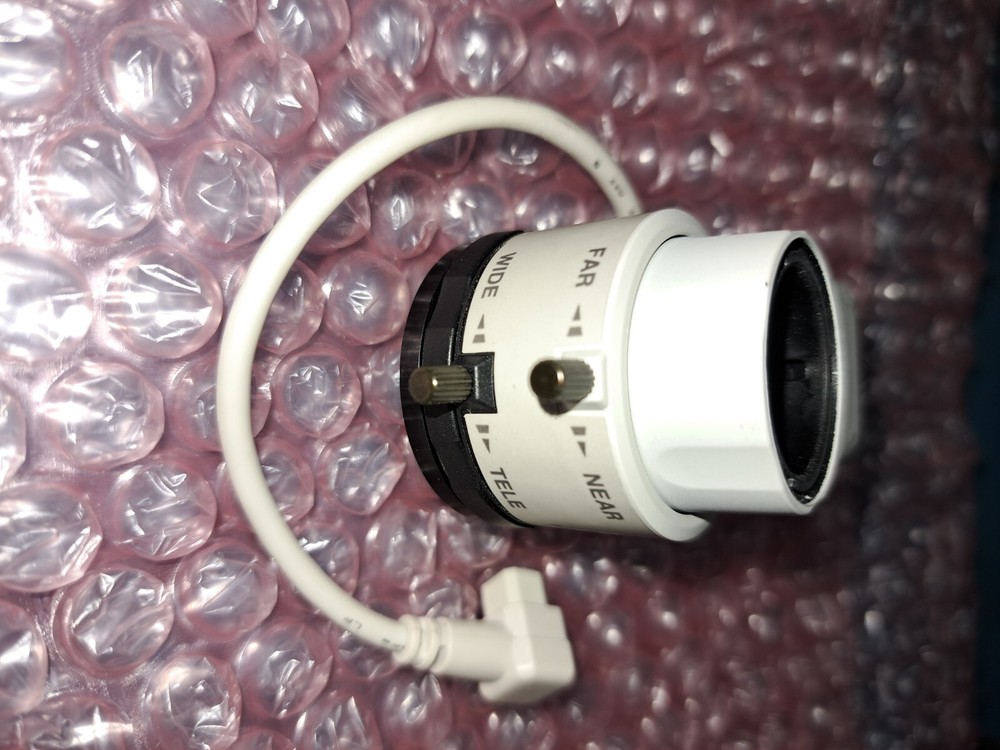

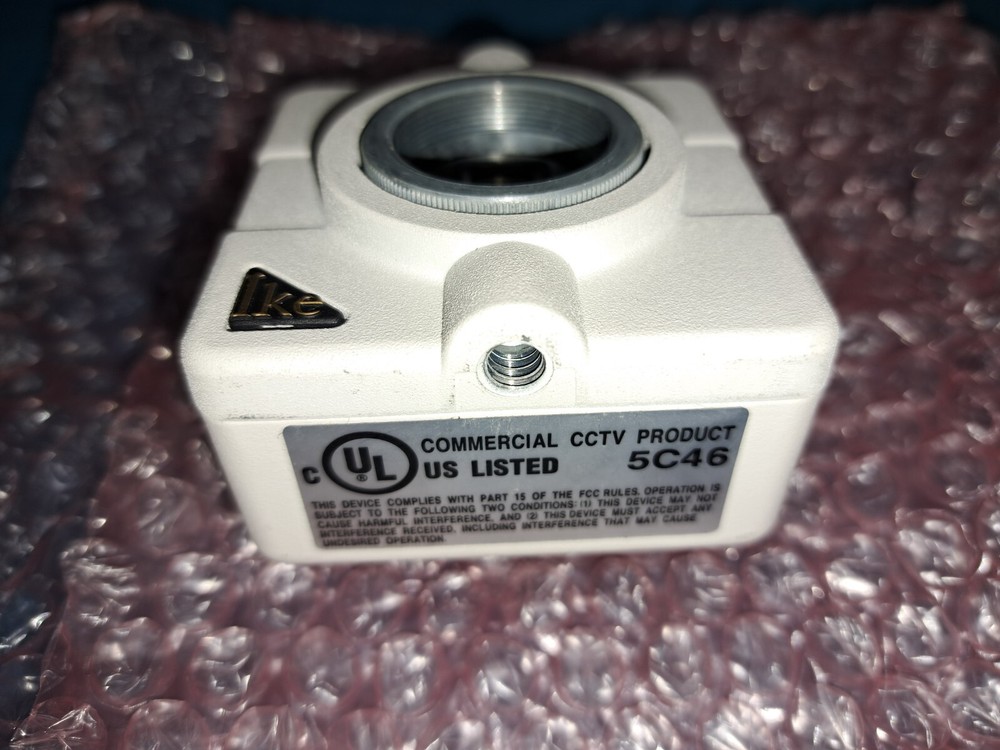

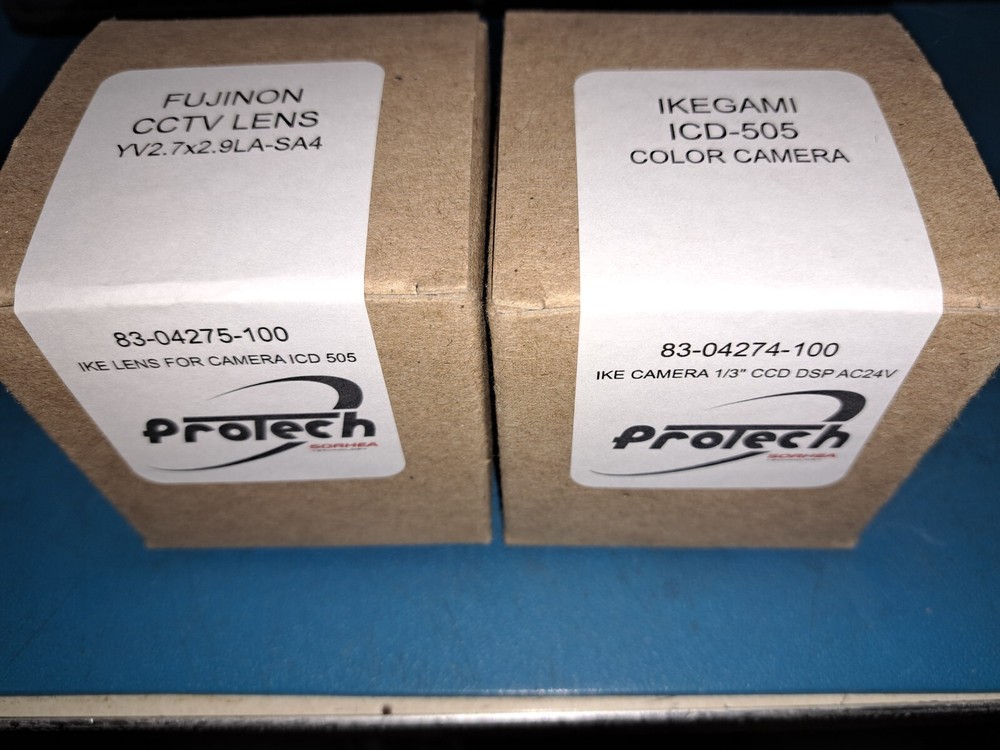

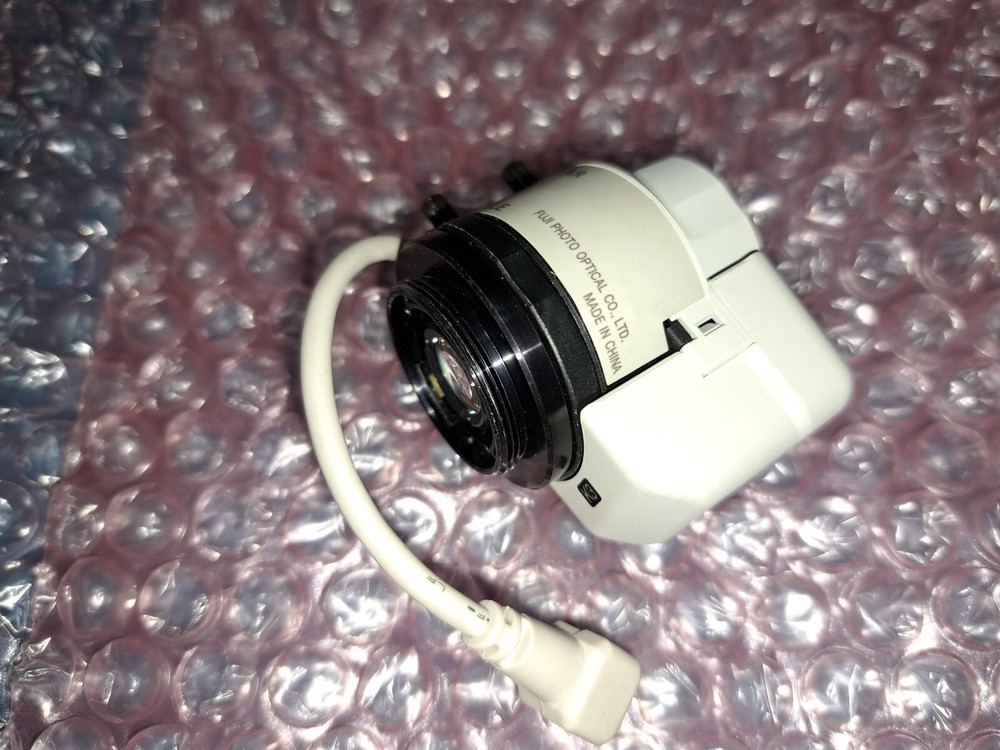

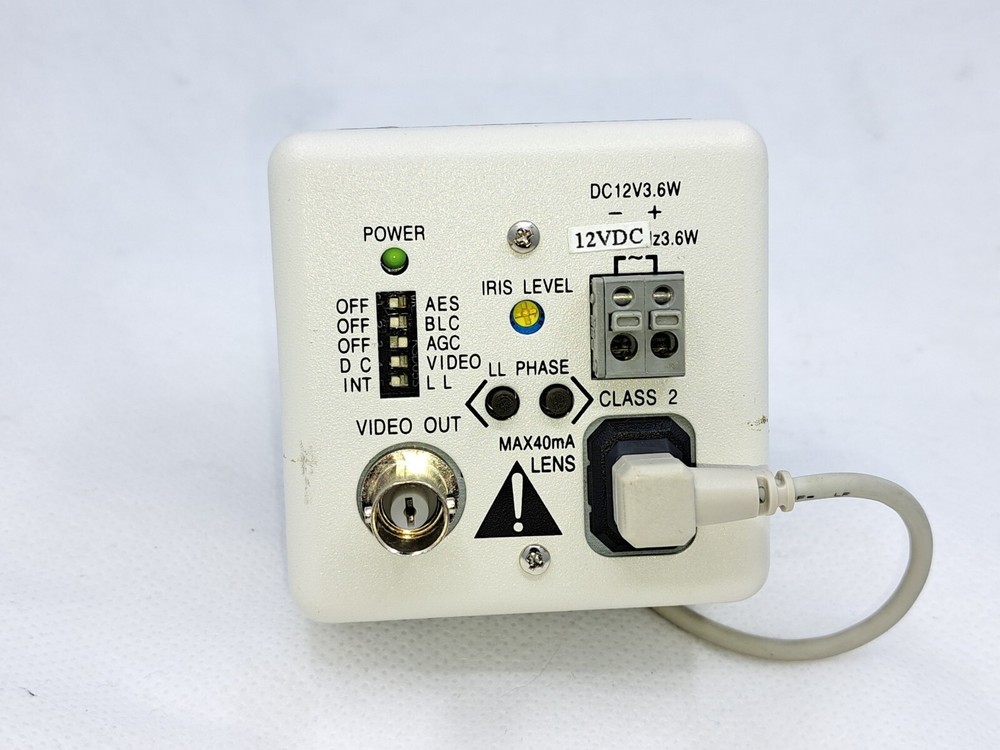

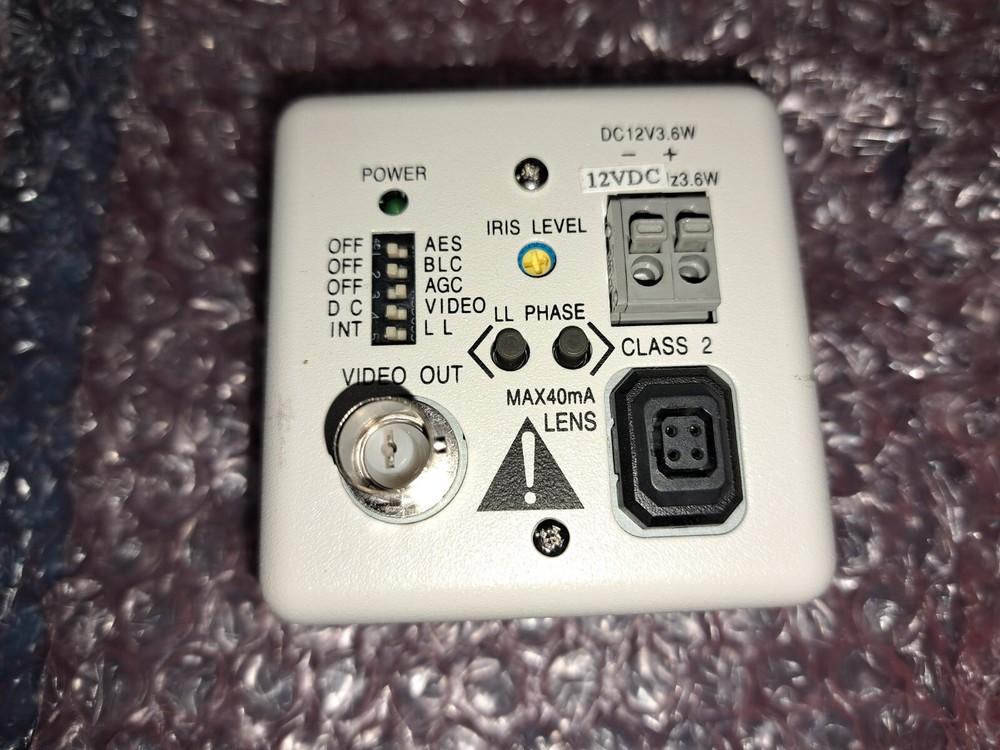

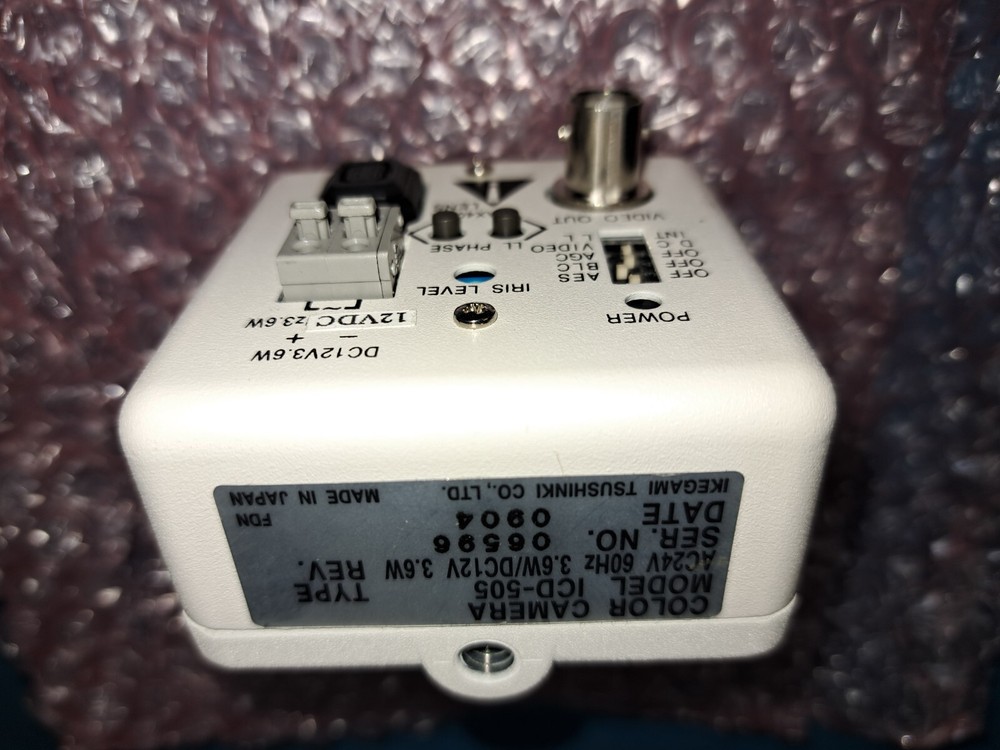

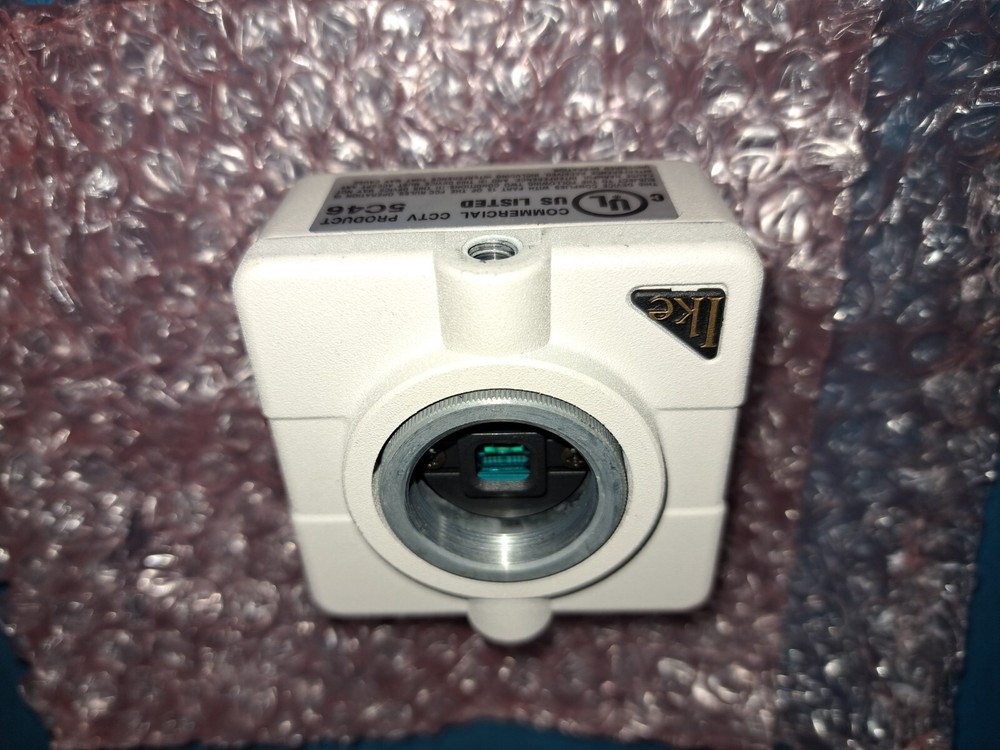

Check the listing for details. IKEGAMI DIGITAL PROCESS COLOR CAMERA ICD-505. Condition: New – Open box. Listed at 25.00 USD. IKEGAMI DIGITAL PROCESS COLOR CAMERA ICD-505. Open Box, New from old stock. SOLD AS IS. They do not have lens covers, but are sealed in bubble wrap. Features(1) Digital processing(2) High-quality picture and high resolution(3) High-sensitivity design(4) Equipped with back-light compensating function(5) 2-way automatic iris controlling function(6) Automatic white balance(7) AES (Automatic Electronic Shutter)(8) Flange focal distance adjusting mechanism(9) The camera measures 53mm in depth in order to fit in a limited space. Specifications(1) Imaging device: 1/3 inch, interline transfer type CCD(2) No. of effective Approx. 380,000 pixels,picture elements: 768(H) and 494(V) linesColor filter: Color difference linesequential system(3) Sensing area: 4.8(H) x 3.6(V) mm(4) Horizontal resolution: 480 lines(5) Minimum illuminance: 1 lux/F1.4 (at subject reflectance of 89%)(6) S/N ratio: 48 dB/rms or better(at rated illuminance)(7) TV system: 2: 1 interlace, as per NTSC system(8) Sync system: Internal sync: Crystal lock or Line lock (phase adjustable)(9) Vertical sync frequency: Int: 59.94HzLine lock: 60Hz(10)Horizontal sync frequency: Int: 15.734KHzLine lock: 15.750KHz(Varies with power frequency for linelock SC notsynchronized)(11)Video output: VBS 1.0Vp-p/75 ohms(12)White balance: TTL method, ATW(13)Backlight compensation: On/off, switchable(BLC)(14)AES: On/off, switchable, AES range 1 : 1600(15)AGC: On/off, switchable(16)Auto iris function: Video iris/DC iris, switchable(DC iris level adjustable)(17)Flange focal distanceadjustment function: Provided(18)Lens mount: CS mount(19)Camera mount: 1/4"-20UNC (top and bottom mounting)(20)Ambient operatingtemperature: -10 to +50°C(21)Power supply: AC24V ±10%, 60Hz /DC12V (10.5-15.0 V)(22)Power consumption: Approx. 3.6W(23)Input/output connectors: (1) Video output; BNC(2) AC24V/DC12V input;2-pin terminal block(3) Lens; 4-pin (applicable plug, E4- 191J-150 or equivalent option)(24)Outer dimensions: 64(W) x 64(H) x 53(D) mm(projections and accessories not included)(25)Weight: Approx. 250g (8.8 oz)(26)Accessories: Operation manual, 1 copy(27)Option: Lens connector plug E4-191J 150 orequivalent 1pc.
